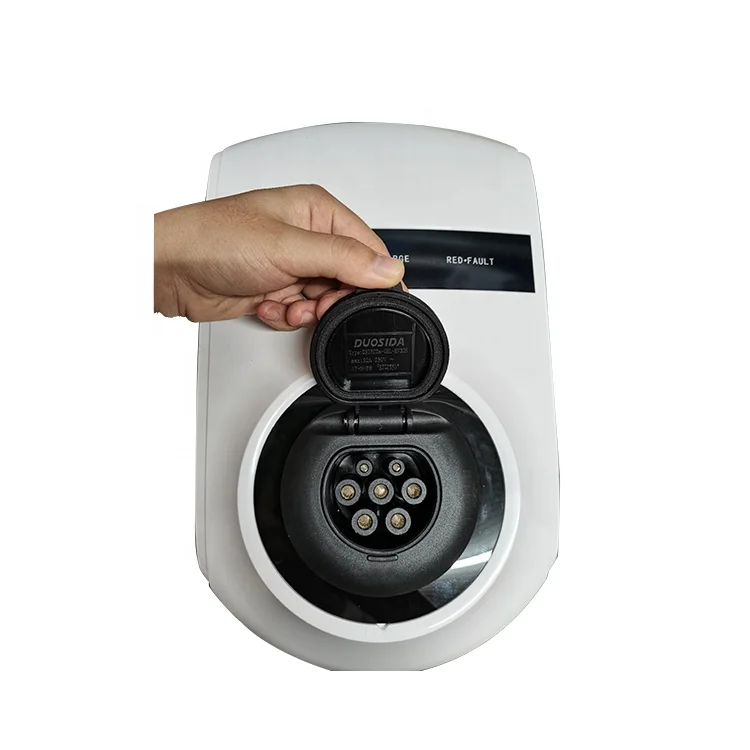

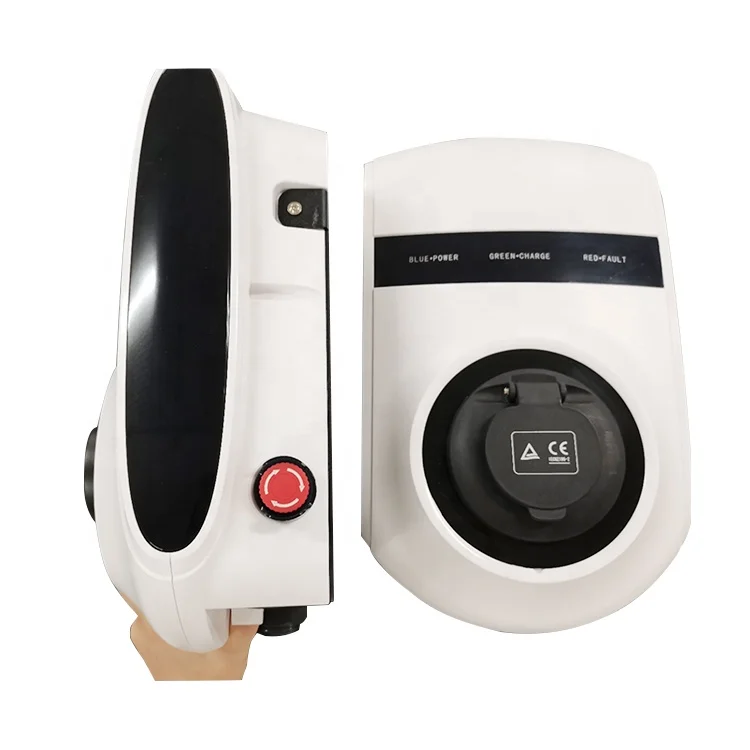

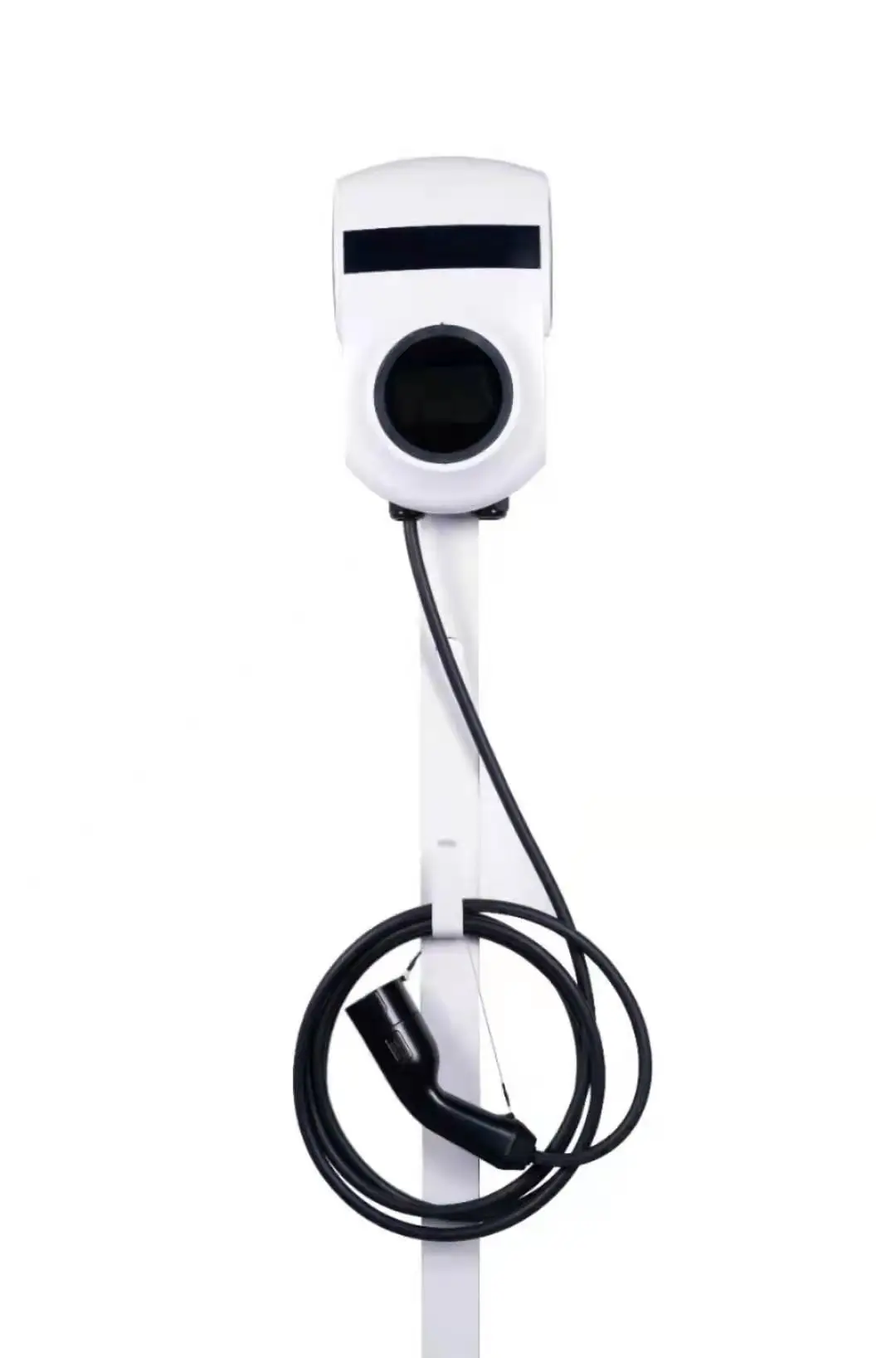

Type 2 Socket Manufacture European 7.2KW Wallbox Home IP55 7KW EV Charger 1Phase IEC 62196 2 Electric Car EV Charging Station
- Category: >>>
- Supplier: Shenzhen Tdt Co. Ltd.
Share on (1600217367401):
Product Overview
Description
Details Images
Input & Output | ||||||
Input voltage/Output volt | AC230V±10% | Rated working current | 32A | |||
Input frequency | 50Hz/60Hz | Charging interface type | IEC 62196-2 | |||
Max. output power | 7.36KW | Standby Power | <6W | |||
Protection | ||||||
Over voltage protection | YES | Earth leakage protection | YES | |||
Under voltage protection | YES | Over-temp protection | YES | |||
Over load protection | YES | Lightning protection | YES | |||
Short circuit protection | YES | |||||
Environment index | ||||||
Working temperature | -30℃~+55℃ | Working Humidity | 5%~95% without Condensation | |||
Working elevation | <2000m | Protection | IP55 / IK10 | |||
MTBF | 50000 Hours | Application Scenes | Indoor / outdoor | |||
Warranty | 12 months | |||||
Optional Features | ||||||
Activate method | RFID | Output Port | Type 2 / Type 1/ GB/T | |||
Output Port | 1. Type 2 socket 2. Type 2 plug with 4M cable 3. Type 1 plug with 4M cable | |||||
Adjust Current | 8A/16A/24A/32A Current Switching | |||||
Leakage protection(IEC 62955 /Report) | Type A + DC6mA | |||||
Dispaly | LCD Screen | |||||
Features of Product
1. ABS+PC Material,strong anti-corrosion and ultraviolet rays, not easy to fade and yellow.
2. Control charging via RFID card, safer and simpler(Optional)3. IEC 62955 current leakage protection(Optional)
4. LCD screen(Optional)
5. Help you reducing transportation costs. Small size: 211*122*345mm. light weight.
6. Customize service
2. Control charging via RFID card, safer and simpler(Optional)3. IEC 62955 current leakage protection(Optional)
4. LCD screen(Optional)
5. Help you reducing transportation costs. Small size: 211*122*345mm. light weight.
6. Customize service
