Overview     Professional front end loaders telescopic loader



 CM965 WHEEL LOADER

•
  It adopts Weichai WD10G240E21 engine which features strong power, environmental care and energy-saving, big torque reserve, and reliable performance.


• The frame articulation adopts tapered roller bearing, which has high bearing capability and long service life.


• The fixed axle power shift transmission with 4 forward gears and 4 reverse gears is very convenient for the operator.


• With pilot single lever hydraulic operating system, the boom lifting and lowering, bucket withdrawal, and discharging can be performed easily, which reduces driver’s labor.


• The coaxial flow amplifying steering hydraulic system with prior steering and dual-pump converging reduces the power loss in the system, which has good economic performance, and less bumping on rugged road, and it improves the operating comfort.


• The luxurious cab features wide view, damping seals, and noise absorption. The humanity designs such as cup stand and cigar lighter make the operating environment more comfortable.


• The main high pressure hoses adopt products of world-famous brands, which ensure high reliability.


• It adopts specially designed tyre with extra deep tread patterns, which features excellent capability of anti-cutting, anti-tearing, and wear resistance. And the tyre has longer service life.


• ROPS and FOPS device can be mounted according to the customers’ needs.







Technical parameter                   front end loaders telescopic loader



MODEL	CM965 WHEEL LOADER
PARAMETER
	RATED CAPACITY	3.5M3
	RATED LOADING	6000KGS
	OPERATING WEIGHT	19500KGS
	MAX. BREAKOUT FORCE	185KN
	MAX. DRAWBAR PULL	167KN
	MAX. DUMP HEIGHT	3238/3530MM
	MAX. DUMP REACH	1218/1328MM
	GRADIENT ABILITY	30°
	STATIC TILTING LOAD	12T
	DISTANCE BETWEEN AXLES	3200MM
	DISTANCE BETWEEN WHEELS	2250MM
	THE MIN. CLEARANCE TO THE GROUND	458MM
	DIMENSION(LxWxH)	8351x3082x3480mm
BRAKES
SERVICE BRAKE	DOUBLE-CIRCUIT AIR-OIL CALIPER DISK BRAKE
PARKING BRAKE	Extinguish Brake
STEERING SYSTEM
TYPE	ARTICULATED FOLD-TYPE FRAME, FULL HYDRAULIC STEERING
STEERING ANGLE	35(EACH DIRECTION)
MIN. TURNING RADIUS	6520MM(OUTSIDE OF FRONT WHEEL)
	7290MM(OUTSIDE OF BUCKET)
TRANSMISSION
	BEILIAN DYNAMIC STRAIGHT GEAR CHANGE
TRAVEL SPEED	4 F / 2R
4F	8/15/24/38 km/h
2R	8/24  km/h
ENGINE
MODEL	Weichai WD10G240E21 DIESEL ENGINE
TYPE	STRAIGHT,SIX CYLINDER,FOUR-STROKE,WATER-COOLING
CYLINDERxBOREx STROKE	6x126x130mm
RATED POWER	175KW
MAX.TORQUE	912N.M
RATED SPEED	2200RPM
MIN.CONSUMPTION	210G/KW.H
TIRES
MODEL	23.5-25-20PR L5
Tire pressure Front/Rear tire	0.28-0.32 / 0.28-0.32  Mpa

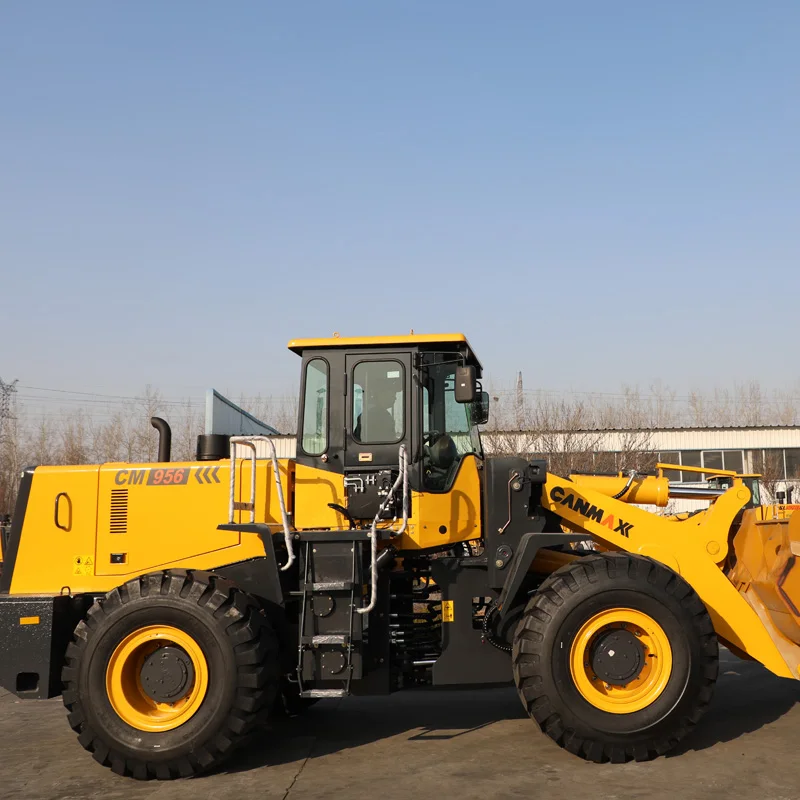

 CM956 WHEEL LOADER



Adopt Weichai 2000rpm engine, large power output, low oil consumption, electric start, environmental protection, low noise, easy operation.

•
  Adopt Hangchi gearbox, with high traction and high efficiency.


•
  Dual pump interflowing hydraulic system by equipping priority unloading valve
  Bucket can low down flat, reducing operation work.


•
  Single pipe driving brake and extinguish brake make the operating of the loader more safe.


•
  The fuel tank is placed at the back of rear frame, the rear axle loaded is adjusted, the distribution of whole vehicle is more reasonable

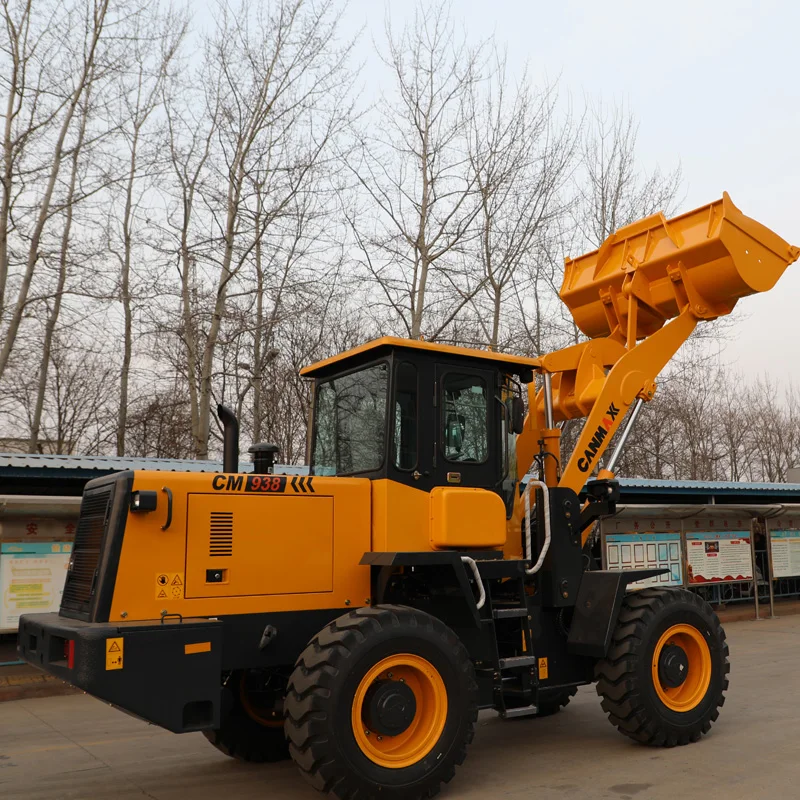

CM938 WHEEL LOADER



•  The fuel tank is placed at the back of rear frame, the rear axle loaded is adjusted, the distribution of whole vehicle is more reasonable.


•
  Increase lifting ability by increasing diameter of lifting cylinder without change of lifting point of arm on front arm


•
  Change the hydraulic system from single pump supply to dual-pump interflow by equipping priority unloading valve, with steering is prior.


•
  Ensue the working cycle time while increase lifting ability.









     front end loaders telescopic loader





Wheel loader  front end loaders telescopic loader

1.    What size of the bucket do you need? How many tons? We have 5ton, 6ton,7ton,8ton wheel loader?

2.    What kind of material you need to load? What is the working condition? Is it for crushing plant?
