Product Overview
Description
Factory Supply Isolated Soy Protein Rotary Vibration Sieve Processing Equipment
Soybean protein isolate (SPI) is a kind of whole protein food additive produced from low temperature dissolving soybean meal. Soy isolate protein contains more than 90% protein, nearly 20 kinds of amino acids, and essential amino acids. It is rich in nutrition and does not contain cholesterol, which is one of the few species of plant protein that can replace animal protein. Pea or other beans can also be the raw material to produce isolate protein.
Isolated Soy Protein Processing Equipment Project Overview
- Production Capacity Undertaking: 2~100 TONS PER DAY
- Raw Materials: Soya Bean ⇒ Low Temperature Soya Meal

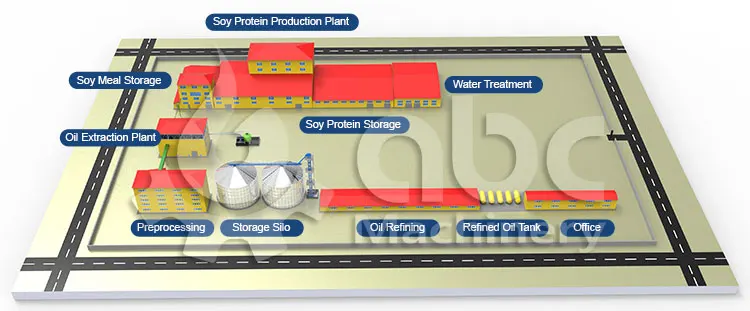

- Layout Design: Soybean Pretreatment Section; Low Temperature Solvent Extraction Section (Soya Meal); Soy Protein Isolate Extraction Section; Soy Protein Drying Section;
- Main Equipment: Soya Huller, Soya Flaker, Chain Extractor, Low Temperature Desolventizer, Wax Recovery, Extraction Tank, Centrifuge Neutralization Tank, Spray Dryer, Water Treatment, Boiler, etc.
Click Now for Catalogs & Factory Price!
Main Index List of the Isolated Soy Protein Equipment
| Index of Final Soy Protein Isolates Produced by Our Projects | |||
| Item | Index | Item | Index |
| Protein | ≥90% (on dry basis) | Moisture | ≤7.0% |
| Fat | ≤1% | NSI | ≥85% |
| Ash | ≤6.0% | PH | 7.2±0.2 |
| Water and Oil Absorption | 1:4:4 | Fineness | ≥95% (100 mesh sieve material) |
| Total Number of Bacteria | ≤30000 per gram (pathogenic bacteria must not be detected) | ||
Remark: The testing standards are implemented in accordance with the existing domestic standards.
| Economic Indicators of Finished Soy Protein Isolates | |
| Item | Index |
| Soy Protein Isolate Yeild | ≥44% (in accordance with raw material) |
| Power Consumption | 1400kwh/ton soybean isolate |
| Steam Consumption | ≤15ton per ton soybean isolate |
| Water Consumption | 40ton per ton soybean isolate (including circulating cooling) |
| Low Temperature Soybean Meal Index | |
| Protein Content | ≥53% (by dry base) |
| Moisture of Soybean Meal | ≤10% |
| Residual Oil | ≤0.5% |
| Content of Soluble Meal | ≤500PPM |
| NSI | ≥82% |
| The Skin in the Finished Low Temperature Soybean Meal | ≤1.5% |
| Powder Degree (60 mesh screen) | ≤ 3% |
| Economic and Technical Indicators | |
| The Thickness of Embryo Slices | 0.25 - 0.30MM |
| Moisture | 9.5 - 10.5% |
| Temperature | 55 degrees. |
| The Rate of Desquamation and the Rate of Degerms | > 95% |
| Solvent Consumption | 3.5 kg/ ton material |
| Nitrogen Solubility Index | > 82% |
| Fat | < 1% |
| Quality of Crude Soybean Oil | |
| Total Volatiles | ≤ 0.2% |
| Moisture | ≤ 0.2% |
| Impurities | ≤ 0.2% |
| Residual Solution | ≤ 0.2% |
Processing Characteristics and Application of Soybean Protein Isolate
| Processing Characteristics | Application |
| Gelformability | Ham, Sausage, Fish Cake, Tofu |
| Emulsibility | Sausage, Candy, Plant-based Mayonnaise, Pasta |
| Water-retaining Property | Ham, Sausage, Hamburger, Fish Cake |
| Adhesiveness | Ham, Sausage, Hamburger |
| Solubileness | Drinks, Milk Powder, Ice Cream, Soy Milk |
| Cohesiveness | Sauce and Thick Soup |
| Foamability | Butter |
| Extensibility | Noodles and Fish Cake |
| Tissue | Granulated Soy Protein |
| Fibrogenesis | Fibrous Soy Protein |
| Formative | Bean Curd Shim |
Click Now for Catalogs & Factory Price!

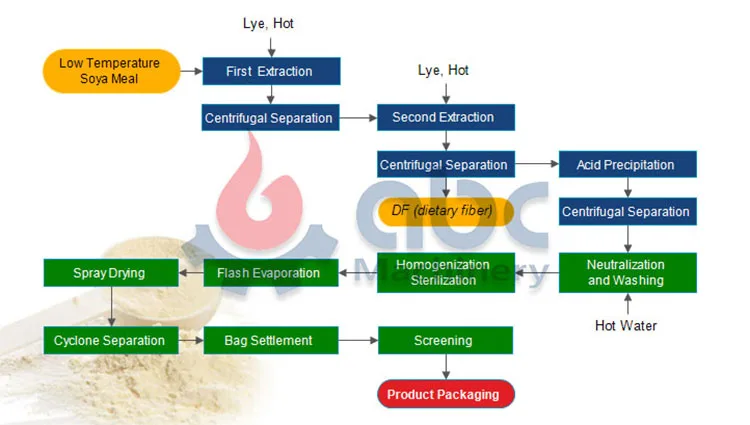

Isolated Isolated Soy Protein Equipment Processing Steps
Step 1. Soybeans Pretreatment
Step 2. Low Temperature Soybean Meal Processing
Step 3. Soy Protein Isolate Production
Click Now for Catalogs & Factory Price!

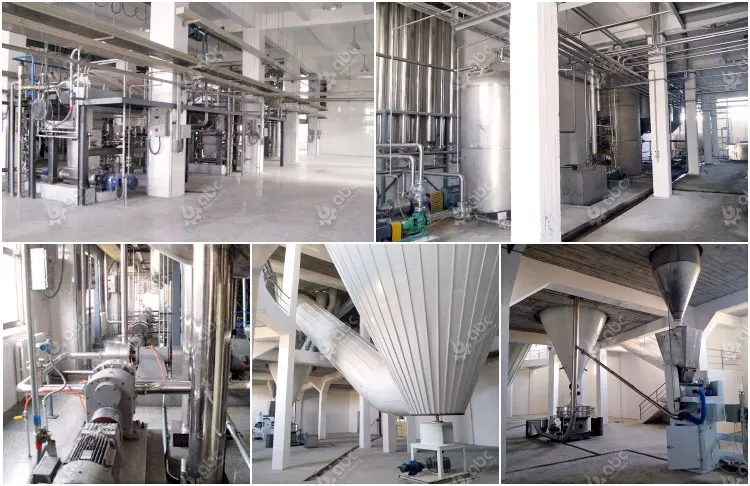

ABC Machinery Isolated Soy Protein Processing Equipment Project Display
Services for Isolated Soy Protein Equipment by ABC Machinery
Soy protein isolate has been widely used in food industry and it will have a broad market prospect. Investing on soy protein isolate would be far-sighted. With the concept of “Customers First”, ABC Machinery is focusing on offering best-of-breed solutions to our customers.
- Before Sales: Customized Business Plan & Cost Analysis
- On Sales: Factory Layout Design & Equipment Manufacturing
- After-Sales: On-site Installation & Commissioning, Operation Guide & Technical Training, etc.
Isolated Soy Protein Processing Equipment
Isolated Isolated Soy Protein Equipment
Isolated Soy Protein Equipment
Features of Isolated Soy Protein Processing Equipment Line Designed by ABC Machinery
- The material contact part is made of stainless steel to ensure clean and sanitary;
- Reaction tank adopts unique stirring structure to prevent stratification;
- Water, alkali, and acid ratio are controlled by computer;
- Unique sterilization process to prevent protein denaturation;
- The drying tower uses a high-pressure hot blast stove to reduce operating costs;
- Unique air filtration to ensure clean air and prevent bacterial contamination;
Click Now for Catalogs & Factory Price!
