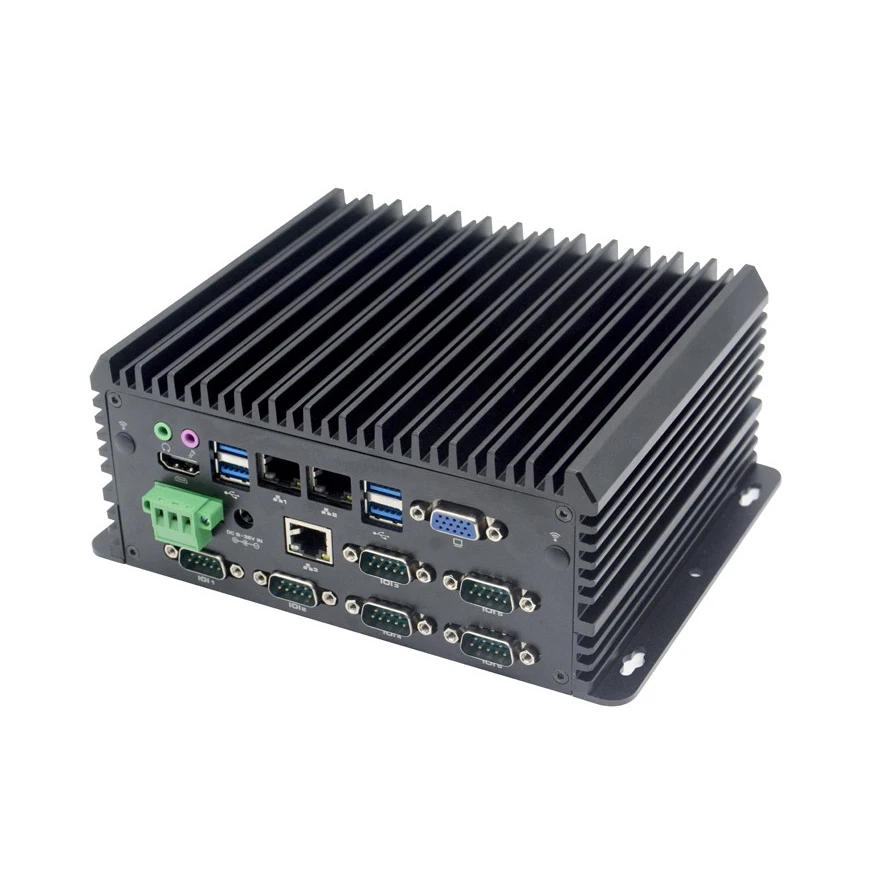

Fanless Mini Embedded Box PC powered by 4th/5th/6th/7th/8th Gen Intel Core i3/i5/i7, Celeron 3865U with 7 x USB, 6 x COM(RS485/

Model

EPC-C5760Z-R6

Case

Mechanics

All aluminum alloy without fan

Color

Bright black

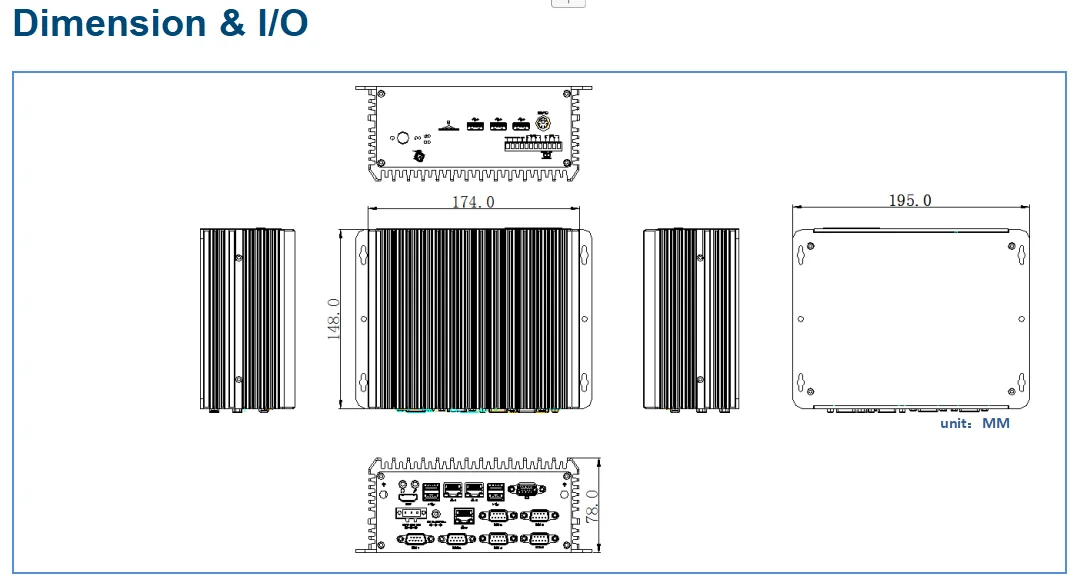

Dimensions

174mm x 148mm x 78mm

Weight (bare

1.65KG

Installation

All aluminum alloy without fan

Mainboard

CPU

Integrated Intel® Skylake-U I5 6360U/2.0GHz dual-core four-thread

System chip

Based on Intel® Skylake-U SOC platform

display

Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.4

RAM

2 x DDR4 SODIMM memory slot, support dual-channel 2133MHz memory,

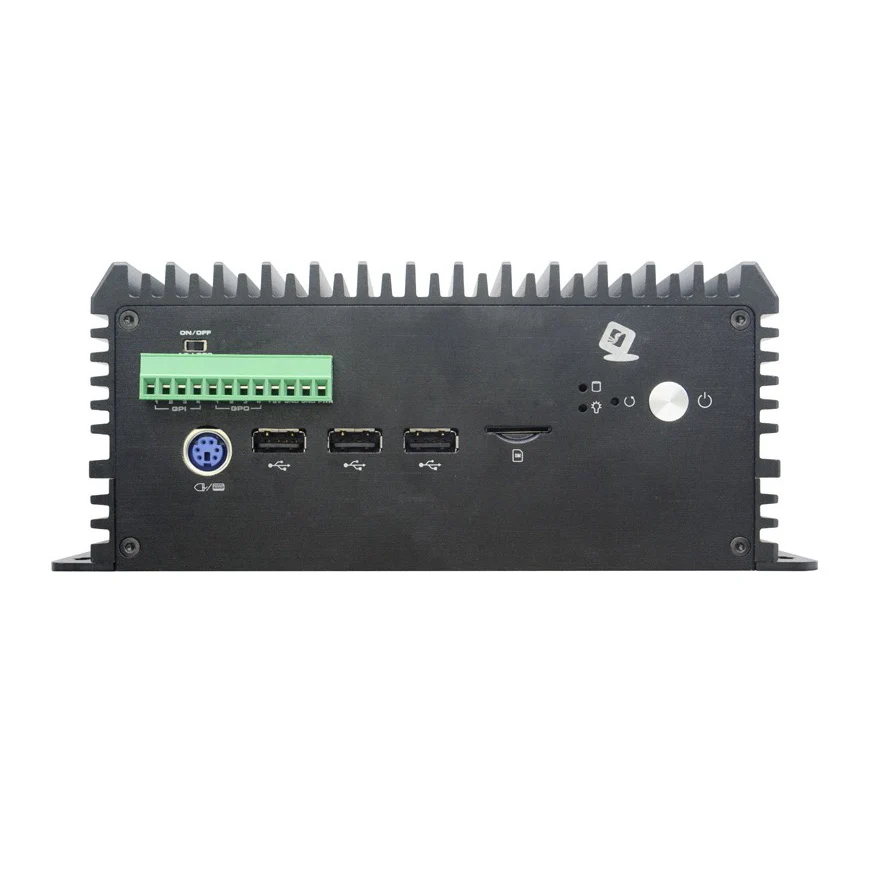

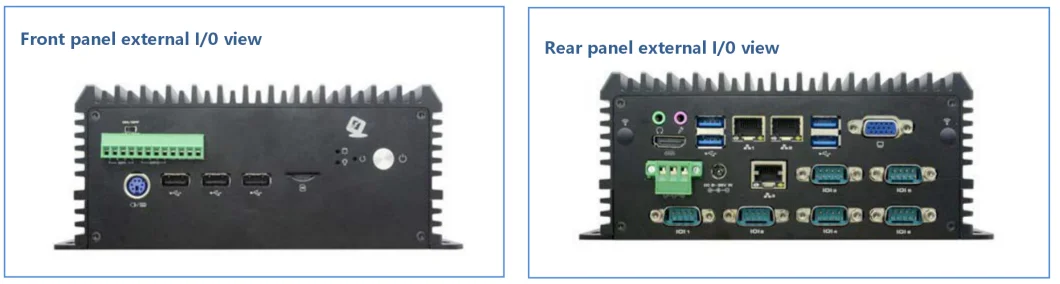

Front panel interface

POWER

1 x Power switch, 1 x Reset switch

AC LOSS

1 x AC LOSS (Toggle switch when power on)

USB

3 x USB2.0 interface, 1 x built-in USB dongle

Phoenix

1 x 12pin, support four in and out GPIO, switch, 5V

PS2

1 x PS/2 keyboard and mouse interface

SIM

1 x SIM card slot, 3G/4G module application

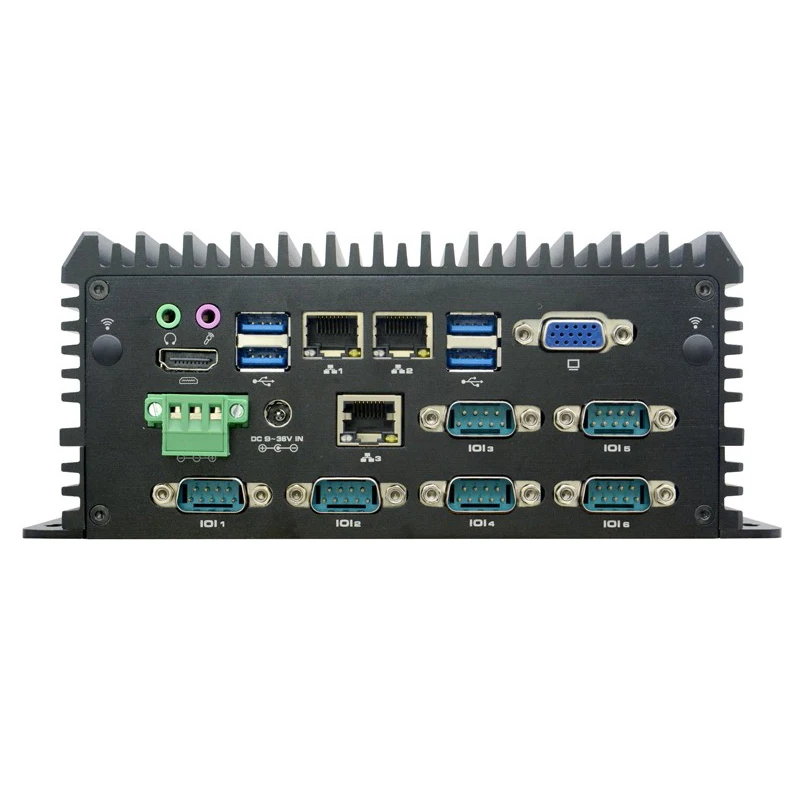

Rear panel interface

Display

1 x VGA interface, 1 x HDMI1.4 interface

LAN

3 x Intel® WGI211AT Gigabit network card, support Wake on LAN, PXE

USB

4 x USB3.0 interface

COM

6 x RS232 serial interface, and all support RS485, with isolation

Audio

1 x Line out interface, 1 x MIC interface

Power supply

1 x DC power adapter interface, 1 x 3pin power interface, support 9~36V

Storage

SATA

1 x 2.5 inch hard drive expansion

Solid state drive

1 x MSATA SSD solid state drive expansion, transmission speed up to 6Gbps

Expand

Mini PCIE

1 x Mini PCIE slot, support WIFI/4G module

M.2

1 x M.2 slot, support M.2 2260/2280 NVME PCIE x 4 standard SSD

Software support

Microsoft

Windows 10, 64bit (without key)

Linux

Ubuntu

Watch Dog

Support hardware reset function (256 levels, 0~255 seconds)

Power requirement

Power type

External power adapter or open power supply

Voltage input

9V~36V wide voltage

Power output

36W~180W

Surroundings

Operating

-10℃~60℃

Storage

-20℃~70℃

Relative

5%-95% relative humidity, non-condensing

Job vibration

0.5g rms/5-500HZ/random/operating
