Portable bone density meter automatic dexa ultrasound bone densitometer
- Category: >>>
- Supplier: Jinan Mackins Biotechnology Co. Ltd.
Share on (1600217485750):
Product Overview
Description
Specification

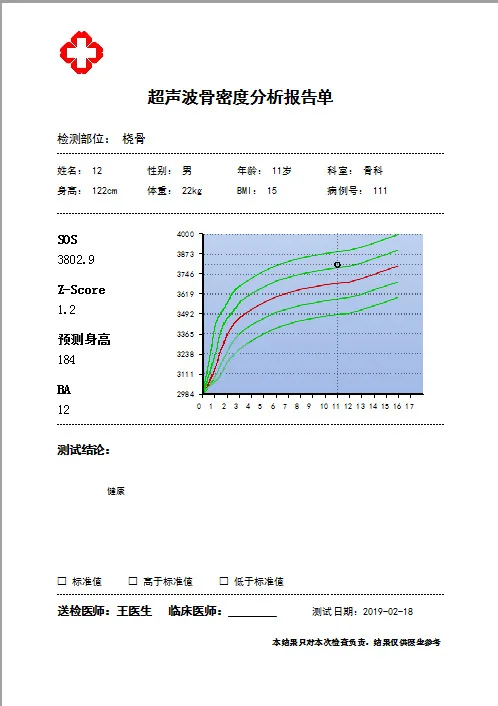

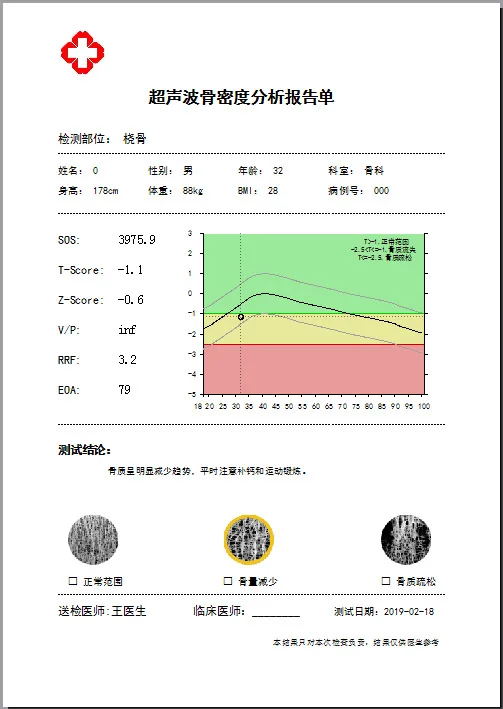

The bone densitometer is a medical test instrument that uses ultrasonic test method to test human bone density minerals and obtaining various relevant data.The results of the bone densitometer test are mainly based on T values,also including Z values, bone density, bone mass, etc.,it using sound wave velocity ( SOS) and amplitude attenuation (BUA) can reflect the bone mineral content and bone structure and bone strength. The principle of ultrasonic test bone density is to calculate the density of bone by obtaining the velocity of the ultrasonic at the bone being tested.It is non-radiative and the diagnosis of fractures is more sensitive.can help patient recovery.
product name | Portable bone densitometer |
Product volume | 52*15*42 |
product weight | 7.5kg |
Power supply | AC 220V±22V 50HZ±1HZ |
Input power | 180VA |
SOS measurement precision | Accuracy ≤0.15:% |
SOS measurement accuracy | RMSCV=0.33±0.05 |
SOS measurement repeatability | Coefficient of variation CV≤0.3% |
Sound velocity SOS measurement range | 2500-4800M/S |
People suitble | Multi-population measurement (infants + children + adults + pregnant women + elderly) |
Complete counting parameters | SOS, T value, Z value, V/P percentage , EOA, RRF,BMI, etc. |
Measurements | SOS, non-invasive, non-radiation |
Probe | 0.5MHZ |
Measurement accuracy & precision | RMS CV=0.35±0.05; Probe accuracy≦0.25% |
measure time | 40 s ± 2 s |
HMI | Mouse and keyboard |
Equipment calibration | SQV module test |
Display screen | HD color LED monitor |
power supply | AC 220±22V 50Hz±1Hz |
input power | 180VA |
Safety classification | I type BF type |
Host size | 590mm X470mm X 900mm |
Host weight | ≤ 5kg |
Waterproof splash protection type | IP*7 |
Operation category | continuous operation |
Product Description

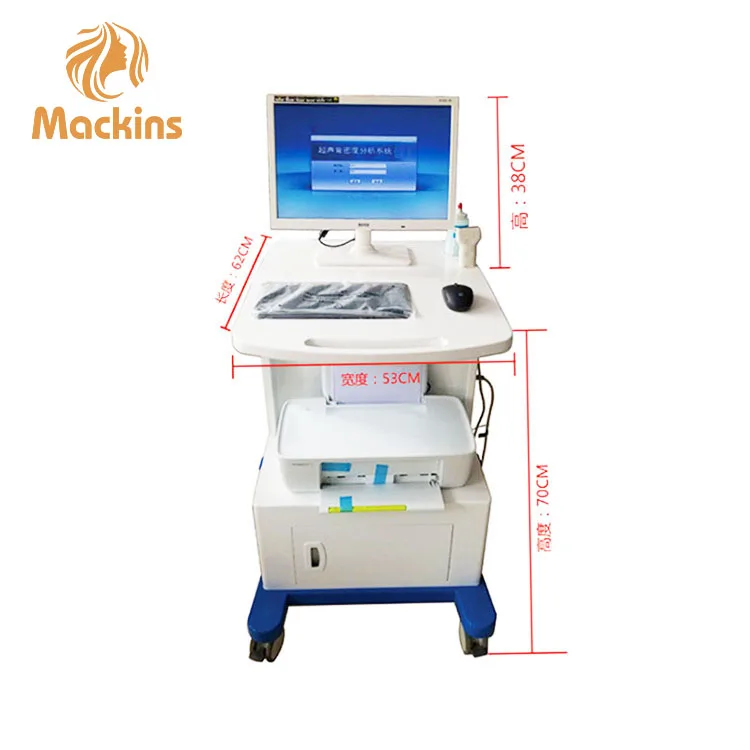

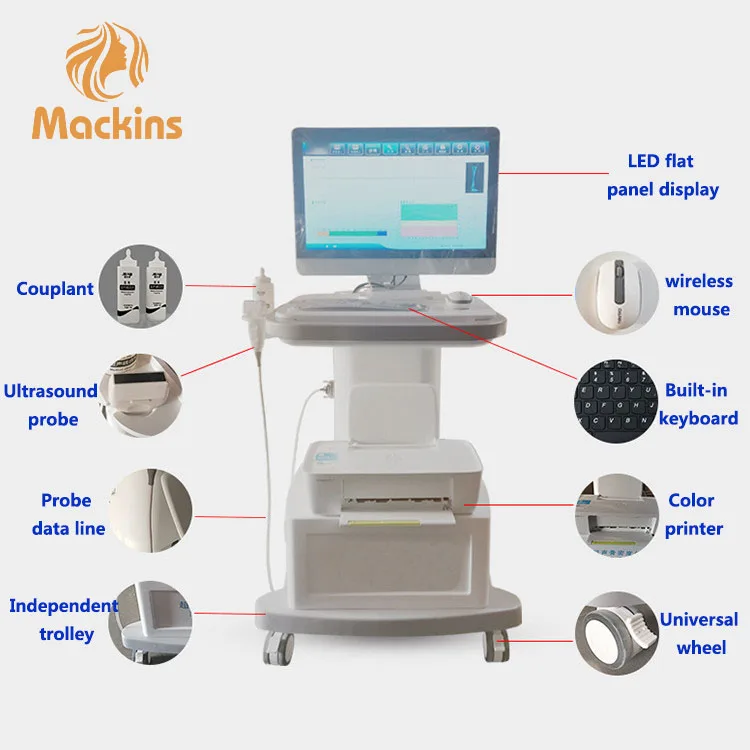

Portable Bone Densitometer

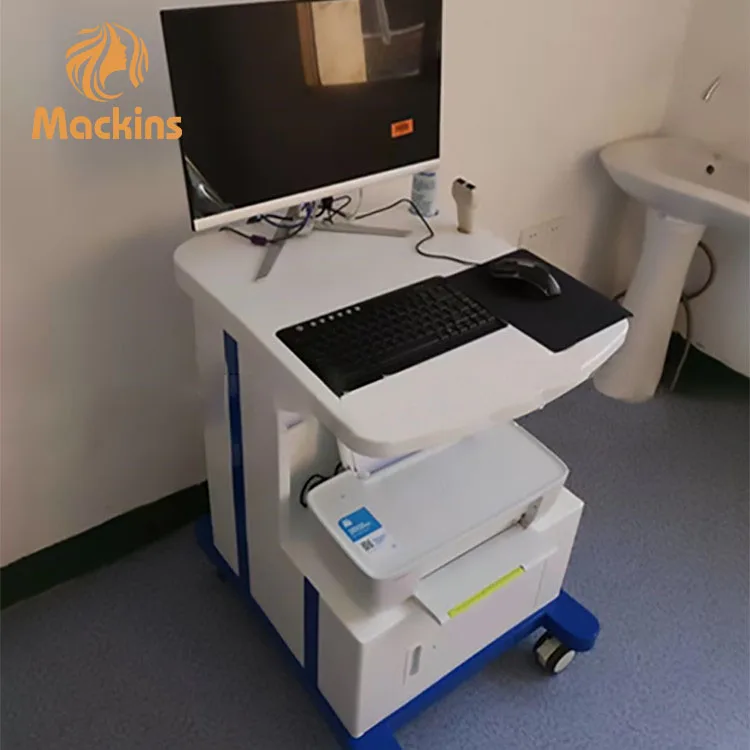

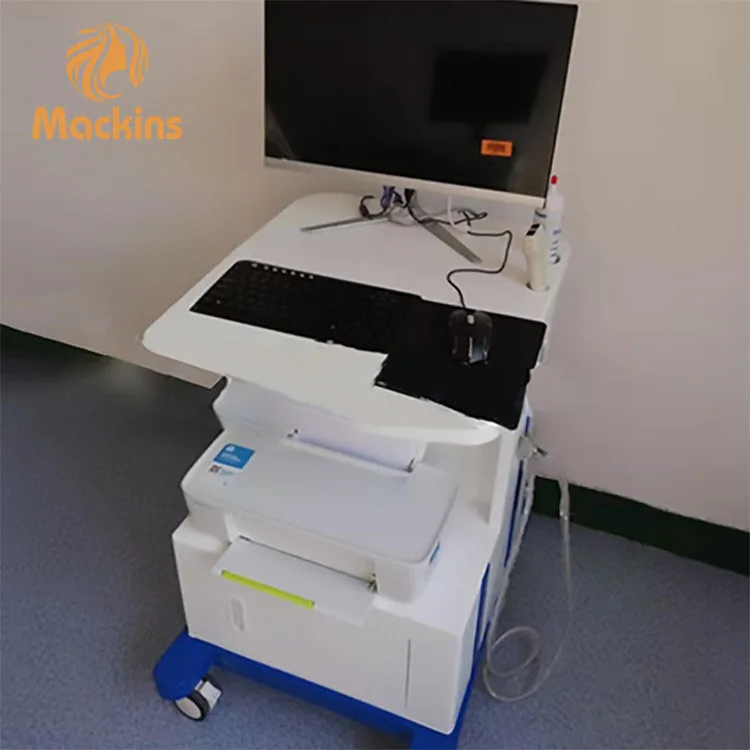

Vertical ultrasonic bone densitometer
Packing & Delivery
Carton + wooden box packaging or according to customer
Company Profile
Jinan Mackins Biotechnology Co., Ltd. is a leading innovator of advanced aesthetic medical technologies.Our Company's technology enables physicians to provide excellent solutions for a broad range of medical-aesthetic applications including face and body reshaping, resurfacing skin, eliminating fine lines .We always looking forward to developing new solutions, products and industry-leading services designed which the needs of our partner physicians.
FAQ
Q1: Can I put my own logo (OEM)?
A1:We accept all OEM orders,just contact us and give me your design.we will offer you areasonable price and make samples for you ASAP.
Q2: What is the MOQ?
A2: We welcome small quantity for testing. MOQ is only 1 package!
Q3: Can you send samples to check?
A3: Sure, we can. Sample is available and free for you, and the freight is on your account.
Q4: Can I mix different models?
A4: Yes, you can mix different models.
Q5: When you ship my order?
A5: Normally within 3-5 days after receiving your payment, but it can be negotiated based on order quantity.Hope you could understand!
Q2: What is the MOQ?
A2: We welcome small quantity for testing. MOQ is only 1 package!
Q3: Can you send samples to check?
A3: Sure, we can. Sample is available and free for you, and the freight is on your account.
Q4: Can I mix different models?
A4: Yes, you can mix different models.
Q5: When you ship my order?
A5: Normally within 3-5 days after receiving your payment, but it can be negotiated based on order quantity.Hope you could understand!
