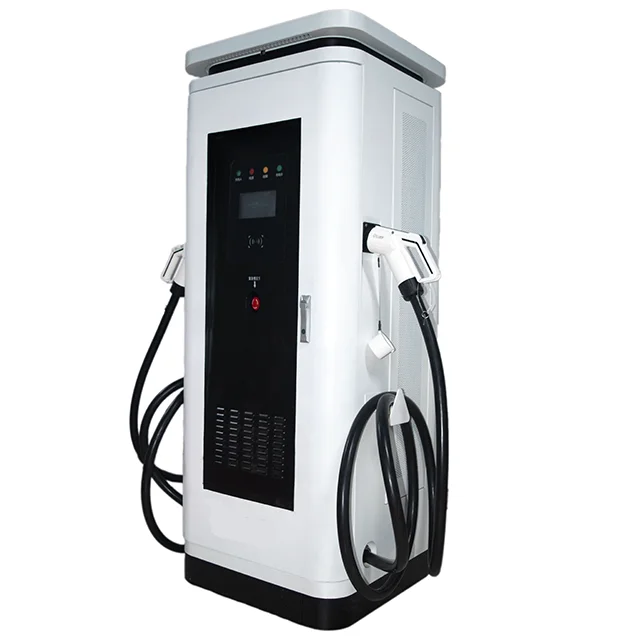

New Arrival Dc Ev Charger 120kw Ccs1 Electric Charger Car Station charging station for electric vehicles
- Category: Car Charger >>>
- Supplier: XuChang shuoNiu Trading Co. Ltd.
Share on (1600217510703):
Product Overview
Description
Product Description
Input Rating | 3-phase 260V-530V AC, 50/60Hz |
Power Factor | >=0.99 |
Efficiency | 0.955 |
Power Output | 60KW/120KW/150KW |
Output Voltage | 150V-750V/150V-550V/150-1000VDC |
Output Current | 100A MAX/200A MAX/ 250A MAX |
Electrical Protection | Over current, Short circuit, Over voltage, Under voltage, Ground fault, Lightning Surge, Over temperature |
Display | 8" TFT LCD touch screen |
Supporting Language | English, Spannish, or other required local language |
User Authentication | RFID card reader, user name & password, mobile No. & pin code |
Push Buttons | 3 Physical buttons for Multi-functional purpose, Emergency stop |
Charge Options | Charge by duration, by energy, by amount |
Operating Temperature | (-30't to +55't) in operation, (-40't to +75't) in storage |
Working Humidity | 95% relative humidity, non-condensing |
Altitude | Up to 6000 feet (2000 m) |
IP Performance | IP55 |
Cooling | Forced air |
Charging Cable Length | 16.4 ft (5 m), straight cable |
Dimension (H x W x D, mm) | 690*750*1700 mm |
Net Weight | 180KG/220KG/320KG |
Network Interface | Ethernet, 4G,WIFI |
OCPP | OCPP1.6J |
Web Portal & Mobile App | Yes, ios/Android |
Main Feature
This ev charging station with 1000V DC ouput option. The 1000V option is able to charge electric vehicles with a battery voltage
below 500 V and with battery voltage between 500V to 1000V.

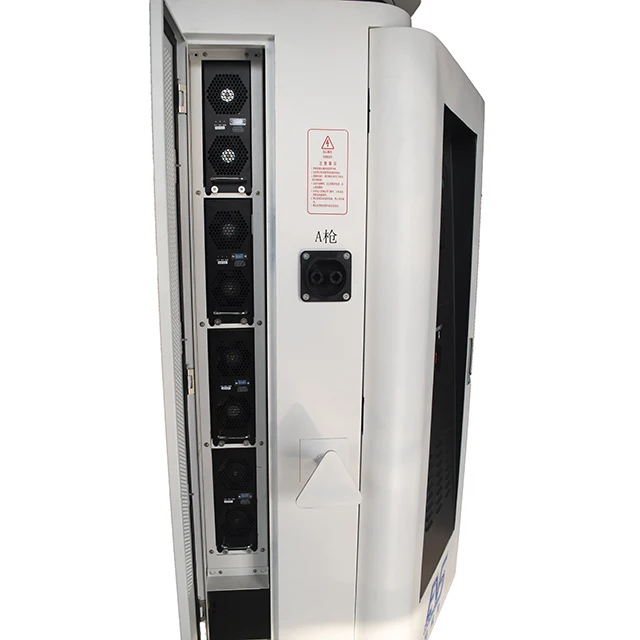

This ev charging station system with modular design, which enables the operator to start today with lower power at lower cost and
can easy change to high output by just adding or taking out the power modules.
2- Optimize investment cost
Save initial investment costs and start smart, by sharing capacity for three electric vehicles.
Free combination of different charging connector standards (CCS1 / CCS2 / CHADEMO / TYPE1 / TYPE2), Max 3 connectors charging at
the same time.
Senku's Ultra Fast Charger (UFC) is maintenance-free and ensures continuous operation.
3-With Open Communicate Protocol OCPP 1.6
The ev charging station is compatible with the major charge point operator, e-mobility service provider and roaming platforms.
Integration into existing backends can be realized due to the compliance with the open ev charging station protocol (OCPP).
Connectivity is realized through Ethernet, 3G or 4G.
4- High Reliability
Pefect IP 55 waterproof and dust-proof design, efficient heat disipation,resistant to rain, snow, low temperature and high
temperature, can stable operate in the -30℃ enviroment.
Safety standards IEC/EN 61851-1, IEC/EN 61851-23 are meeted.
5-Fully Service
All the chargers are with 12 months warranty.
Previde lifetime technical services.
