2021 professional mini 870MHz HIGH GAIN 25dB gpon onu CATV Push Pull Module amplifier
- Category: >>>
- Supplier: Shenzhen Sanland Technology Co. Ltd.
Share on (1600217660834):
Product Overview
Description
Products Description

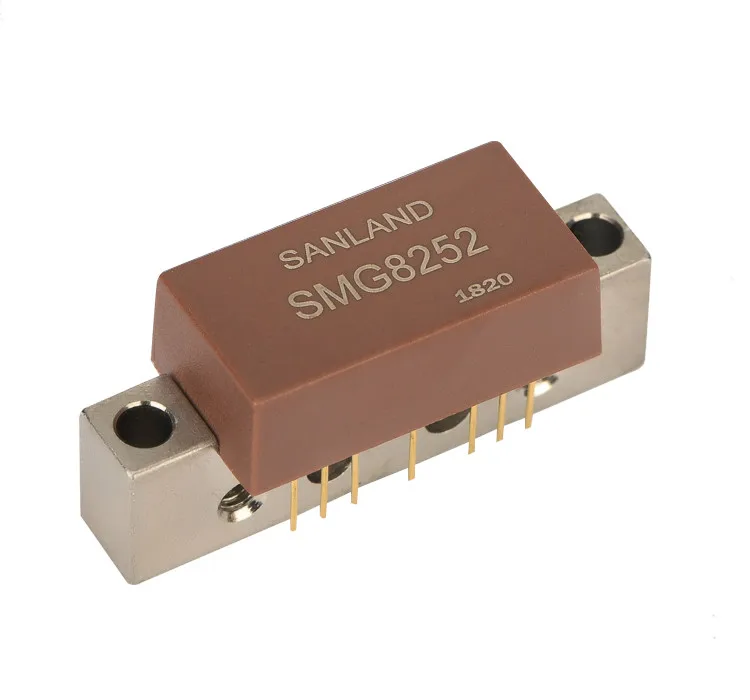

The SMG8252 is a GaAs hybrid push-pull amplifier module.
The part employs GaAs dies and is operated from 50MHz to 870MHz with supply voltage +24V( DC)
The part employs GaAs dies and is operated from 50MHz to 870MHz with supply voltage +24V( DC)
Specification
Symbol | Parameter | Unit | Min. | Typ. | Max. | Conditions |
Gp | Power Gain | dB | 24 | - | 25 | f=50MHz |
Gp | Power Gain | dB | - | 25.5 | - | f=860MHz |
SL | Slope | dB | 1.0 | - | 2.5 | f=50-870MHz |
FL | Flatness | dB | - | - | ±0.5 | f=50-870MHz |
S11&S22 | Input/Output Return Loss | dB | - | - | -16 | f=50-870MHz |
S11&S22 | Input/Output Return Loss | dB | - | - | -16 | f=50-870MHz |
CTB | Composite Triple Beat | dB | - | - | -62 | PAL60 channelsflat; Vo=44dBmV; CTB measured at 543.25 MHz; CSO measured at 544.5 MHz; |
CSO | Composite Second Order Distortion | dB | - | - | -63 | |
Xmod | Cross Modulation | dB | - | - | -55 | |
F | Noise Figure | dB | - | 4.0 | - | f=860MHz |
ltot | Total Current Consumption | mA | 260 | 310 | V=+24V |
