Carbonated soft drink sparking soda water beverage filling machine plant line
- Category: >>>
- Supplier: Zhangjiagang Sanofi Machinery Co. Ltd.
Share on (1600217738262):
Product Overview
Description
Products Description

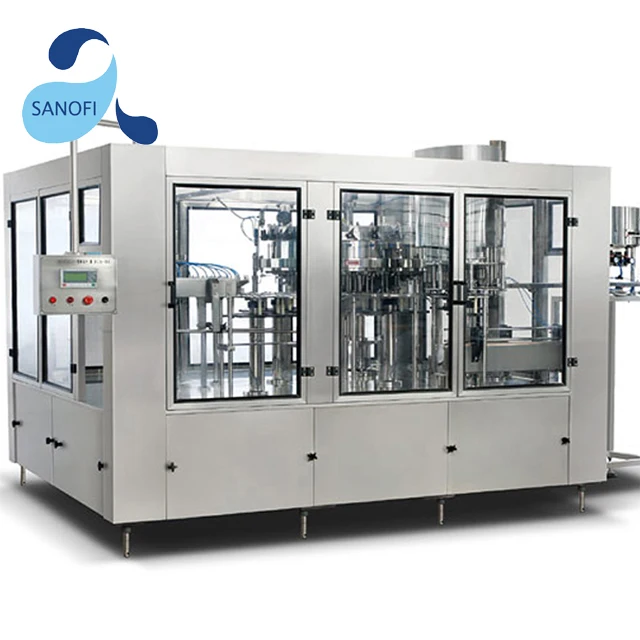

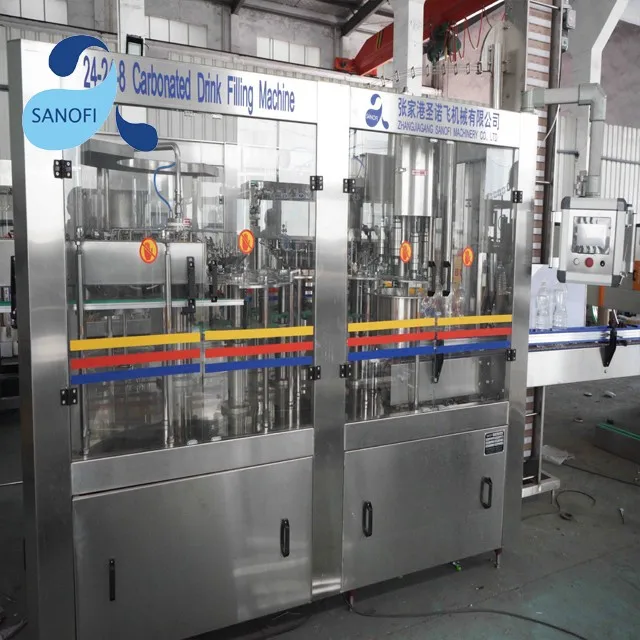

Carbonated water filling machine.
This type machine is mainly used in filling &packing soft drinks(carbonated drinks),sush as Coca cola,Pepsi,sprite,aerated water etc,it is suitable for PET bottle.
The PET bottle is with screw capping, it can be equipped with aluminum cap and plastic cap
The machine contains Washing,Filling and Capping three functions together in one.
It runs automatic by advanced MITSUBISHI PLC controller with reliable HMI touch screen.
The conveyor runs by frequency changer,it synchronous with the host inverter makes bottle feeding more stable and reliable
Reliable phptoelectric detection,high-efficiency fully automatic production,simple operation
The PET bottle is with screw capping, it can be equipped with aluminum cap and plastic cap
The machine contains Washing,Filling and Capping three functions together in one.
It runs automatic by advanced MITSUBISHI PLC controller with reliable HMI touch screen.
The conveyor runs by frequency changer,it synchronous with the host inverter makes bottle feeding more stable and reliable
Reliable phptoelectric detection,high-efficiency fully automatic production,simple operation
Details Images
Model | DCGF 16-12-6 | DCGF 18-18-6 | DCGF 24-24-8 | DCGF 32-32-10 | DCGF 40-40-12 | DCGF 50-50-15 |
Washing No | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 3000BPH | 5000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
Install Capacity(KW) | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Overall size | 2450×1800×2400 | 2650×1900×2400 | 2900×2100×2400 | 4100×2400×2400 | 4550×2650×2400 | 5450×3210×2400 |
Feature
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Detailed Images

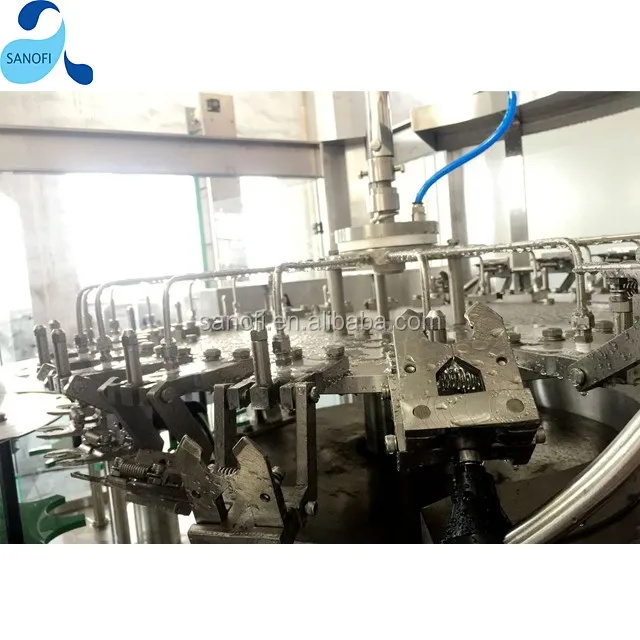

Washing Parts
1)Into bottle way is air conveyor direct connection with Bottle dial .
2)All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean .
3)304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
4) 304/316 stainless steel washing pump make the machine more durable .

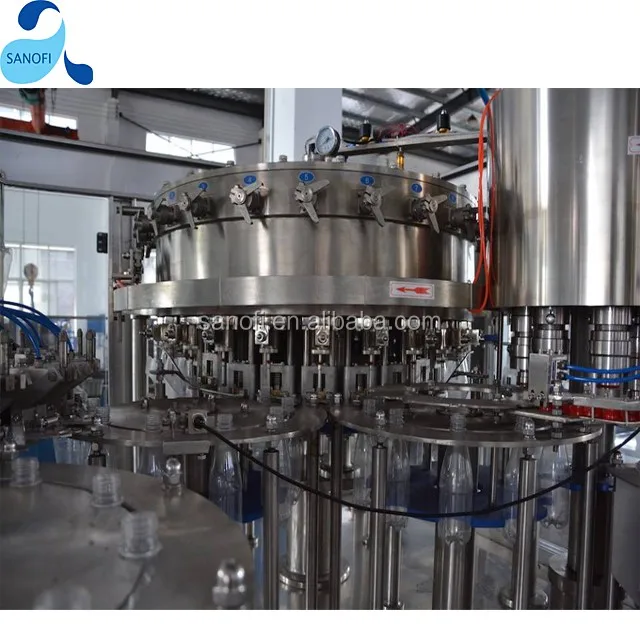

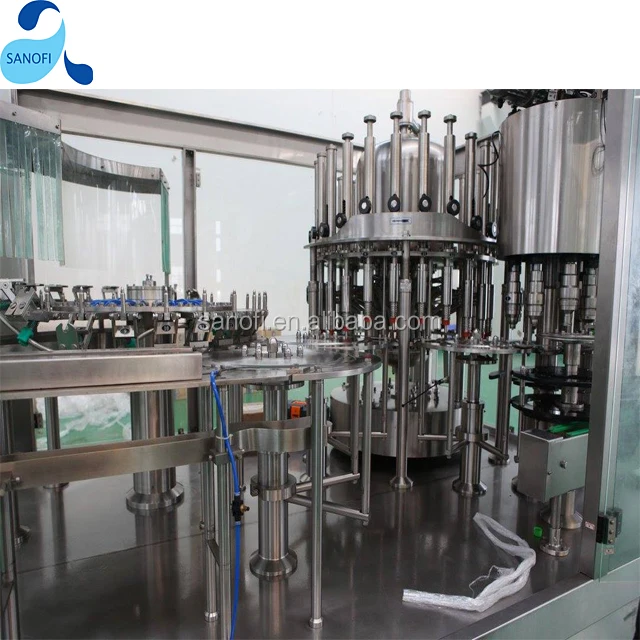

Filling Parts
1) 304/316 Stainless steel high precision filling nozzle
2) Filling volume adjustable in fine rank, same liquid level after filling
3) All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
4) 304/316 stainless steel filling pump
5)Efficient spray nozzle rinse thoroughly and save water for flushing

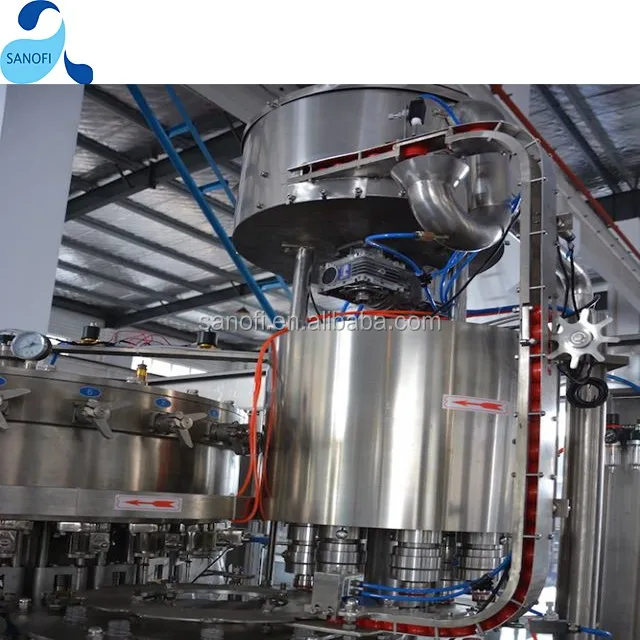

Capping Parts
1>)Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
2)All 304/316 stainless steel construction
3) No bottle no capping
4) Automatic stop when lack of bottle
5)Capping effect is stable and reliable ,Defective rate ≤0.2% .

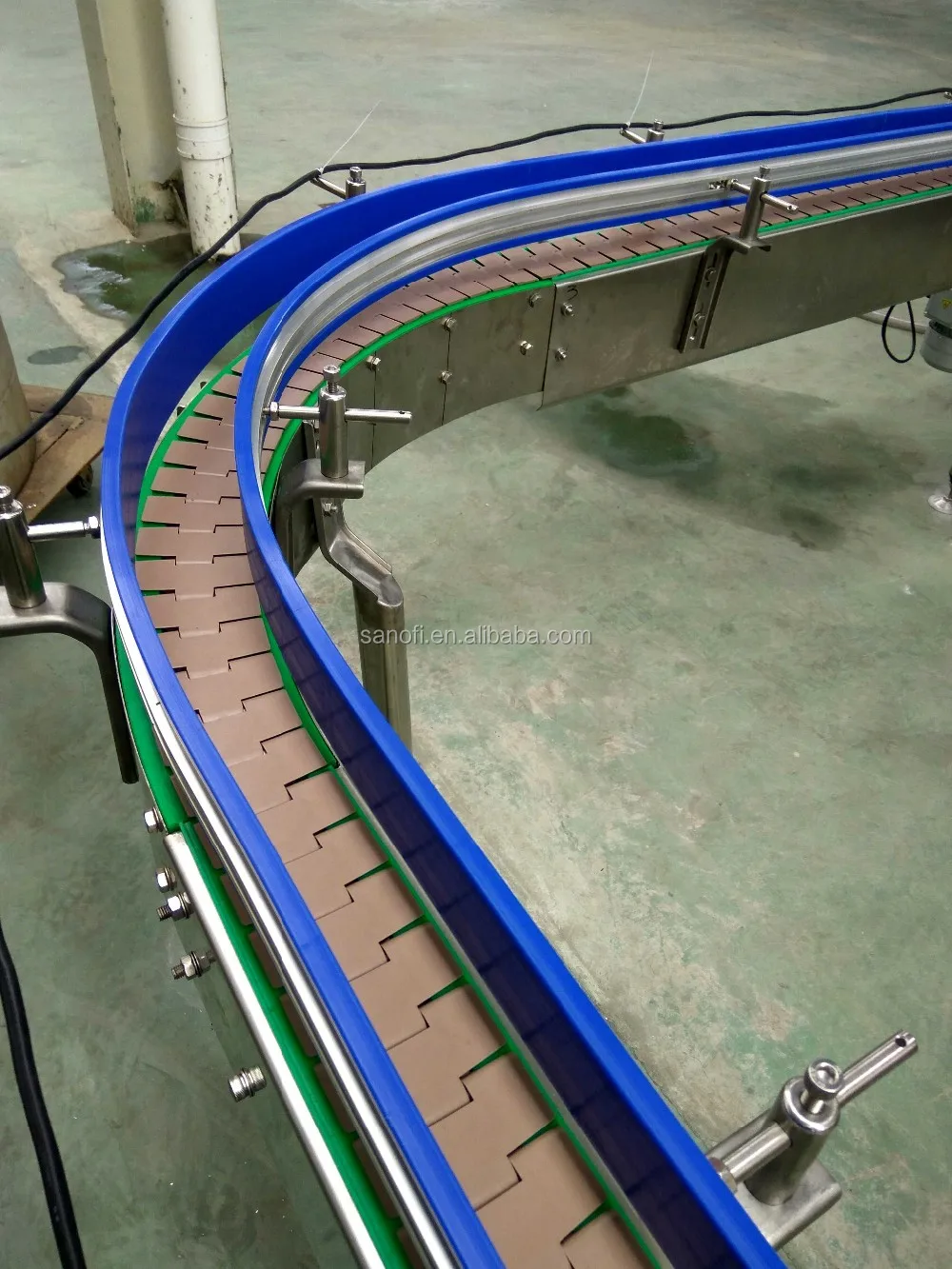

Conveyor.
1)Energy saving. High efficient. Adapt to customer factory layout
2)Special lubrication system, keep products clean, health, safety
3)Extended service life
4)Electric eyes design keep whole line running safety and quickly
5)Overload protection mechanism to effectively ensure the safety of the machine
Hot Production
bottle shrink sleeve machine
water bottle 3-in-1(washing filling capping machine)
Semi PET bottle blowing machine
RO water treatment system
WORKSHOP VIEWS
Recommend Products
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one year
without adding any aseptic.
* Sample testing support.
* View our Factory.
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one year
without adding any aseptic.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange
seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated
producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
* Engineers available to service machinery overseas.
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange
seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated
producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
Company Profile
SANOFI company is a professional packing machine supplier which located in Zhangjiagang City, Jiangsu Pr. China.
Our business scope
Our business scope
1.Pure water/Mineral water treatment from 1-30 ton
2.Water 3-in 1 filling machine (PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
3.Juice 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
4.Carbonated drink 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
5.Can filling and capping machine
6.Food oil filling machine(PET or glass bottle filling machine)
7.5 gallon filling machine
8.Bottle rinsing machine(glass or pet)
9.Bottle filling machine(glass or pet)
10.Bottle capping machine(glass or pet)
11.Labeling machine( PVC , Glue, or opp labels)
12.Shrink wrapping machine
13.Pallet wrapping machine
14.PET Blow molding machine both semi-auto or full auto
15.PET preform injection machine
16.PP,PVC,EVA Extrusion blow molding machine
17.Cooling tunnel& bottle inverse sterilizing machine
We also have many good partners, like PET preform supplier,Gen power supplier, air compressor supplier, plastic machinery
supplier.....
2.Water 3-in 1 filling machine (PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
3.Juice 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
4.Carbonated drink 3-in 1 filling machine(PET bottle from 200 to 2500 ml)
Capacity from 1000-20000 BPH(base on 500 ml PET bottle) production line and turnkey project.
5.Can filling and capping machine
6.Food oil filling machine(PET or glass bottle filling machine)
7.5 gallon filling machine
8.Bottle rinsing machine(glass or pet)
9.Bottle filling machine(glass or pet)
10.Bottle capping machine(glass or pet)
11.Labeling machine( PVC , Glue, or opp labels)
12.Shrink wrapping machine
13.Pallet wrapping machine
14.PET Blow molding machine both semi-auto or full auto
15.PET preform injection machine
16.PP,PVC,EVA Extrusion blow molding machine
17.Cooling tunnel& bottle inverse sterilizing machine
We also have many good partners, like PET preform supplier,Gen power supplier, air compressor supplier, plastic machinery
supplier.....
Certifications
FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference.
