Product Overview

Description

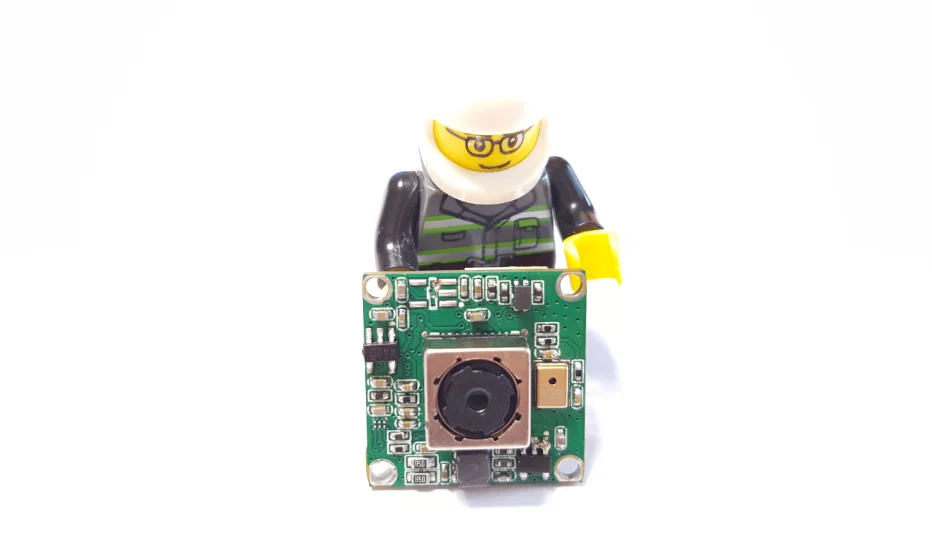

USB2.0 Design Camera Module with SONY IMX179 Senso

Product Description

Specification:

Model No	CMT-8MP-IMX179-C558
Sensor	1/3.2’’ SONY IMX179 sensor
Pixel	8 Mega Pixel
Most effective pixels	3280(H) x 2462(V)
Pixel Size	1.4µm x 1.4µm
Compression format	MJPG/ YUY2
Resolution & Frame rate	See above
Chroma	Color image
Shutter Type	Electronic rolling shutter
Focus type	Auto focus
S/N ratio	36dB
Dynamic range	60dB
Interface type	USB2.0
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/ Gamma/White balance/Exposure
Lens	Focus range: 0-1023
	Lens Size: 8.5 x 8.5
	FOV: 70°
Microphone	Support
Power supply	USB BUS POWER
Power consumption	DC 5V
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Module Dimension	19MM x 19MM
Storage temperature	-20°C to 70°C
Operating temperature	0°C to 55°C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC

Key Feature:

One of the Smallest USB camera modules in the world: 19MMx19MM

Auto Focus

8MP (3264x2448) resolution with SONY IMX179 CMOS sensor

UVC compliant, Plug & Play

Support Linux, Android, Mac and Windows

High sensitivity, Low dark current

Two different FOV lenses are available: Standard 70° and Special 117°

Customization is supported
