TBL 900 40 High transparent silicone rubber liquid silicone rubber mold silicone rubber
- Category: >>>
- Supplier: Foshan Tian Bao Li Silicon Engineering Technology Co. Ltd.
Share on (1600217843296):
Product Overview
Description
Product Description
TBL-900 Series High-temperature Vulcanized Fumed Silicone Rubber
Product Description:
The hardness range of this series is 20-70 SHA, with excellent resistance to high and low temperature performance(from -50℃ to +200℃), weather resistance, electrical performance, etc.
Products are widely used in electronics and electrical appliances, suitable for all kinds of keyboard, sundries, electrical wire&cable, tube, general O-ring, gaskets, seals,etc.
The hardness range of this series is 20-70 SHA, with excellent resistance to high and low temperature performance(from -50℃ to +200℃), weather resistance, electrical performance, etc.
Products are widely used in electronics and electrical appliances, suitable for all kinds of keyboard, sundries, electrical wire&cable, tube, general O-ring, gaskets, seals,etc.
•Transparent;
•Good electrical performance;
•Weather resistance;
•Abe to meet the requirements of LMBG.
Specification
TBL-900 Series | ||||||||||||||
Product Type | General Molding Products | |||||||||||||
Product Model | TBL-900-20 | TBL-900-30 | TBL-900-40 | TBL-900-50 | TBL-900-60 | TBL-900-70 | ||||||||
Appearance | Transparent | Transparent | Transparent | Transparent | Transparent | Transparent | ||||||||
Williams Plasticity (0.01mm) | 180±30 | 200±30 | 200±30 | 220±30 | 300±30 | 400±30 | ||||||||
Density (g/cm3,25℃) | 1.05-1.15 | 1.11-1.16 | 1.13-1.17 | 1.15-1.18 | 1.19-1.22 | 1.22-1.25 | ||||||||
Vulcanization | Type | C-8B | C-8B | C-8B | C-8B | C-8B | C-8B | |||||||
Dosage (%) | 1% | 1% | 1% | 1% | 1% | 1% | ||||||||
After Vulcanization | Linear Shrinkage (%) | 2.9±0.3 | 3.0±0.3 | 3.0±0.3 | 3.0±0.3 | 2.9±0.3 | 2.9±0.3 | |||||||
Hardness (Shore A) | 20±3 | 30±3 | 40±3 | 50±3 | 60±3 | 70±3 | ||||||||
Tensile strength (MPa) | ≥7.0 | ≥8.0 | ≥8.0 | ≥8.5 | ≥8.0 | ≥7.5 | ||||||||
Elongation (%) | ≥900 | ≥650 | ≥550 | ≥500 | ≥350 | ≥350 | ||||||||
Tear Strength （KN/m） | ≥18 | ≥18 | ≥25 | ≥25 | ≥23 | ≥25 | ||||||||
Permanent Set (%) | ≤10 | ≤7.0 | ≤5.0 | ≤5.0 | ≤5.0 | ≤5.0 | ||||||||
Specific Gravity/g/cm3 | 1.05-1.08 | 1.10-1.12 | 1.11-1.14 | 1.13-1.16 | 1.15-1.18 | 1.19-1.22 | ||||||||
Above data for reference only, factory inspection report shall prevail for latest testing standard and data. | ||||||||||||||
Certifications
Product Advantages
1.High Temperature: Silicone rubber applicable temperature from -40°C to 230°C, it can be used in microwave and oven.
2.Easy to Clean: Silicone rubber finished products just need water to do cleaning.
3.Long Life: Silicone rubber stable in chemical properties.
4.Soft and Comfortable: Benefit from silicone rubber softness, mould products comfortable touch, extremel flexible and not deformed.
5.Environmentally Friendly: Silicone rubber does not produce and toxic or hazardous substances from raw materials to finished products.
6.Electrical Insulation Performance: Silicone rubber have high resistivity.
7.Low Temperature Resistance: Silicone rubber in - 60°C to - 70°C still have good elasticity. Our company has also developed some silicone rubber that can withstand lower temperature for mulations.
8.Conductivity: Silicone rubber have good conductivity when add conductive material (such as silicon dioxide).
9.Weather Fastness: Silicone rubber is not offected by ozone, long time in Ultraviolet light and other climatic conditions, its physical properties are only slight changed.
10.Thermal Conductivity: Silicone rubber have good thermal conductivity when add some raw materials.
11.Radiation Resistance: Radiation resistance of phenyl-containing silicone rubber is greatly improved.
Packing & Delivery

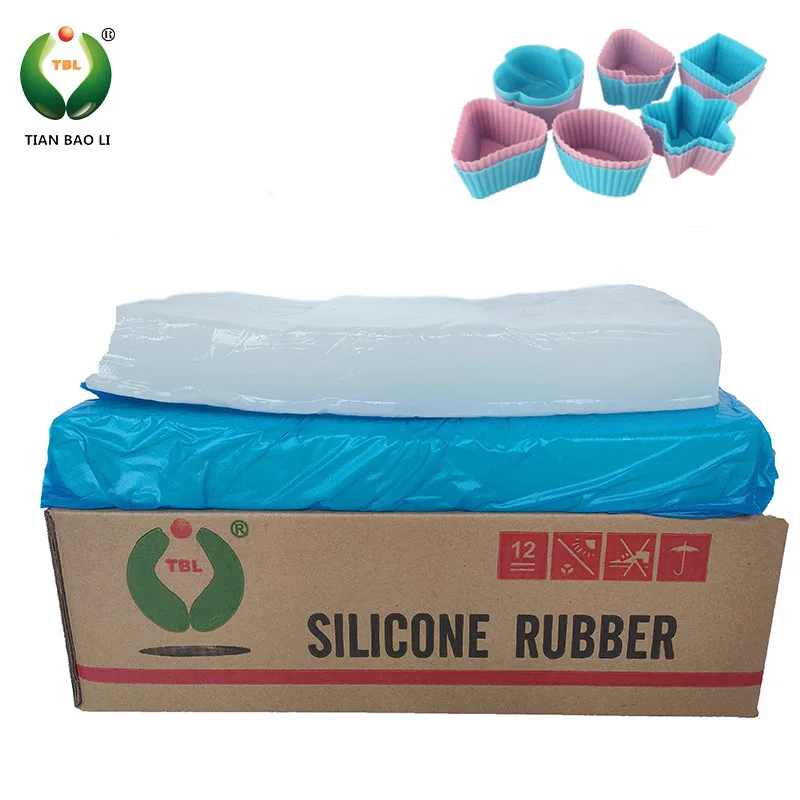

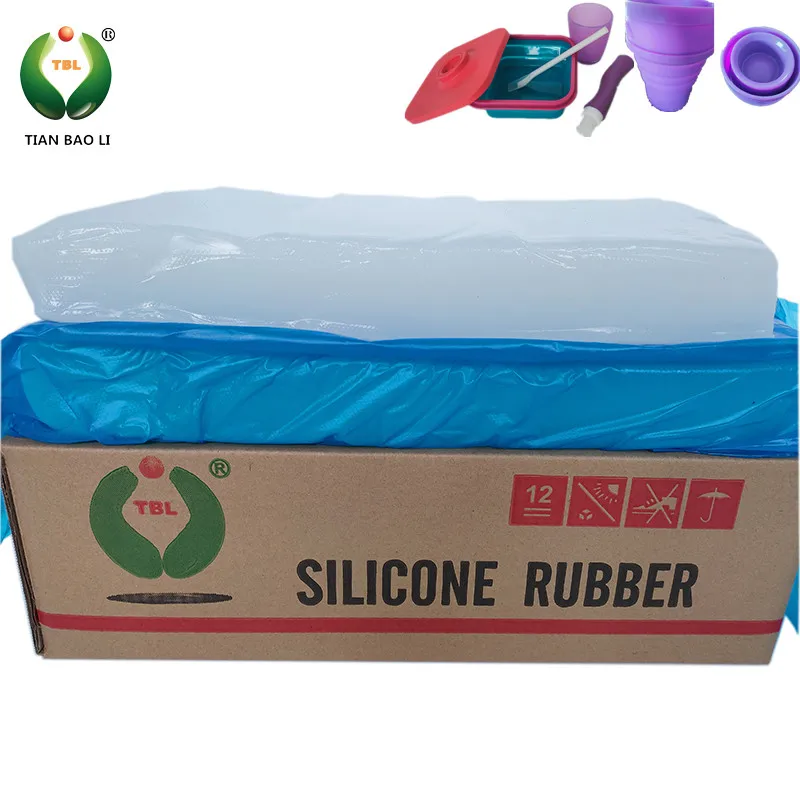

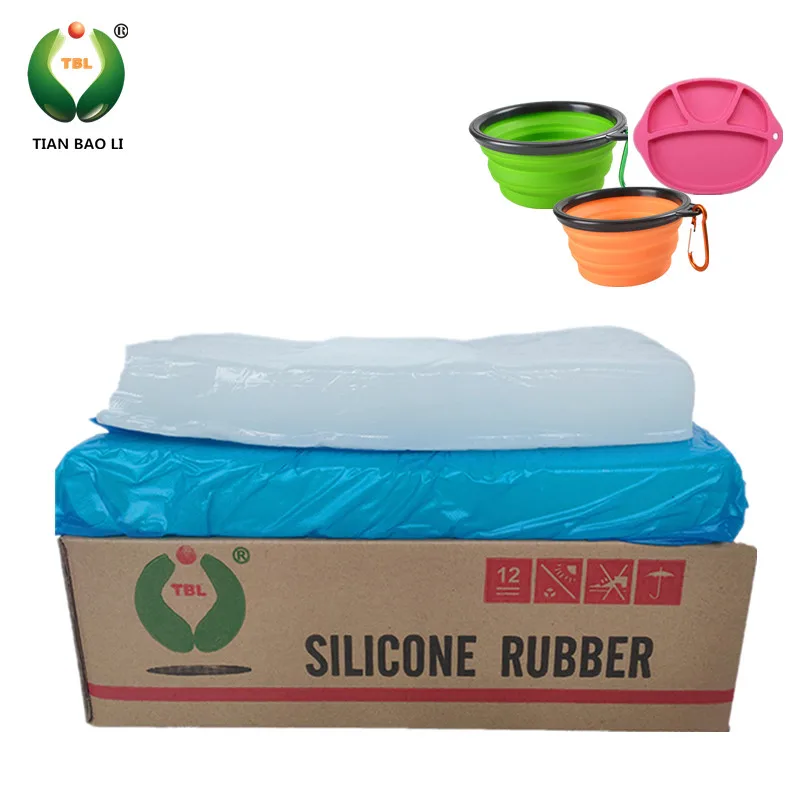

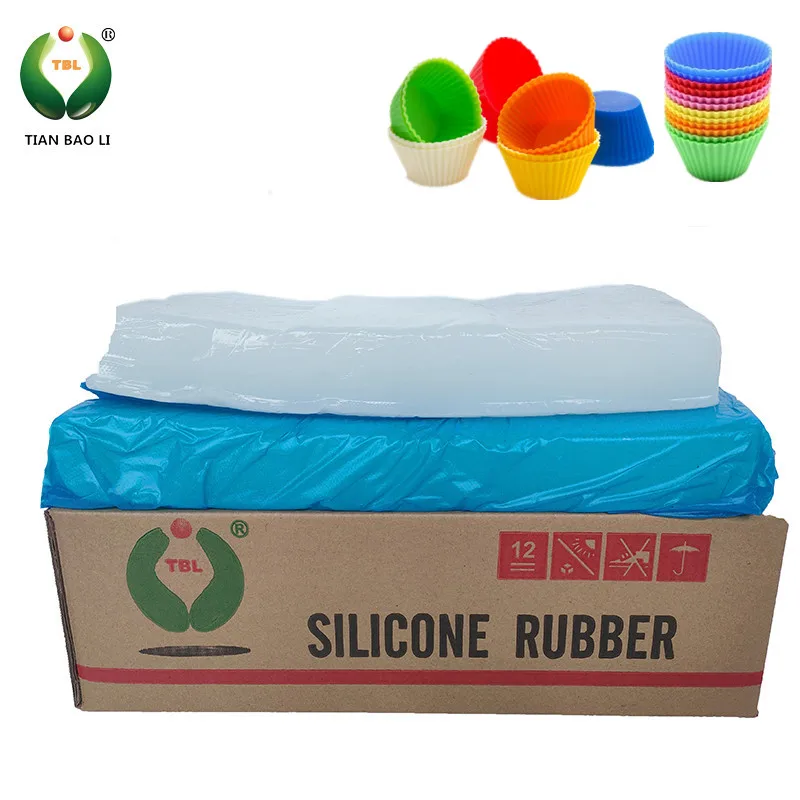

1 PC of HTV silicone rubber is 10KGS, and in a blue plastic packaging.
2 PC of 10KG HTV silicone rubber put in a carton.
50 cartons for a pallet
Loading for shipment

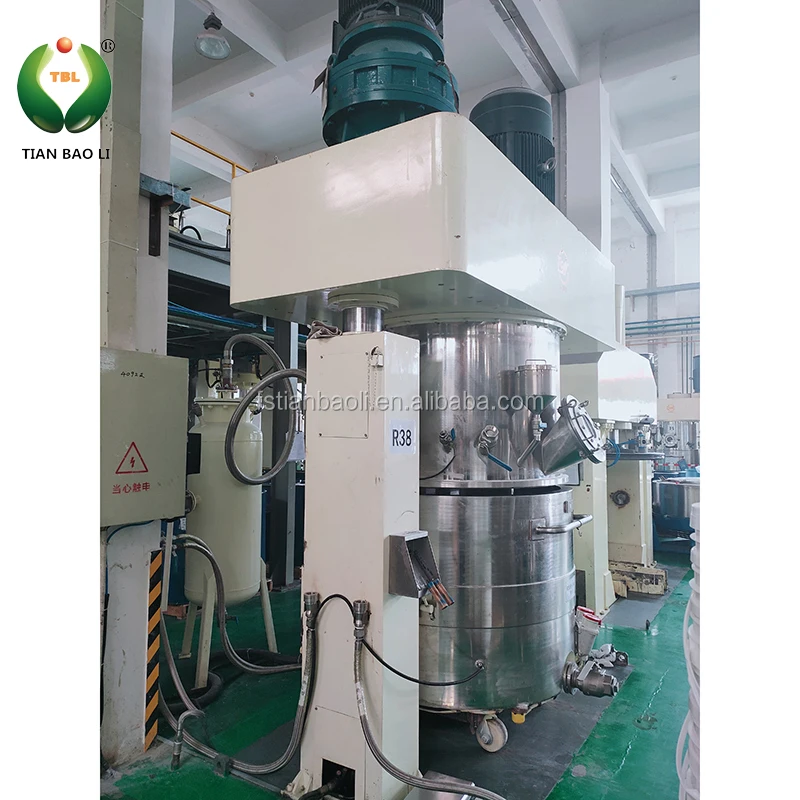

Technical Instrument
Our Company
Foshan Tian Bao Li Silicon Engineering Technology Co., Ltd it is a high-tech enterprise specializing in the R&D, production and operation of silicone products.

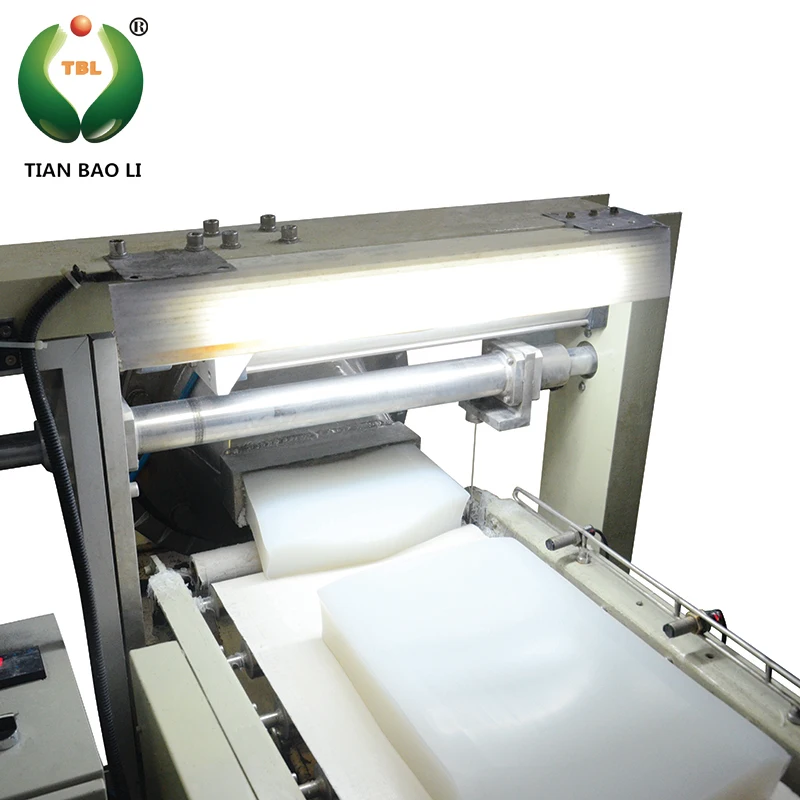

The company longevity "covers the area of 26700 square meters and the building area of 30,000 square meters.Now, our company equip with the silicone rubber automatic production lines and various advanced silicone rubber production equipment , none but Tian Bao Li own the full auto-lines for the manufacture of silicone rubber in China.Its annual production capacity is about 30000 tons.
The company longevity "covers the area of 26700 square meters and the building area of 30,000 square meters.Now, our company equip with the silicone rubber automatic production lines and various advanced silicone rubber production equipment , none but Tian Bao Li own the full auto-lines for the manufacture of silicone rubber in China.Its annual production capacity is about 30000 tons.
The company has three business divisions, HTV Silicone Rubber , Liquid Silicone Rubber and RTV Silicone Rubber. Widely used in electronics, household appliances, medical supplies, infant child products, LED lighting, new energy vehicles and other industries.
Our Service
1.Pre-sale: Our technical team will according to customer need to recommend the most suitable product for customer.
2.Technology R & D: If customer products are special, we can develop new products for our customers.
3.Quality Control: At the time of production, our company's quality inspection team will take several samples to conduct the whole process of quality inspection, and the production workers will strictly follow the requirements to produce.
4.After-sale: Our sales team will follow up to the customer's use of the product.If there are any problems, our technical team will try our best to provide solutions.
5.OEM support: Strong technical team support, our company has core technology for R&D, which can be carried out for customers OEM.
