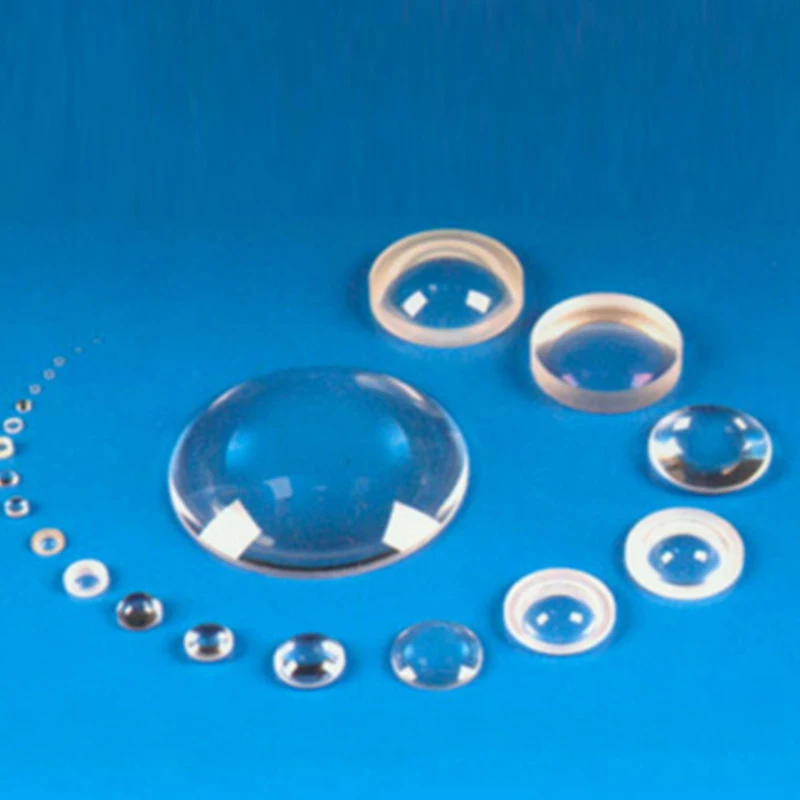

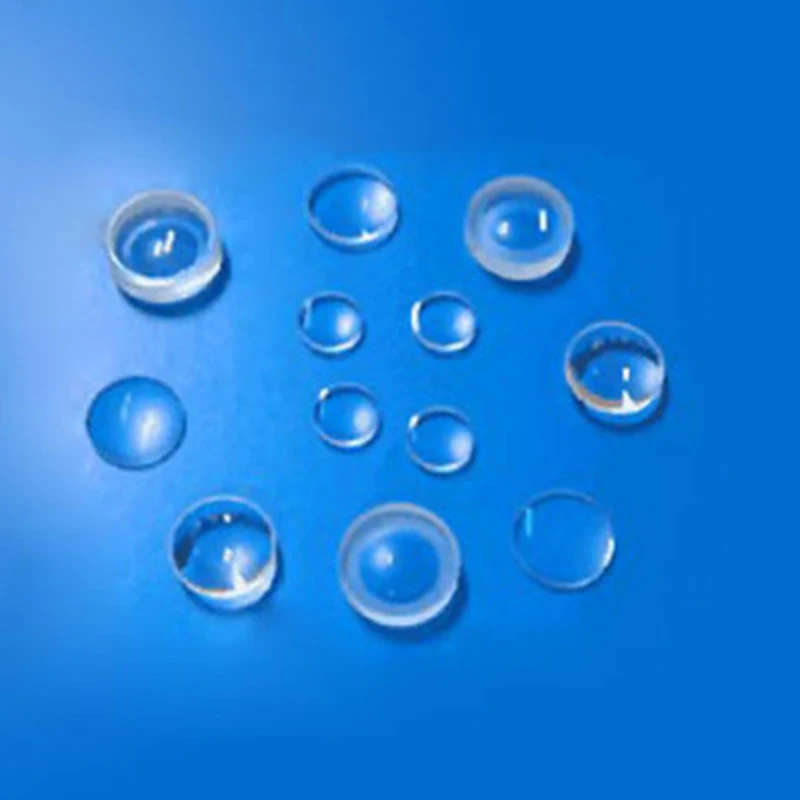

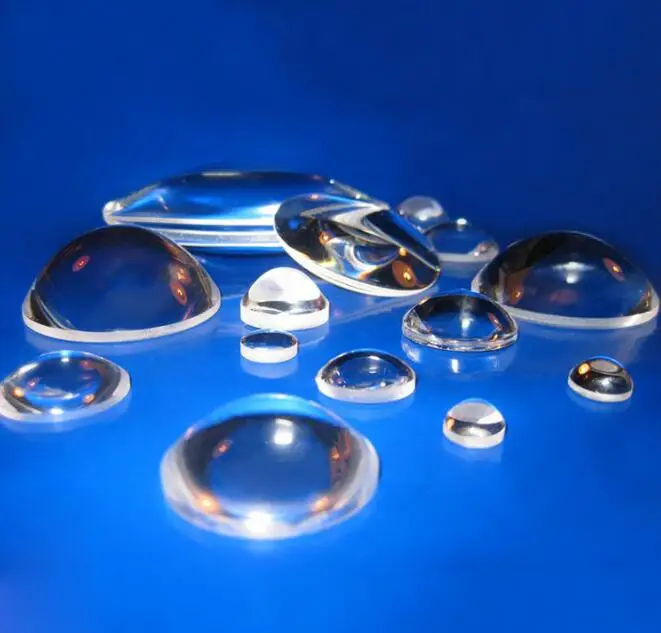

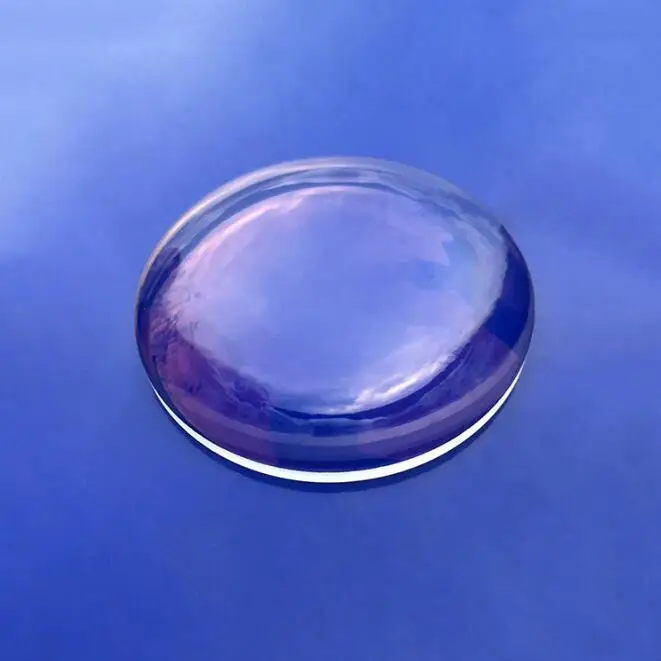

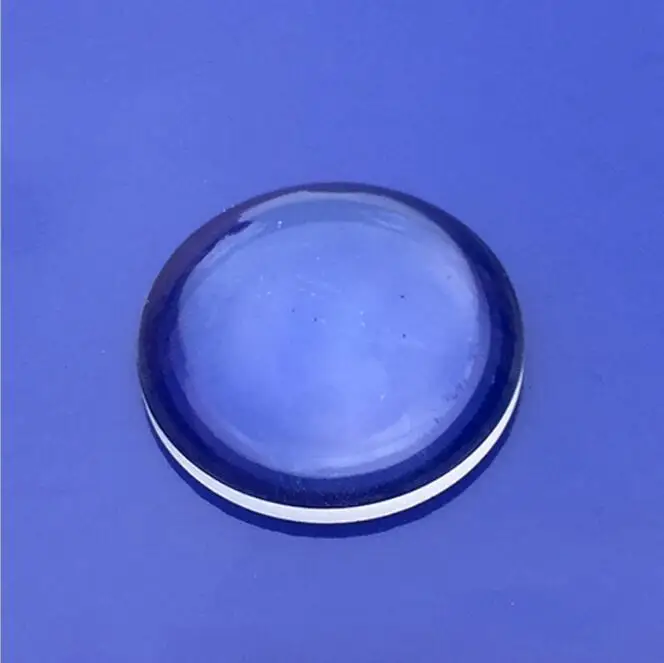

Optical Glass Aspherical Collimate lens for Thermal imaging systems accept custom

Product Overview

Description

Optical Glass Aspherical Collimate lens for Thermal imaging systems accept custom



There is nothing cannot be done, Just never think of it.
                                                                        -----------------Kingopt are good at the Optics Lens and Prism.
1>If your required with the high accurancy, pls provide the details with drawing.
2>If your required is the normal usage,without highly accurancy. then it is better with the specifications:
Material,diameter,Radius,Center thickness.....(it is better with more specifications)
3>If you only want to borrow from on-the-shelf models, feel free to leave with us your details and application.
If you require or want in the optics lines, We Kingopt all can met with your requirement.
We Factory are doing well in this area.
Thanks for inquirying.                                                                   -------------------------Shellman from Kingopt

Specification:

Materials	All kinds of high quality optical glass, quartz and crystal
Diameter	0. 2~350mm
Radius	R 1.5mm-∞
Center thickness tolerance	±0.01mm
Diameter tolerance	±0.005mm
Surface quality	20/10--80/50
Surface accuracy	<1λ
Irregularity	λ/10
Decenter	15"
Coating	Upon request



Description:

1. Raw material of Optical lens: Pyrex, Optical glass. Crystal glass

2. Techniques of Optical lens: by Molding, Grinding, Polishing

3. Shape of Optical lens: Plano lens,bi convex lens,bi concave lens, ball lens,Spherial lens

4. Inside quality of Optical lens: clear and transparent, no mold marks, no inside bubble and dirts,

5. Function of Optical lens : Lighting splitting,magnifying etc.



According to the different applications, we can manufacture:

Plano—convex lens

Plano—concave lens

Biconvex lens

Biconcave lens

Meniscus lens

CaF2 Lens

Achromatic lens

Ball lens

Other Optical Lenses



Kingopt manufactures various shape and materials optical lens. Wide selection of optical lens includes spherical lens, aspherical lens,

cylindrical lens and strange shape lens,etc.

Optical Lenses are optical components designed to focus or diverge light. Optical Lenses, which may consist of a single or multiple

elements, are used in a wide variety of applications from microscopy to laser processing.

Optical glass lenses have a wide variety of applications. Germanium (Ge), Silicon (Si), or Zinc Selenide (ZnSe) lenses are ideal for

transmitting the Infrared (IR) spectrum, while Fused Silica is well suited for the Ultraviolet (UV).



It is widely used in optical apparatus,opto-electrical digital products, image equipments, fingerprint systems, medical instruments,

precise digital control machinery and other optical fields, popular science educational apparatus, optical communication, etc.

1.  Professional designer and manufacturer of binoculars and scopes

2.  High quality, optical system and mechanism design at reasonable and competitive price

3.  Any inquiries will be replied within 24 hours. Small order is available.

4.  OEM/ODM service:

a)   Customized binoculars appearance

b)   Customized color box or gift box

c)    Imprint you logo or label on products

d)   We have help to design your ideas and put it into production



5. Fast delivery
New sample order lead time 3-5 days, order production 10-15 days

Or if have any special need, feel free to leave the drawing sheet, we can customized all for you.
Looking forward your information.

Equipment	Qty	Made in
Processing machine	6sets	China
Out cutting machine	4sets	China
Milling machine	50sets	China, Korea
Grind machine	80sets	China, Korea
Polishing machine	260sets	China, Japan, Korea
Centering machine	80sets	China, Japan, Korea
coating machine	26sets	China, Korea
Ultrasonic cleaning machine	12sets	China
Painting machine	12sets	China, Japan
Inner cutting machine	22 sets	China
illumination machine	12 sets	China, Germany



Inspection equipments and toolings	Qty(set)	Made in
Interferometer	12	China, Japan
Spectrophotometer	6	China, Japan
Centering instrument	28	China, Japan
Goniometer	6	China
Spherometer	2	China
Coating film destruction inspection	1	China
Coating film hardness inspection	50	China, America
Micrometer	110	China, Japan
Collimator	4	China
Distinguishes	10	China, Korea
UV intensity instrument	2	Japan
UV Fluorescence	4	Japan
MIL Standard paper	10	America
The collimation instrument of the measurement instruments	8	China, Japan



Kingopt manufactures various shape and materials optical lens. Wide selection of optical lens includes spherical lens, aspherical lens,

cylindrical lens, magnifying lens.



1. Coatings for lens include normal BBAR coating, dichroic coating, super broad band antire+flective coating, filtering coating, reflective

coating and others coating according to customer’s requirement.

2. Processing equipments are imported from Germany, Korea and Japan.

3. Application: optical lens are widely used for precision optical instruments, TV projector, microscopes, collimator, digital cameras, LCOS,

lens assembly and cctv /ccd digital cameras, etc.

4. Output of optical elements reaches 30,000,000 sets per year.

Optical lenses are exported to Europe, America, East Asia and etc.

Welcome to contact with us for products catalogues.
