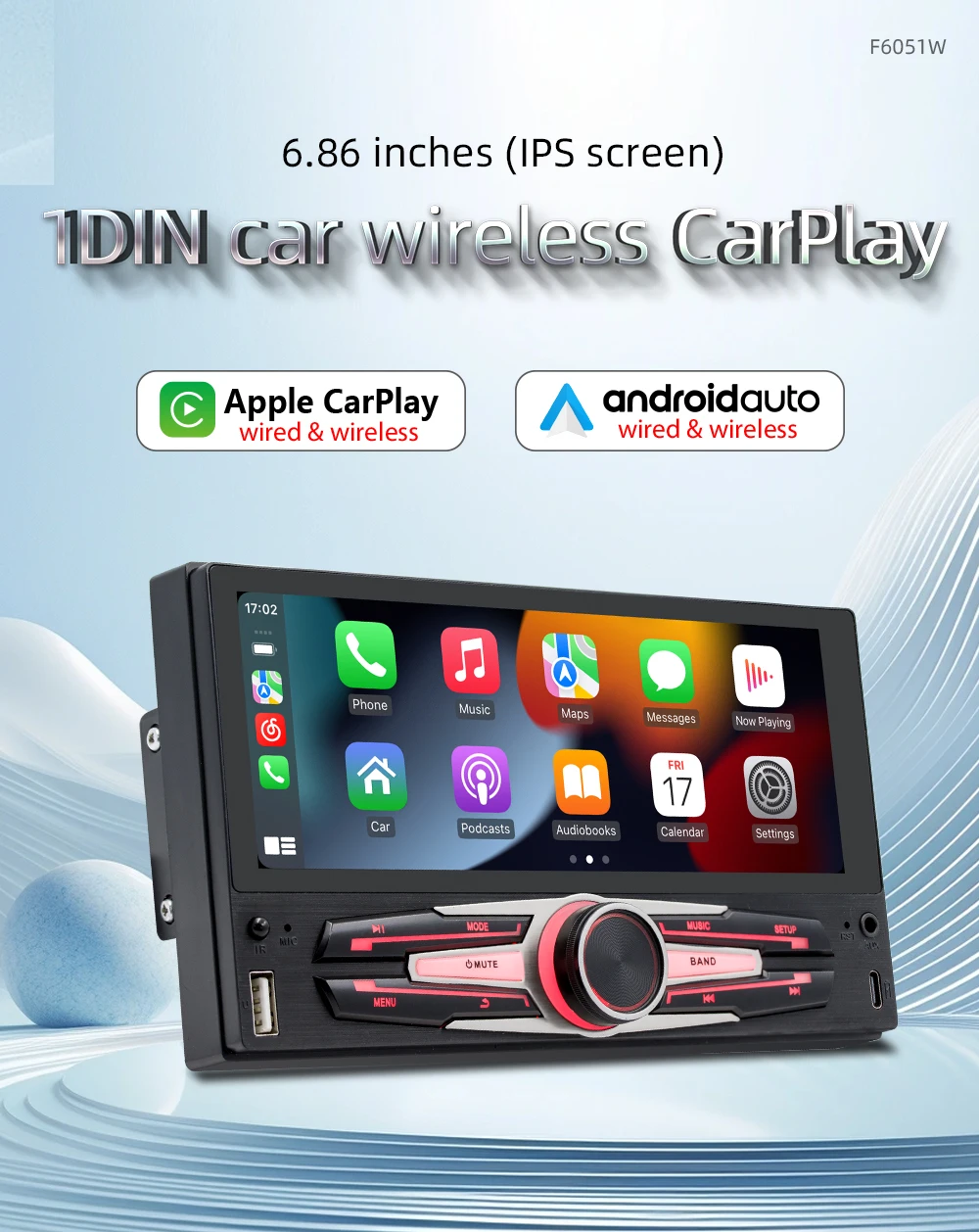

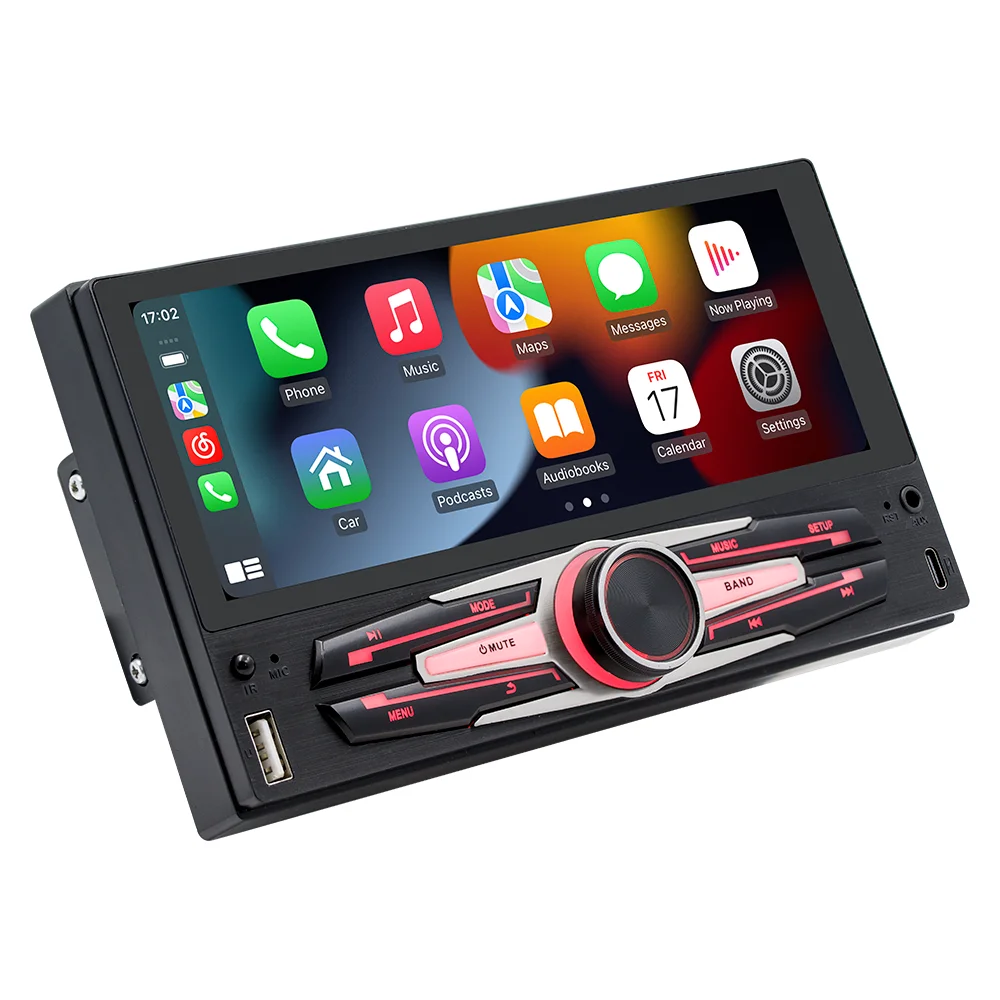

BQCC 6.86 inch 1Din Car Stereo Radio Vehicle Electronics Wireless Carplay Android Auto Mirror Link MP5 Player BT FM RDS AUX
- Category: >>>
- Supplier: Shenzhen Chaopingyu Technology Co. Ltd.
Share on (1600217871048):
Product Overview
Description
Related Products
Product Description
Special function:
1. FHD IPS Touchscreen:
Features a customized 6.86'' Full HD IPS capacitive touchscreen. Compared with other LCD or TN screens, it has better viewing angles and touch sensitivity. Provide you with an incredible visual experience. You can now feel the silky smooth operation on the car screen!
2. Enhanced FM Radio:
Built-in high-performance 8035FM radio chip which brings stronger FM signal: FM87.5-108MHz. Smooth and stable channels can still be obtained even in remote areas or in bad weather conditions.
3. Steering Wheel Control:
Support the original steering wheel control function in your car. Connect the SWC cable reserved in your car to the brown cable from the stereo harness. Conveniently switch your songs/ volumes/ calls by the steering wheel which will greatly enhance your driving safety.
4. 7 Color LED Backlight:
The 7 color LED backlight switches automatically and you can also select and fix one favorite color in the radio settings at any time(Blue/Green/Cyan/Red/Magenta /Yellow/White/Auto).
Features a customized 6.86'' Full HD IPS capacitive touchscreen. Compared with other LCD or TN screens, it has better viewing angles and touch sensitivity. Provide you with an incredible visual experience. You can now feel the silky smooth operation on the car screen!
2. Enhanced FM Radio:
Built-in high-performance 8035FM radio chip which brings stronger FM signal: FM87.5-108MHz. Smooth and stable channels can still be obtained even in remote areas or in bad weather conditions.
3. Steering Wheel Control:
Support the original steering wheel control function in your car. Connect the SWC cable reserved in your car to the brown cable from the stereo harness. Conveniently switch your songs/ volumes/ calls by the steering wheel which will greatly enhance your driving safety.
4. 7 Color LED Backlight:
The 7 color LED backlight switches automatically and you can also select and fix one favorite color in the radio settings at any time(Blue/Green/Cyan/Red/Magenta /Yellow/White/Auto).
Products Images

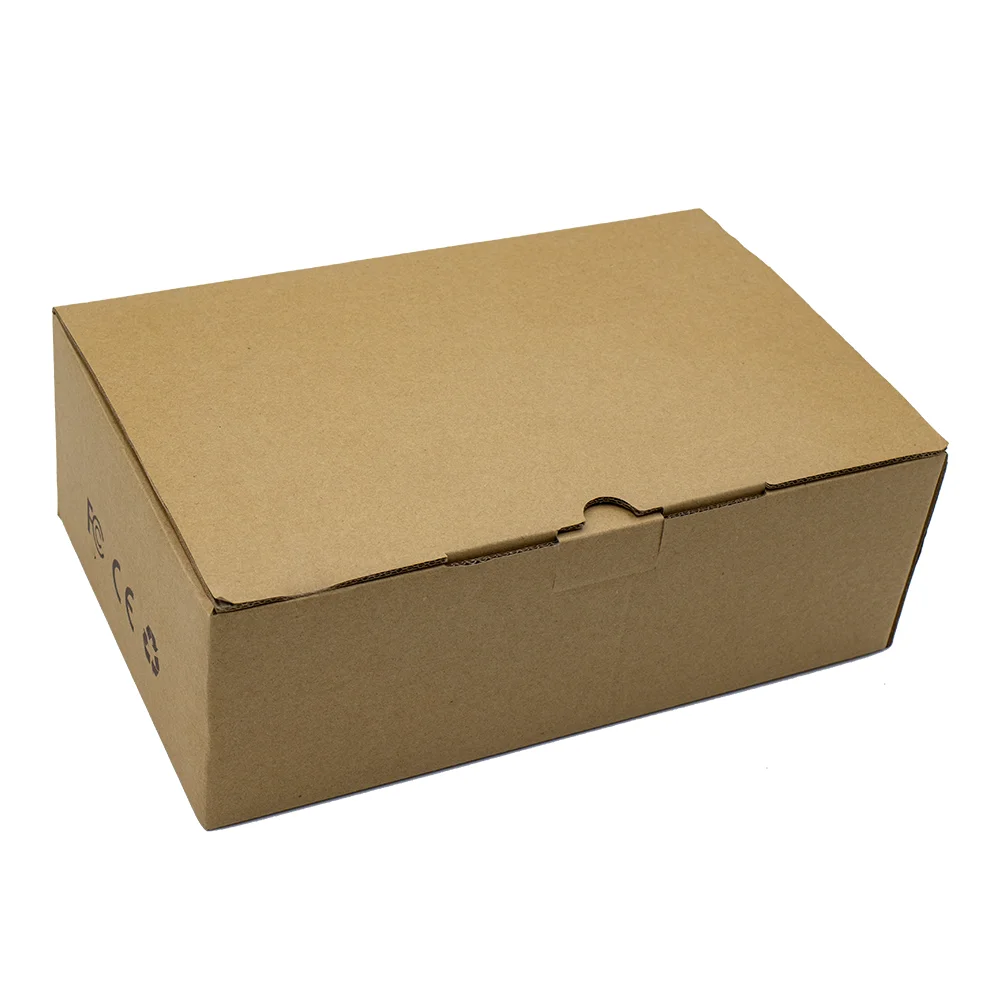

Product packaging

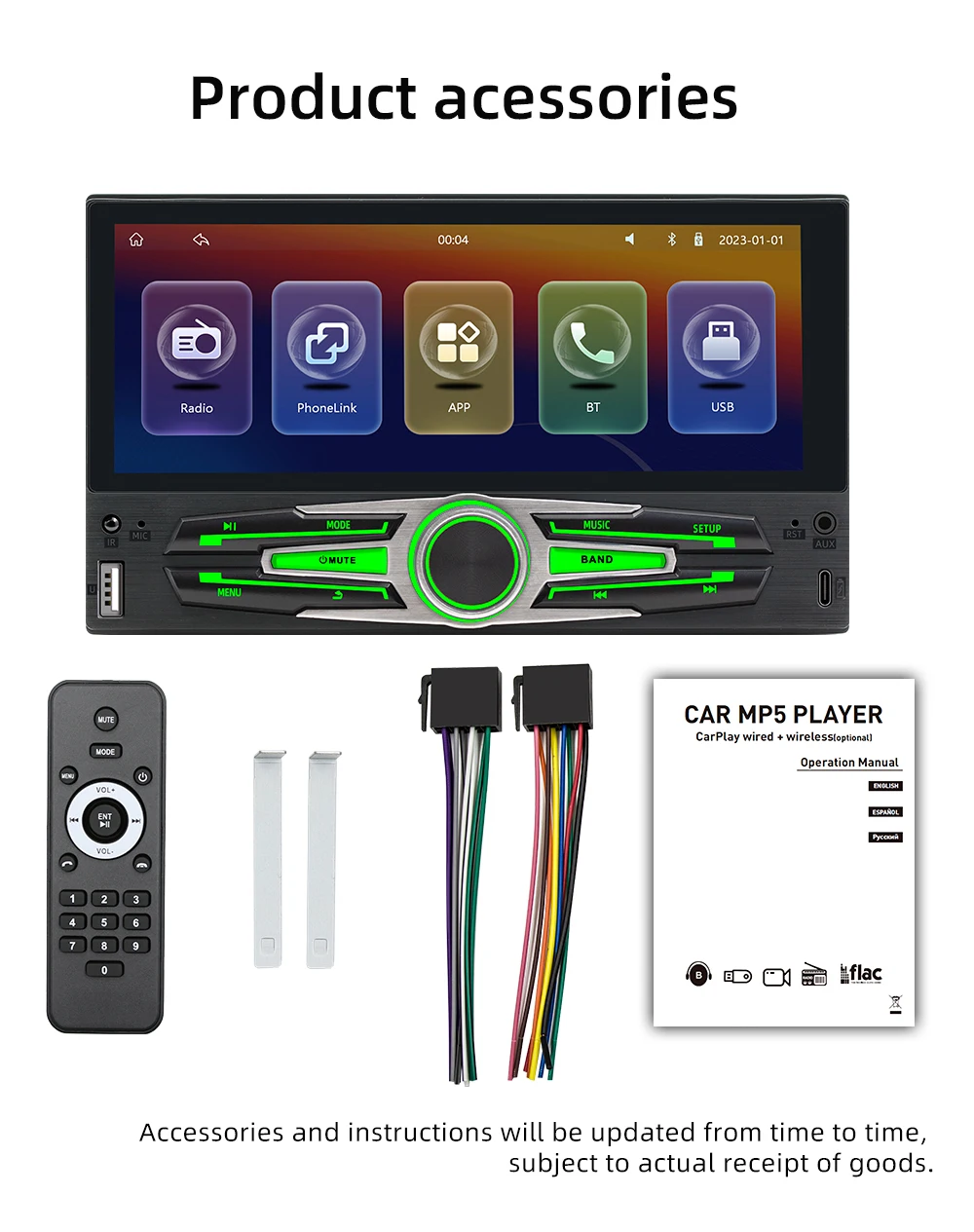

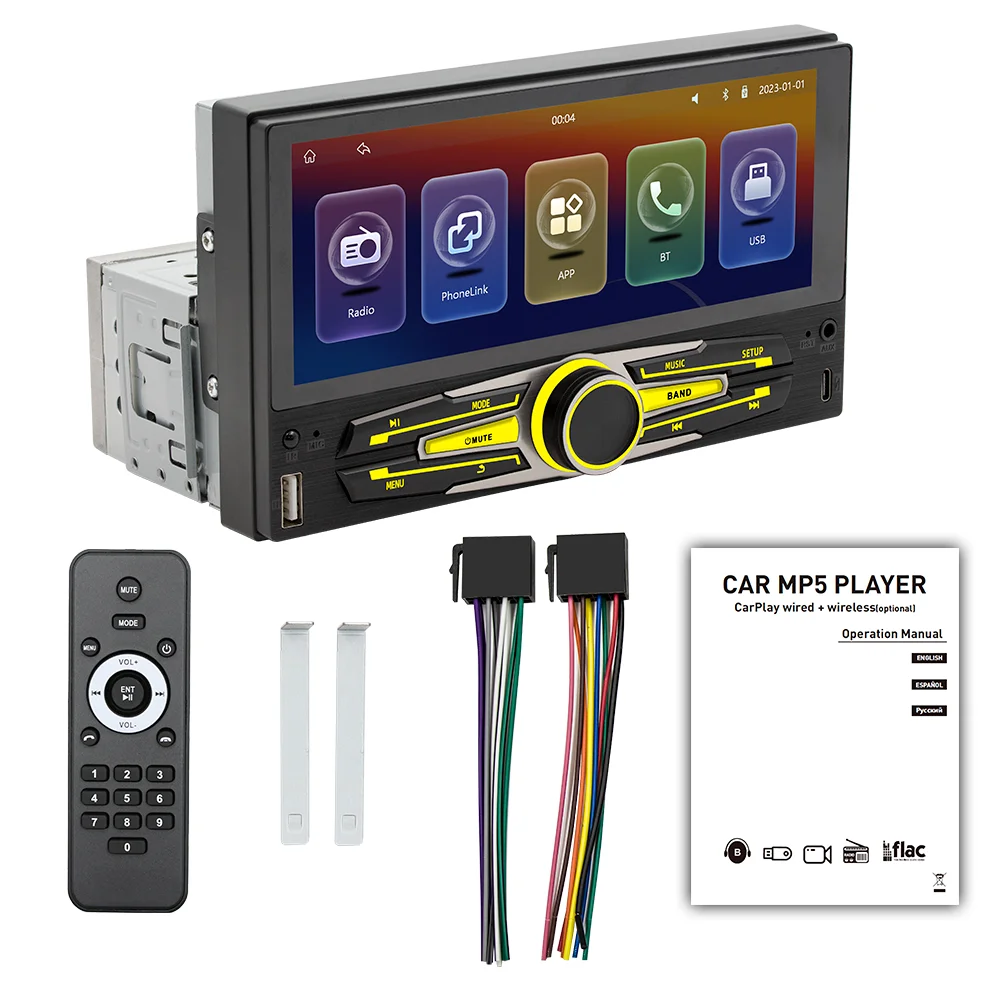

Package Include:1x1. Head unit
1x1. Manual
2x1. Power cord
1x1. Remote control
2x1. Disassembly key
1x1. Manual
2x1. Power cord
1x1. Remote control
2x1. Disassembly key
Product Paramenters
Model | F6051W |
Type | Car MP5 |
System | Allwinner melis system |
Software solution | F133 |
Radio frequency | FM 87.5~108.0MHz AM 522-1620KHz |
Radio IC | 4732 |
Amplifier IC | CD7388CZ |
Output power | 60Wx4 |
Working voltage | 12~14.4V |
Working temperature | -10~60℃ |
Bluetooth version | 5.1 version (default name: SWL-BT) |
CPU | F133 |
Running memory | 533M |
Display resolution | 1280x480 |
Screen size | 6.86 inches (IPS screen) |
Installation size | 178x50x65MM |

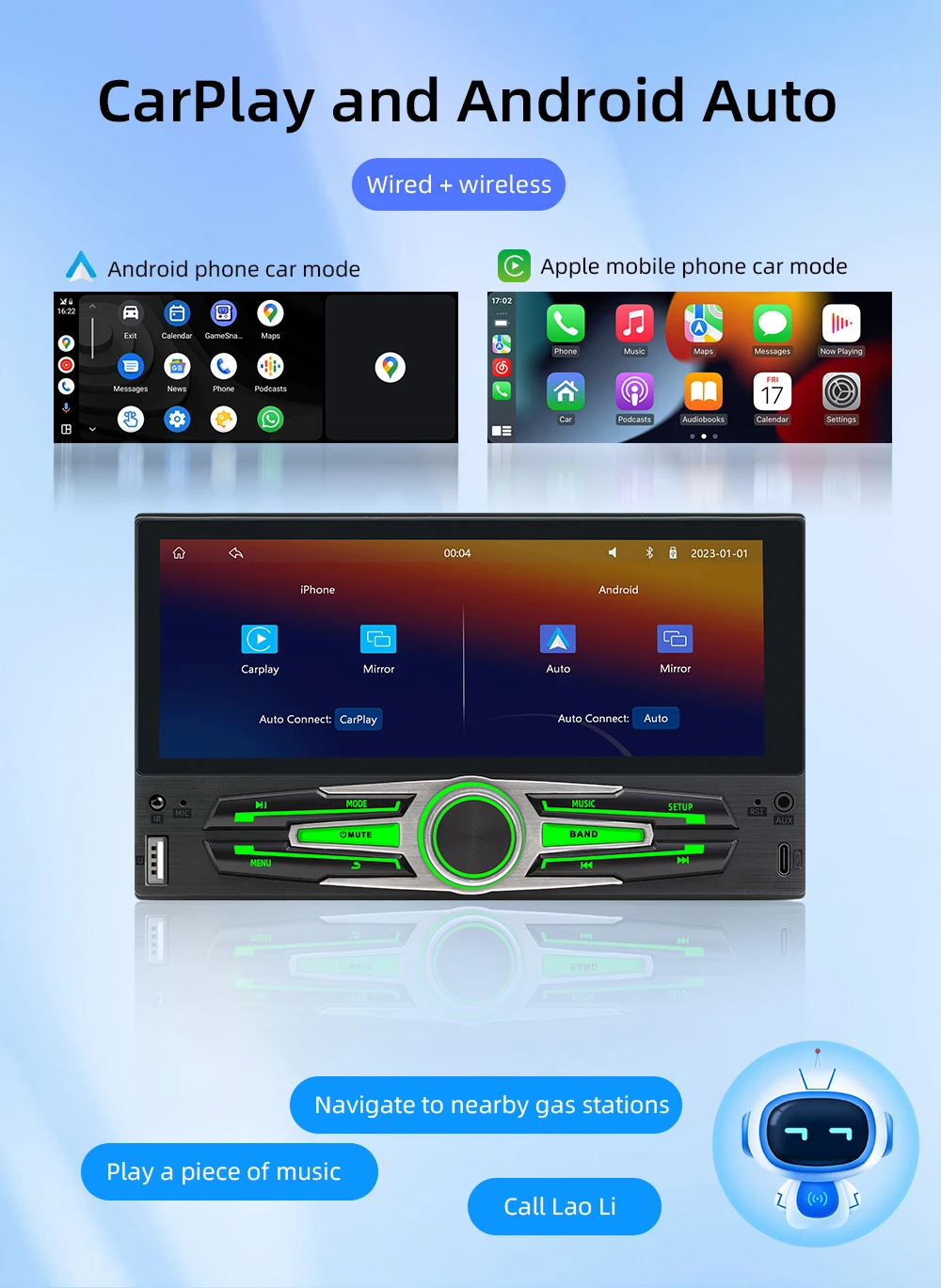

Mobile phone interconnection | Wired and wireless mobile phone projection |
Reversing image | Support |
Play video warning | Support |
Steering wheel control | Supports key learning |
Video output | Support |
Video input | Support |
USB front | USB2.0 reading + rear USB2.0 reading |
TYPE-C charging interface | Support |
Reset button | Support |
Rear external microphone input | Support (external microphone optional) |
AUX audio input | 2 channels (left channel + right channel) |
Audio format | MP3/AAC/APE/OGG/M4A/RA/WAV Video format H263/H264/H265/DIVX HD (720P 1080I 1080P)AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT |
Image format | JPEG/PNG/BMP/GIF/TIFF |
Language parameters | English, Chinese, French, German, Arabic, Italian, Japanese, Portuguese, Russian, Spanish, Hebrew, Polish, Turkish, Czech, Korean, Greek, Dutch |
Factory setting password | 113266 |

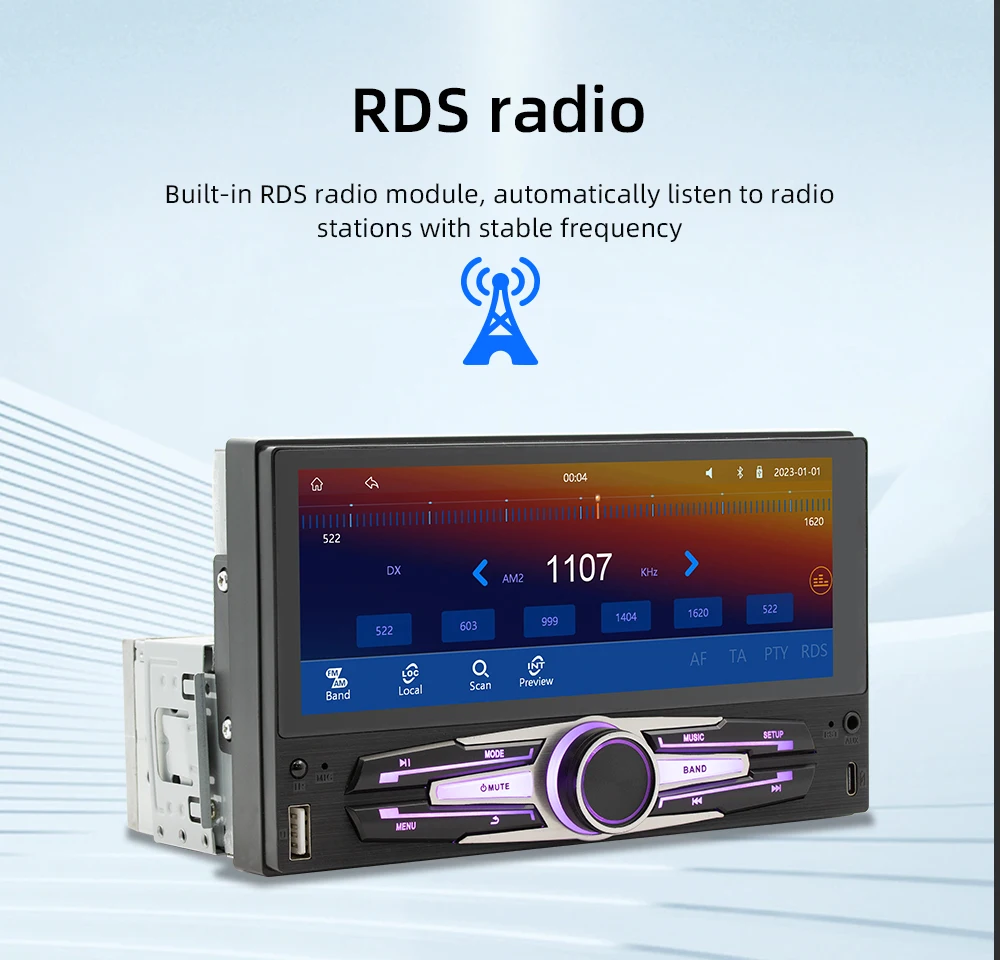

Basic functions | 1. Radio 2. Flash drive (audio/video/picture) 3. Bluetooth function 4. RCA audio output can be connected to a subwoofer 5. Rear view function 6. Video input 7. Original car steering wheel learning function 8. Wired + wireless mobile phone interconnection; wired + wireless Android AUTO; wired + wireless Apple CarPlay 9. RDS function 10. Rear USB 11. TYPE-C charging port 12. AUX audio input function 13. Power supply positive and negative pole reverse connection protection function (the power line positive and negative poles are connected incorrectly, which will not cause the circuit board to burn) |
Company Profile
Shenzhen Chaopingyu Technology Co., Ltd. is an independent research and development and production enterprise, car MP3/MP5 radios, car Android entertainment systems, universal, special-purpose, and thousands of car models can be installed.here are also various auto accessories for sale such as: camera, DVR etc.We can provide LOGO printing, packaging design, UI design, and other customized services.
Display size:
7 inches, 8 inches, 9 inches, 9.7 inches, 10 inches, 10.1 inches.
System Configuration:
1: Wince system
1: Android 8.1/9.1/10.1/11 system(optional)
3. Carplay Android system
4: Quad-core/eight-core (optional)
5: RAM, 1GB/2GB/4GB/6GB/8GB (optional)
6: ROM, 16GB/32GB/64GB/128GB (optional)
7: HD resolution 1024X600
8. Car MP3/MP5 radios
Welcome to negotiate business with agents, wholesalers, and customized customers from all over the world. We lead the industry with high-intelligence and cost-effective products. Service-oriented and win-win together!
Display size:
7 inches, 8 inches, 9 inches, 9.7 inches, 10 inches, 10.1 inches.
System Configuration:
1: Wince system
1: Android 8.1/9.1/10.1/11 system(optional)
3. Carplay Android system
4: Quad-core/eight-core (optional)
5: RAM, 1GB/2GB/4GB/6GB/8GB (optional)
6: ROM, 16GB/32GB/64GB/128GB (optional)
7: HD resolution 1024X600
8. Car MP3/MP5 radios
Welcome to negotiate business with agents, wholesalers, and customized customers from all over the world. We lead the industry with high-intelligence and cost-effective products. Service-oriented and win-win together!
FAQ
Q1: What is your hot items?
Q3: How about the MOQ ?
Q4: What about the total price ship to my place? Can you arrange shipment to my forwarder in China?
Q5: When can I get the goods?
Q6: What functions does it have? Do you have CE ROHS certificates?
A1：Our main products are Car MP3/Car MP5/Car DVD/Car GPS/Android GPS ect.
Q2: How about the Shipping Method?
A2: DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q3: How about the MOQ ?
A3: Lower MOQ of 1 PCS per style.
Q4: What about the total price ship to my place? Can you arrange shipment to my forwarder in China?
A4: Please tell us quantity actually needed, where to ship and your ideal lead time at first. We will estimate and get back to you according to your requirements. Sure, we can ship to your forwarder in China. Please let us know the address.
Q5: When can I get the goods?
A5: Normally it takes 3-28 working days from China. It depends on order quantity and shipping ways.
Procedure: Order Confirmation-Payment-Production/Ready Stock Preparation-Tracking Number(in 3 working days)-Online
Tracking(Information delays 1-2 days) Please contact us if you do not receive the products in 45 days, and please give us 3 days for checking the reason.
Procedure: Order Confirmation-Payment-Production/Ready Stock Preparation-Tracking Number(in 3 working days)-Online
Tracking(Information delays 1-2 days) Please contact us if you do not receive the products in 45 days, and please give us 3 days for checking the reason.
Q6: What functions does it have? Do you have CE ROHS certificates?
A6: For function, it has what you want: music play, video play, BT call, BT music, miror link, navigation, google online, use youtube, etc. For certificate, yes for sure. We would love to provide our partners with all our company certificates sincerely.
