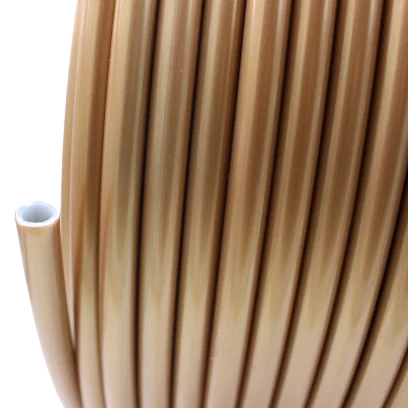

High quality pex al pex pipe for hot water and floor heating
- Category: Floor Heating Systems & Parts >>>
- Supplier: Shandong Efield Piping System Co. Ltd.
Share on (1600217902229):
Product Overview
Description

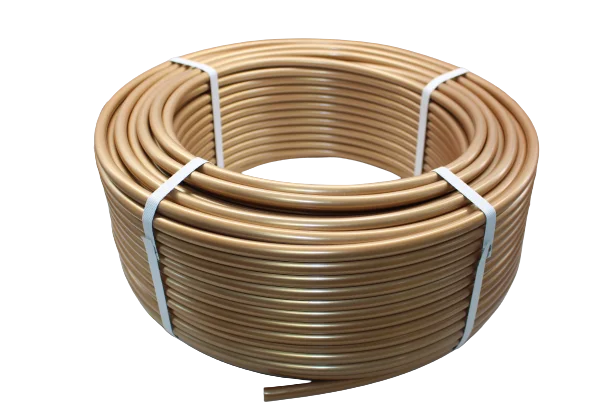

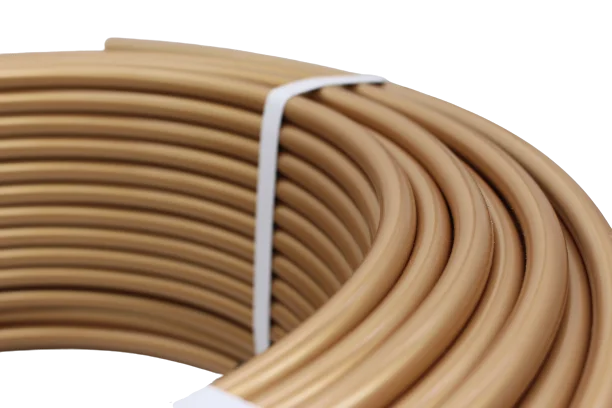

High quality pex-al-pex pipe for hot water and floor heating

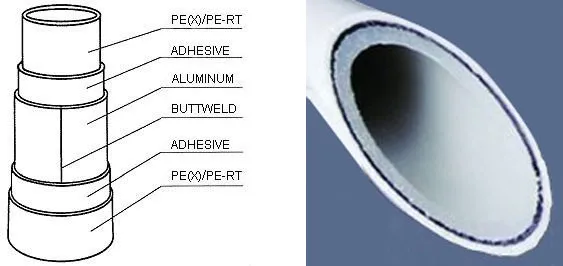

Multilayer pipe is five-layer pipe combines the advantages of metal and plastic pipe, while eliminating the disadvantages of both
material.Absolutely diffusion tight, the aluminum core is continuously overlapped or butt-welded, prevents oxygen and gases from
permeating into the pipes.
material.Absolutely diffusion tight, the aluminum core is continuously overlapped or butt-welded, prevents oxygen and gases from
permeating into the pipes.
Divided by different materials
A. Multilayer pex al pex pipes B. Multilayer pex al pe pipes C. Multilayer pe al pe pipes D. Multilayer pert al pert pipes
By the way of welding, there are two types:
A. Buttweldded or Laser or Seamless welding By buttwelding, the aluminum layer is completely round, so the wall thickness of the
multilayer pipes are even and the roundness is very even, when connected with the fittings, the concentricity is very good, so the
sealing performance and the anti-pressure strength will be highly improved. The aluminum is thicker, the strength and the rigidity
is better, suitable for installation openly.
multilayer pipes are even and the roundness is very even, when connected with the fittings, the concentricity is very good, so the
sealing performance and the anti-pressure strength will be highly improved. The aluminum is thicker, the strength and the rigidity
is better, suitable for installation openly.
B. Overlapped Different from the buttwelded, the overlapped pipes wall thickness is not as even as the buttwelded, when connected
with the fittings, the concentricity is not good, this will influence the sealing performance and the anti-pressure strength.
with the fittings, the concentricity is not good, this will influence the sealing performance and the anti-pressure strength.

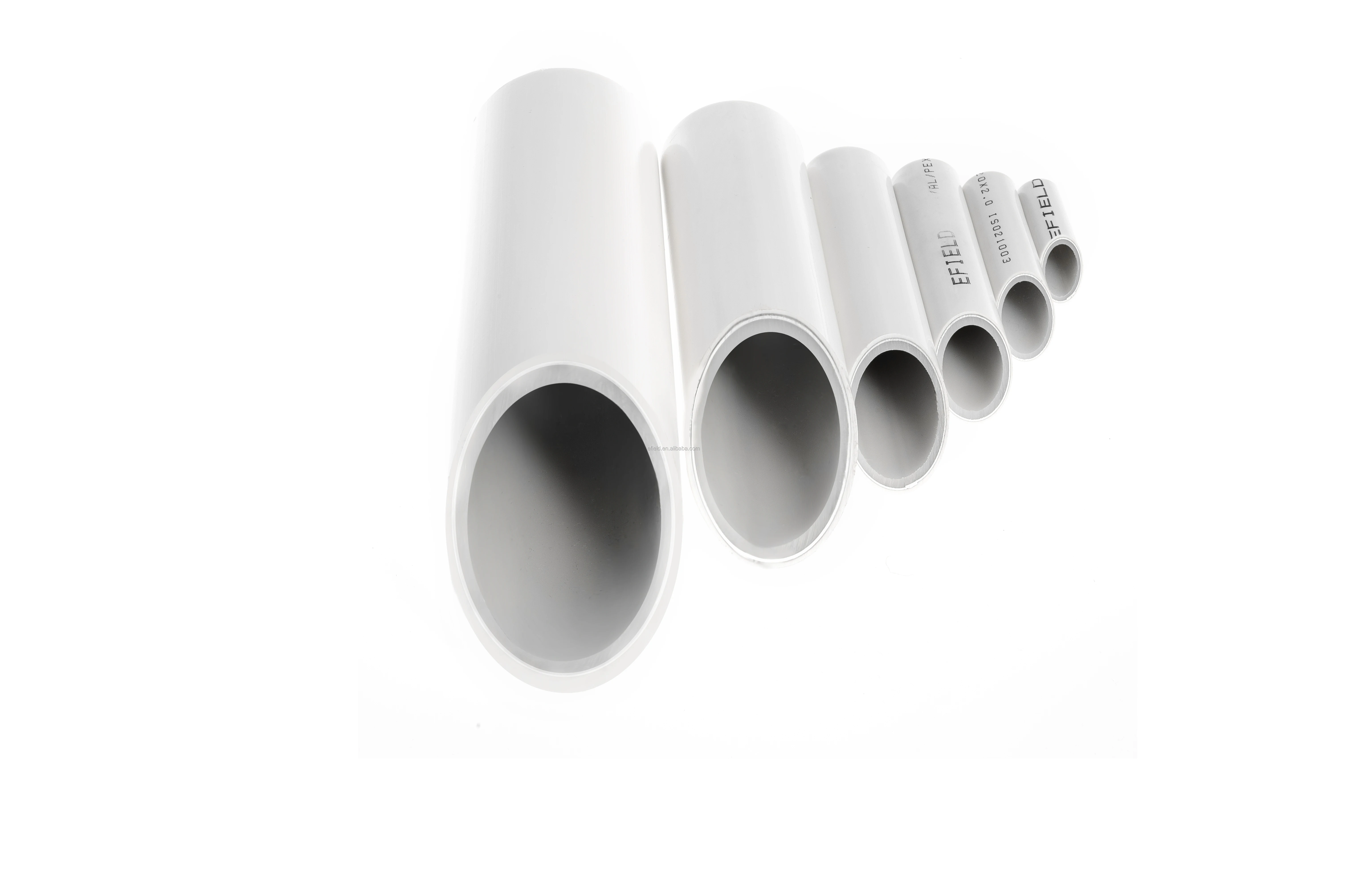

Divided by different sizes
Dimension (mm): 0912, 1014, 1115, 1418, 1216, 1620, 1722, 2025, 2026, 2632; 3240, 4150, 5163
Thickness (mm) : 1.5-3.0
The advantages of Efield's multilayer pipes

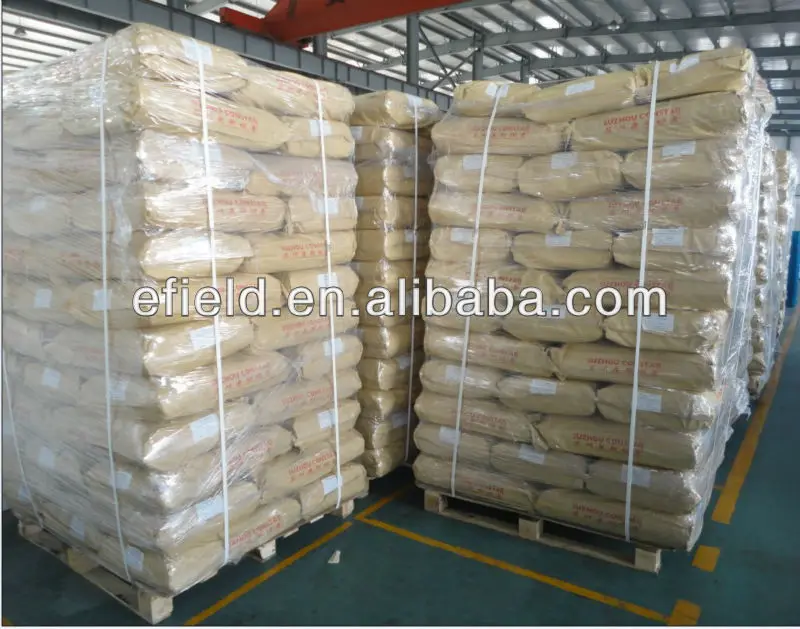

Selection of the pex material: Three major SILON producing areas: 1. Czech factory -- supply Europe 2. Canadian factory -- supply
North America 3. China Constab -- supply the asia-pacific region EFIELD only choose high quality PE-Xb raw materials from the
company China Constab and Korea modern crosslinking material. The annual purchase quantity of Constab is more than 1000T which
exceeding its 20% of total production and Efield is one of three biggest customers of Constab.
North America 3. China Constab -- supply the asia-pacific region EFIELD only choose high quality PE-Xb raw materials from the
company China Constab and Korea modern crosslinking material. The annual purchase quantity of Constab is more than 1000T which
exceeding its 20% of total production and Efield is one of three biggest customers of Constab.

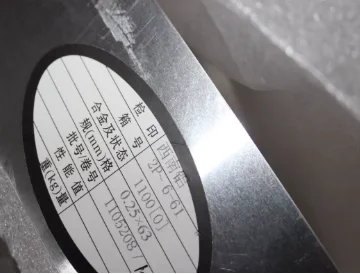

Selection of aluminum tape
only hot-rolled aluminum is used
1. Has been annealed twice and is suitable for stamping and stretching
2. The tensile strength is stronger, and the elongation reaches 30% to 35%.
3. better than cold-rolled aluminum
4. easy to bend without affecting the construction
5. price is higher
cold rolled aluminum
easy to break when bending without annealing treatment.

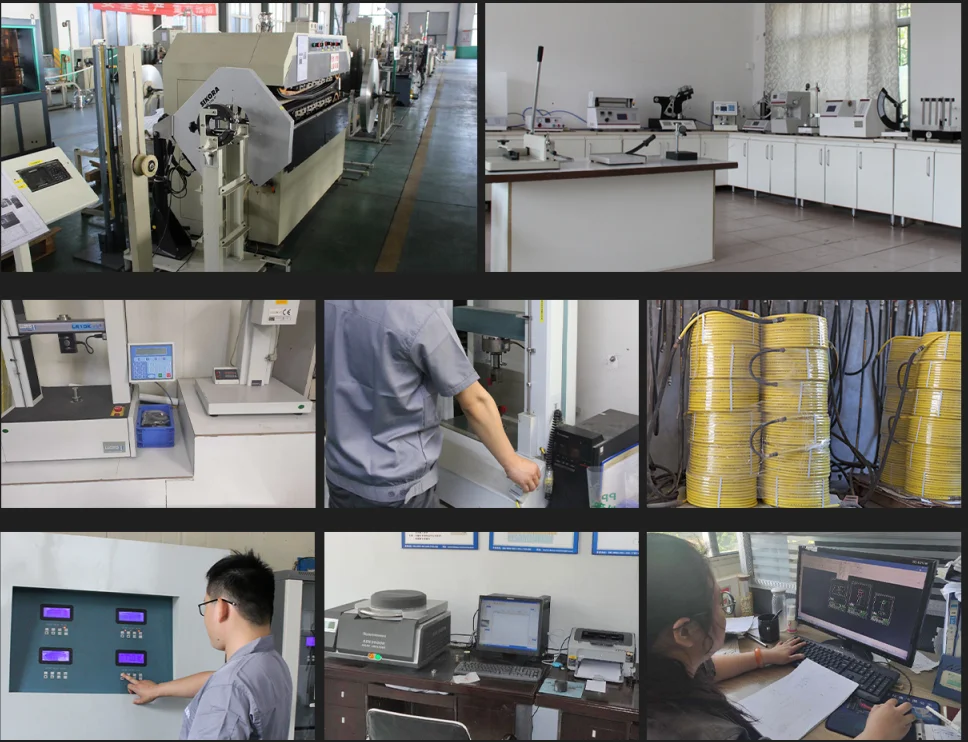

Strict Process control during the production
National standards focus on batch testing of manufactured products. However, according to the European standard ISO21003, EFIELD pays attention to the inspection of production process and the detection frequency is much higher than the national standard.
During the production process, 300mm sample tubes are reserved for each coil of pipe and marked the production date. The sample tubes are used for stripping test and expanding test. Each roll of rewinding pipe is tested by pressing test and shot blasting test.
Detailed Images
Usage: Potable Water, Underfloor Heating System, Radiant Floor Heating. Gas System.
Related Products
Packing&Shipping
Coil packed by Non-woven Bag
Coil packed by Carton
Coil packed by Carton+Pallet.
Bar packed by Non-woven Bag
Bar packed by PE Tube/Plastic Bag + Stillage
Shipping the coils by non-won bag
Standard: ISO 21003, AS 4176, ISO 17484, Australian, European, Spanish, South Africa
SAI, Water Mark Certificate, CE, AENOR, WRAS, AFNOR, NSF, CSA, ISO 9001, ISO14001 Certificate
SAI, Water Mark Certificate, CE, AENOR, WRAS, AFNOR, NSF, CSA, ISO 9001, ISO14001 Certificate

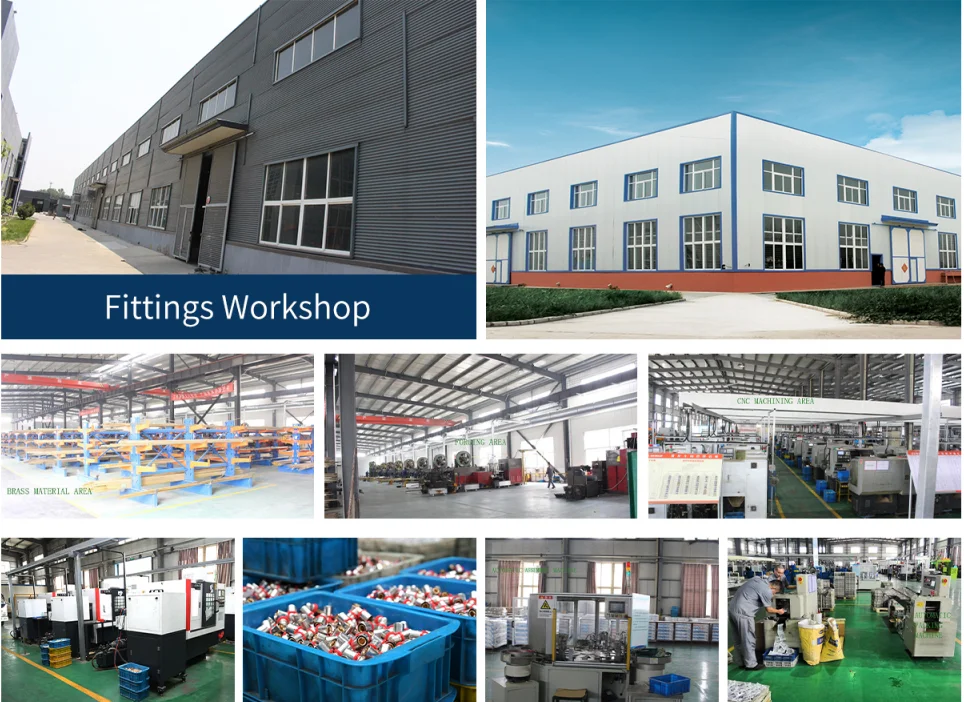

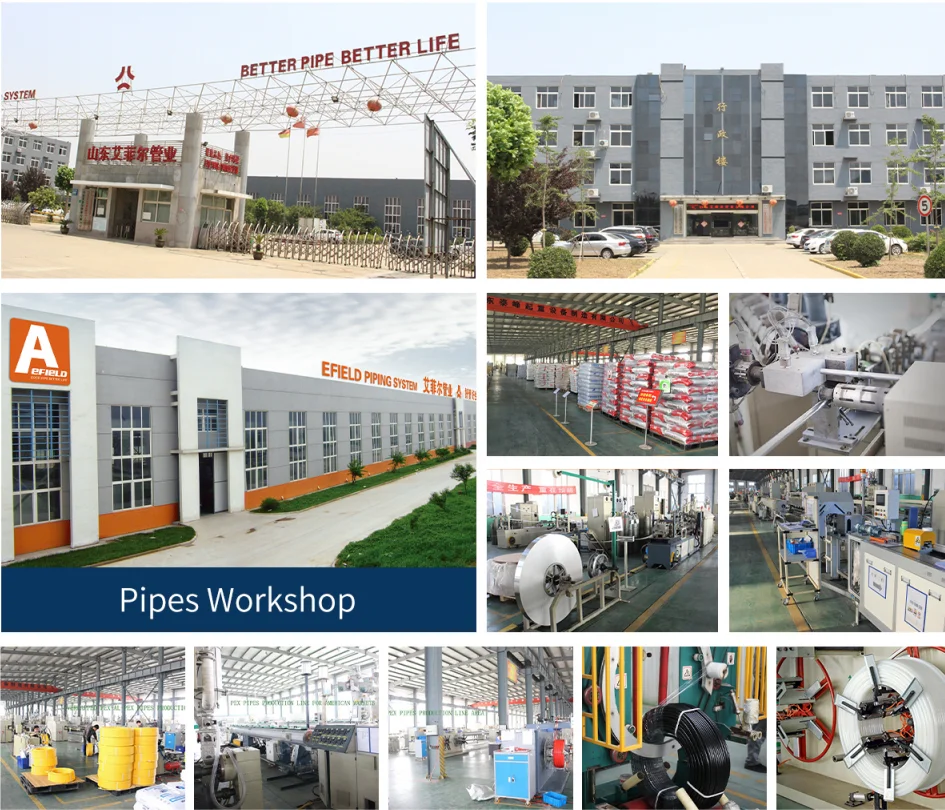

Company Introduction
