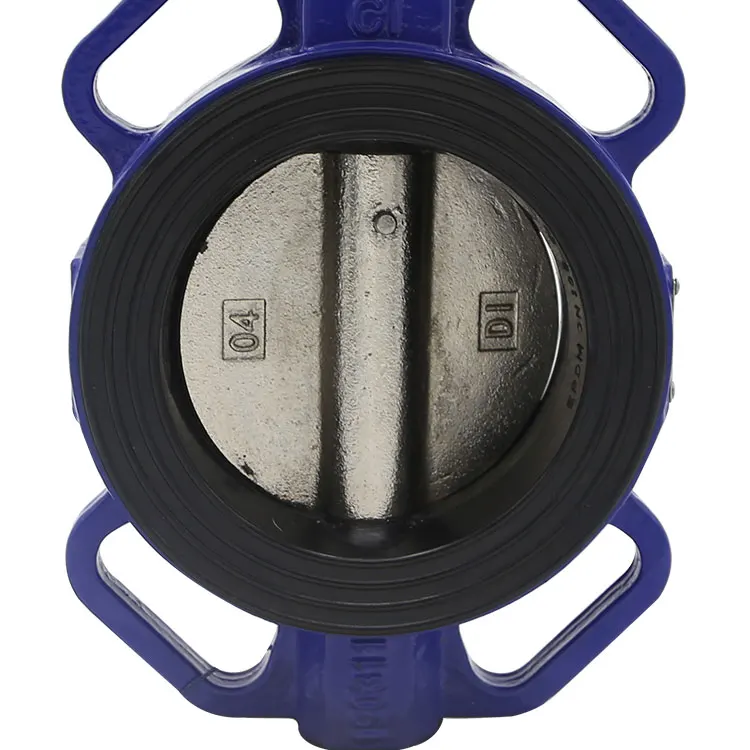

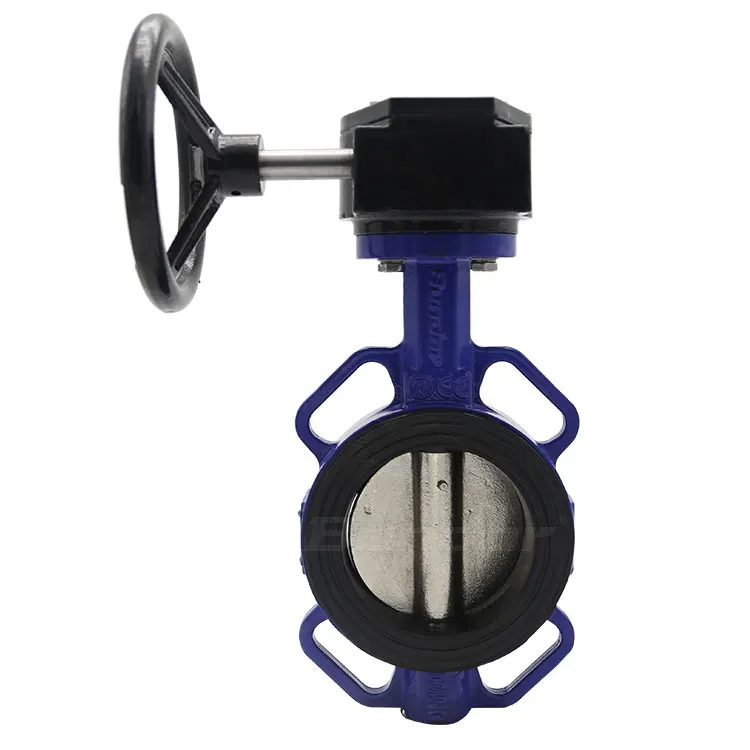

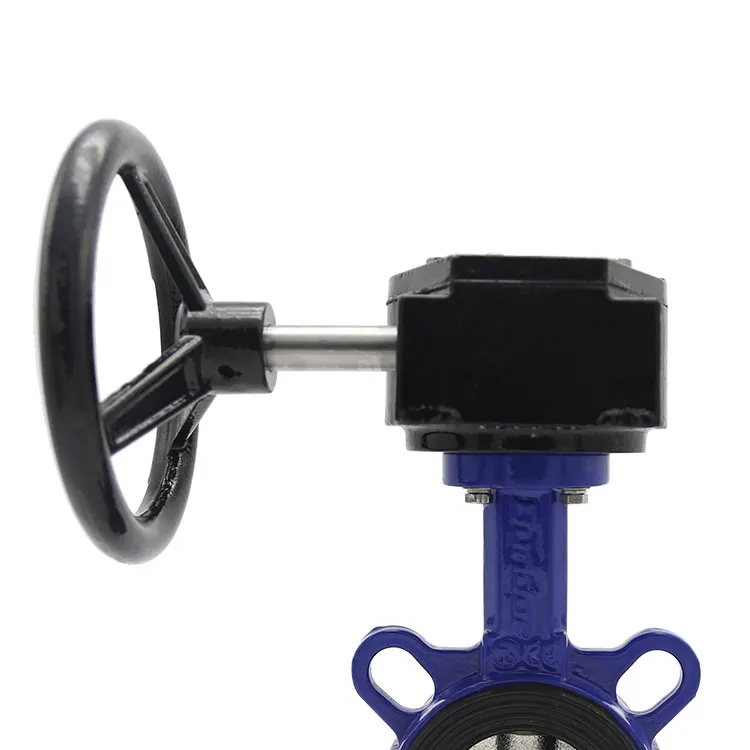

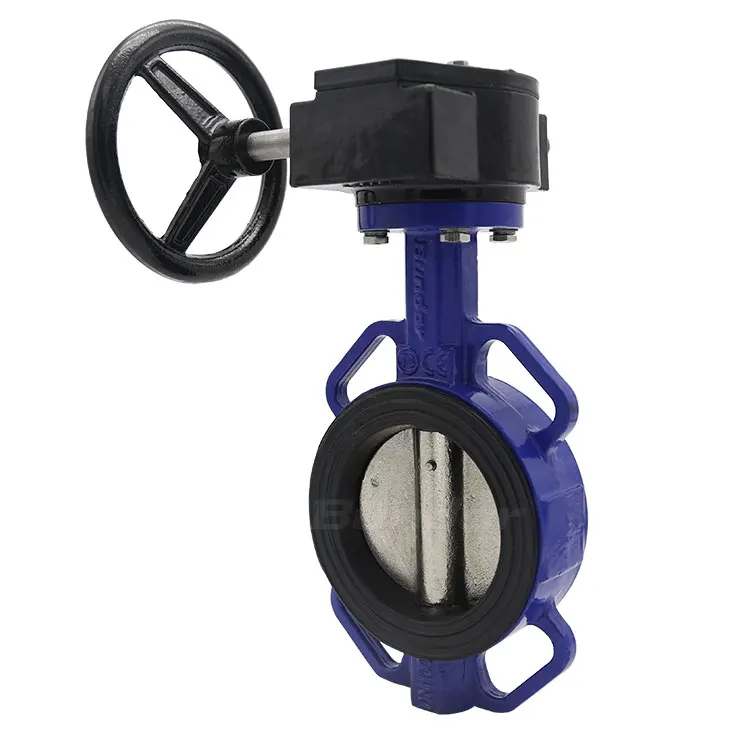

Ручка клапана бабочки из чугуна с червячным Редуктором Bundor DN65, цена
- Category: Butterfly Valves >>>
- Supplier: Bundor Valve Technology Co. Ltd.
Share on (1600218062736):
Product Overview
Description
Products Description
Product Paramenters

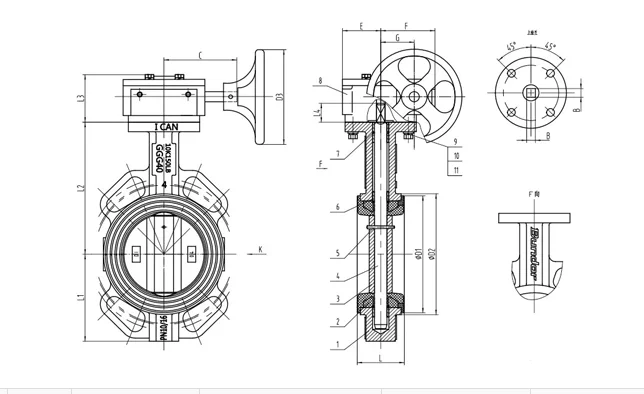

Name | 1-Body | 2-Seat | 3-Disc | 4-Stem | 5-Actuator | ||||||
Material | CI | EPDM | DI | 45# | Worm Gear | ||||||
DN | NPS | L | PN 10 | PN 16 | Class150 | ||||||
50 | 2" | 48 | 125 | 4-Φ18 | 125 | 4-Φ18 | 120.7 | 4-Φ19 | |||
65 | 2 1/2" | 52 | 145 | 4-Φ18 | 145 | 4-Φ18 | 139.7 | 4-Φ19 | |||
80 | 3" | 53 | 160 | 8-Φ18 | 160 | 8-Φ18 | 152.4 | 4-Φ19 | |||
100 | 4" | 58 | 180 | 8-Φ18 | 180 | 8-Φ18 | 190.5 | 8-Φ19 | |||
125 | 5" | 62 | 210 | 8-Φ18 | 210 | 8-Φ18 | 215.9 | 8-Φ22.4 | |||
150 | 6" | 62 | 240 | 8-Φ22 | 240 | 8-Φ22 | 241.3 | 8-Φ22.4 | |||
200 | 8" | 65 | 295 | 8-Φ22 | 295 | 12-Φ22 | 298.4 | 8-Φ22.4 | |||
250 | 10" | 68 | 350 | 12-Φ22 | 355 | 12-Φ26 | 361.9 | 12-Φ25.4 | |||
300 | 12" | 78 | 400 | 12-Φ22 | 410 | 12-Φ26 | 431.8 | 12-Φ25.4 | |||
350 | 14" | 78 | 460 | 16-Φ22 | 470 | 16-Φ26 | 476.2 | 12-Φ28.4 | |||
400 | 16" | 102 | 515 | 16-Φ26 | 525 | 16-Φ30 | 539.7 | 16-Φ28.4 | |||
450 | 18" | 114 | 565 | 20-Φ26 | 585 | 20-Φ30 | 577.8 | 16-Φ31.8 | |||
500 | 20" | 127 | 620 | 20-Φ26 | 650 | 20-Φ33 | 635 | 20-Φ31.8 | |||
600 | 24" | 154 | 725 | 20-Φ30 | 770 | 20-Φ36 | 749.3 | 20-Φ35.1 | |||
700 | 28" | 165 | 840 | 24-Φ30 | 840 | 24-Φ36 | 863.6 | 28-Φ35.1 | |||
800 | 32" | 190 | 950 | 24-Φ33 | 950 | 24-Φ39 | 977.9 | 28-Φ41.1 | |||
900 | 36" | 203 | 1050 | 28-Φ33 | 1050 | 28-Φ39 | 1085.8 | 32-Φ41.1 | |||
1000 | 40" | 216 | 1160 | 28-Φ36 | 1170 | 28-Φ42 | 1200.2 | 38-Φ41.1 | |||
1200 | 44" | 254 | 1380 | 32-Φ39 | 1390 | 32-Φ48 | 1422.4 | 44-Φ41.1 | |||
Recommend Products
Wafer Butterfly Valve
Size: DN50-DN200
Temperature: -20℃-120℃
Body material: DI
Temperature: -20℃-120℃
Body material: DI
SS304/316 Body Butterfly Valve
Size: DN50-DN150
Temperature: 0℃-80℃
Body material: CF8
Temperature: 0℃-80℃
Body material: CF8
PTFE /Teflon Seat Butterfly Valve
Size: DN50-DN200
Temperature: ≤150℃
Body material: DI
Temperature: ≤150℃
Body material: DI
Flanged Butterfly Valve
Size: DN50-DN1200
Temperature: -20℃-120℃
Body material: DI
Temperature: -20℃-120℃
Body material: DI
Electric Butterfly valve
Size: DN50-DN800
Temperature: 0℃-80℃
Body material: CI/DI/WCB/CF8
Temperature: 0℃-80℃
Body material: CI/DI/WCB/CF8
Hard Seal Butterfly Valve
Size: DN50-DN2400
Temperature: -20℃-120℃
Body material: DI
Temperature: -20℃-120℃
Body material: DI

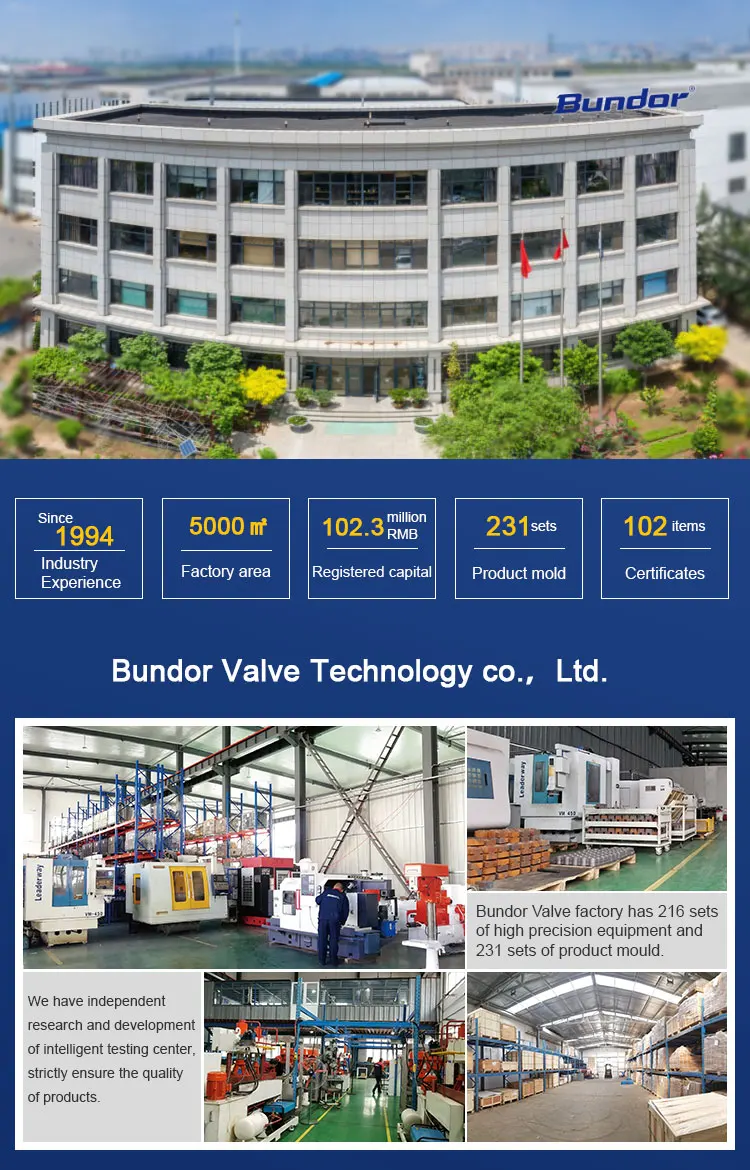

Company Profile
