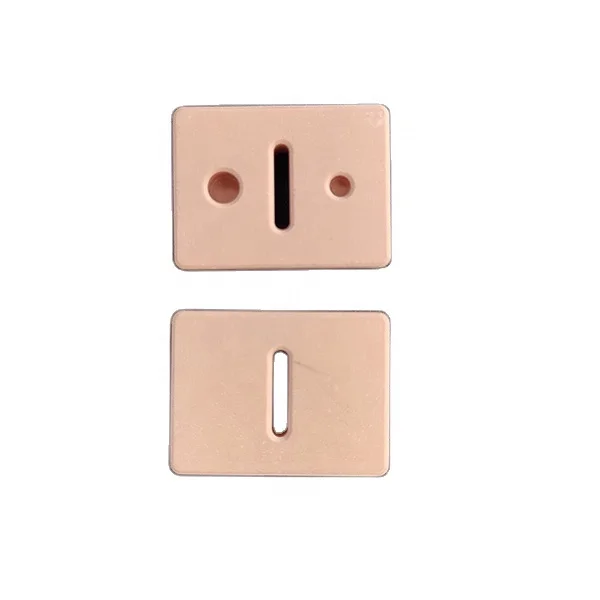

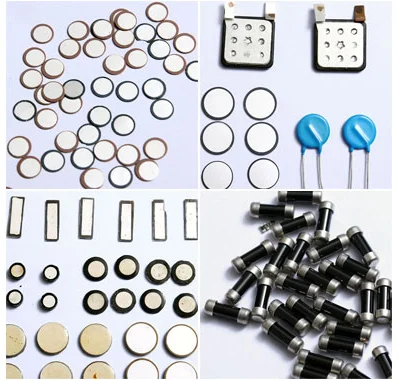

High Temperature Electrical Conductive silver ink fit for ceramic antenna SF 3400
- Category: >>>
- Supplier: Dongguan City Betterly New Materials Co. Ltd.
Share on (1600218083580):
Product Overview
Description
Specific paremeter
Model No. | SF-3400 |
Solid content（wt%） | 80±2 |
Ag content（wt%） | 79±2 |
Width(µm) | FOG@4th：≤10 FOG@50%：≤2.5 |
Viscosity（25℃, mpa.s） | 6000～10000(10rmp) 3000～5500(60rmp) |
Curing process | 150℃/5～10min |
Firing process | 800~850℃/15min （Advice: 830℃/15min） |
Electrical conductivity（×106 S/m） | ≥40 |
Binding force（kgf/mm2） | ≥3.0 |
Solderability | 300℃/3s , Tin Coated area≥90% |
Solder resistance | 300℃*10s， 5 times |
Cleaner | Ethanol, ethyl acetate, butyl acetate |
Thinner | According to the requirements of dipping process |
Using Manual
1. It is recommended to control the ambient temperature at 20~25℃ and humidity at 50~60% during use;
2. Use the silver paste within 24 hours after opening. The unused silver paste must not be left open, and the inner and outer covers should be covered and sealed. Storage;
3. Recycle the silver paste to adjust the viscosity, and a special thinner is required;
4. When the silver paste is taken out of the refrigerated state for use, please first put the silver paste at the operating temperature (generally 20℃~25℃). Balance, balance time ≥ 4h, special attention: Do not open the silver paste packaging cover during the balance process, and keep the silver paste packaging tank in a sealed state. After the temperature is balanced, please open the lid and stir evenly;
5. The working environment should not contain corrosive gases such as sulfide and chloride;
6. The operator must wear masks, hats, gloves, etc., and do not use sulfide The labor protection supplies;
7. If it touches the skin, it should be washed with water and soap in time.
Packing & Delivery
1kg/bottle,2kg/bottle,15kg/bottle
Continent | Sample delivery time |
Asia | 1-4 days |
Euroup | 4-7 days |
North American | 4-7 days |
South American | 6-8 days |
Africa | 8-10 days |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
LSR rubber,solid silicone rubber,Coatings and inks,chemical additive( platinum catalyst),Resin for silicone coatings and inks,Silicone oil
3. Is it free to offer the sample?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
LSR rubber,solid silicone rubber,Coatings and inks,chemical additive( platinum catalyst),Resin for silicone coatings and inks,Silicone oil
3. Is it free to offer the sample?
Yes,below 1g is free ,and the fee on the delivery will be borne by the customer.
