Product Overview
Description
Product Description

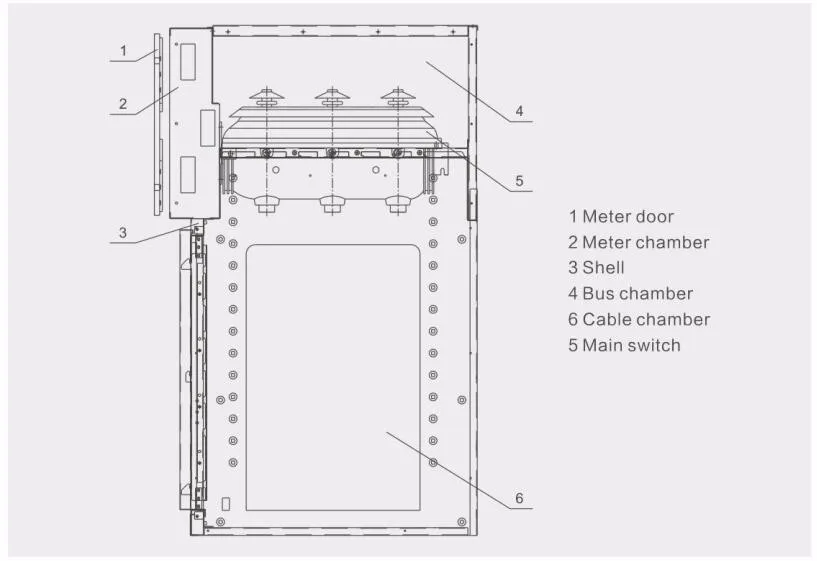

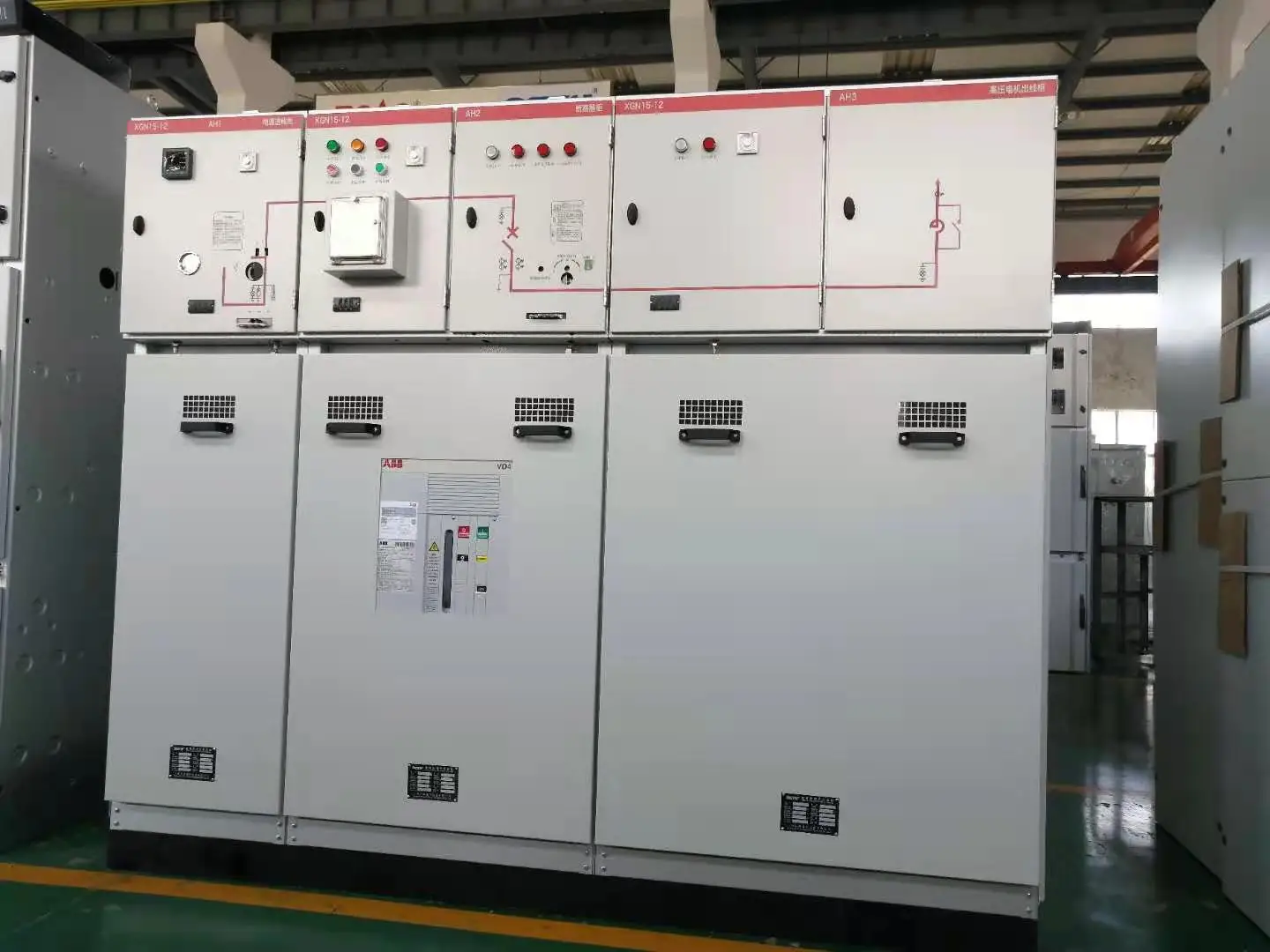

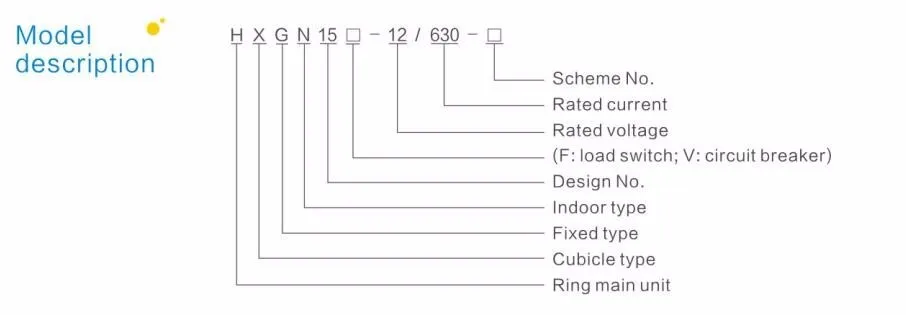

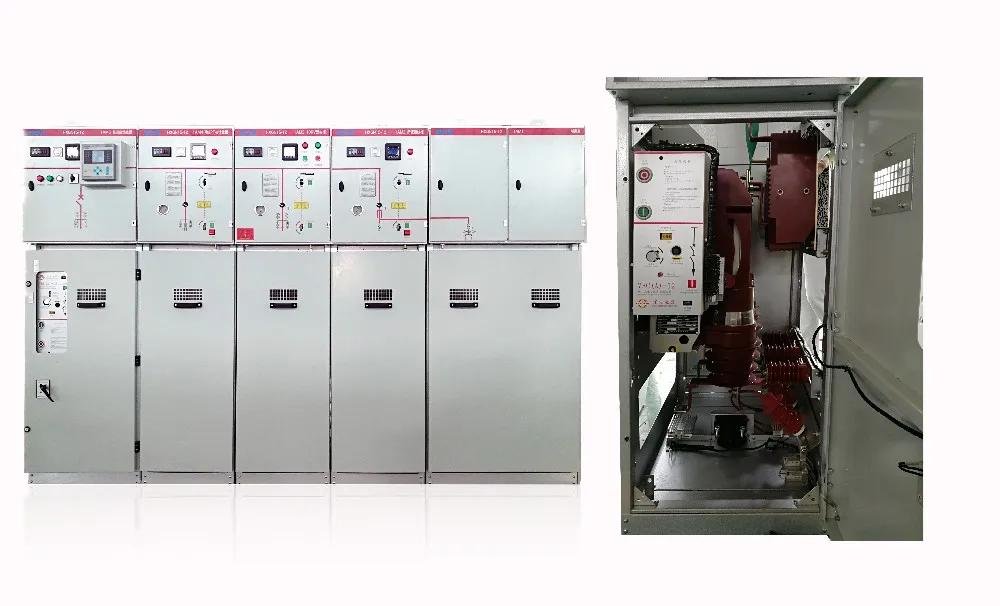

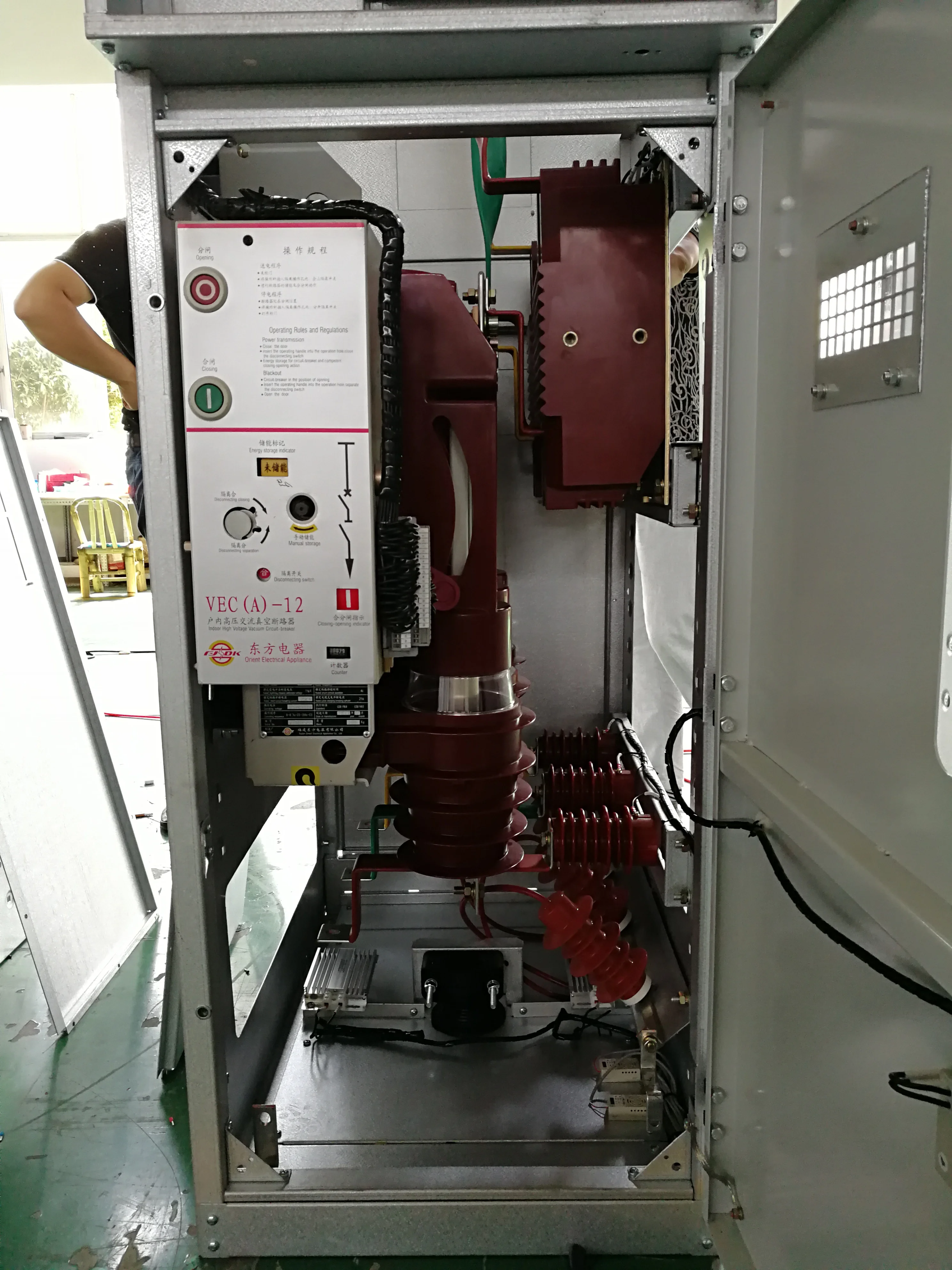

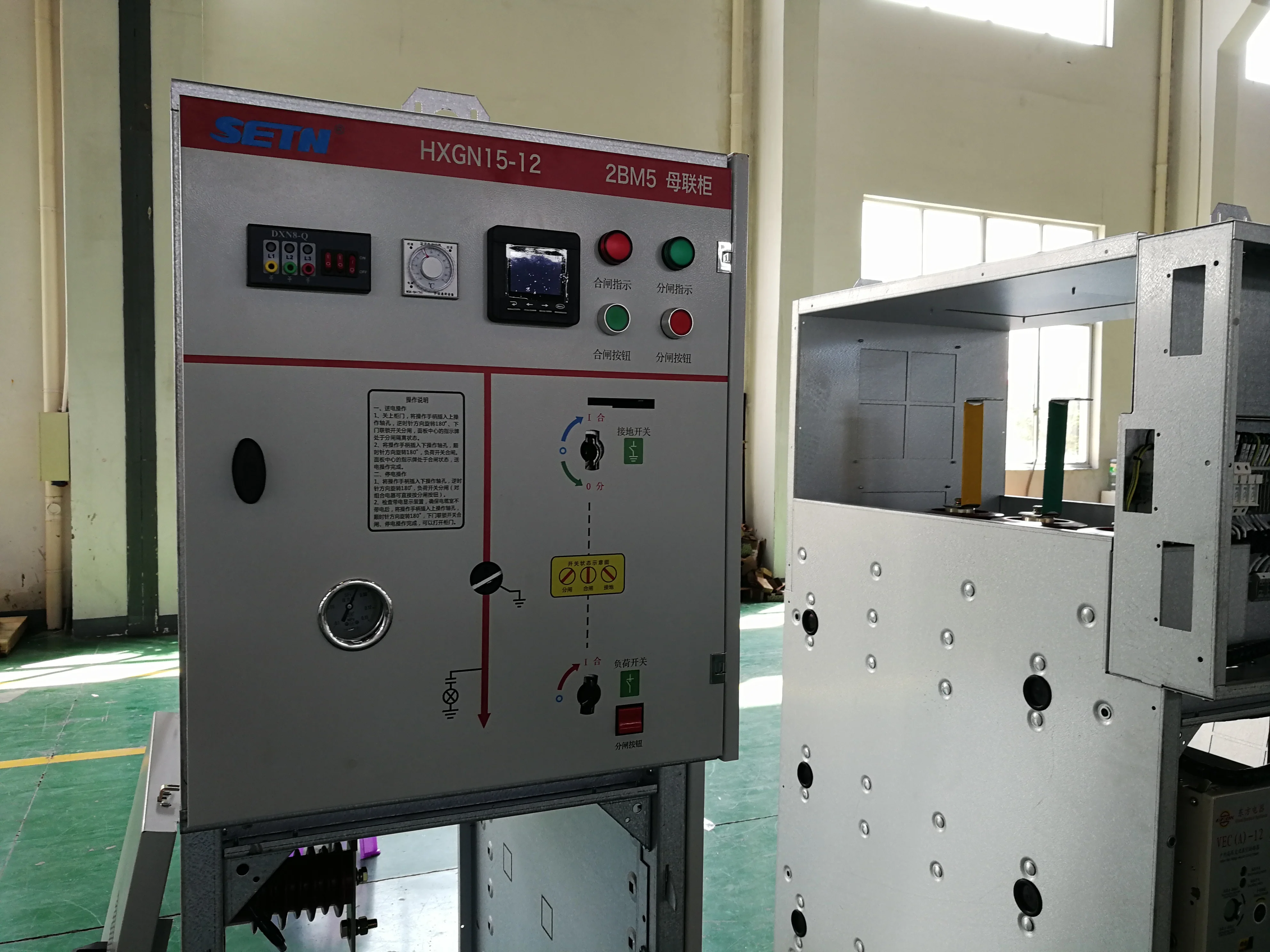

HXGN15-12 Fixed Type Alternating-current Metal-enclosed Switchgear
HXGN15-12 Cubicle Fixed Type Alternating-current Metal-enclosed Switchgear (hereinafterreferred to as ring main unit) adopts the new SF6 load switch, vacuum circuit breaker and vacuum load switch as the master switch. The whole cabinet adopts metal-enclosed switchgear of air insulated, which is compacted and extensible.
Main technical parameters | ||||||
Rated voltage | ........................ | kV | 10 | |||
Rated current | Load switchgear | A | 630 | |||
Combination unit | 125 | |||||
Rated short-circuit breaking current | ........................ | kA | 31.5 | |||
Rated active load breaking current | ........................ | A | 630 | |||
Rated short-time withstand current | ........................ | kA | 20 | |||
Rated peak withstand current | ........................ | kA | 50 | |||
Rated power frequency withstand voltage Phase-to-phase, to-ground/between open contacts | ........................ | kV | 42/48 | |||
........................ | ||||||
Mechanical life period | ........................ | times | 10000 | |||
Rated AC current (combination unit) | ........................ | A | 3150 | |||
Operating mode | ........................ | ..... | Manual or electric | |||
IP code | ........................ | ..... | IP2X | |||
Service conditions
◎Altitude: ≤ 1000m;
O Ambient temperature: -25°C~+40°C;
◎Relative air humidity: Daily average ≤ 95%; Monthly mean ≤ 90%;
◎The ambient air should be free from obvious pollution of dust, smog, corrodent, inflammable gas, gasoline, or salt, etc.;
◎Seismic intensity: Ms8.
Our Delivery
We can deliver the goods by air or sea. We can provide you with a good shipping company to facilitate your choice Our delivery date is usually 15 to 20 days. If you need special customization, the time may be increased
Standard wooden boxes for outer packing
(1) 1 plastic bag/set
(1) 1 plastic bag/set
If you need specially customized package, please inform us in advance
company introduction
Successful project
Certificate
FAQ
Q1:What is your advantages?
A: We are a very famous power distribution product manufacturer in Shanghai, China. We also have our own foreign trade team. We are a company integrating industry and trade
Q2:Can you customize the product according to the size I need?
A: Yes, our factory has a professional team of engineers, we can completely design and develop products for you according to the detailed technical parameters and specifications you require
Q3:Can we use our own logo?
A: Yes, if you have requirements, we can customize the logo you need according to your requirements
A: Yes, if you have requirements, we can customize the logo you need according to your requirements
Q4: What is the quality of your products?
A: Quality is our corporate culture, we regard product quality as life of our company. We have achieved a lot of certifications to meet customs requirements. As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
A: Quality is our corporate culture, we regard product quality as life of our company. We have achieved a lot of certifications to meet customs requirements. As a factory, we can control all process of production 100% and every single product will be tested qualified before shipping.
Q5: When can delivery from ordering?
A: The delivery time depend on the quantity you ordered, generally about 15-25 days after deposit of payment.
A: The delivery time depend on the quantity you ordered, generally about 15-25 days after deposit of payment.
Q6:What are your terms of payment
A: 30% in advance 70% before shipment We can pay by TT/ LC/ DP/ Paypal/ union/Alibaba assurance
A: 30% in advance 70% before shipment We can pay by TT/ LC/ DP/ Paypal/ union/Alibaba assurance
Q7: How long is the warranty of your product?
A: Our warranty period is usually three years,. But the warranty period can be extended after discussion and agreement.
Shanghai SETN ELECTRIC Co., Ltd is a professional of power solution and distribution (PTD) engineering and PTD complete equipment supplier. We provide integrated solution and complete PTD high-tech equipment for a variety of PTD engineering. We are one of the leading enterprises in the national industrial technology upgrade plan and one of the leading brands in the field of electric power engineering of China.
Any special requirements can be settled through friendly negotiation.
If you have any other questions, please click the business card below and contact me directly. We will provide you with the best service
