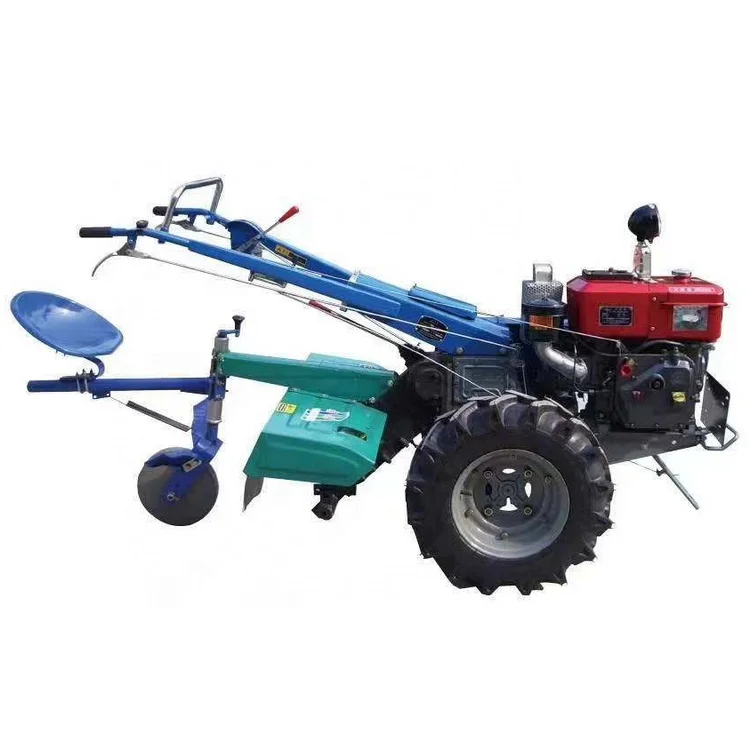

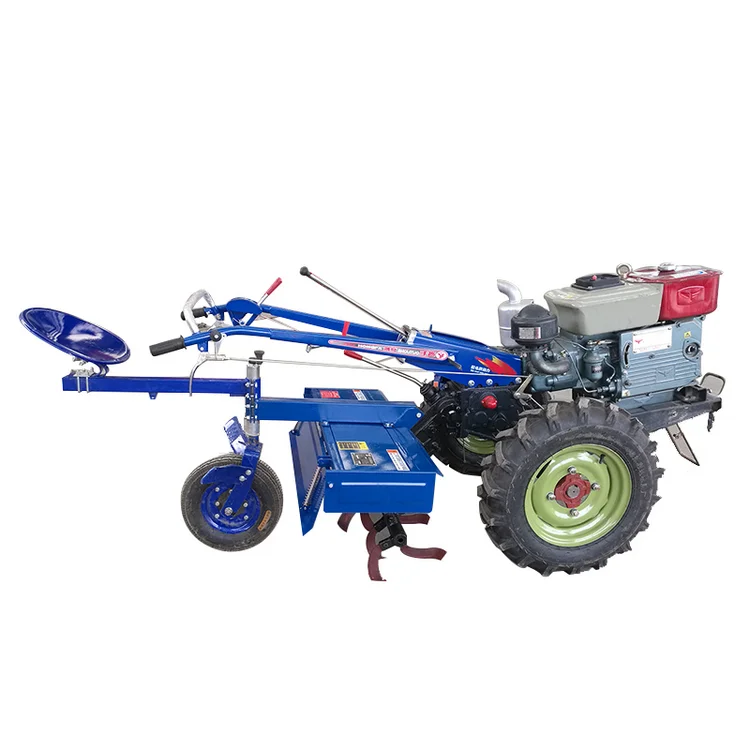

Agriculture products Diesel hand tiller machine Hand power tiller hand tractor tiller
- Category: >>>
- Supplier: Yucheng Future Agriculture Machinery Co. Ltd.
Share on (1600218119201):
Product Overview
Description
Product Description

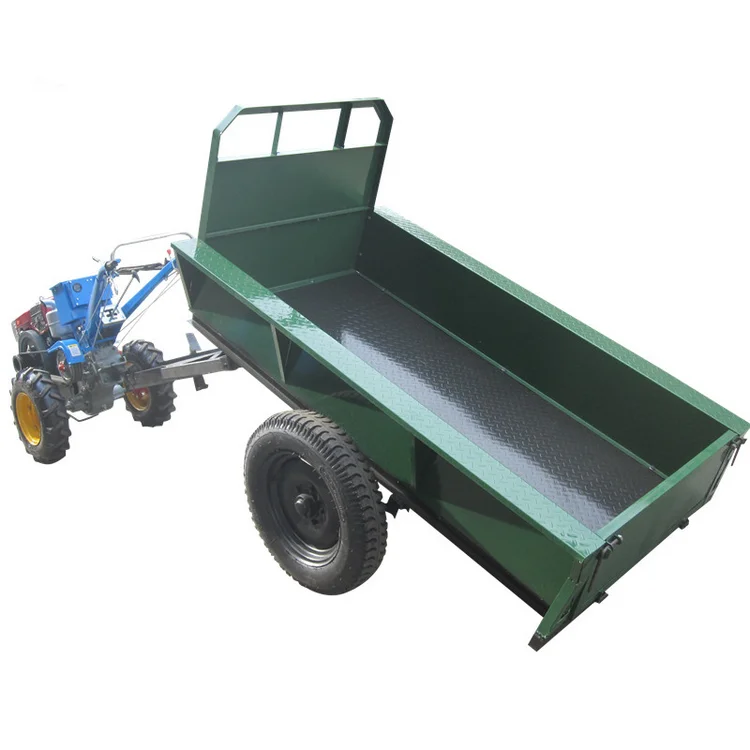

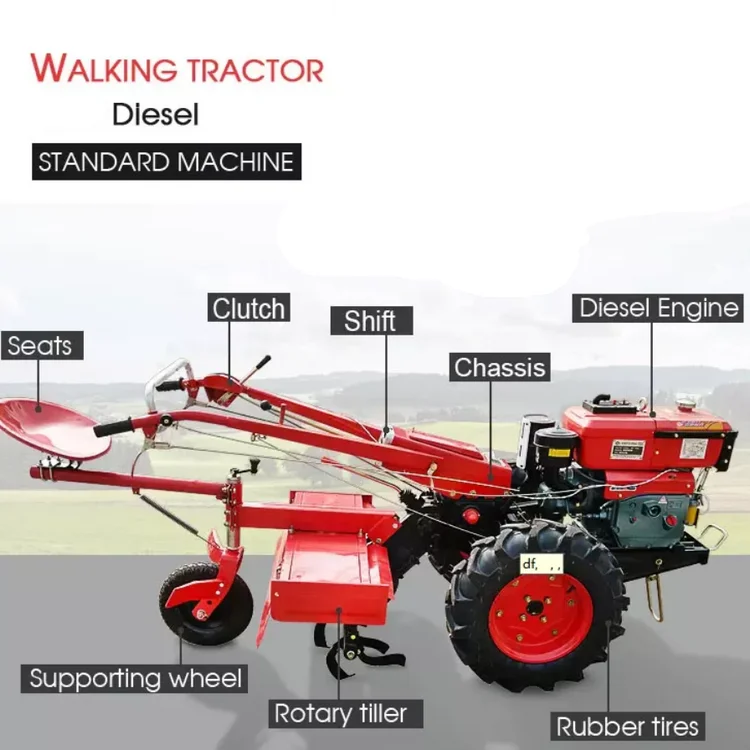

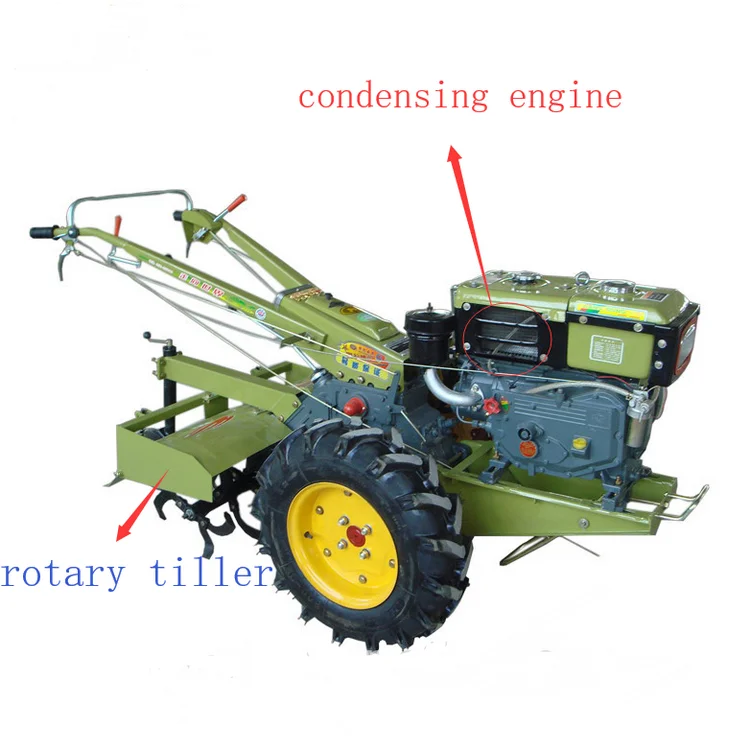

This series walking tractor tiller, a means of transportation and agricultural machinery popular in towns and villages, it is small, flexible and powerful. Most suitable for small arable land, Under the international standard and strong design, this model walking tractor can be attached with rotary tiller, share plow, trailer, mower, potato harvester, seeder and other common farm implements.
Product parameter
Model | YCFA-180 | YCFA-190 | YCFA-195 |
Type | Single cylinder,4-stroke, horizontal, water-cooled, diesel | ||
Cooling mode | Condenser (Radiator) | ||
Rated power | 5.88kw/8hp | 7.35kw/10hp | 8.82kw/12hp |
Rated speed | 2600rpm | 2400rpm | 2400rpm |
Combustion system | Swirl combustion chamber | Swirl combustion chamber | direct injection |
Cylinder Bore | 80 | 90 | 95 |
Piston Stroke | 80 | 90 | 98 |
Compression Ratio | 22 | 22 | 18 |
Fuel efficiency: | ≤278.8gl/kw.hr | ≤262.5gl/kw.hr | ≤245gl/kw.hr |
Displacement | 0.402L | 0.573L | 0.695L |
Fuel Tank Capacity | 6L | 8L | 8L |
Water Tank Capacity | 1.6L | 2L | 2L |
Net Weight | 68/80kg | 102/112kg | 109/121kg |
Gross Weight | 80/90kg | 112/122kg | 120/132kg |
Overall dimensions:(L×W×H) | 2120×840×1160mm | ||
Wheel tread | 680-740mm (Semi-axle 340mm length) | ||
Clutch | Single Friction Plate, 2 Grooves Pulley | ||
Tyre | 6.00-12 | ||
Connection Belts | Two pieces B1750/B1830 Model | ||
Ground clearance | 210mm | ||
Working weight (with rotary tiller) | 265kg (285kg) | 305kg (325kg) | 320kg (355kg) |
Forward Speed (km/h) | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 (6 Forward) | ||
Reverse Speed (km/h) | 1.29, 5.22 (2 Reverse) | ||

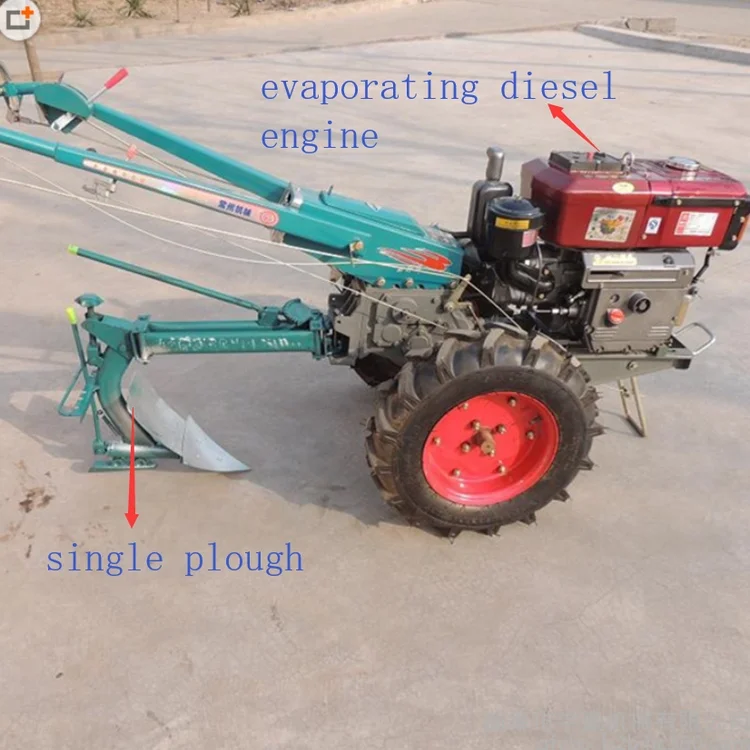

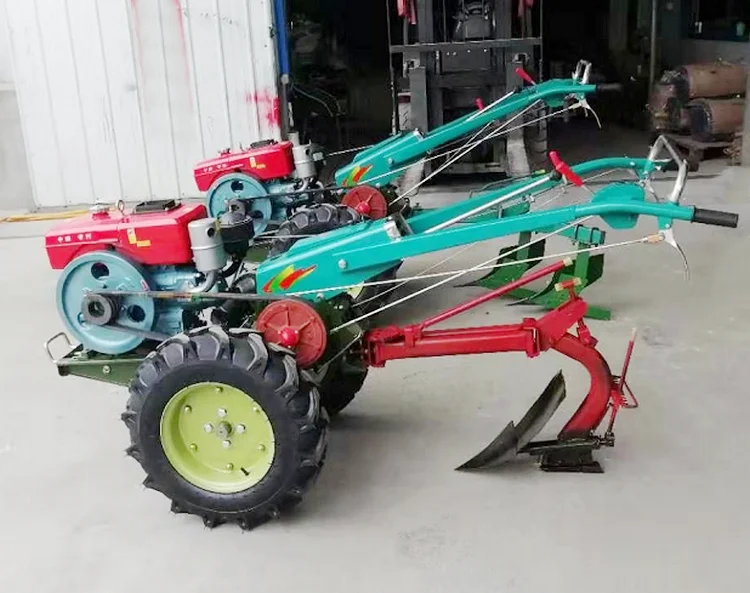

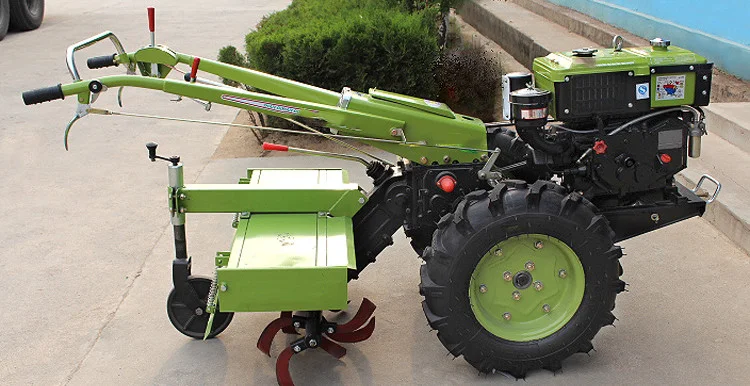

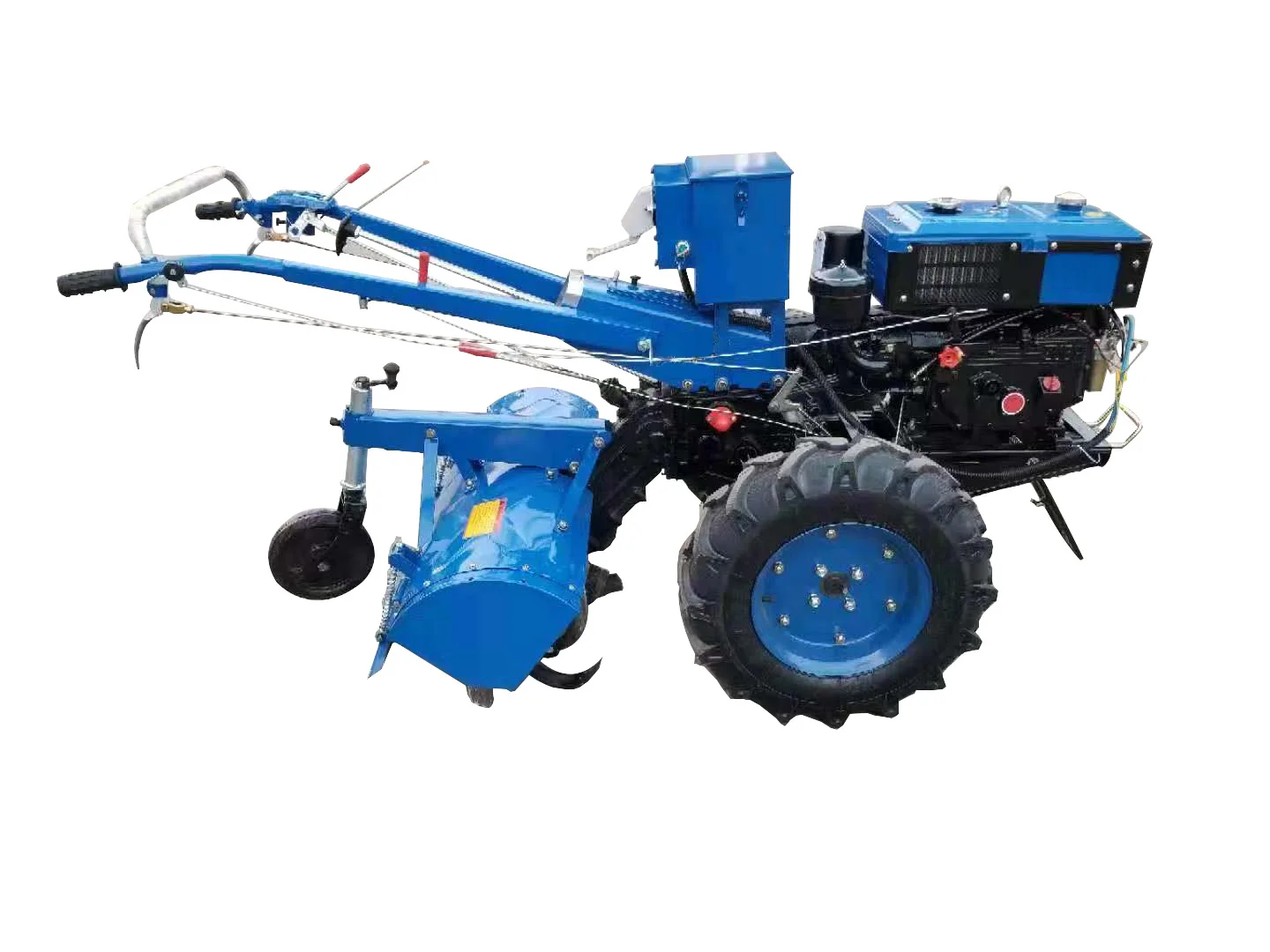

Detailed Images

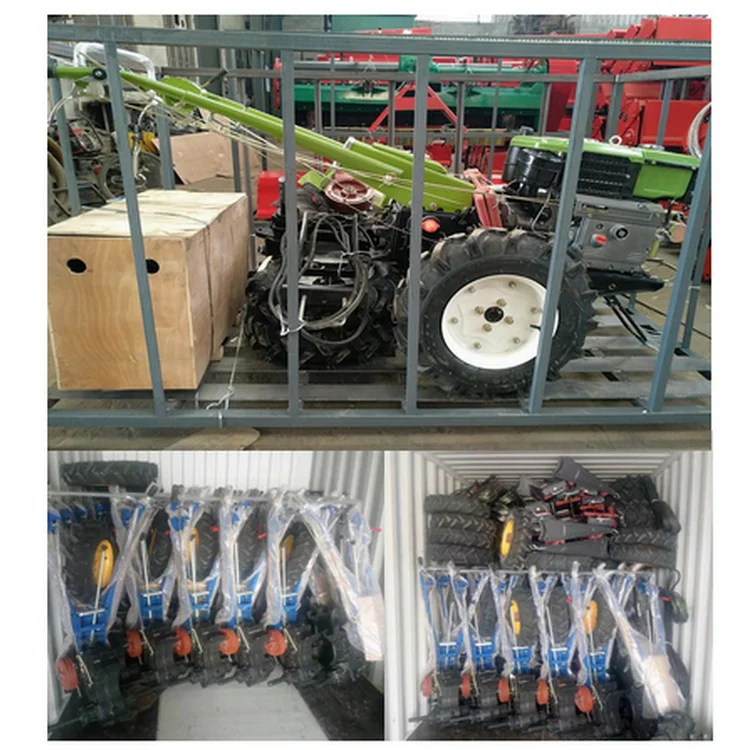

Packaging & Shipping
Certifications
FAQ
Q1: Are you the factory or the trading company?
A: We are the factory!
Q2: What’ the payment terms?
A: a. T/T is 30% deposit and 70% balance payment before delivery
b. L/C at sight.
c. Western Union.
Q3: How about the delivery time?
A: 7-35 days according to the different quantity.
Q4: Do you receive customized order?
A: Yes, ODM & OEM are welcomed.
Q5: What's the MOQ?
A: MOQ is 1 set.
Q6: What's your warranty terms?
A: We supply 12 months warranty time.
Q7: Can you offer me the package with our logo and brand?
A: Yes, we can, only with your official authorization.
Q8: What are your delivery terms?
A: EXW, FOB, CFR, CIF.
