PMI Linear Guide Block MSA30E MSA30ESSFCN slide bearing
- Category: >>>
- Supplier: Guozhou (jinan) Bearing Co. Ltd.
Share on (1600218153562):
Product Overview
Description

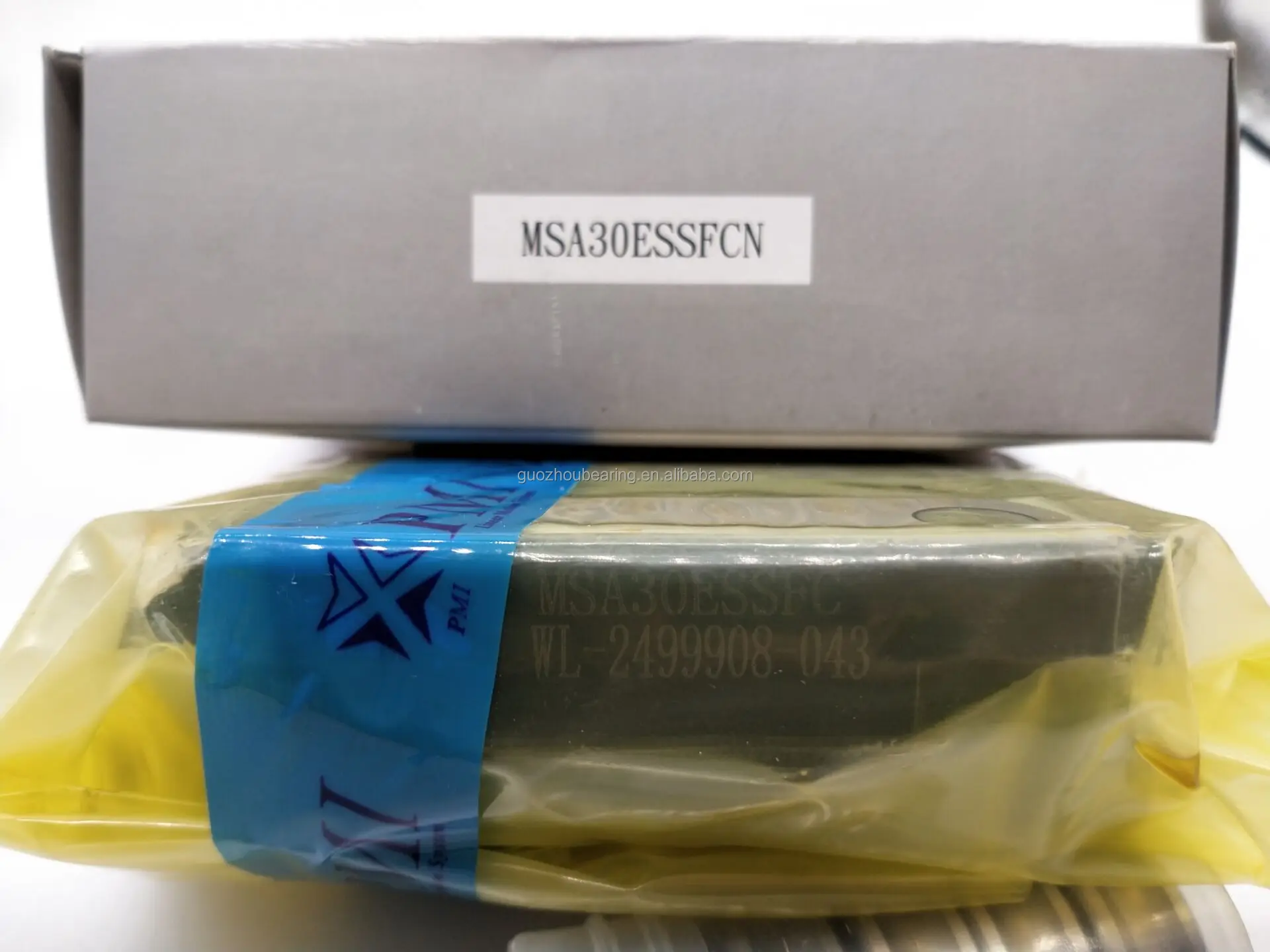

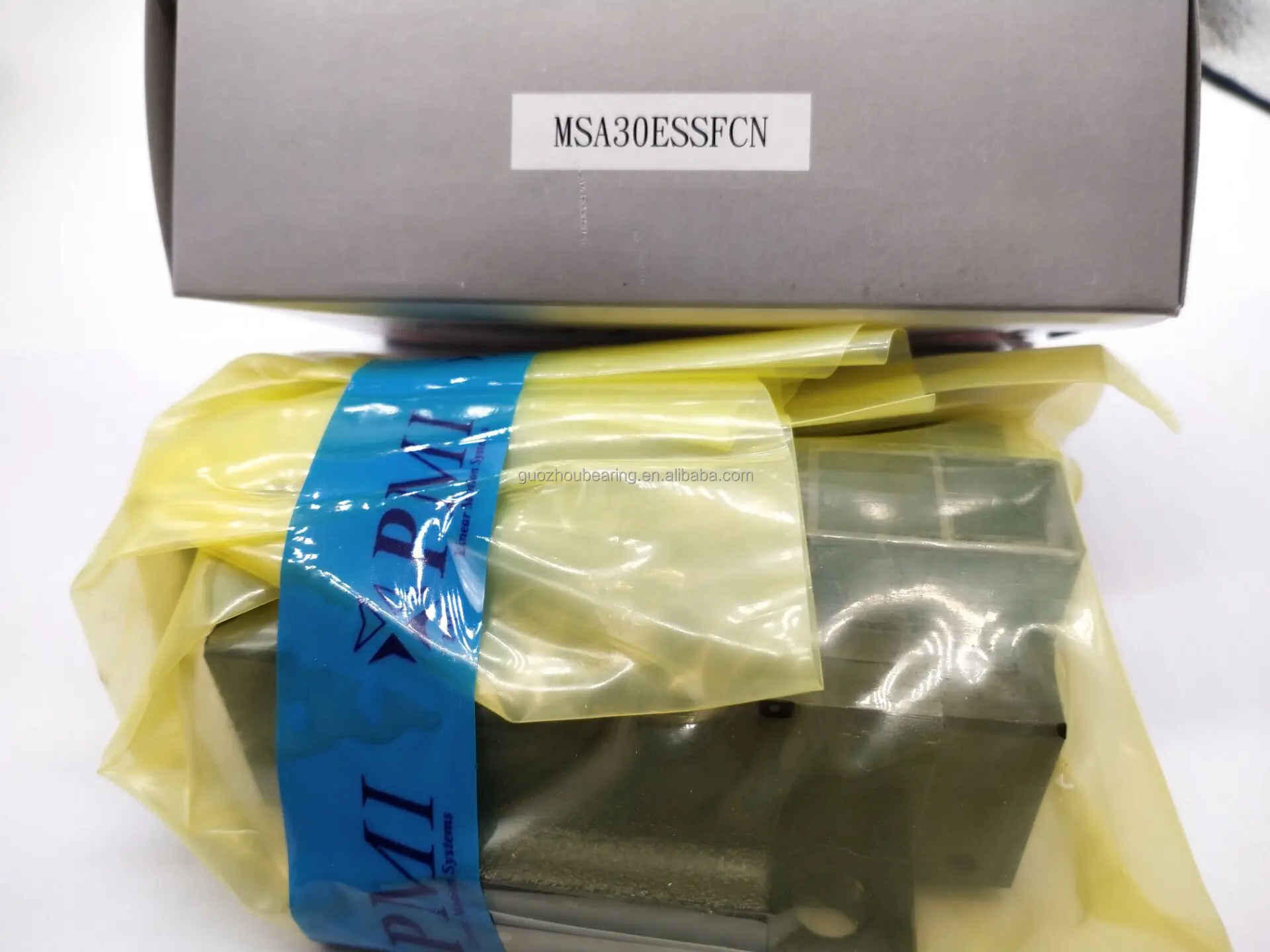

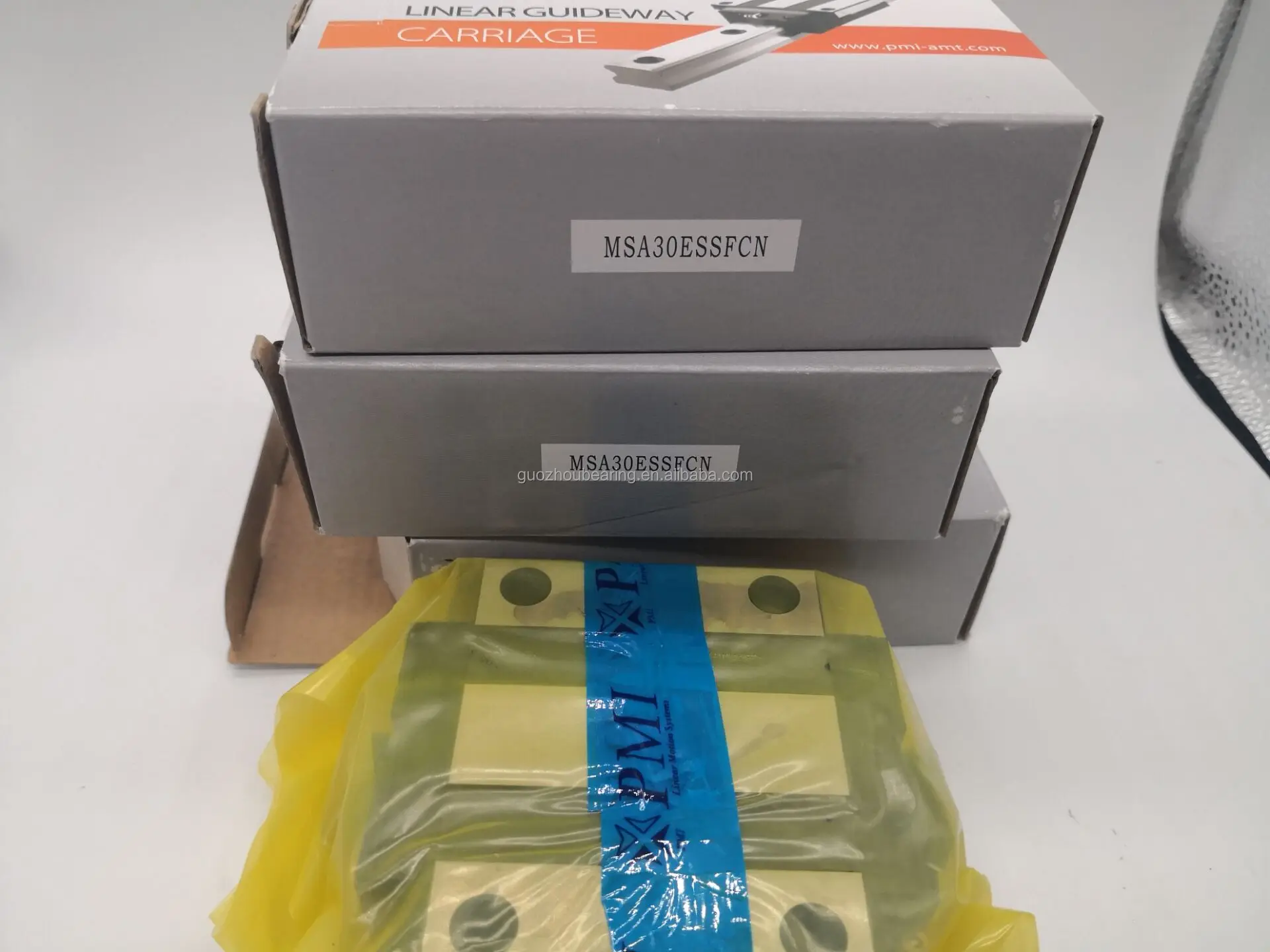

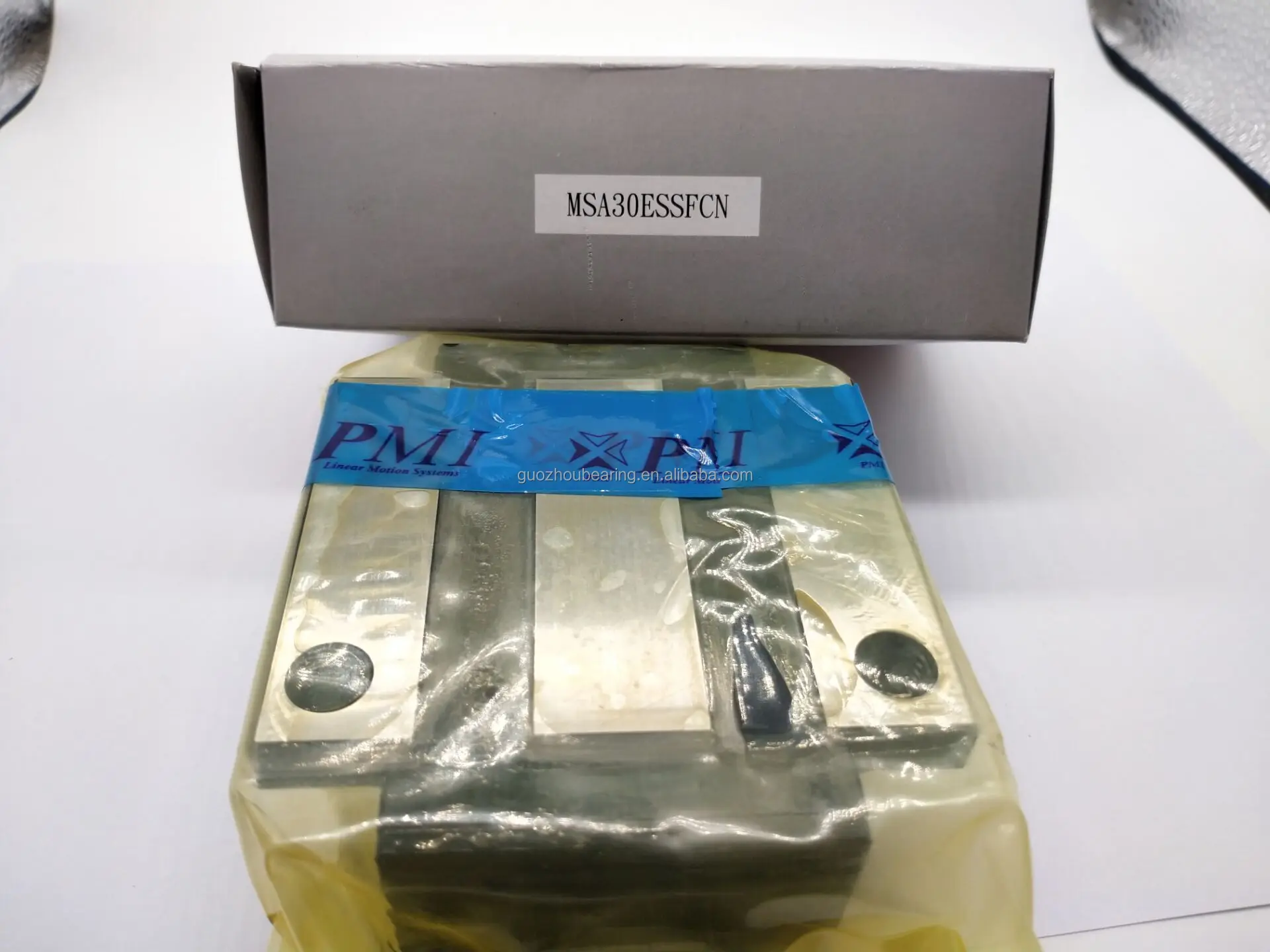

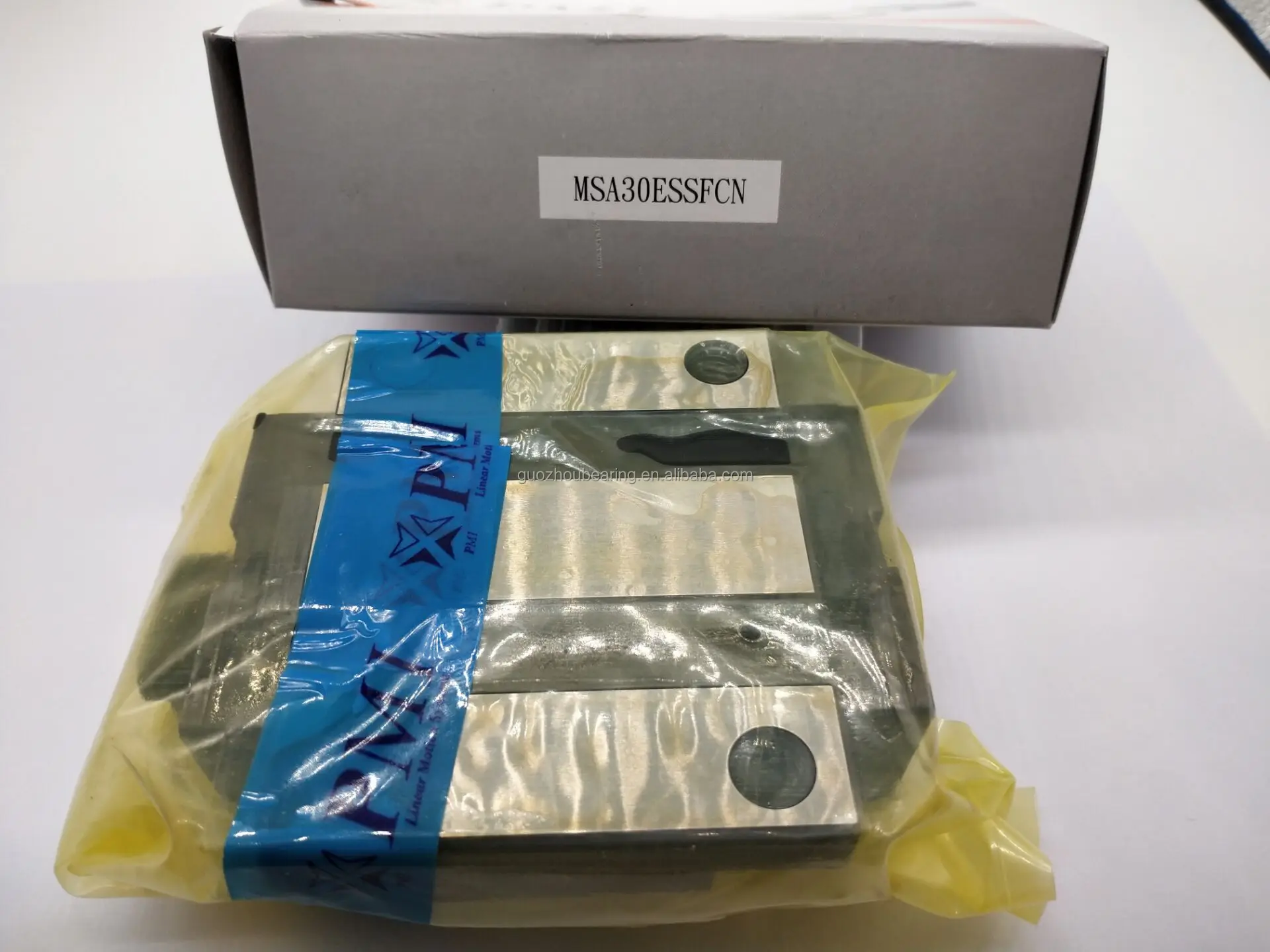

PMI Linear Guide Block MSA30E MSA30ESSFCN slide bearing
PMI Linear guide block MSA-E/LE relative series
| Model No. | External dimension | Carriage dimension | |||||||||||||||
| Height H | Width W | Length L | W2 | H2 | B | C | S × l | L1 | T | T1 | T2 | N | G | K | d1 | Grease Nipple | |
| MSA 15E | 24 | 47 | 56.3 | 16 | 4.2 | 38 | 30 | M5 × 7 | 39.3 | 7 | 11 | 7 | 4.3 | 7 | 3.2 | 3.3 | G-M4 |
| MSA 20E MSA 20LE | 30 | 63 | 72.9 88.8 | 21.5 | 5 | 53 | 40 | M6 × 10 | 51.3 67.2 | 7 | 10 | 10 | 5 | 12 | 5.8 | 3.3 | G-M6 |
| MSA 25E MSA 25LE | 36 | 70 | 81.6 100.6 | 23.5 | 6.5 | 57 | 45 | M8 × 10 | 59 78 | 11 | 16 | 10 | 6 | 12 | 5.8 | 3.3 | G-M6 |
| MSA 30E MSA 30LE | 42 | 90 | 97 119.2 | 31 | 8 | 72 | 52 | M10 × 10 | 71.4 93.6 | 11 | 18 | 10 | 7 | 12 | 6.8 | 3.3 | G-M6 |
| MSA 35E MSA 35LE | 48 | 100 | 111.2 136.6 | 33 | 9.5 | 82 | 62 | M10 × 13 | 81 106.4 | 13 | 21 | 13 | 8 | 11.5 | 8.6 | 3.3 | G-M6 |
| MSA 45E MSA 45LE | 60 | 120 | 137.7 169.5 | 37.5 | 10 | 100 | 80 | M12 × 15 | 102.5 134.3 | 13 | 25 | 15 | 10 | 13.5 | 10.6 | 3.3 | G-PT 1/8 |
| MSA 55E MSA 55LE | 70 | 140 | 161.5 199.5 | 43.5 | 13 | 116 | 95 | M14 × 17 | 119.5 157.5 | 19 | 32 | 17 | 11 | 13.5 | 8.9 | 3.3 | G-PT 1/8 |
| MSA 65E MSA 65LE | 90 | 170 | 199 253 | 53.5 | 15 | 142 | 110 | M16 × 23 | 149 203 | 21.5 | 37 | 23 | 19 | 13.5 | 8.9 | 3.3 | G-PT 1/8 |
| Model No. | Rail dimension | Basic load rating | Static moment rating | Weight | ||||||||||
| Width W1 | Height H1 | Pitch P | E std. | D × h × d | Dynamic C kN | StaticCo kN | Mp kN-m | MY kN-m | MR kN-m | Carriage kg | Rail kg/m | |||
| Single* | Double* | Single* | Double* | |||||||||||
| MSA 15E | 15 | 15 | 60 | 20 | 7.5 × 5.3 × 4.5 | 11.8 | 18.9 | 0.12 | 0.68 | 0.12 | 0.68 | 0.14 | 0.18 | 1.5 |
| MSA 20E MSA 20LE | 20 | 18 | 60 | 20 | 9.5 × 8.5 × 6 | 19.2 23.3 | 29.5 39.3 | 0.23 0.39 | 1.42 2.23 | 0.23 0.39 | 1.42 2.23 | 0.29 0.38 | 0.4 0.52 | 2.4 |
| MSA 25E MSA 25LE | 23 | 22 | 60 | 20 | 11 × 9 × 7 | 28.1 34.4 | 42.4 56.6 | 0.39 0.67 | 2.20 3.52 | 0.39 0.67 | 2.20 3.52 | 0.48 0.63 | 0.62 0.82 | 3.4 |
| MSA 30E MSA 30LE | 28 | 26 | 80 | 20 | 14 × 12 × 9 | 39.2 47.9 | 57.8 77.0 | 0.62 1.07 | 3.67 5.81 | 0.62 1.07 | 3.67 5.81 | 0.79 1.05 | 1.09 1.43 | 4.8 |
| MSA 35E MSA 35LE | 34 | 29 | 80 | 20 | 14 × 12 × 9 | 52.0 63.6 | 75.5 100.6 | 0.93 1.60 | 5.47 8.67 | 0.93 1.60 | 5.47 8.67 | 1.25 1.67 | 1.61 2.11 | 6.6 |
| MSA 45E MSA 45LE | 45 | 38 | 105 | 22.5 | 20 × 17 × 14 | 83.8 102.4 | 117.9 157.3 | 1.81 3.13 | 10.67 16.95 | 1.81 3.13 | 10.67 16.95 | 2.57 3.43 | 2.98 3.9 | 11.5 |
| MSA 55E MSA 55LE | 53 | 44 | 120 | 30 | 23 × 20 × 16 | 123.6 151.1 | 169.8 226.4 | 3.13 5.40 | 17.57 28.11 | 3.13 5.40 | 17.57 28.11 | 4.50 6.00 | 4.17 5.49 | 15.5 |
| MSA 65E MSA 65LE | 63 | 53 | 150 | 35 | 26 × 22 × 18 | 198.8 253.5 | 265.3 375.9 | 6.11 11.84 | 33.71 57.32 | 6.11 11.84 | 33.71 57.32 | 8.36 11.84 | 8.73 11.89 | 21.9 |
