Jinuosh Repair Tool Stereomicroscope Binoculaires Microscopios Laboratorio Optical Microscope
- Category: >>>
- Supplier: Guangdong Jinnuo Technology Co. Ltd.
Share on (1600218156280):
Product Overview
Description

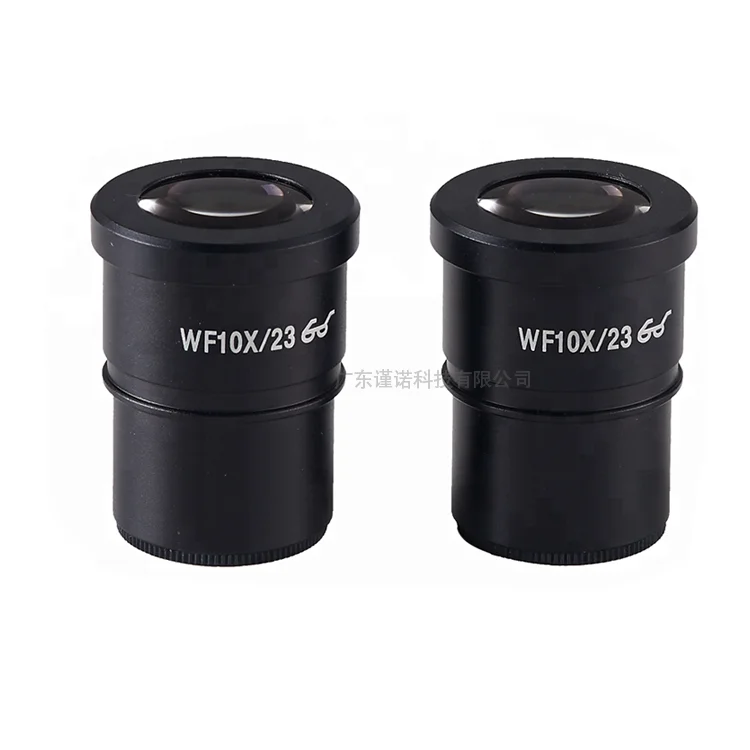

Eyepiece | High eye point wide field eyepiece WF10X/22mm (micrometer can be installed) | ||||||

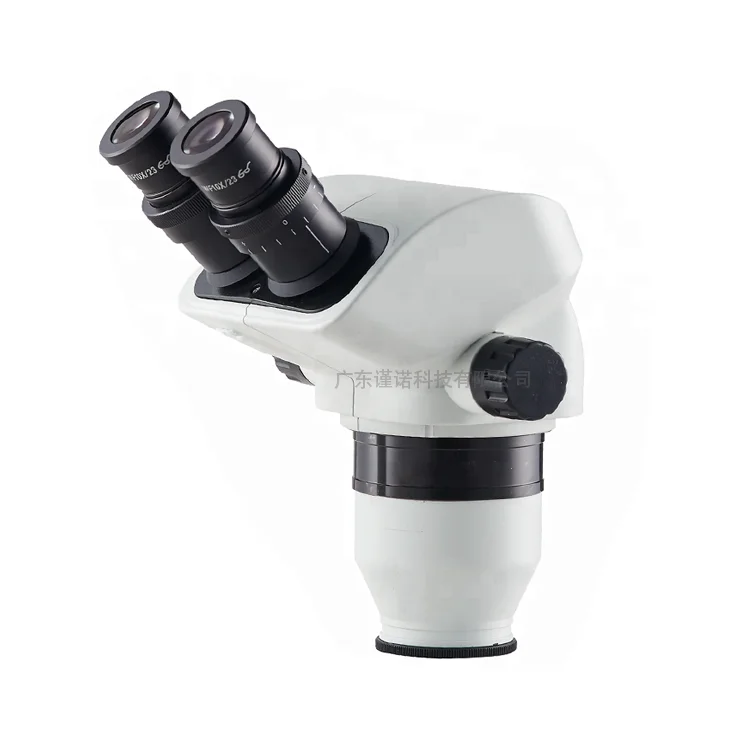

Observation head | Binocular observation head, 45° tilt, continuous zoom objective lens 0.67X-4.5X, working distance 100mm. Interpupillary distance adjustment range 54mm-76mm, bilateral diopter adjustable ±5 diopters. | ||||||
Auxiliary objective | 0.3X/ 287mm 0.4X/217mm 0.5X/177mm 0.75X/117mm 1.5X/47mm 2X/26mm | ||||||

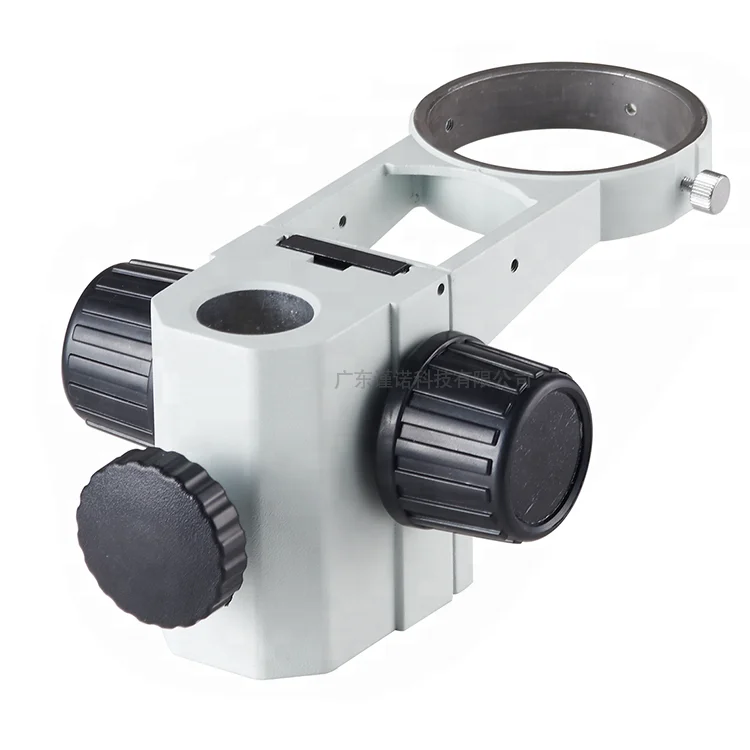

Focusing bracket | Focusing lens frame, adjustable handwheel for tightness, lifting range 50mm | ||||||

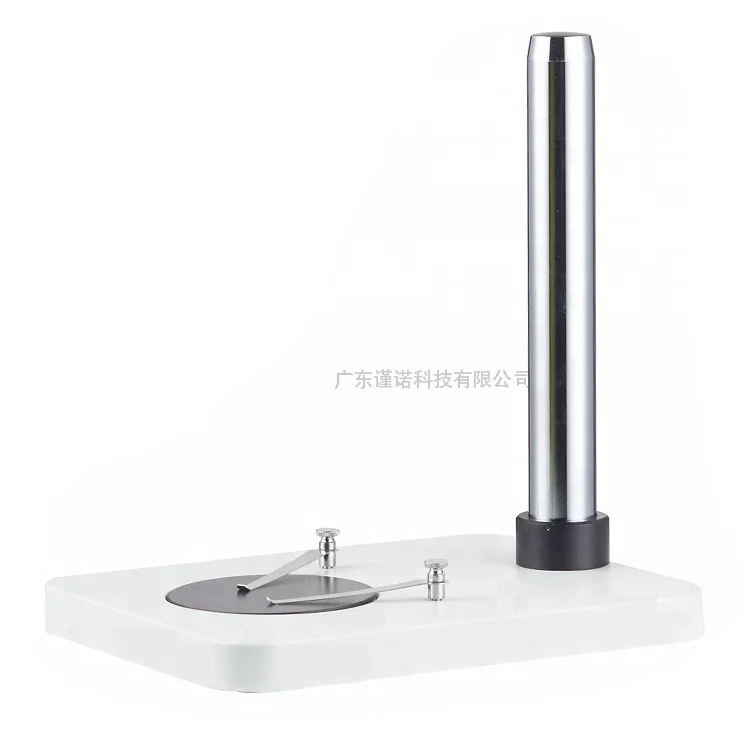

Base | SZST2 column type large flat base | ||||||
Other external light sources | Ring light/LED light/fiber optic lighting | ||||||
Camera device | Photographic tube (with PK bayonet), 4X photography eyepiece | ||||||
Other optional | Precision measurement platform, dark field condenser, jewelry clip, dust-proof mirror | ||||||
Insturment features
High-quality optical components coated with special coatings create high-quality optical images.
A positive image with a flat image surface and good contrast is formed in the large field of view, especially in the peripheral field of view, the image quality is brighter and clearer.
Using continuous zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~45X. Optional auxiliary objective lens,magnification 2X~225X.
The effective standard working distance reaches 100mm, with optional auxiliary objective lens, the working distance will be expanded to 26 mm-287mm, creating enough space for use.
The observation head is tilted at 45° or 60°, and the binocular diopter is adjustable to ensure that users with different eyesight can obtain clear and satisfactory images.
The structure design conforms to the ergonomics, the best eye point height, and the long-term use does not feel fatigue.
The zoom handwheel is set horizontally (axially) bilaterally, which is convenient and comfortable to operate and has high zoom repeat accuracy.
With a variety of accessories, expand the application field
A positive image with a flat image surface and good contrast is formed in the large field of view, especially in the peripheral field of view, the image quality is brighter and clearer.
Using continuous zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~45X. Optional auxiliary objective lens,magnification 2X~225X.
The effective standard working distance reaches 100mm, with optional auxiliary objective lens, the working distance will be expanded to 26 mm-287mm, creating enough space for use.
The observation head is tilted at 45° or 60°, and the binocular diopter is adjustable to ensure that users with different eyesight can obtain clear and satisfactory images.
The structure design conforms to the ergonomics, the best eye point height, and the long-term use does not feel fatigue.
The zoom handwheel is set horizontally (axially) bilaterally, which is convenient and comfortable to operate and has high zoom repeat accuracy.
With a variety of accessories, expand the application field
Company Profile
Guangdong Jinuosh Technology Co. LTD
Guangdong Jinuosh Technology Co., Ltd. is a state-level high-tech enterprise engaged in R & D, production and sales of precision measuring instrument, optical microscope, experimental equipment and various optical elements and components for 16years.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
Products are widely used in industrial applications, such as machines, electronic products, moulds, plastics, metal die cutting,electrical mobile phones, mobile home appliances, computers, LCD TV printed circuit board, automobile, aviation, etc.
The company has always followed the quality service policy of "customer first, quality first, perfection, and cost-effective". We provide for customers with testing programs and supporting products.
Establish a good brand in the domestic and international market, its a strong and good partner in the industry.
Partner
Our services
1.Provide market consultation, technical support for domestic and foreign customers, technical support, and can provide customers with various types of demand services system for construction plant testing equipment. One-stop helps your product quality
2.To promote new products, new technologies, new equipment, provide market development professional consulting services in local markets, and assist customer enterprises to establish sales service centers
3.Welcomes the specific requirements of foreign companies to send projects, which will set up the cooperation program in accordance with the specific requirements of the customer, please contact our salesperson.
FAQ
1. What's the warranty statement?
Jinuosh warrants all the products manufactured by Jinuosh to free from defects in material
andworkmanship under normal use of a period of 12 months or 36months after the date of the original purchase price if repair orreplacement is not possible of practical, Jinuosh warranty covers ONLY the product itself. Jinuosh will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored only when the product has been installed and used properly as deemed byJinuosh, Jinuosh will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged
merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinuosh .
3. How about in case of breakage?
Jinuosh will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow: Returns must be first acknowledged by Jinnuo PRIOR to return, Please contact the related salesman in charge.
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return.
4. Howabout the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door
service Life-long maintenance service for the product Thanks for your support to Jinuosh!
andworkmanship under normal use of a period of 12 months or 36months after the date of the original purchase price if repair orreplacement is not possible of practical, Jinuosh warranty covers ONLY the product itself. Jinuosh will assume no liability for labor costs, installation costs, or other losses. Your warranty rights will be honored only when the product has been installed and used properly as deemed byJinuosh, Jinuosh will not repair products damaged by improper use or faulty installation.
2. What's the return policy?
All order shipments leave our factory complete and in working order, customer must report and damage
within 7days of receipt of order by sending digital photographs(.JPG) of damaged items. Customer must retain damaged
merchandise,package and shipping containers until claim had been settled. Damage in transit is the sole responsibility of the carrier, and any claim beyond this 7days period will not be deemed valid by Jinuosh .
3. How about in case of breakage?
Jinuosh will accept returns for a refund within 30days of the shipment of your order. Please note exceptions bellow: Returns must be first acknowledged by Jinnuo PRIOR to return, Please contact the related salesman in charge.
All packages sent to Jinnuo MUST have the initial sales invoice number issued and printed clearly on the outsite of package, A lack thereof will result in the item being immediately restocked and no credit or refund will be issued. All returns must be made in their original packaging with sufficient packing material. Modified or installed items will not be accepted for return.
4. Howabout the after-sales service?
24 hours around the clock & 12 months warranty, if need our engineers can provide door-to-door
service Life-long maintenance service for the product Thanks for your support to Jinuosh!
