2021 top 6640 nmn transformer 6640 nmnh f class nmn electrical insulation paper composite material
- Category: >>>
- Supplier: Henan Yaan Electrical Insulation Material Plant Co. Ltd.
Share on (1600218176760):
Product Overview
Description
Product Description
1.NMN 6640 Motor Insulation paper features and performance:
Insulation class: F/H (155/180 ° C)

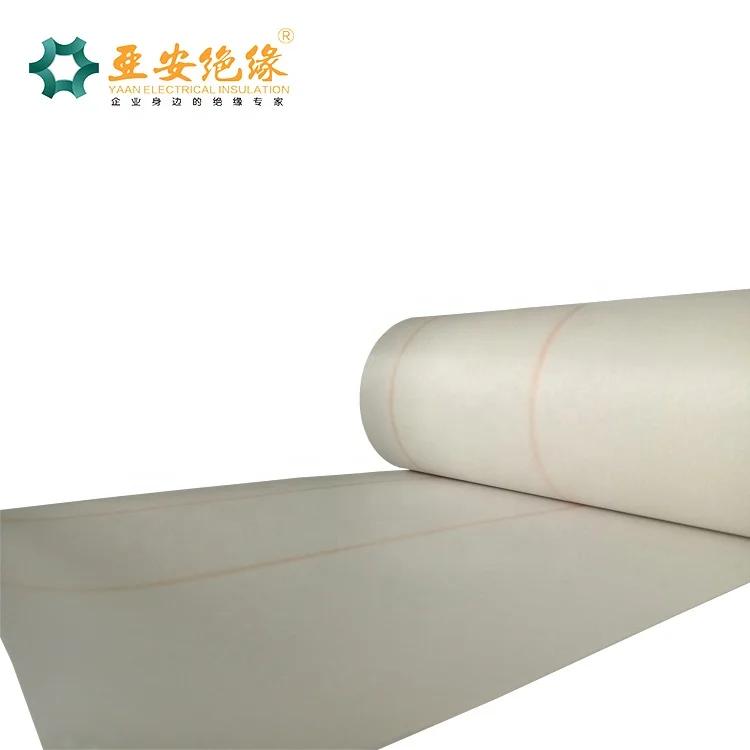

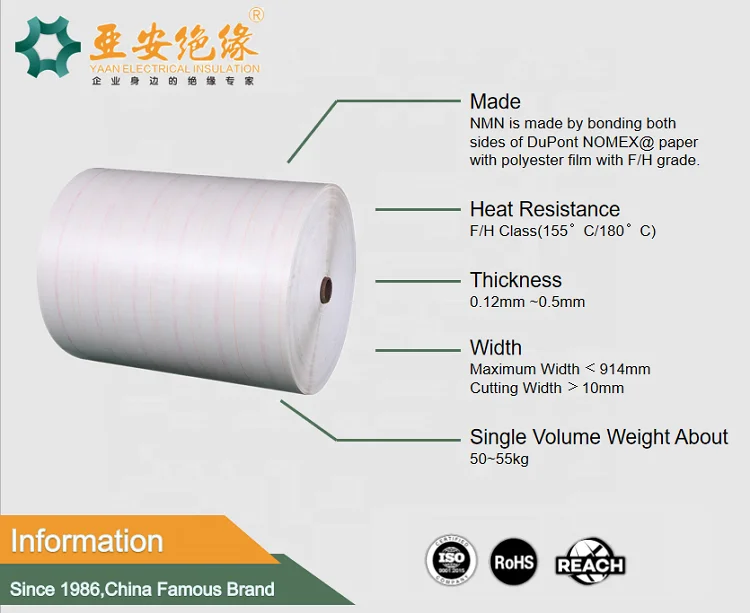

Description:NMN is a three-layer flexible composite material, produced by using F Class adhesive to adhere the polyester film with hot rolling DuPont NOMEX paper on both sides. It has excellent heat-resistant, electrical, mechanical and impregnating properties.
Description:NMN is a three-layer flexible composite material, produced by using F Class adhesive to adhere the polyester film with hot rolling DuPont NOMEX paper on both sides. It has excellent heat-resistant, electrical, mechanical and impregnating properties.
2.NMN 6640 Motor Insulation paper composition:
--6640 insulation composite is made of two layers of Du Pont Nomex paper with one layer of polyester film.
--According to different thicknesses of Nomex paper, 6640 NMN can be divided into two kinds. The thicker one(0.04mm) with yellow line, the other one(0.05mm) with orange line.
--The thicker Nomex paper you choose, the higher electrical strength is.
--According to different thicknesses of Nomex paper, 6640 NMN can be divided into two kinds. The thicker one(0.04mm) with yellow line, the other one(0.05mm) with orange line.
--The thicker Nomex paper you choose, the higher electrical strength is.
Product name | NMN 6640 High temperature electrical insulation material paper for motor |
Grade | Class F/H (155/180 ° C) |
Width | 5-914mm |
Color | White |
Normal adhesion | Not layered |
Hot adhesion | Not layered,No foaming, No glue (200±2°C, 10min) |
Product Details
1. Wear-resistant and anti-sticking
NMN is a three-layer composite insulating paper, of which the outer double layer is NOMEX insulating paper from DuPont, and the inner layer is MYLAY polyester film
2. Flat and smooth
It has good electromechanical properties, cut-through resistance and overload resistance, and has good compatibility with commonly used insulating paints. It is suitable for F-class motor slot and phase insulation
3. Non-corrosive
It has excellent dielectric properties and high mechanical strength, special cut-through resistance and overload capacity, stiff, easy off-line, non-corrosive

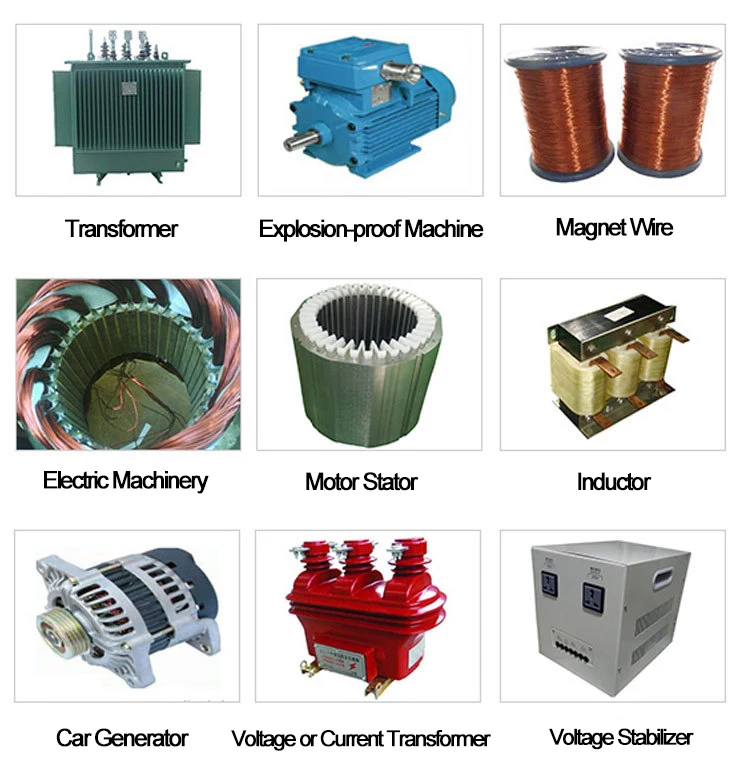

3.NMN 6640 Motor Insulation paper application:
NMN 6640 insulation paper is suitable for low-voltage motors, generators, power tools, slot insulation, slot cover insulation and phase insulation, gasket insulation, turn-to-turn insulation and wedge insulation, and can also be used as dry-type transformers and other electrical appliances. Interlayer insulation, end seal insulation, gasket insulation, etc.

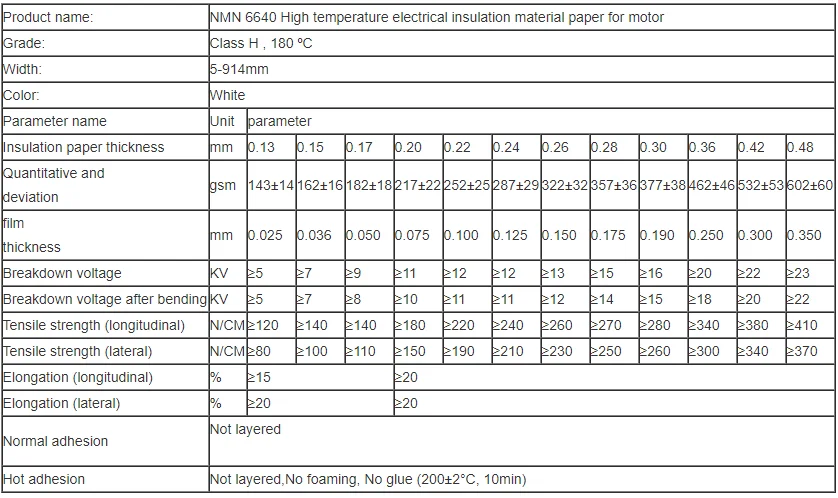

4.NMN 6640 Motor Insulation paper Product parameters:
5.NMN 6640 Motor Insulation paper Transportation and storage:
This motor insulation paper should be stored in a dry, ventilated, clean room environment away from moisture. Transportation and storage time should pay attention to fire, moisture, pressure, and sun protection. The storage period is 12 months at room temperature, and can still be used after passing the storage period according to the technical requirements.

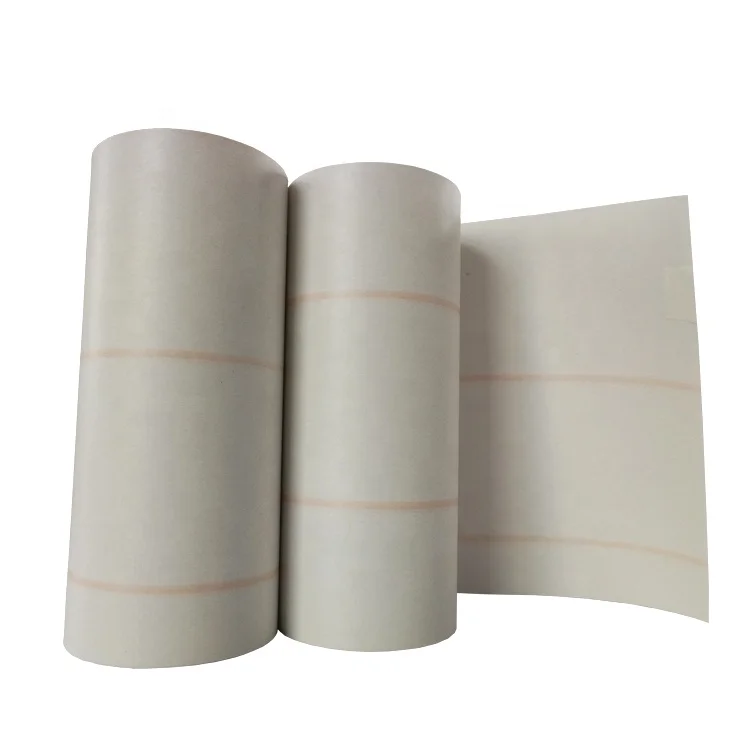

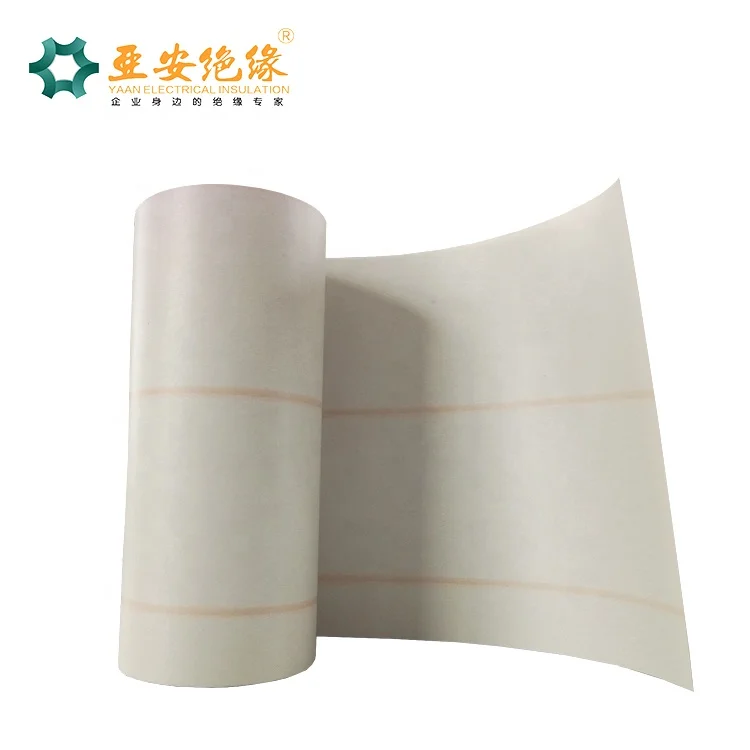

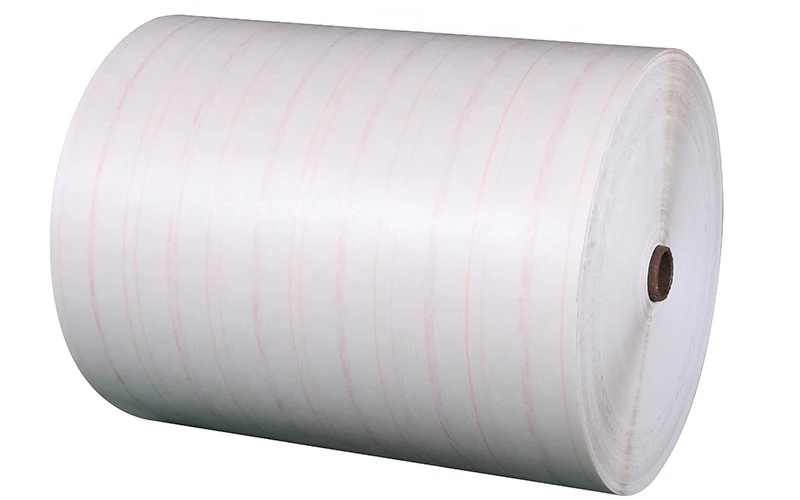

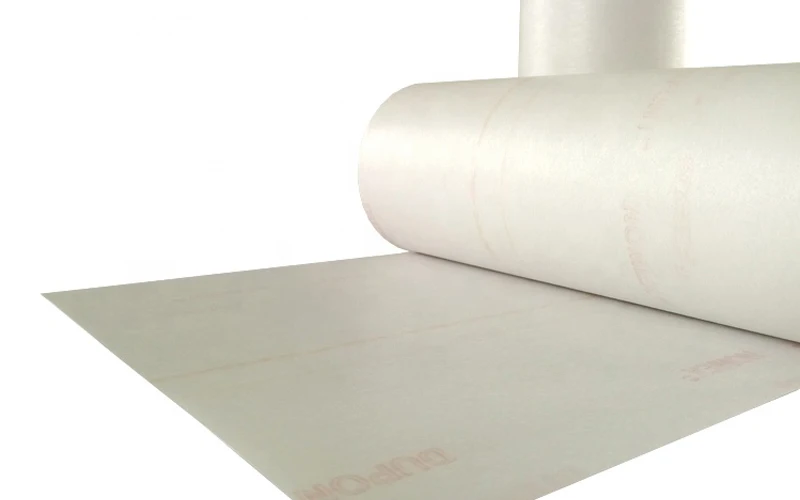

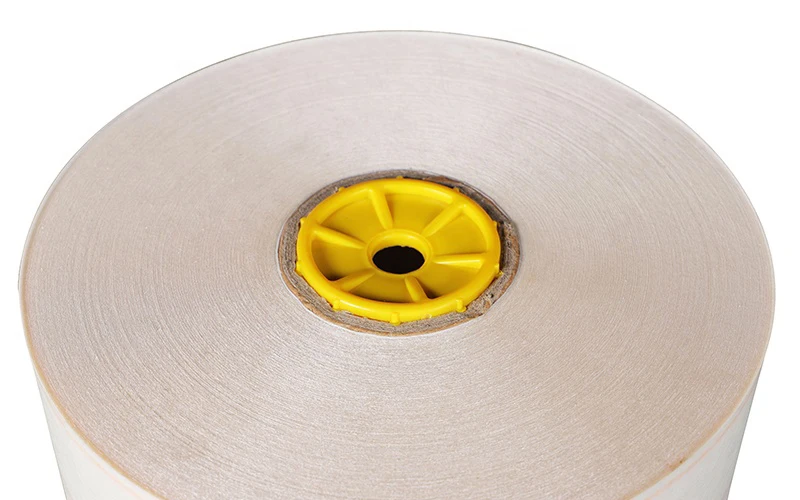

6.NMN 6640 Motor Insulation paper picture show
7. Information needed for insulation material inquiry
We produce a variety of insulation materials, and can also be customized according to customer needs.It will be better if customer could send us detailed drawing including below information.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
a. Insulation material type: insulation paper, wedge, (including DMD,DM, polyester film, PMP,PET, NHN , NMN ,PM ,Red Vulcanized Fiber,)
b. Insulation material dimension: width, thickness, tolerance.
c. Insulation material thermal class: Class F, Class E, Class B, Class H , Class C
d. Insulation material applications
e. Required quantity: normally its weight
f. Other technical requirement.
Packing & Delivery
NMN crepe cryogenic mylar insulation paper for motor is wrapped by proctective film;
NMN crepe cryogenic mylar insulation paper for motor is packed by standard import & export cartons or.iron pallets.
NMN crepe cryogenic mylar insulation paper for motor is packed by standard import & export cartons or.iron pallets.
Why choose us
The plant has passed the certificate of ISO 9001 quality system certification
The products have passed ROHS test
Why choose us:
1, more than 132 years experience in production for electrical insulation.
2, well-known products: DMD,NMN,
3, Good quality control in production process: Quality Service AAA Grade Credit Enterprise
4, Excellent quality and Competitive price, OEM is available.
5, Stable supply: an extensive range of stock.
6, The whole process from material to end products is under supervision.
Our Service:
1, Your inquiry will be replied within 24 hours and online service is available all the time.
2, Well-trained & professional sales persons are here ready to answer all your questions and handle the problems.
3, Prompt delivery time: within 15 days after agreement
4, Flexible payment terms: T/T, L/C, O/A, Western Union, Paypal, Escrow, etc.
5, Your business relationship with us will be confidential to any third party.
6, Good after-sale service offered, please get back if you got question
Our Company
YAAN INSULATION
YAAN INSULATION, was established in 1886, which is electrical insulation materials company in Middle China.
There are more than 30 million square meters production area, more than 300 existing staffs. YAAN INSULATION is committed to make the buildings more green, more environmentally friendly and energy saving.
Large Scale Workshop
YAAN INSULATION is located in Xuchang city, Henan province.Also have workshop located in Zhengzhou. There are 8 automatic production line to produce on time, 200 kinds of products in five categories, with 38 technical patents.

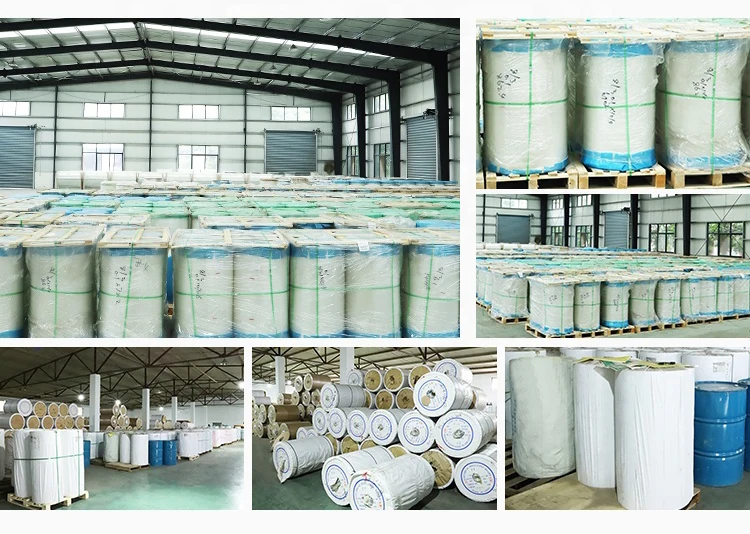

WAREHOUSE
YAAN INSULATION has sufficient inventory and productivity and is committed to shipping within the specified delivery period.
Our team continues to improve the standards themselves, and we have to build a first-class quality, first-class benefits, first-class modern enterprise management as the goal, We are committed to the development of new energy-saving products, with independent intellectual property patents production technology, the introduction of German technology imported main material adhering to the "committed to being respected and have capacity for sustainable development of enterprises" for enterprise vision. Adhere to the "promotion of industrial innovation and circulation of the intensive use of social resources" for enterprise mission, continuous innovation, promote the building decoration industry to a green, low carbon, health, environmental protection, energy saving direction.
Certificate and team
Yaan is a young dynamic organized and disciplined and passionate young international team
founded by, is a growth-oriented company and thinking. Simple, stylish, personalized office
environment has always been our style!
Our customer is all over the world,and we have more than 10 years import & export experience
All the finished products are displayed in the exhibition hall.
