China industry decanter centrifuge factory price
- Category: >>>
- Supplier: Liaoning Koen Machinery Co. Ltd.
Share on (1600218247643):
Product Overview
Description
Products Description

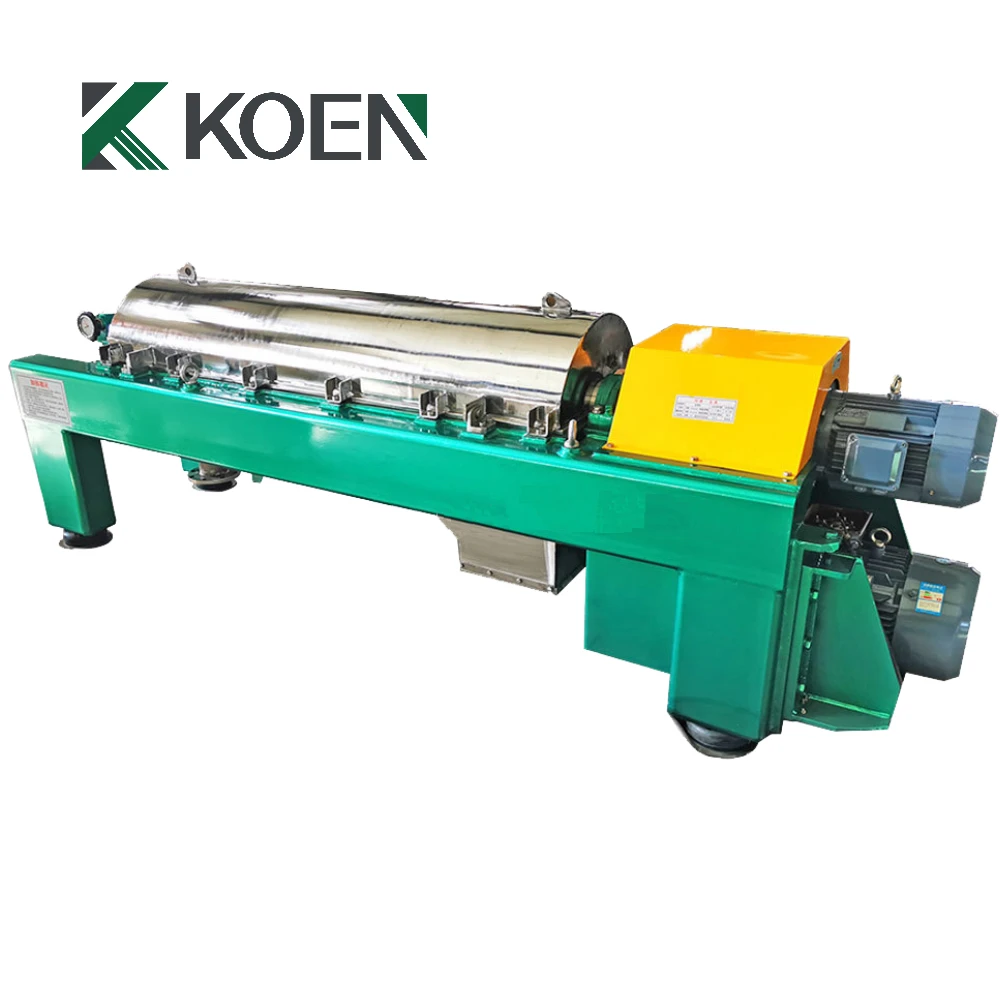

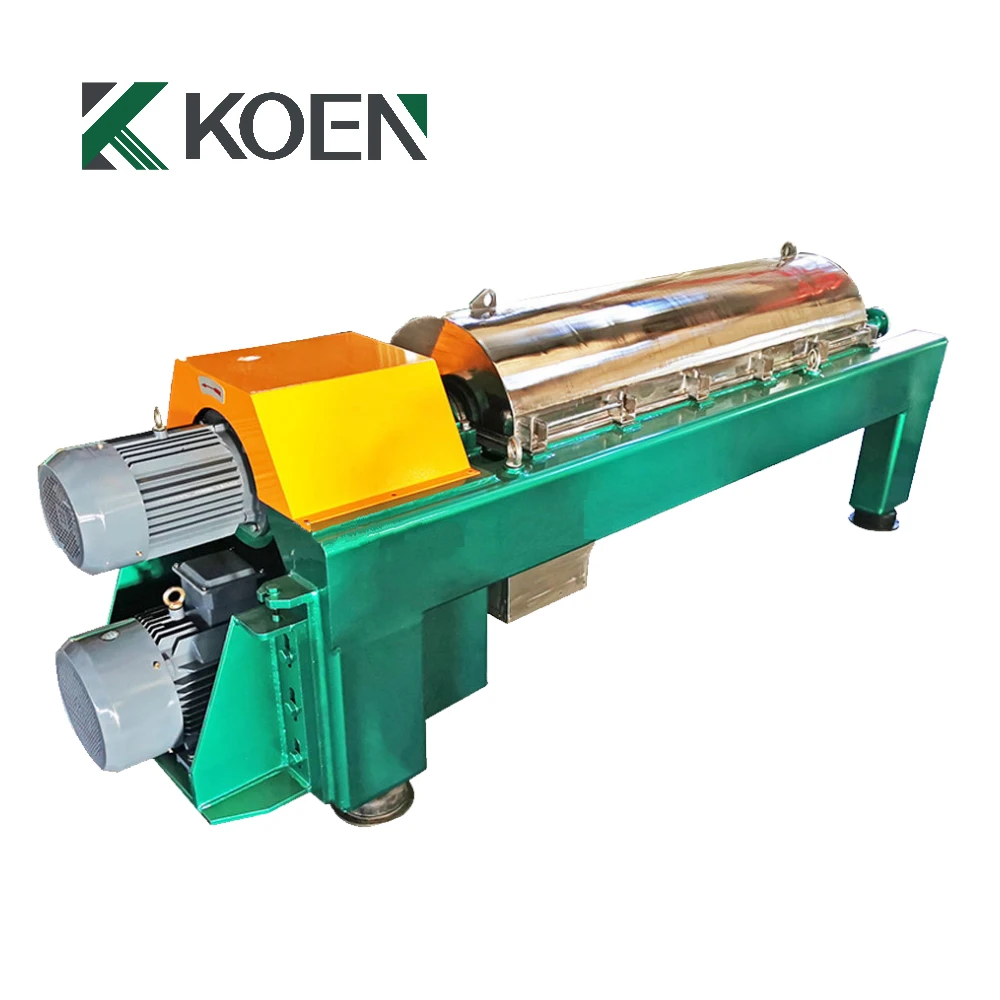

Industrial Price Decanter Centrifuge
LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. It is used in a variety or industries for separating all kinds of solid liquid suspension, defecating liquid phase with graded rains, and dehydrating sludge.

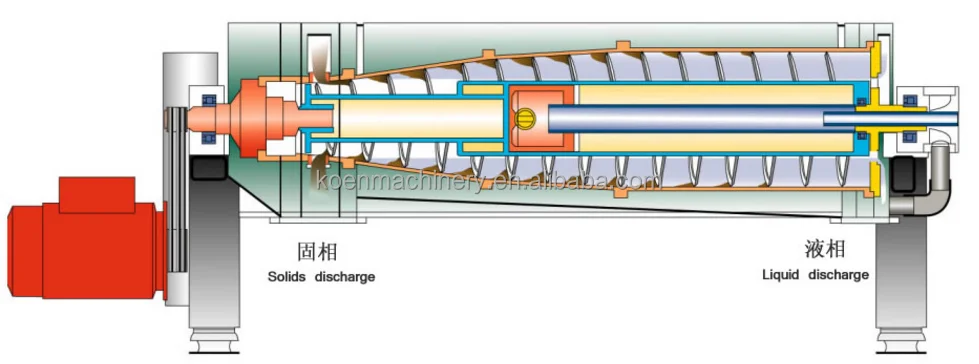

2 phase Decanter Centrifuge:
After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum
wall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.
2 phase Decanter Centrifuge:
After entering into the high-speed turning drum, the solid-phase particles in the mixed liquid run and settle on the drum
wall under the action of greatest centrifugal force; the light liquid settles at the innermost place of the drum under minimum centrifugal force; same as the drum's turning direction, a screw feeder also turns at a high speed, and a constant speed difference is generated by the differential mechanism, then the liquid will be discharged by the liquid outlet.
Details Images
Product Paramenters
Model | Bowl Dia | Bowl Length | Speed rpm | Capacity | Main Motor Power | Weight | Size |
LW220 | 220 mm | 930mm | 5000 | 0.5-5 T/h | 7.5 KW | 1200kg | 2420*700*1010mm |
LW300 | 300 mm | 1200mm | 4000 | 0.5-5 T/h | 11KW | 1500kg | 2680*830*1280mm |
LW355 | 355 mm | 1600mm | 3800 | 1-10 T/h | 15 KW | 1850kg | 3490*860*1200mm |
LW400 | 400 mm | 1800mm | 3650 | 2-15 T/h | 18.5KW | 2500kg | 3890*1020*1200mm |
LW450 | 450 mm | 2000 mm | 3650 | 3-20 T/h | 22 KW | 3000kg | 4297*1080*1385mm |
LW500 | 500 mm | 2000mm | 3000 | 5-45 T/h | 30 KW | 3800kg | 4330*1140*1470mm |
LW530 | 530 mm | 2280mm | 2900 | 10-60 T/h | 45 KW | 5000kg | 4924*1170*1540mm |
LW550 | 550 mm | 2200mm | 2780 | 15-80 T/h | 55 KW | 5580kg | 4395*1370*1655mm |
LW580 | 580 mm | 2500mm | 2500 | 20-80 T/h | 55 KW | 6500kg | 5205*1270*1540mm |
LW650 | 600 mm | 2800mm | 2270 | 30-120 T/h | 75 KW | 7000kg | 4200*1900*1350mm |
Recommend Products
Packing
Company Profile
Koen Machinery Co.,Ltd, We are the professional manufacturer of pharmaceutical machinery, separation equipment,food machinery, liquid filling machine and packing machine. specializing in provide with the whole set of technology and equipment. we have professional technology team to design, research and development for customer according to customer’s requirements, and have high standard production process control. Our international trade department can supply the whole project service. Our main area are the food and pharmacy project. Our aim is providing you efficiently solution and superior after-service. We sincerely hope YOU are our next customers! Exported country:At present, our products have been exported to the United States, Belgium, Canada, Australia, Greece, Bolivia, Peru, Saint Lucia, Israel, Malaysia, Indonesia, Philippines, Sri Lanka, Vietnam, South Korea, India, Denmark, Russia, Georgia, Jordan, Bangladeshi, Tailand, Ethiopia, Finland, Spain, Japan, Colombia, Romania and so on more than 30 countries
FAQ
Q1: Where is your factory? How can I visit there?
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
A1: Our factory location is Liaoyang , China.If want to visit our company , you can fly to Shenyang Taoxian Airport .
Q2: Do you have technicians for installation?
A2: We are responsible for the installation in your country, you can also arrange your staffs to our factory to learn how to
operate the machines, after purchased ,we offer English manual book and operation videos.
Q3: What's your advantages compared to your competitors?
A3: Quality and experience, as evidenced by 40 patents and over 35 years of experience.
Q4: What's payment you accept?
A4: T/T, Western Union, L/C, Ali Pay, etc
