IP66 waterproof high voltage 220v 240v input to output 40ma 12kv 12000v neon sign transformer for led flex
MXP Series ------Metal Case Electronic NeonPower Supply
1.Features of 40ma neon sign transformer for led flex
- Innovative high reliability circuitry design with electronic magnetic flux leakage transformer inside an aluminum case. - Symmetrical wave form output, zero mercury migration. - High constant current output up to 40mApeak,good for neon or cold cathode tubes. - With substantial aluminum heat sink housing, designing for high ambient temperature area or poor convection applications. - Fully sealed and waterproof, good for outdoor applications. Environmental Specifications : - Operating temperature: -30℃ ~ 50℃@full load - Cooling: Convection - Relative humidity: 5% - 100%
2.Specifications of 40ma neon sign transformer for led flex
Model
MXP-12000-40
MXP-15000-40
Input
220-240VAC 50/60Hz 600mA
220-240VAC 50/60Hz 800mA
Power
144W
192W
Output
12kV AC 40mA
15kV AC 40mA
Power factor
PF>0.9, THD<38%
PF>0.9, THD<38%
Working frequency
20-22KHz
19-21KHz
Over-load protection
Yes
Yes
Open-circuit protection
Yes
Yes
Earth-leakage protection
N/A
N/A
IP Rating
IP66
IP66
Input cable
0.5m
0.5m
Input plug
No(optional)
No( optional)
Input switch
No(optional)
No( optional)
Output cable
0.5m
0.5m
Ext.dimming control app.
No
No
Ext.flashing control app.
Yes
Yes
Diameter Tubing(mm)
12
13
15
18
20
12
13
15
18
20
Gas Pressure(mmHg)
11
10
9
8
8
11
10
9
8
8
Load length(ft.)Clear/Neon
30
33
36
36
36
37
40
43.3
43.3
43.3
Load length(ft.)Mercury/Argon
33
36
40
40
40
40
43.3
46.7
46.7
46.7
Load length(m)Clear/Neon
9
10
11
11
11
11
12
13
13
13
Load length(m)Mercury/Argon
10
11
12
12
12
12
13
14
14
14

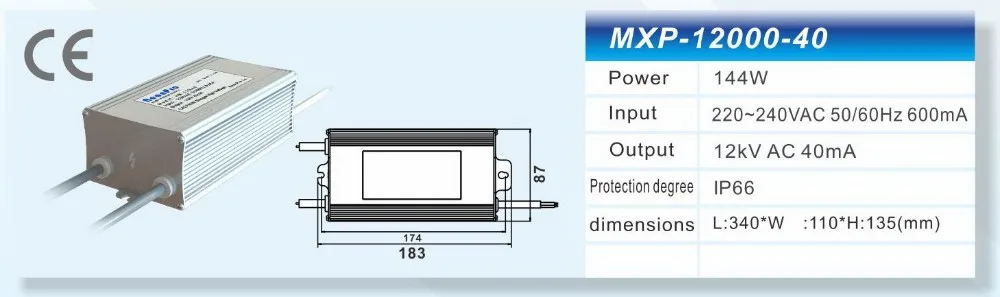

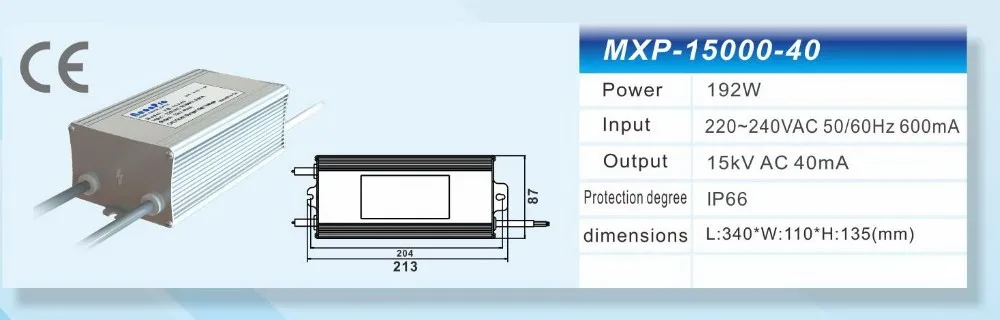

3.Dimensions of 40ma neon sign transformer for led flex
4.Projects of 40ma neon sign transformer for led flex
