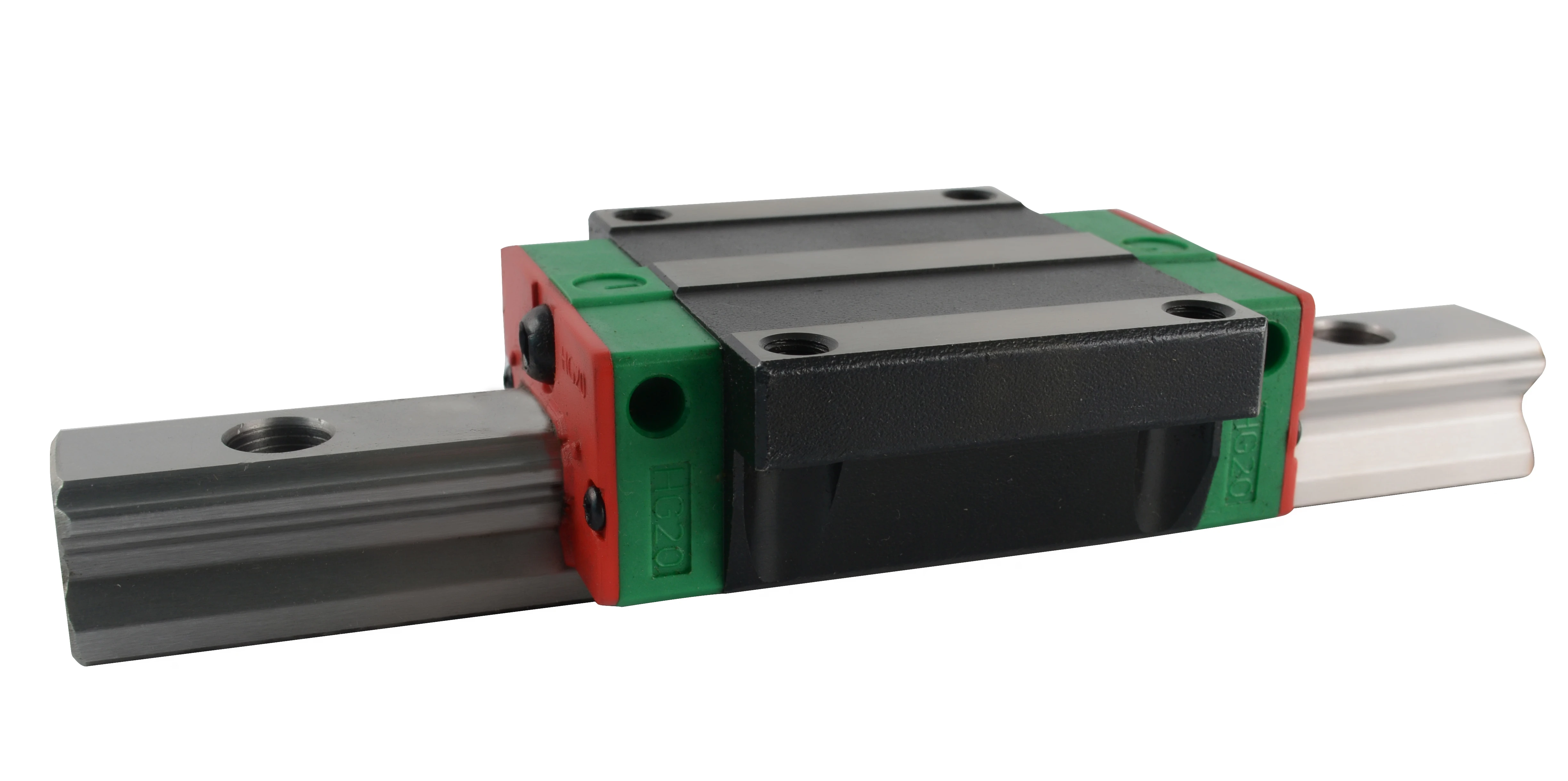

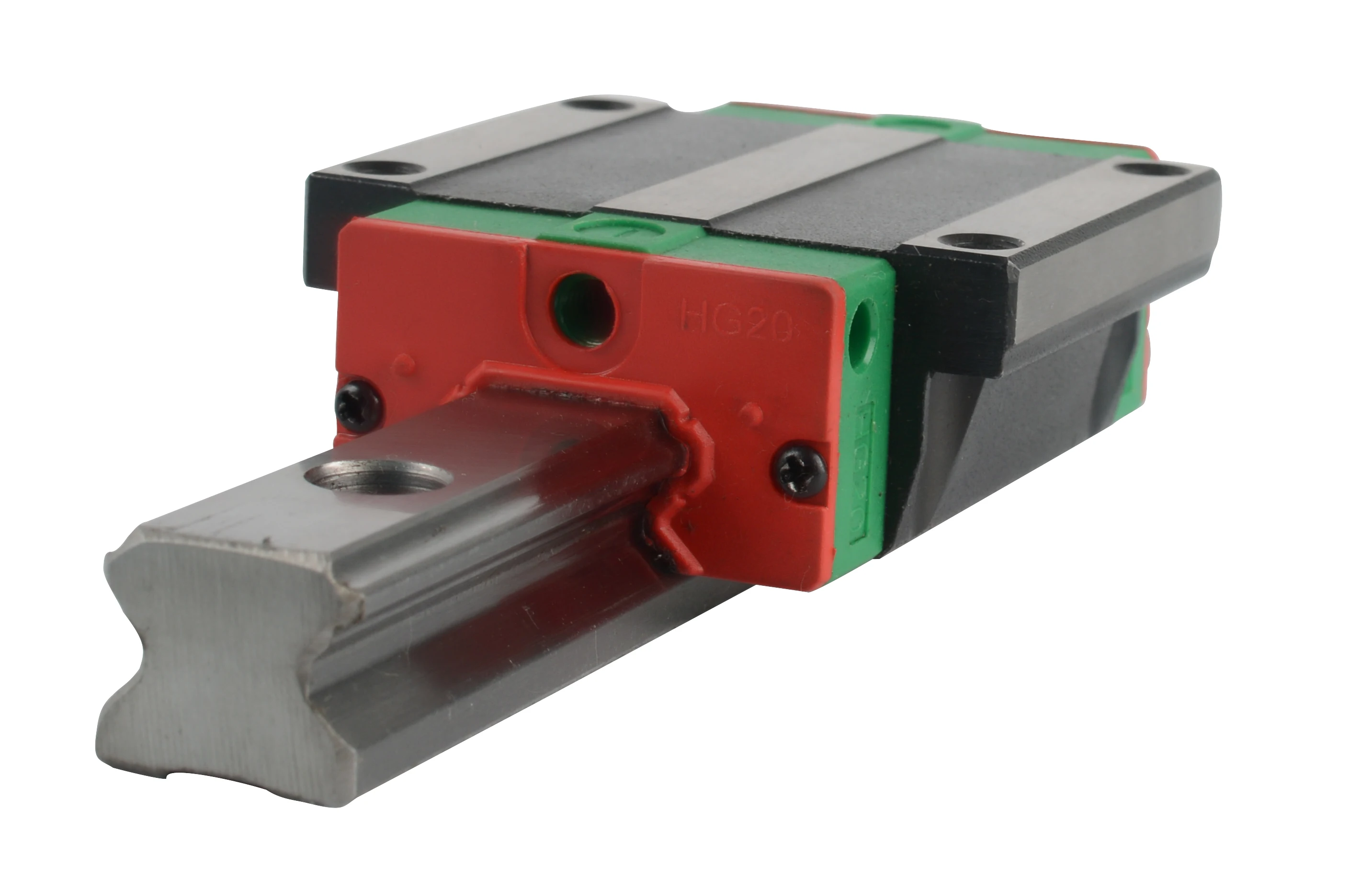

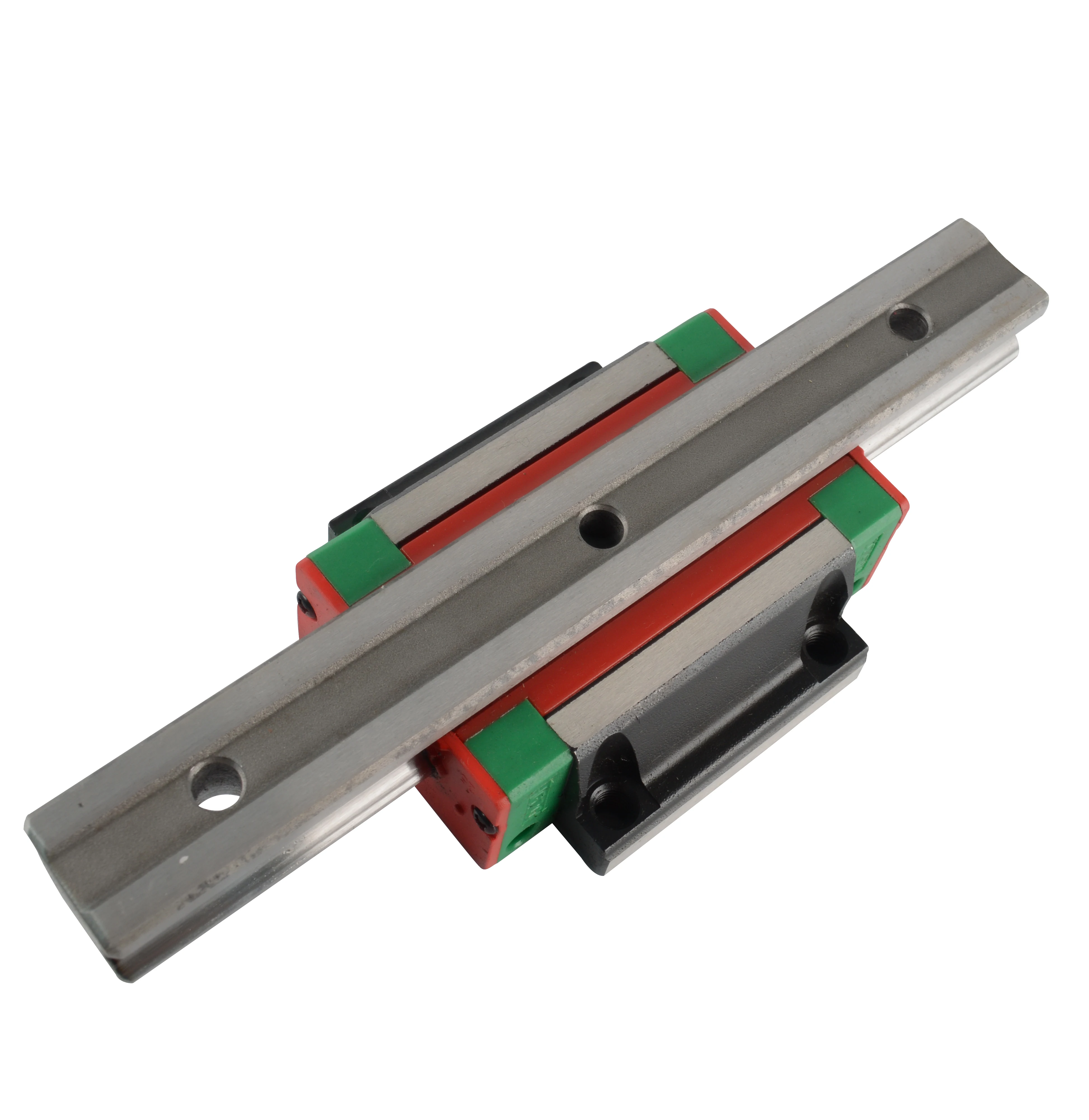

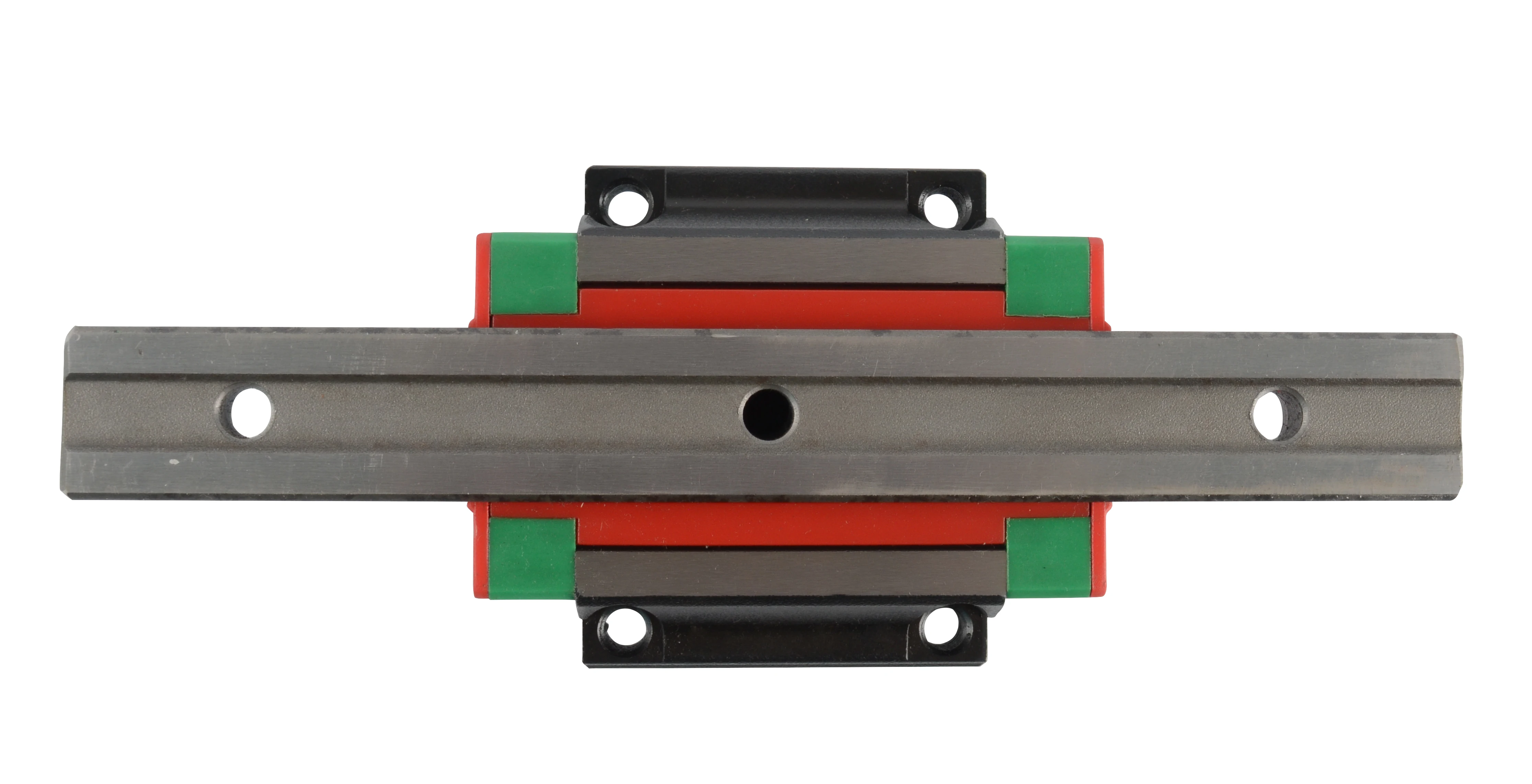

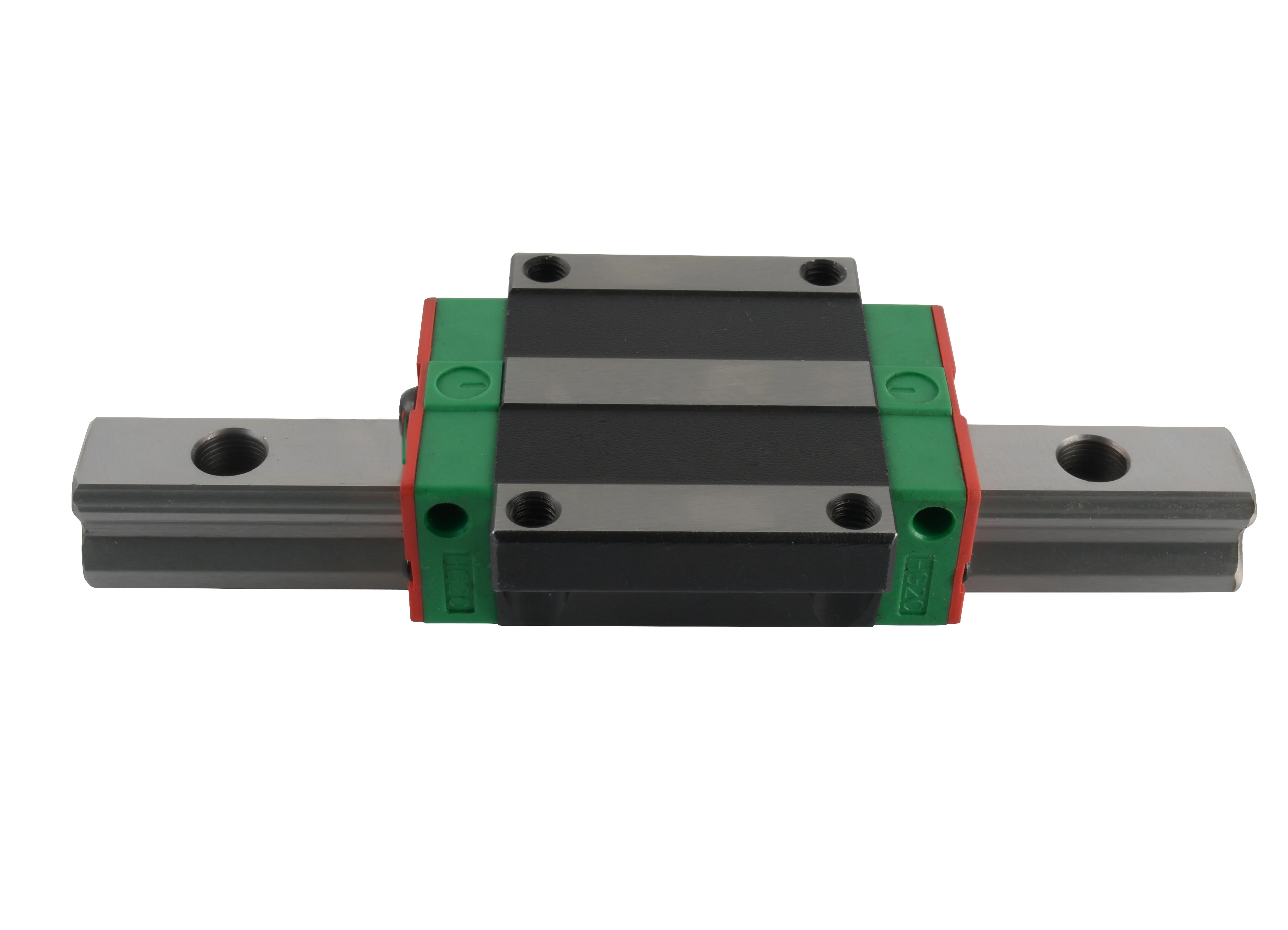

Sgr Series Sgr15 Sgr20 Sgr25 Universal Engraving Machine Guide Rail Linear With Roller Bearing
- Category: >>>
- Supplier: Yueqing Shuntong Imp& Exp Co. Ltd.
Share on (1600218496779):
Product Overview
Description

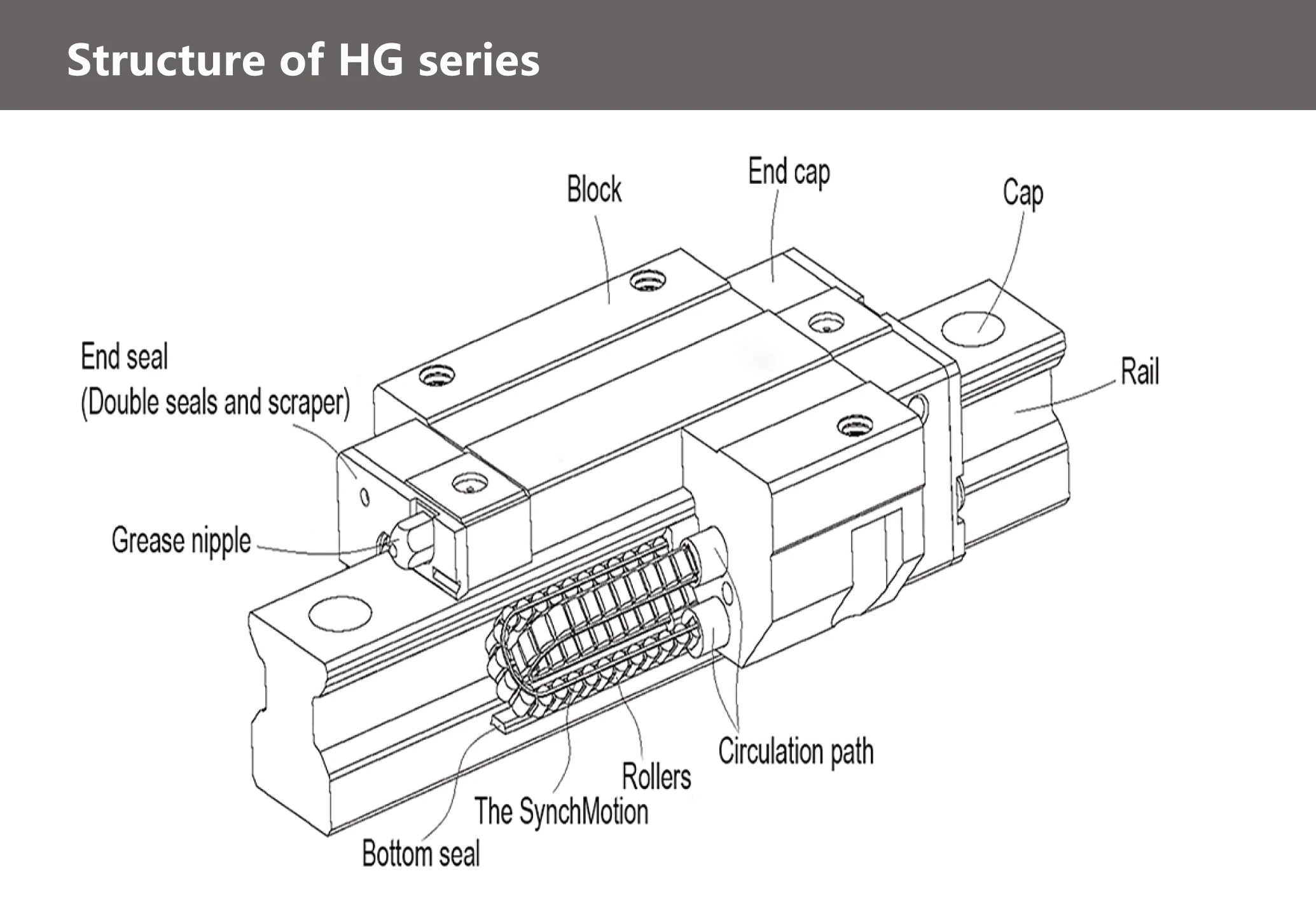

Product Information
The Advantage of Linear Guide
High Accuracy
Because linear guide has little friction resistance, only a small driving force is needed to move the load. Low frictional resistance helps the temperature rising effect be small. Thus, the frictional resistance is decreased and the accuracy could be maintained for long period than traditional slide system.
High Rigidity
The design of Linear Guide rail and block features an equal lead rating in all four directions that request sufficient rigidity load in all directions, and self-aligning capability to absorb installation-error. Moreover, a sufficient preload can be achieved to increase rigidity and makes it suitable for any kind of installation.
Easy for Maintenance
Compared with high-skill required scrapping process of traditional slide system, the Linear Guide can offer high precision even if the mounting surface is machined by milling or grinding. Moreover the interchangeability of Linear Guide gives a convenience for installation and future maintenance.
High Speed
Linear Guide block, rail and ball apply by contact point of Rolling system. Due to the characteristic of low frictional resistance, the required driving force is much lower than that in other systems, thus the power consumption is small. Moreover, the temperature rising effect is small even under high speed operation.
High Performance without Clearance
Even under a preload or regular load, the ball and raceway contact one another at two points in the loading direction, as shown. This design gives rise to a smooth rolling motion.
| Model No | Assembly (mm) | Block Dimension(mm) | ||||||||||||||
| H | H1 | N | W | B | B1 | C | L1 | L | K1 | K2 | G | M | T | H2 | H3 | |
| HGW15CA | 24 | 4.3 | 16 | 47 | 38 | 4.5 | 30 | 39.4 | 61.4 | 8 | 4.85 | 5.3 | M5 | 6 | 3.95 | 3.7 |
| HGW20CA | 30 | 4.6 | 21.5 | 63 | 53 | 5 | 40 | 50.5 | 77.5 | 10.25 | 6 | 12 | M6 | 8 | 6 | 6 |
| HGW20HA | 65.2 | 92.2 | 17.6 | |||||||||||||
| HGW25CA | 36 | 5.5 | 23.5 | 70 | 57 | 6.5 | 45 | 58 | 84 | 10.7 | 6 | 12 | M8 | 8 | 6 | 5 |
| HGW25HA | 78.6 | 104.6 | 21 | |||||||||||||
| HGW30CA | 42 | 6 | 31 | 90 | 72 | 9 | 52 | 70 | 97.4 | 14.25 | 6 | 12 | M10 | 8.5 | 6.5 | 10.8 |
| HGW30HA | 93 | 120.4 | 25.75 | |||||||||||||
| HGW35CA | 48 | 7.5 | 33 | 100 | 82 | 9 | 62 | 80 | 112.4 | 14.6 | 7 | 12 | M10 | 10.1 | 9 | 12.6 |
| HGW35HA | 105.8 | 138.2 | 27.5 | |||||||||||||
| HGW45CA | 60 | 9.5 | 37.5 | 120 | 100 | 10 | 80 | 97 | 139.4 | 13 | 10 | 12.9 | M12 | 15.1 | 8.5 | 20.5 |
| HGW45HA | 128.8 | 171.2 | 28.9 | |||||||||||||
| HGW55CA | 70 | 13 | 43.5 | 140 | 116 | 12 | 95 | 117.7 | 166.7 | 17.35 | 11 | 12.9 | M14 | 17.5 | 12 | 19 |
| HGW55HA | 155.8 | 204.8 | 36.4 | |||||||||||||
| Model No | Rail Dimension(mm) | Rail Mounting Holes Dimension | Load Rating | Static Permissible Moment | Weight | ||||||||||
| Wr | Hr | D | h | d | P | E | (mm) | C(kN) | Co(kN) | MR KN-m | MP KN-m | MY KN-m | Block kg | Rail kg/m | |
| HGW15CA | 15 | 15 | 7.5 | 5.3 | 4.5 | 60 | 20 | M4*16 | 14.7 | 23.47 | 0.12 | 0.1 | 0.1 | 0.17 | 1.45 |
| HGW20CA | 20 | 17.5 | 9.5 | 8.5 | 6 | 60 | 20 | M5*16 | 27.1 | 36.68 | 0.27 | 0.2 | 0.2 | 0.4 | 2.21 |
| HGW20HA | 32.7 | 47.96 | 0.35 | 0.35 | 0.35 | 0.52 | |||||||||
| HGW25CA | 23 | 22 | 11 | 9 | 7 | 60 | 20 | M6*20 | 34.9 | 52.82 | 0.42 | 0.33 | 0.33 | 0.59 | 3.21 |
| HGW25HA | 42.2 | 69.07 | 0.56 | 0.57 | 0.57 | 0.8 | |||||||||
| HGW30CA | 28 | 26 | 14 | 12 | 9 | 80 | 20 | M8*25 | 48.5 | 71.87 | 0.66 | 0.53 | 0.53 | 1.09 | 4.47 |
| HGW30HA | 58.6 | 93.99 | 0.88 | 0.92 | 0.92 | 1.44 | |||||||||
| HGW35CA | 34 | 29 | 14 | 12 | 9 | 80 | 20 | M8*25 | 64.6 | 93.88 | 1.16 | 0.81 | 0.81 | 1.56 | 6.30 |
| HGW35HA | 77.9 | 122.77 | 1.54 | 1.40 | 1.40 | 2.06 | |||||||||
| HGW45CA | 45 | 38 | 20 | 17 | 14 | 105 | 22.5 | M12*35 | 103.8 | 146.71 | 1.98 | 1.55 | 1.55 | 2.79 | 10.41 |
| HGW45HA | 125.3 | 191.85 | 2.63 | 2.68 | 2.68 | 3.69 | |||||||||
| HGW55CA | 53 | 44 | 23 | 20 | 16 | 120 | 30 | M14*45 | 153.2 | 211.23 | 3.69 | 2.64 | 2.64 | 4.52 | 15.08 |
| HGW55HA | 184.9 | 276.23 | 4.88 | 4.57 | 4.57 | 5.96 | |||||||||
More Products
Product Line
Our Company
Certification
Exhibition
Packaging
FAQ
Q1:What's the payment term?
A1 :We accept TT,LC,Western Union,Paypal.
Q2 :What is the delivery time?
A2 :It depends on order quantity,usually it will take about 3-5 days for sample production.
Q3 :What's the package used for?
A3:For the small capacity,will use carton,but for big capacit,we should use honeycomb carton and pallet or wooden case for protection.
Q4 :Would you accept to use our logo?
A4:It's no problem,we accept OEM service.
Q5 :What's about MOQ?
A5 :First order MOQ=1pcs
Q6 :What's your production capacity for one month?
A6:Our month capacity can reach 100000- 200000PCS for the most of our model.
Q7:Where is your market?
A7:Our products are popular in Europe, America,Asia & Africa.We provide OEM service for many countries distributors such as Ukraine,Nigeria and so on.We hope you can join us develop market together.
Q8:What kind of certificates you have?
A8 :Our company has IS09001,CE, RoHS,SGS etc.
