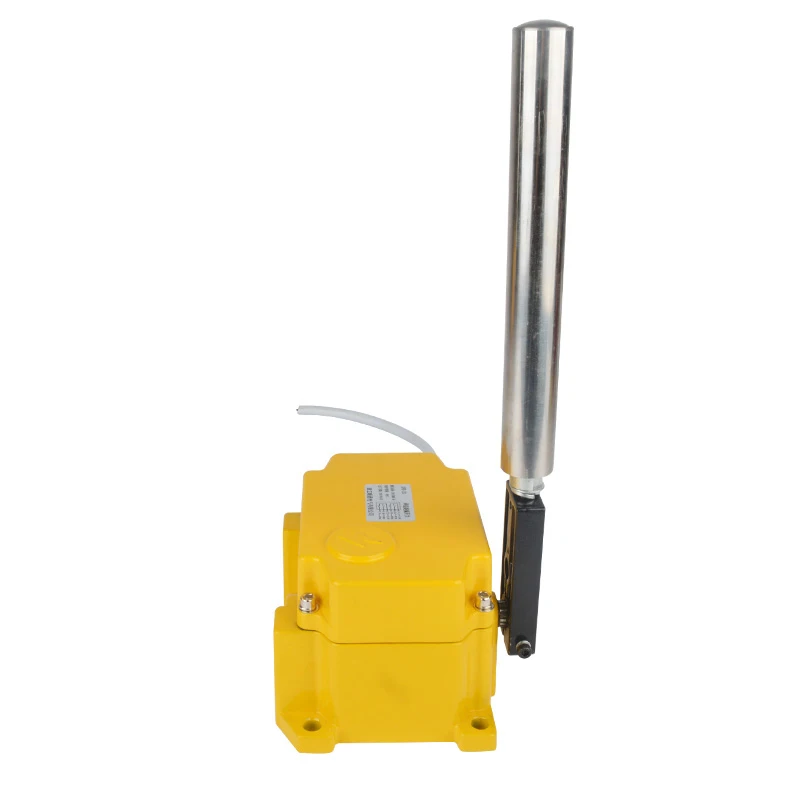

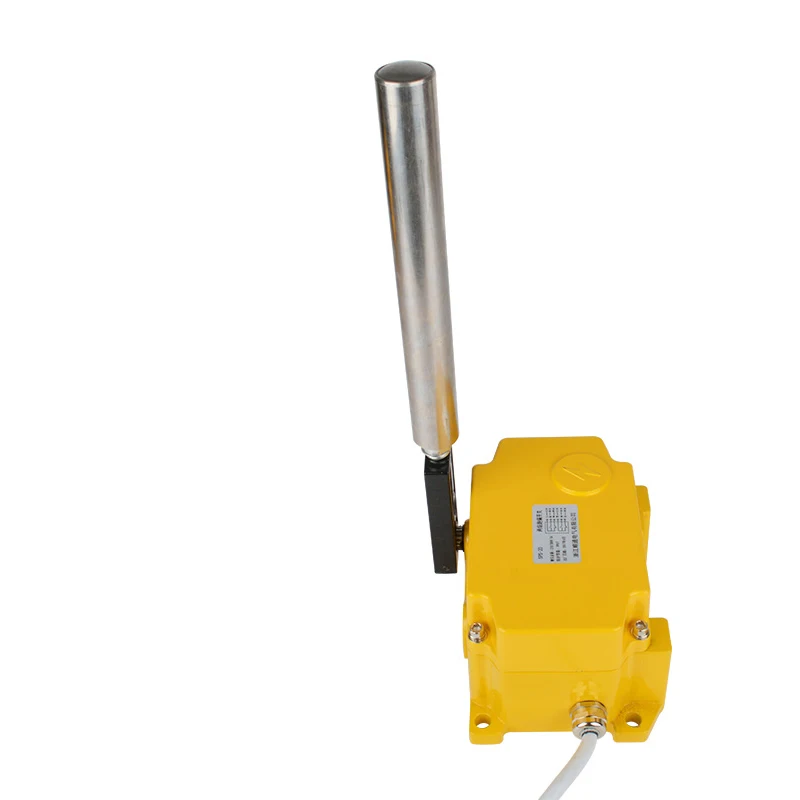

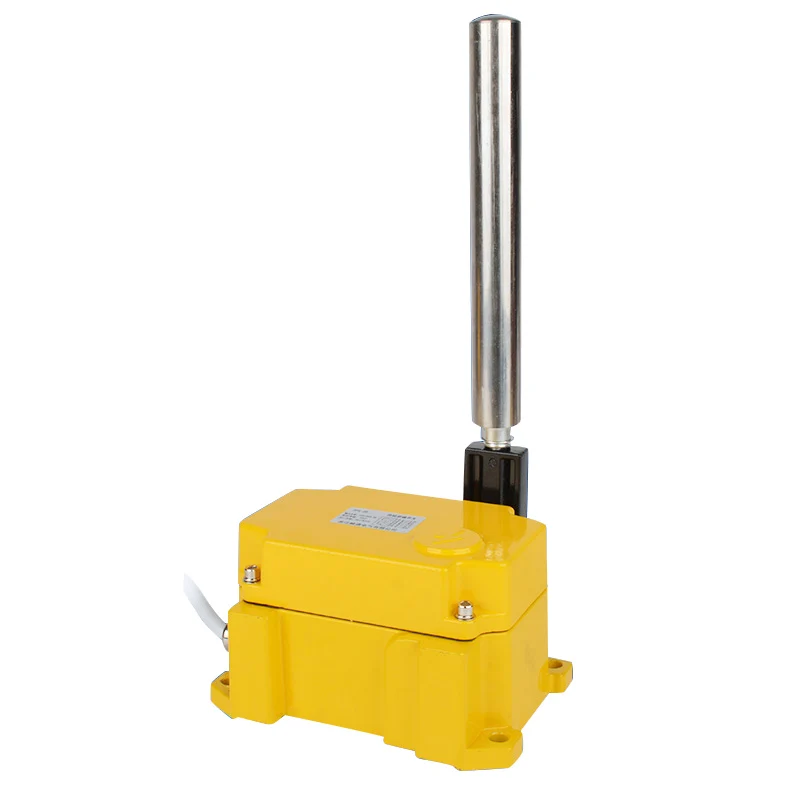

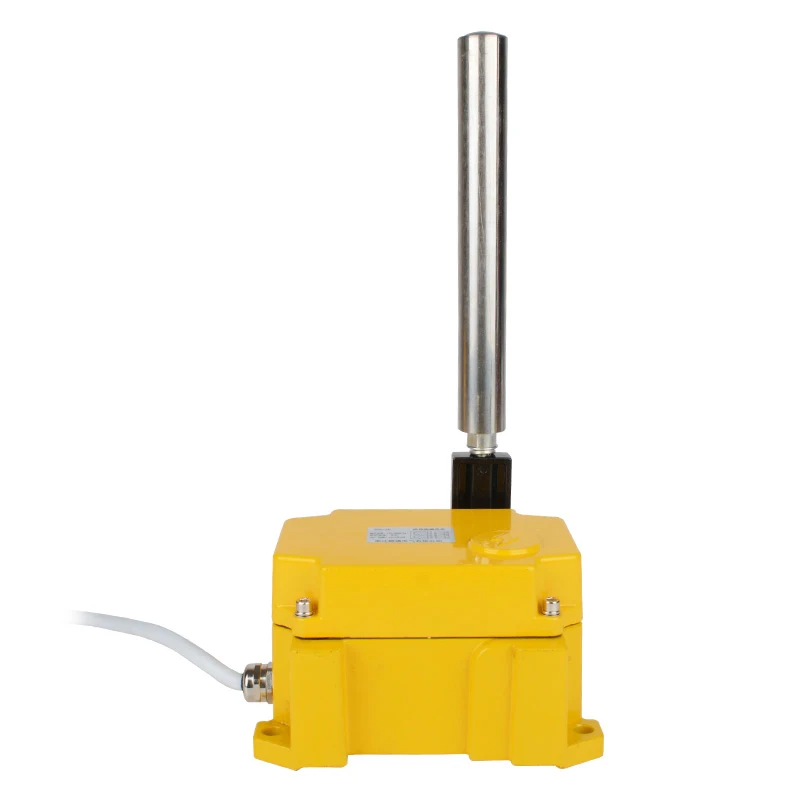

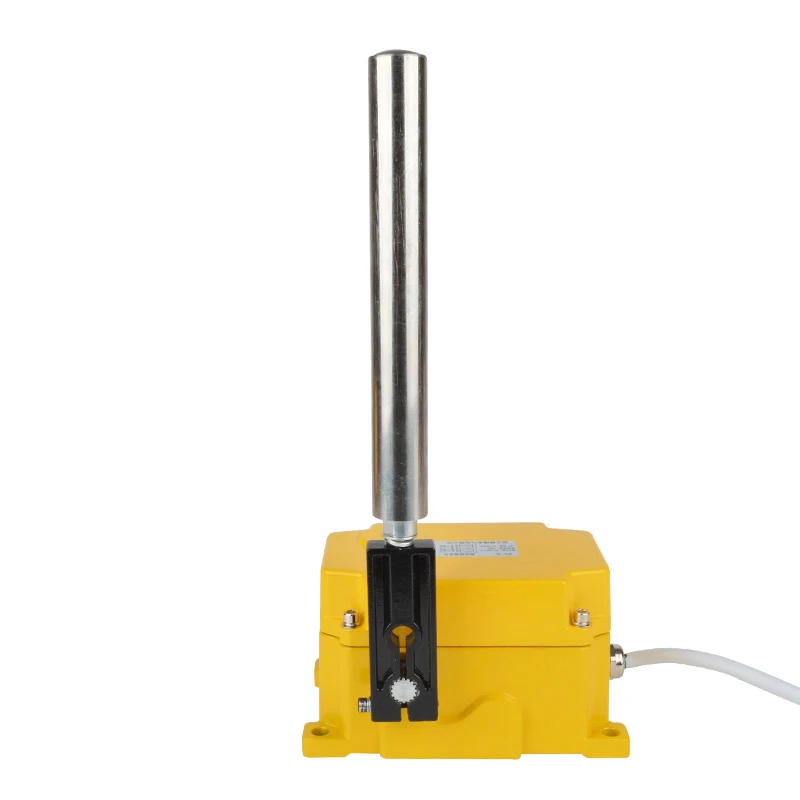

Wholesale Customized Good Quality Stainless Steel Portable Square Two stage Deviation Switch

Features:

This machine is used for the emergency shutdown when an accident occurs in the belt conveyor.

Working Principle:

When there is an emergency at the tape transportation site, the steel wire rope attached to the rope switch lifting

ears can be pulled, so that the slider inside the machine controls the internal micro switch to actuate and send out

a shutdown or alarm signal. The automatic reset model will automatically reset after loosening the wire rope. The

manual reset model can only be reset after operating the reset handle.

Use&Installation

1. The switch is pressed on the fixed bracket of the rack in a balanced manner.

2. Tie the steel wire rope to the pull rings at both ends, and the rope on each side should not exceed 30M(it should be shortened when there is a slope).

3. The pressure of the pull rope should be appropriate to ensure the reliable reset of the switch.

4. The pull rope is set along the parallel direction of the rape, and a lifting ring is added every 3M.

5. The steel wire rope can be purchased according to the specifications required by the user.

Characteristics

1. Special aluminum alloy material, heat treatment processing, strong moisture, and corrosion resistance.

2. No jamming, no crash, no deformation, with wind and sand prevention, bird nest building, and other functions.

3. Quickstart, smooth operation, bright sound source, strong penetration, and large sound coverage.

Wiring Method

This machine has been equipped with a 1-meter cable when it leaves the factory. For the connection, method, refer to the color of the line marked on the label.

Q1:What's the payment term?

A1 :We accept TT,LC,Western Union,Paypal.

Q2 :What is the delivery time?
A2 :It depends on order quantity,usually it will take about 3-5 days for sample production.

Q3 :What's the package used for?

A3:For the small capacity,will use carton,but for big capacit,we should use honeycomb carton and pallet or wooden case for protection.

Q4 :Would you accept to use our logo?

A4:It's no problem,we accept OEM service.

Q5 :What's about MOQ?

A5 :First order MOQ=1pcs

Q6 :What's your production capacity for one month?

A6:Our month capacity can reach 100000- 200000PCS for the most of our model.

Q7:Where is your market?

A7:Our products are popular in Europe, America,Asia & Africa.We provide OEM service for many countries distributors such as Ukraine,Nigeria and so on.We hope you can join us develop market together.

Q8:What kind of certificates you have?

A8 :Our company has IS09001,CE, RoHS,SGS etc.
