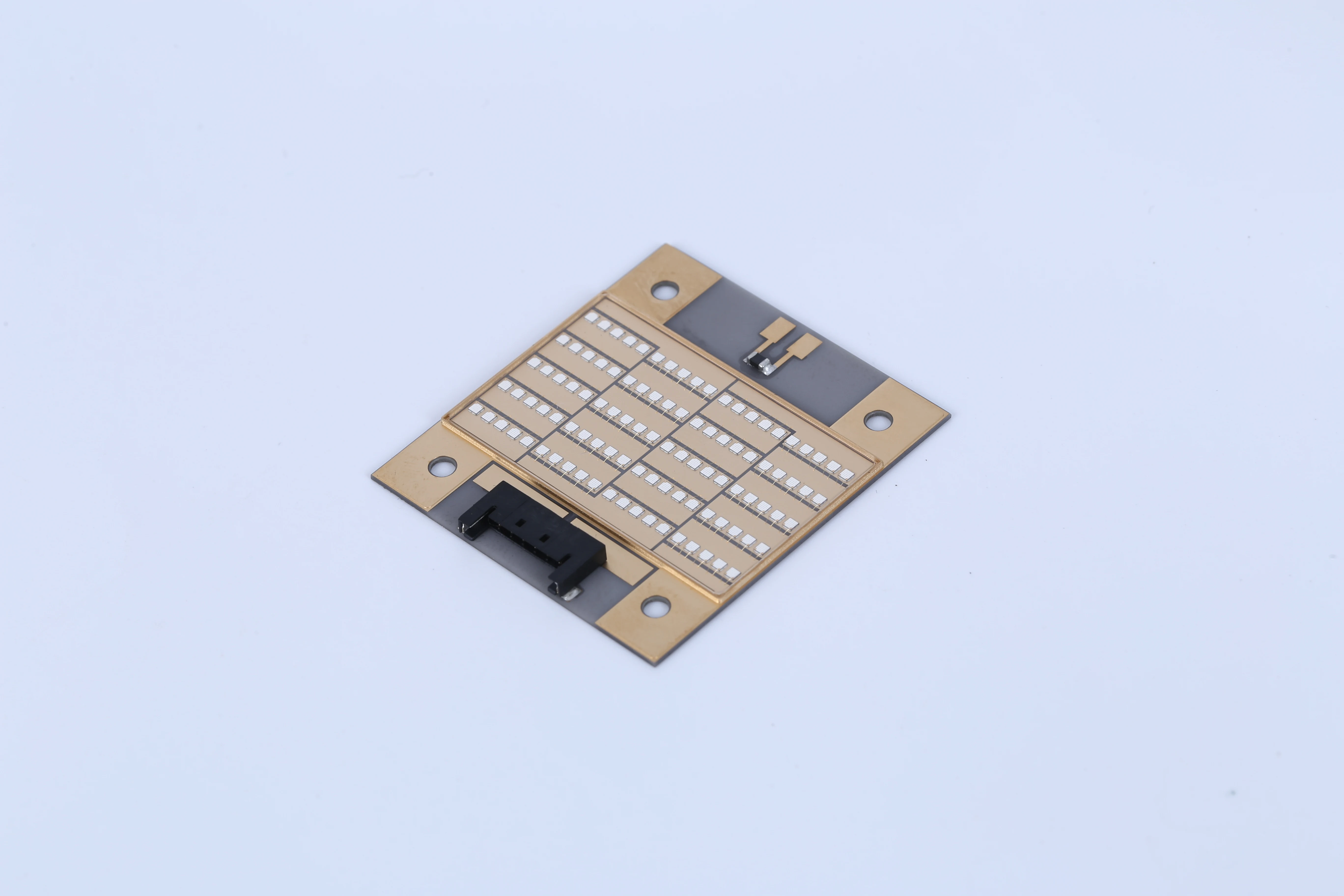

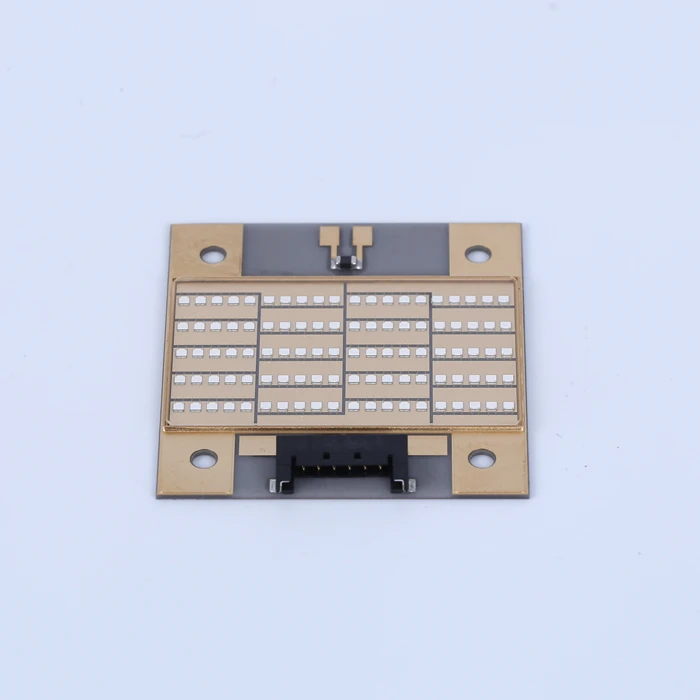

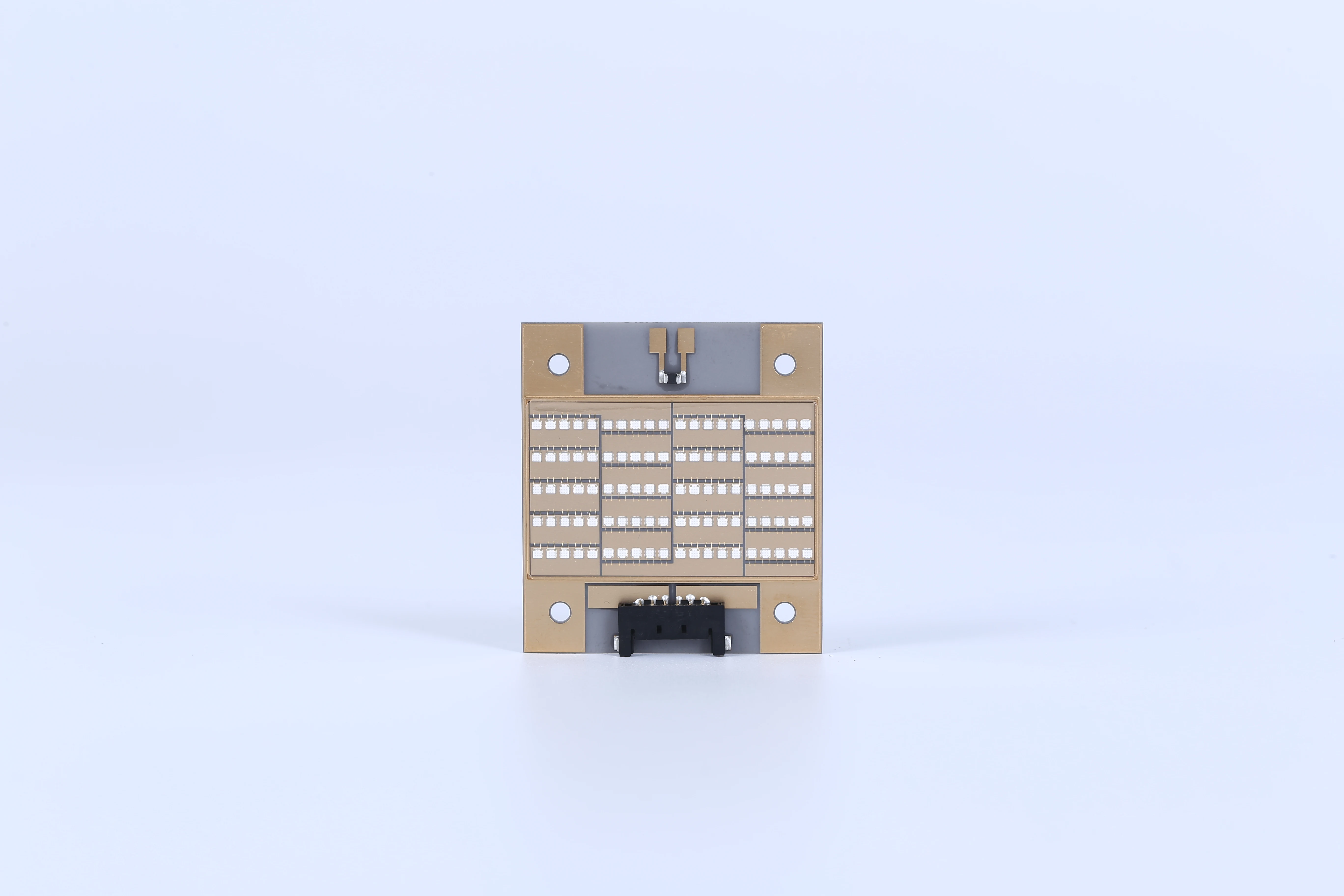

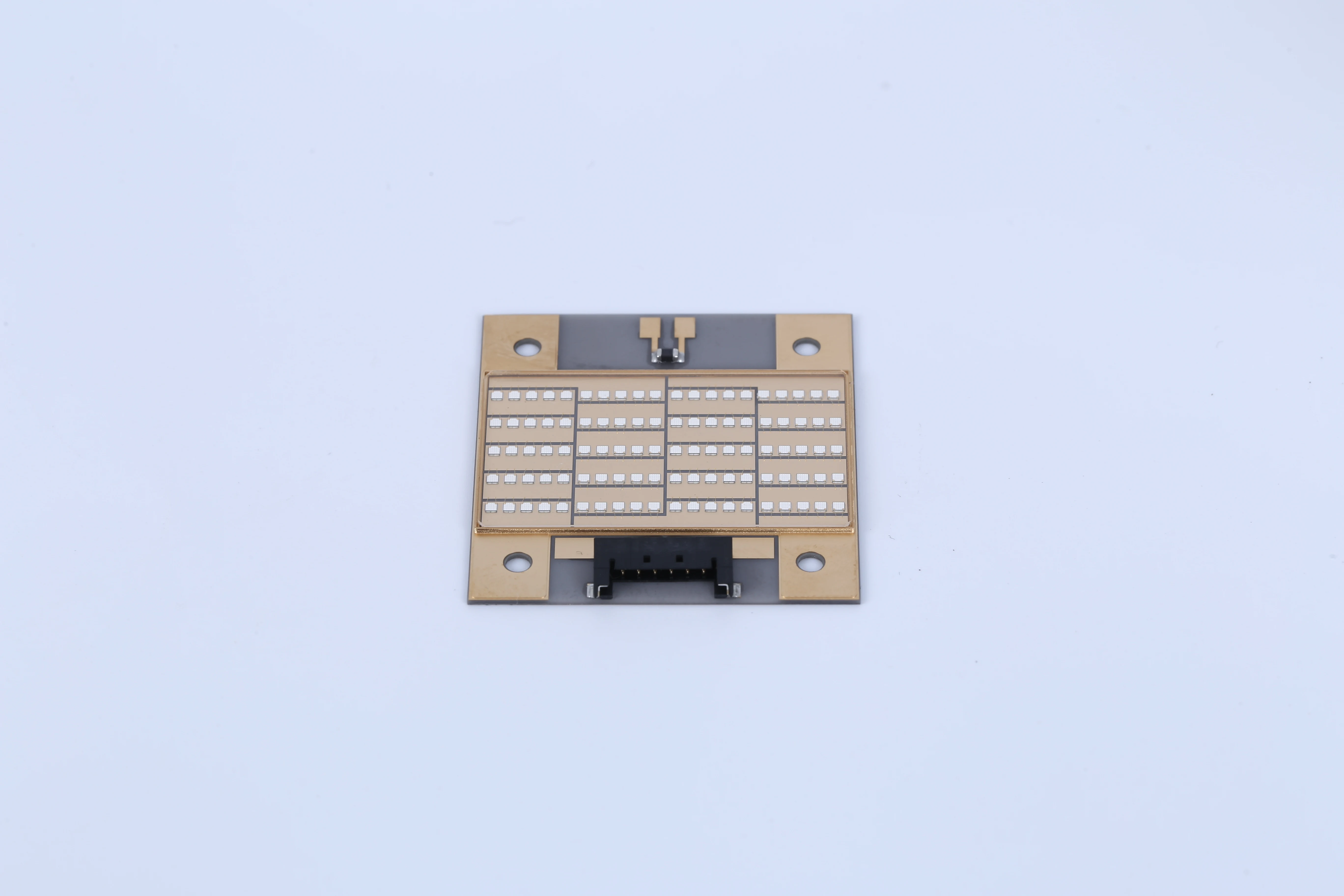

400W 40*35MM uv led 395nm Grow Led UV Cob UVA LED COB LED module

Product Overview

Description

400W 40*35MM 395nm 80V UVA LED COB LED module



4035 100 wafer COB
substrate	3D Three dimensional AlN ceramic substrate
series-parallel	20S5P
chip brand	LG	Seoul	epileds
forward current(MAX)	5A	3.5A	3.5A
forward voltage(MAX)	80V	75V	75V
electric power(MAX)	400W	262W	262W
radiant power(395NM)	20-24W/cm²	20-24W/cm²	18-22W/cm²
Lens material	quartz lens JGS-1
lens angle	120degree
Optional wavelength	365NM/385NM/395NM/405NM



Feature:



1: High purity aluminum nitride stent, low thermal resistance, good heatdissipation

2: Automated packaging, molding process, product consistency is good

3: Long operating life

4: Low spectral range, good uniformity

5: Light angle is small, high illumination

6: The package set tube, ESD protection capability

7: Strict reliability test, high reliability
