Sheet Metal V-grooving machine for Hotel and restaurant detailing
US $29800-$31000
Станок для резки опорного троса, станок для резки из нержавеющей стали CNC V keyway строгальный станок, цена
- Category: CNC Grooving Machine >>>
- Supplier: Nanjing Weipu Machinery Equipment Co. Ltd.
Share on (1600218570342):
Product Overview
Description

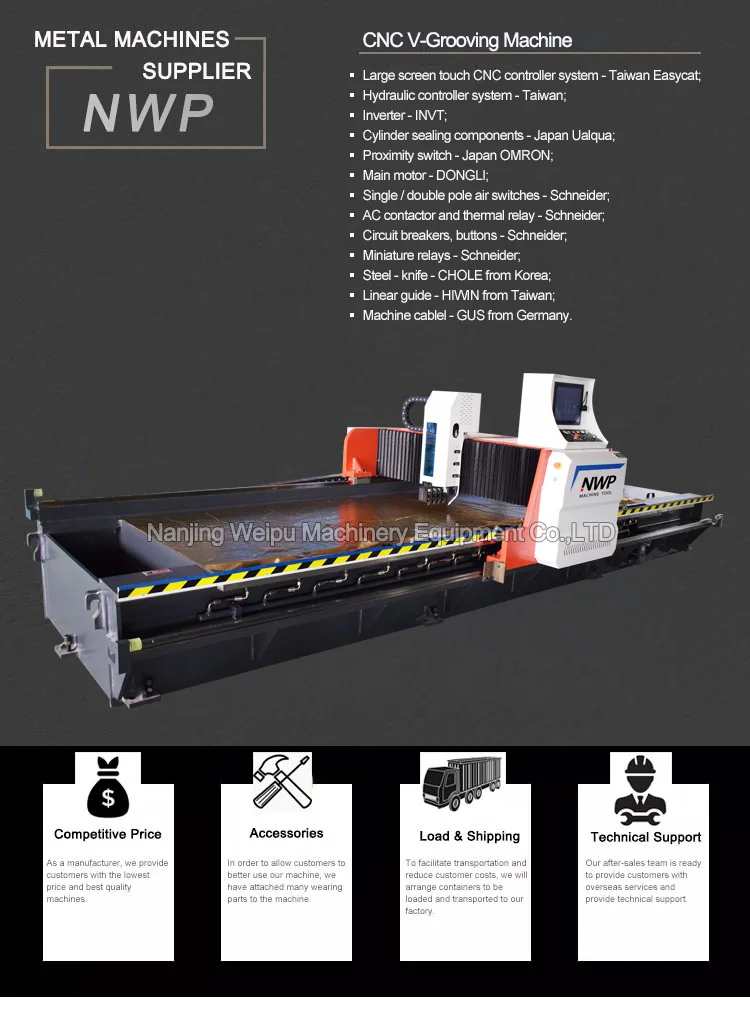

Gantry V groover cutting machine Stainless steel CNC V keyway planer price
Products Description
Machine bed: The machine tool is welded with high-quality steel plates, and the welding stress is eliminated by thermal aging treatment. It has strong stability, high strength and superior seismic performance, ensuring the long-term accuracy of the machine tool.
Tool holder: The tool holder seat is made of high-quality die steel. After quenching and tempering treatment, the guide rails and sliders are precisely milled, and the adjustment device is designed. The feed rate is driven by the ball screw and the servo motor, and the sliding is dragged. The block moves up and down to feed, with fast feed speed and high feed accuracy. The planing tool is composed of four knives, which are precise and have good grooving effect.
Workbench: Super large workbench design, laying flat materials more complete, and running smoothly during work.
Independent pressure plate: auxiliary pressure plate, enhance the pressing force of the workpiece, and ensure that the starting position of the knife and the table are close. It can be moved left and right according to the needs of work.
Operation interface: The control center of the machine tool can be rotated 270 degrees for easy operation. The touch screen is Weilun's latest large-screen color interface. Equipped with control buttons.
Pause switch: the machine tool can be paused in the execution of cutting tasks, and press it again to continue cutting
Emergency stop switch: the machine can be used to stop the machine with an emergency brake in case of emergency
Spindle drive assembly: It is composed of a servo motor and a gear transmission. The servo motor has a large starting torque, fast starting and stopping speeds, and the gear transmission has high efficiency and rigidity relative to the belt drive. The tool holder will not vibrate during planing.
Technical date | NG-3200 | NG-4000 | NG-5000 | NG-6000 |
The width of grooving (mm) | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 |
The length of grooving (mm) | 3200 | 4000 | 5000 | 6000 |
Thickness of metal (ss) (mm) | 4 | 4 | 4 | 4 |
The min thickness of metal (mm) | 0.4 | 0.4 | 0.4 | 0.4 |
Min side distance (mm) | 8 | 8 | 8 | 8 |
X-axis working speed (m/min) | 70 | 70 | 70 | 70 |
X-axis return speed (m/min) | 80 | 80 | 80 | 80 |
Y1-axis max distance (mm) | 1250/1500 | 1250/1500 | 1250/1500 | 1250/1500 |
Y1-axis move speed (m/min) | 20 | 20 | 20 | 20 |
Y1-axis resolution (mm) | 0.001 | 0.001 | 0.001 | 0.001 |
Repeat positioning accuracy (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
Z-axis resolution (mm) | 0.001 | 0.001 | 0.001 | 0.001 |
Repeat positioning accuracy (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
Power of X-axis (kw) | 5.5 | 5.5 | 5.5 | 5.5 |
Power of Y1,Y2,Z-axis (kw) | 1 | 1 | 1 | 1 |
Length (mm) | 5400 | 6230 | 7230 | 8230 |
Width (mm) | 2230/2480 | 2230/2480 | 2230/2480 | 2230/2480 |
High (mm) | 1700 | 1700 | 1700 | 1700 |
Weight (kg) | 7500/8000 | 8000/8600 | 9000/9800 | 10000/11000 |
Product Display
Company Profile
Nanjing Weipu Machinery Equipment Co., Ltd. is a professional R&D and sales machines company. The company is located in Lishui District, Nanjing City, Jiangsu Province, China, about 10 kilometers away from Lukou Airport. The transportation is convenient, and it is convenient for domestic and foreign customers to visit our company.
Our company manufacture hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds and duct making machines. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Our company manufacture hydraulic press brake, hydraulic shearing machine, laser cutting machines and other machines for sheet metal processing. There are also a variety of commonly used machine accessories such as blade molds and duct making machines. The variety of products in our company and they are very popular in many countries due to the high quality .
As a powerful company, we have a group of experienced technical teams, develop a variety of machines suitable for customers' products, and also have a group of sales and after-sales teams with strong service capabilities to answer various questions for customers and ensure that customers can be better to use our machine and enjoy our service.
We will treat every customer with sincerity, not only let the customer enjoy the affordable price and high quality products, but also allow the customer to enjoy the great service. We also look forward to more and more customers choosing Nanjing Weipu Machinery Equipment Co., Ltd. and looking forward to your joining.
Exhibition
Workshop
Major Market
Payment Delivery
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them
quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a exprence after-sales team to do the service, include
oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
A: We are a professional manufacturer specializing in product development.
Q: How can we get your quotation?
A: Please send us your purchase list, we will attach our best price in it.
Q: How can we order your machines & payment terms & MOQ......?
We support TT / Credit Card / Alibaba and many type to receive the payment.
Payment terms: 30% deposit and 70% balance before shipping.
Minimum order quantity: 1 set of any machine.
Delivery time : In about 10days after order confirmation. We normally stock standard machines so that we can delivery them
quickly.
Q: What is your service & warranty?
We have a professional sales team for answering your question, we also have a exprence after-sales team to do the service, include
oversea service, video guide operation, record a complete video in advance and etc.
Warranty: We provide 2 years for our machines warranty and spare parts supply for life.
