Режущий Соединитель с головкой сыра, сварочный штифт M19X100 ISO 13918, нельсоновый штифт

Share on:

Price in USD:Details


Product Overview


Product Description

Product Application

Our shear connector used for Mulit-floor & high rising bulidings, bridge construction,airport,stadium, exhibitions, conference centre, railway station.We dedicated to be expertise in struture connection solutions.

Product Name

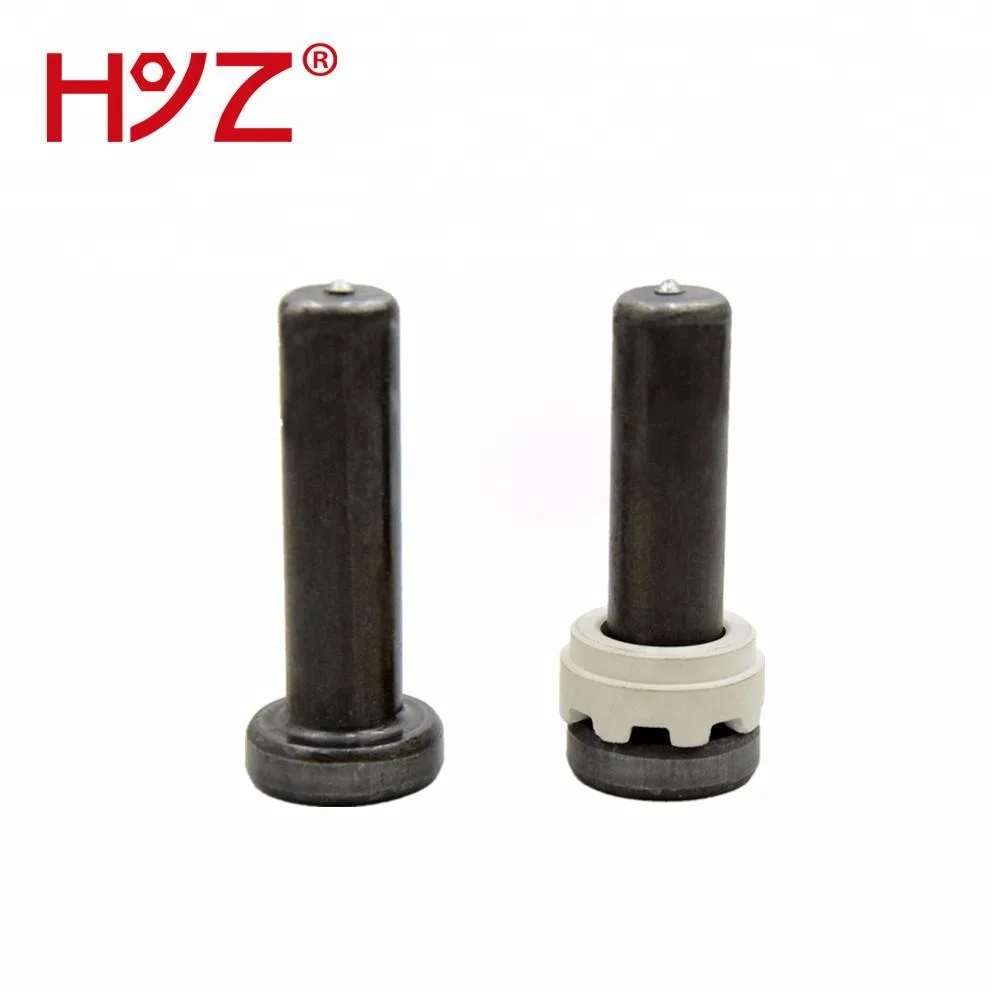

Cheese Head Shear Connector With Ceramic Ferrule For Steel Structure
Low Carbon Steel
Surface Treatment
Polished,prevent rust
Bottom Treatment
Slightly Curve or Chamfer
Head marking
"HYZ" or Client's brand.
Quality assurance
3 years

Hot sell Standard
Tensile strength
Yield strength
EN ISO 13918 SD1
≥450 Mpa
≥350 Mpa
≥450 Mpa
≥350 Mpa
BS 5400
≥495 Mpa
≥385 Mpa
AS/NZS 1554.2
≥410 Mpa
≥345 Mpa
JIS B1198
≥400 Mpa
≥235 Mpa
GB/T 10433
≥420 Mpa
≥340 Mpa

Chemical Component Of Material (%)

Main Features

1) Shear Connector Studs are designed to tie the concrete to the steel beams and to resist shear loadings between the concrete slab and steel beam in composite construction.

2) Shear studs are used in stud welding to secure steel framed buildings to create a shear connection between the steel and the concrete. We supply and fix all available sizes of welded shear studs for through deck and straight to steel welding.

3) All our products meet the current standards and specifications.

Detailed Images

Surface Treatment

Polish: Polished by wood shave.

1: Surface is shining and be good for welding quality.

2: Surface with small bruises,easy to be rust for stocking.

Advice:Suit for using in a short time or keep in dry condition.


1.Surface with phosphating coating,rust-proof and avoid bruises,and can stock long time;
2.Surface is not shining,easy to burn gun sleeve.

Plain + Special heat treatment:

1.Surface is smooth,good weld quality, no big bruises,rust-proof, and can stock long time;
2.Surface is not shining,take more long time for production;

Base treatment

We provide two type base treatment for your choose:
1: Slightly curve
2: Chamfer

For Slightly curve, 68% customers to choose it!

For Chamfer, 32% customers to choose it!

Our studs are in strict accordance with the standards,

Strict quality monitoring system before shipment.

Packing & Delivery

a.Cartons+wooden pallet

1. 25 kgs per carton, 48 cartons/1200KG per pallet.
2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.

b.Barrels+wooden pallet

1. 200 kgs per drum,6 drums/1200KG per pallet.
2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.

Our Company

Hangzhou Jiaxiang Gaoqiang Bolts CO.,LTD is located in Xiao shan Hangzhou, which is famous for China structural steel base. We have got much progress after we worked with many famous state-owned companies such as China State Construction, China Communications Construction, China Railway Group, China General Nuclear Power Group and many of Private-owned company such as Southeast Space Frame, HANGXIAO Steel Structure, JINGGONG Steel building Group etc. Our products were used in...


We are a leading shear stud connectors manufacturers in China.We have exported 600X20"GP shear studs to oversea market in last year.

Cold Header

Cold heading machine mainly on the pier is dedicated to the mass production of shear connectors,bolts, fasteners, such as special equipment.

Heat Treatment

Apply to the bearing, nail and after carburizing and quenching tempering treatment of mechanical parts.

Corner of the workshop

The company has more advanced production equipments, more than 100 skilled workers.8 production lines.

Professional testing team

Professional quality inspection team to ensure the quality is up to standard before leaving the factory.

Customers Negotiation Room

We sincerely welcome you visit our factory at any time!If you are interested in us, please feel free to contact with us!


TÜV : FPC BC1:2012
SGS Test Report

BV Inspection report by MIC

Please contact us if you need a full version.


Q: Are you trading company or manufacturer ?
A: We JIAXIANG BOLTS, founded in 2007, is the leaders manufacturer in China for shear connector and high strength bolts.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: Why us?
A: 1)As one of the biggest manufacturers in China, JIAXIANG devotes to providing customers ultimate one-stop service solution of overall house.
2) Unique production process,especial bottom surface "Slightly curve&Chamfer",only one factory on the net,to meet the requirements for differents customers from all over the world.
3)With 11 years of steel structure experience, our aim is to wow our customers with our high quality shear connectors,high tensile strength bolts, competitive Prices, and an overall experience that they can never forget.

Q: Do you have Quality Control Department?
A: Yes!Not only for that, our test center had been granted as National Enterprise Technology Center. All the QC assistants are qualified with national certificates, forward-looking technology allows to implement the testing requirements which is stricter than national standards.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us as below:

Ordering information

For inquiring and ordering, please give us the following details:

Product name + standard + material + specification + quantity + special request (if any), for example:

Shear connectors, ISO 13918, SWRCH15A, 19 X 100, 60,000Pieces slightly curve with standard UF ceramic ferrules.
