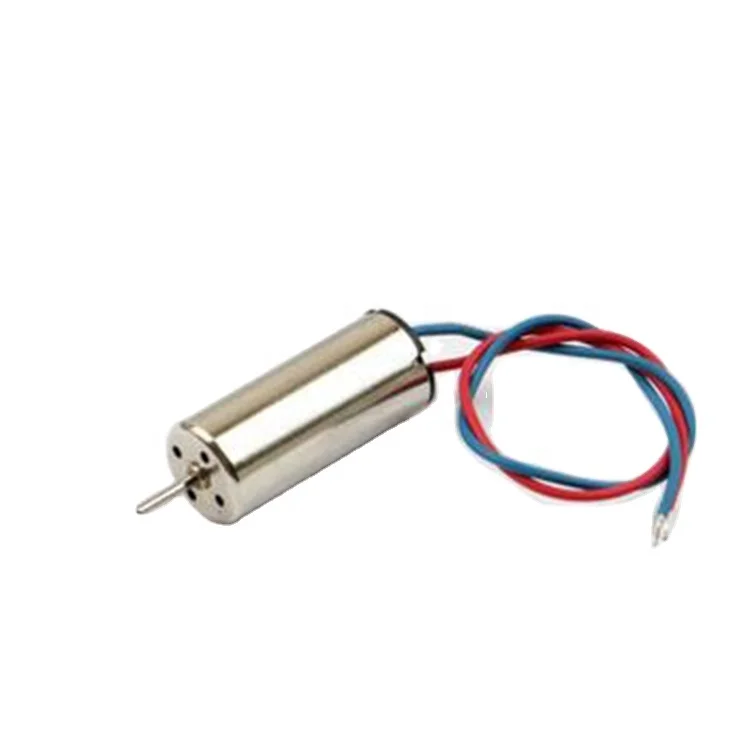

S4Q10B280 L27 BLDC Coreless Fan Motor for RC Airplane Mini Drone tubular Motor
- Category: >>>
- Supplier: Guangdong Saibow Technology Co. Ltd.
Share on (1600218647294):
Product Overview
Description
Product introduction
Product name:
S4Q10B280-L27 BLDC Coreless Fan Motor for RC Airplane Mini Drone tubular Motor
We can also supply our DC micro motors with rubber gaskets, PCB mounting brackets, spring contacts or with SMD reflow pads. All possible mounting configurations are pictured in the drawings at the bottom of this page. Custom lead lengths and connectors are also available for large orders.
Products Description
Only two models are shown below (S4Q10B280-L27; S6Q12A140-L27). If you want to know other models, please send us an email.
SAIBOW P/N | Motor Size | Shaft | Voltage | No Load | ||||||||||
Dia (mm) | Body (mm) | Overall (mm) | Length (mm) | Dia. (mm) | Range (VDC) | Nominal (VDC) | Speed (RPM) | Current (ma) | ||||||
4 | 10 | 13.8 | 3.8 | 0.7 | 2.2~3.6 | 3 | 27,660 | 17.2 | ||||||
6 | 12 | 16 | 4 | 0.8 | 0.9~1.6 | 1.3 | 14,917 | 16.9 | ||||||
The “typical current” is the average current from 20 motors selected at random from a given production lot. Copies of the test report showing the data collected for all 20 motors are available upon request.
Mounting Configurations of DC Micro Motors
The S4Q10B280-L27 is part of our line of 4mm diameter DC micro-motors that use of precious metal brush contacts. With a stall torque of 0.45 g.cm and a no load speed of 27660 RPM, this motor is suited for such applications as micro-drones and locking mechanisms. Custom lead lengths and RPM speeds are available.

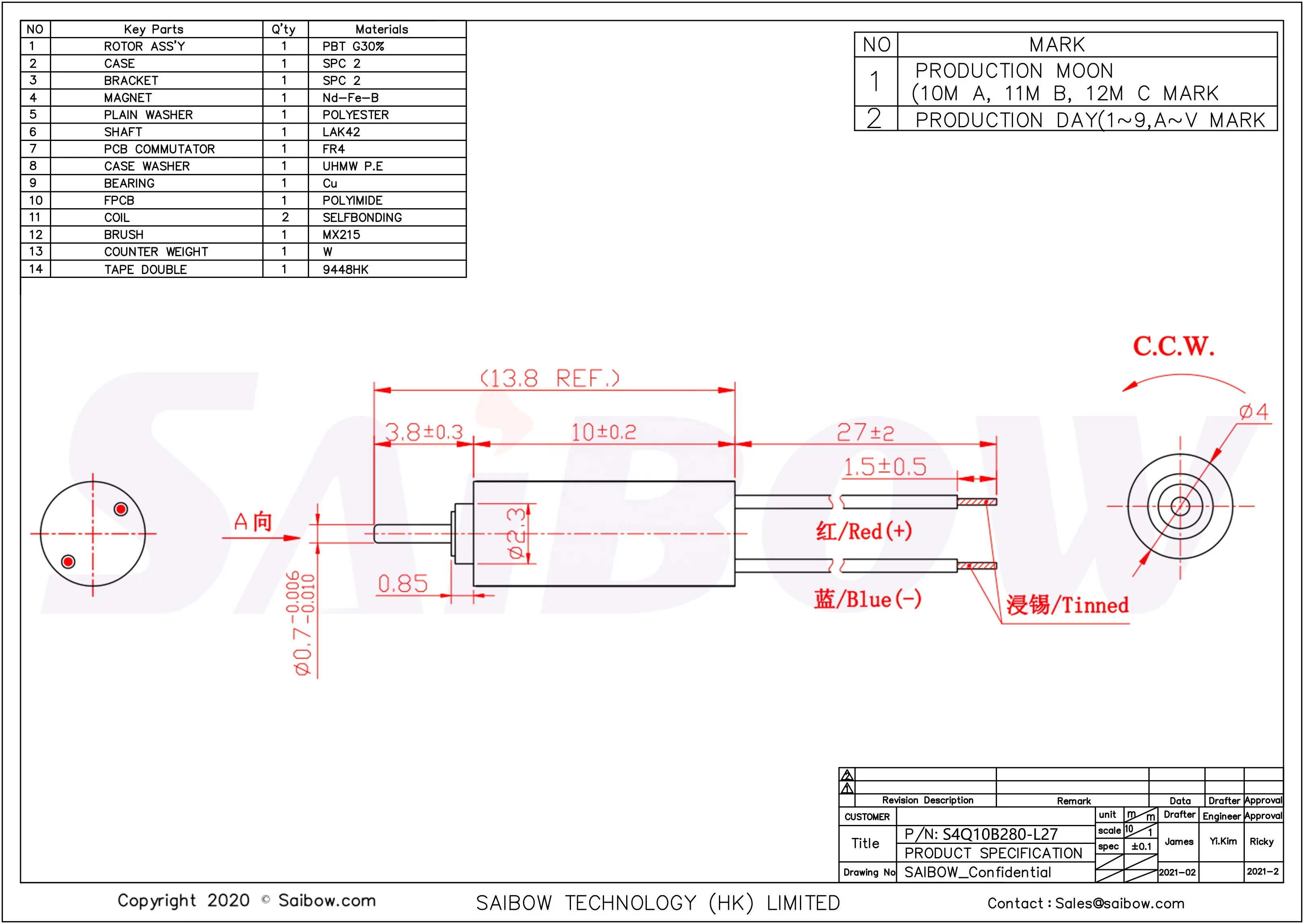

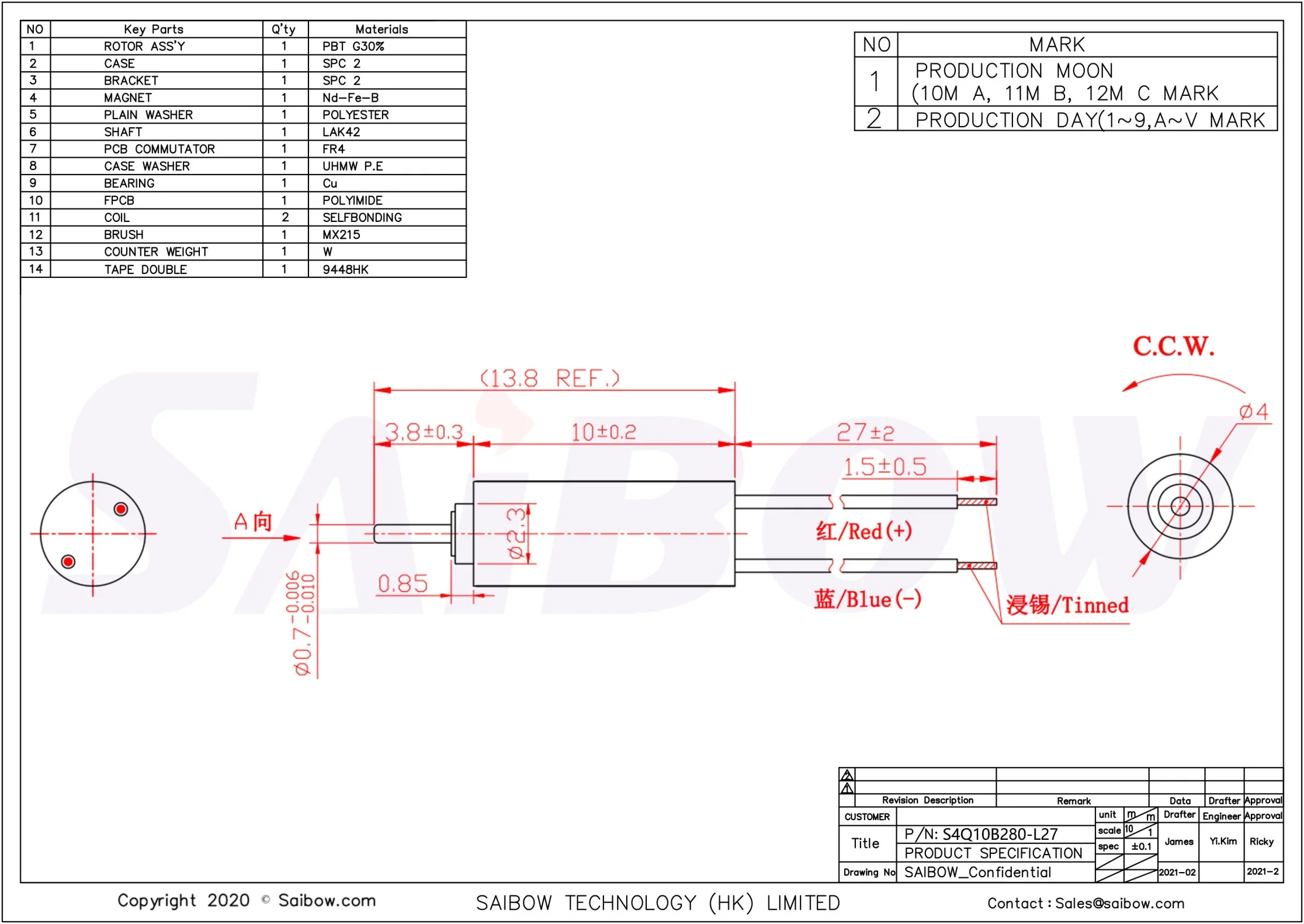

Product Drawing:
