Медные и позолоченные металлические зажимы типа крокодил зажим для батареи Электрический зажим
- Category: Alligator Clips >>>
- Supplier: Shenzhen Rfkokogo Technology Co. Ltd.
Share on (1600218789996):
Product Overview
Description
Products Description

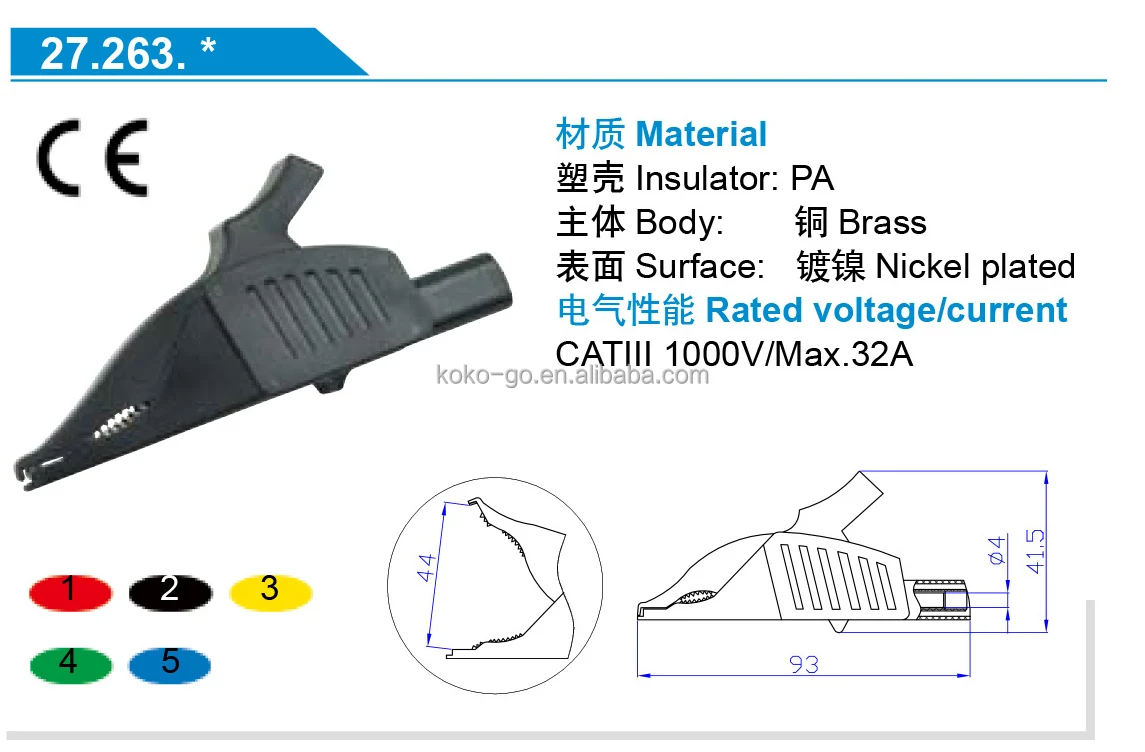

27.263 Pure Copper High Current Insulation Alligator Clip Dolphin Clip 32A/1KV Φ4 Jack Dolphin Clip
Material (Material): PA nylon + nickel plated brass (PA+Nickel Plated brass) PA sheath
Electrical performance (Rating): CATIII 1000V/32A max. IEC61010 Compliant
Color: 75034 red-75035 black
Connection: Ø4mm banana socket-pluggable sheath * non sheath * telescopic sheath all standard 4mm banana plugs
(Accept spring-loaded Ø4mm plugs W rigid insulating sleeve)
Weight (Weight)/Packing (P'KG): 26g/pc, 25pcs/Polybag
Pure copper high-current fully insulated alligator clip 32A/1000V, the shell is PA insulated nylon material (temperature resistant and flame retardant). This alligator clip cannot be directly welded, but the wire needs to be welded to a 4mm banana plug first, and then the banana plug is It can be directly inserted into the tail of the alligator clip for quick and easy connection. (Dophin clip made of brass all-round insulation.Toothed jaws for wide grip with surface for fine wire, 4mm rigid socket in insulator accepting spring-loaded 4mm plugs with rigid insulating sleeve)
Buying must-see tips: how to distinguish a good alligator clip from a bad alligator clip
Take a look at the materials: good clips use H62 brass with a thickness of 0.8mm, and the teeth are tightly meshed; bad clips use 0.3mm iron!
Second, look at the coating: the metal surface of the good clip is chrome-plated (bright); the bad clip is generally galvanized (darker)!
Three-comparison feel: Good clips have moderate elasticity, not crooked or twisted; bad clips, sheaths and clips often slip!
Four look at the sheath: the sheath used for good clips is generally PA nylon, PTFE, insulating, wear-resistant, and tough; rotten clips are ordinary plastics or recycled waste materials, durability and safety are not guaranteed!
Five look at the price: good clips are generally more expensive due to real materials, and bad clips are mostly attractive at low prices, and most of them are thrown away directly.
The test clip produced by our company (including: 1. Alligator clip, special clip; 2. Fully enclosed clip; 3. Semi-closed clip; 4. Fully enclosed dolphin clip; 5. Sheath clip; 6. Self-welding clip; 7. Mini clips; 8, test hooks, etc.) are specially used for power instrumentation and on-site testing. It is made of 0.8mm refined copper alloy sheet and is cold pressed. It has high strength and good electrical conductivity. It is by no means comparable to the general wire clips on the market. And each clip is processed with pressure-resistant material, so please pay attention to your own purpose when purchasing.
Supporting instructions:
1) The end of the standard test clip is an insulated handle, one side of which is a 4mm diameter socket, and the test clip can also be optionally molded with the test wire. The linear diameter of the test (in accordance with the cross-sectional area of the metal part when nominal ), length can be selected according to needs!
2) There are three matching methods: self-welding, plug-in and compression molding. Note: The over-current capability of the test clamp has a great relationship with the meshing condition between the clamped objects. * is the ideal state data.
Material (Material): PA nylon + nickel plated brass (PA+Nickel Plated brass) PA sheath
Electrical performance (Rating): CATIII 1000V/32A max. IEC61010 Compliant
Color: 75034 red-75035 black
Connection: Ø4mm banana socket-pluggable sheath * non sheath * telescopic sheath all standard 4mm banana plugs
(Accept spring-loaded Ø4mm plugs W rigid insulating sleeve)
Weight (Weight)/Packing (P'KG): 26g/pc, 25pcs/Polybag
Pure copper high-current fully insulated alligator clip 32A/1000V, the shell is PA insulated nylon material (temperature resistant and flame retardant). This alligator clip cannot be directly welded, but the wire needs to be welded to a 4mm banana plug first, and then the banana plug is It can be directly inserted into the tail of the alligator clip for quick and easy connection. (Dophin clip made of brass all-round insulation.Toothed jaws for wide grip with surface for fine wire, 4mm rigid socket in insulator accepting spring-loaded 4mm plugs with rigid insulating sleeve)
Buying must-see tips: how to distinguish a good alligator clip from a bad alligator clip
Take a look at the materials: good clips use H62 brass with a thickness of 0.8mm, and the teeth are tightly meshed; bad clips use 0.3mm iron!
Second, look at the coating: the metal surface of the good clip is chrome-plated (bright); the bad clip is generally galvanized (darker)!
Three-comparison feel: Good clips have moderate elasticity, not crooked or twisted; bad clips, sheaths and clips often slip!
Four look at the sheath: the sheath used for good clips is generally PA nylon, PTFE, insulating, wear-resistant, and tough; rotten clips are ordinary plastics or recycled waste materials, durability and safety are not guaranteed!
Five look at the price: good clips are generally more expensive due to real materials, and bad clips are mostly attractive at low prices, and most of them are thrown away directly.
The test clip produced by our company (including: 1. Alligator clip, special clip; 2. Fully enclosed clip; 3. Semi-closed clip; 4. Fully enclosed dolphin clip; 5. Sheath clip; 6. Self-welding clip; 7. Mini clips; 8, test hooks, etc.) are specially used for power instrumentation and on-site testing. It is made of 0.8mm refined copper alloy sheet and is cold pressed. It has high strength and good electrical conductivity. It is by no means comparable to the general wire clips on the market. And each clip is processed with pressure-resistant material, so please pay attention to your own purpose when purchasing.
Supporting instructions:
1) The end of the standard test clip is an insulated handle, one side of which is a 4mm diameter socket, and the test clip can also be optionally molded with the test wire. The linear diameter of the test (in accordance with the cross-sectional area of the metal part when nominal ), length can be selected according to needs!
2) There are three matching methods: self-welding, plug-in and compression molding. Note: The over-current capability of the test clamp has a great relationship with the meshing condition between the clamped objects. * is the ideal state data.
SPECIFICATIONS | ||||||||
Application | Electrical connecting | |||||||
Standard | ROHS/CE/ISO9000 | |||||||
Metal material: | copper | |||||||
Price | EXW Shenzhen | |||||||
Payment | T/T, Paypal for samples, Westen Union, L/C, etc | |||||||
Lead Time | According to the detail quantity | |||||||
