Button type insulated 4mm interface alligator clips compatible with COMPLY HIRSCHMANN AK10
- Category: >>>
- Supplier: Shenzhen Rfkokogo Technology Co. Ltd.
Share on (1600218828034):
Product Overview
Description
Products Description

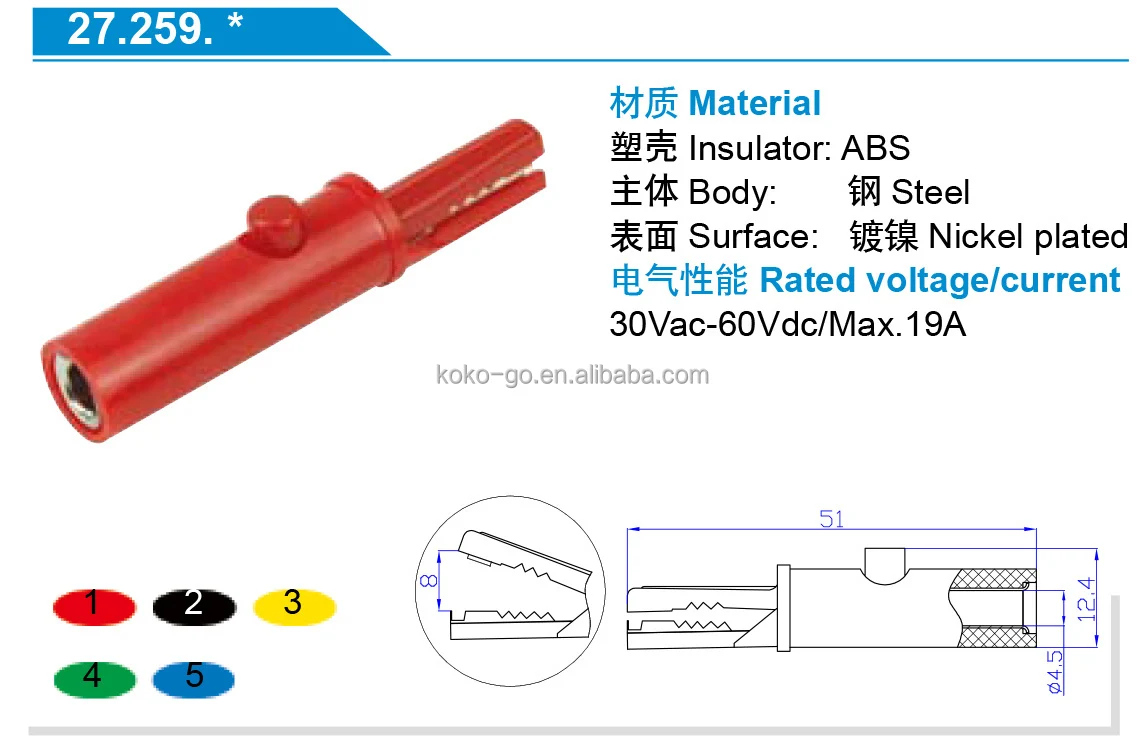

27.259 Push-button insulated 4mm alligator clip compatible with COMPLY HIRSCHMANN AK10
Insulated alligator clip with a maximum opening of 6mm. It can clamp all kinds of wires. The upper tooth part of the alligator clip is made of plastic and the lower tooth part is made of steel nickel-plated conductor. The tail is a 4mm jack. Only 4mm non-insulated banana plugs can be inserted. (Insulated crocodile clip. Clamping range up to 6 mm bolt diameter. Fine wire section for very thin wires. Only the lower part of the clip has nickel-plated Brass contact insert. 4 mm diameter socket connection).
Material: ABS sheath & Steel (ABS+steel nickel plated)
Rating (rated parameters): 30Vac-60Vdc Max .19A
The test clip produced by our company (including: 1. Alligator clip, special clip; 2. Fully enclosed clip; 3. Semi-closed clip; 4. Fully enclosed dolphin clip; 5. Sheath clip; 6. Self-welding clip; 7. Mini clips; 8, test hooks, etc.) are specially used for power instrumentation and on-site testing. It is made of 0.8mm refined copper alloy sheet and is cold pressed. It has high strength and good electrical conductivity. It is by no means comparable to the general wire clips on the market. And each clip is processed with pressure-resistant material, so please pay attention to your own purpose when purchasing.
Supporting instructions:
1) The end of the standard test clip is an insulated handle, one side of which is a 4mm diameter socket, and the test clip can also be optionally molded with the test wire. The linear diameter of the test (in accordance with the cross-sectional area of the metal part when nominal ), length can be selected according to needs!
2) There are three matching methods: self-welding, plug-in and compression molding. Note: The over-current capability of the test clamp has a great relationship with the meshing condition between the clamped objects. * is the ideal state data.
Insulated alligator clip with a maximum opening of 6mm. It can clamp all kinds of wires. The upper tooth part of the alligator clip is made of plastic and the lower tooth part is made of steel nickel-plated conductor. The tail is a 4mm jack. Only 4mm non-insulated banana plugs can be inserted. (Insulated crocodile clip. Clamping range up to 6 mm bolt diameter. Fine wire section for very thin wires. Only the lower part of the clip has nickel-plated Brass contact insert. 4 mm diameter socket connection).
Material: ABS sheath & Steel (ABS+steel nickel plated)
Rating (rated parameters): 30Vac-60Vdc Max .19A
The test clip produced by our company (including: 1. Alligator clip, special clip; 2. Fully enclosed clip; 3. Semi-closed clip; 4. Fully enclosed dolphin clip; 5. Sheath clip; 6. Self-welding clip; 7. Mini clips; 8, test hooks, etc.) are specially used for power instrumentation and on-site testing. It is made of 0.8mm refined copper alloy sheet and is cold pressed. It has high strength and good electrical conductivity. It is by no means comparable to the general wire clips on the market. And each clip is processed with pressure-resistant material, so please pay attention to your own purpose when purchasing.
Supporting instructions:
1) The end of the standard test clip is an insulated handle, one side of which is a 4mm diameter socket, and the test clip can also be optionally molded with the test wire. The linear diameter of the test (in accordance with the cross-sectional area of the metal part when nominal ), length can be selected according to needs!
2) There are three matching methods: self-welding, plug-in and compression molding. Note: The over-current capability of the test clamp has a great relationship with the meshing condition between the clamped objects. * is the ideal state data.
SPECIFICATIONS | ||||||||
Application | Electrical connecting | |||||||
Standard | ROHS/CE/ISO9000 | |||||||
Metal material: | copper | |||||||
Price | EXW Shenzhen | |||||||
Payment | T/T, Paypal for samples, Westen Union, L/C, etc | |||||||
Lead Time | According to the detail quantity | |||||||
