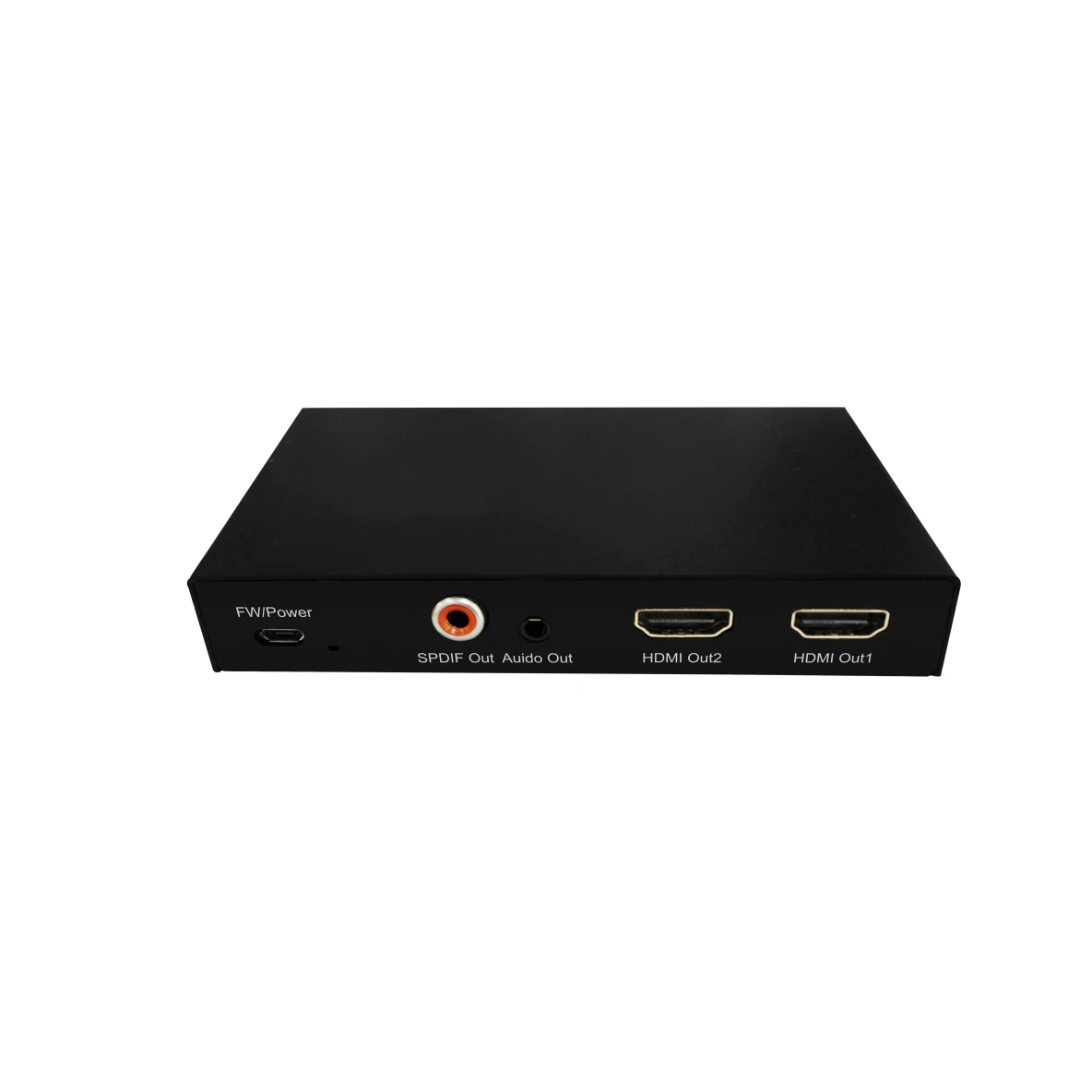

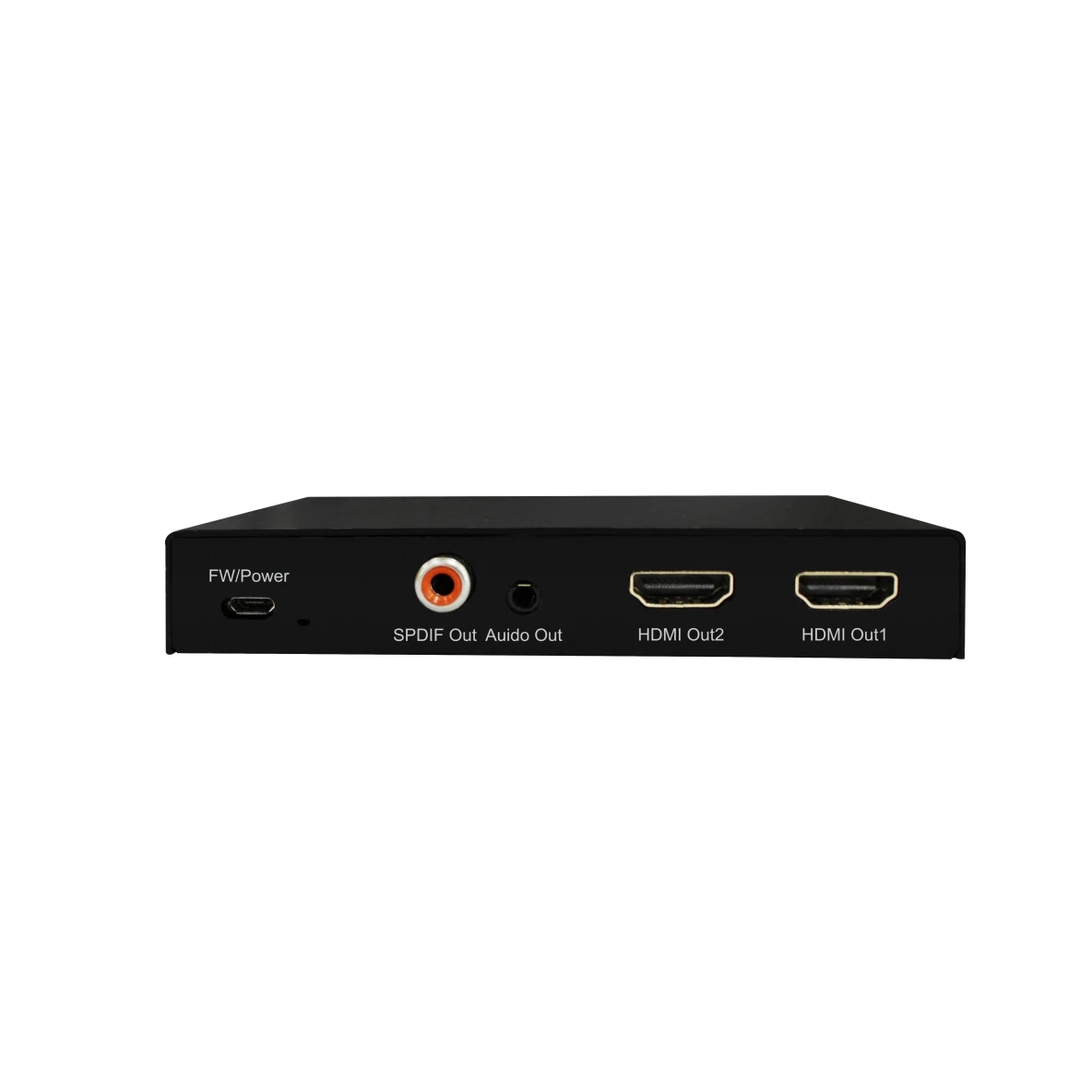

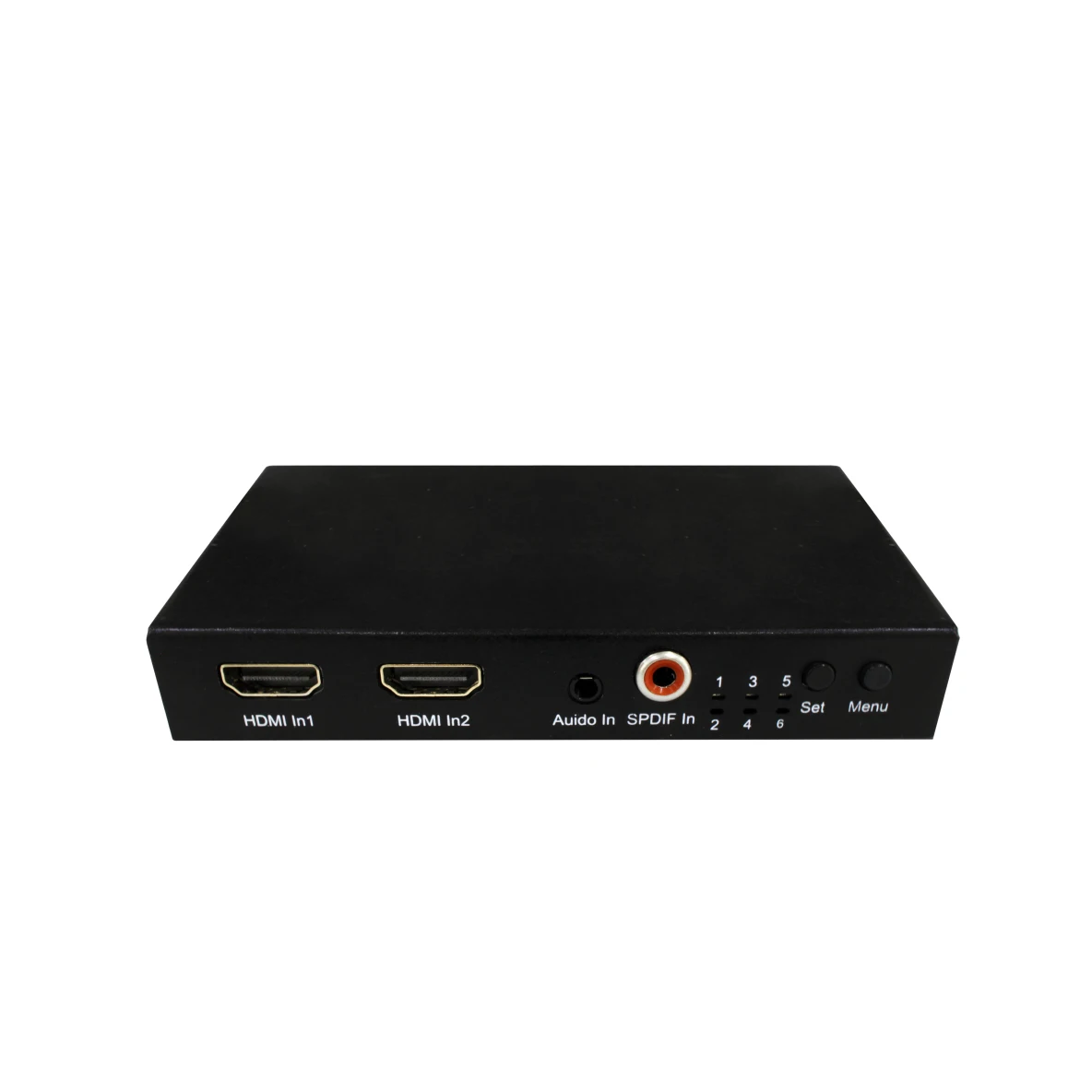

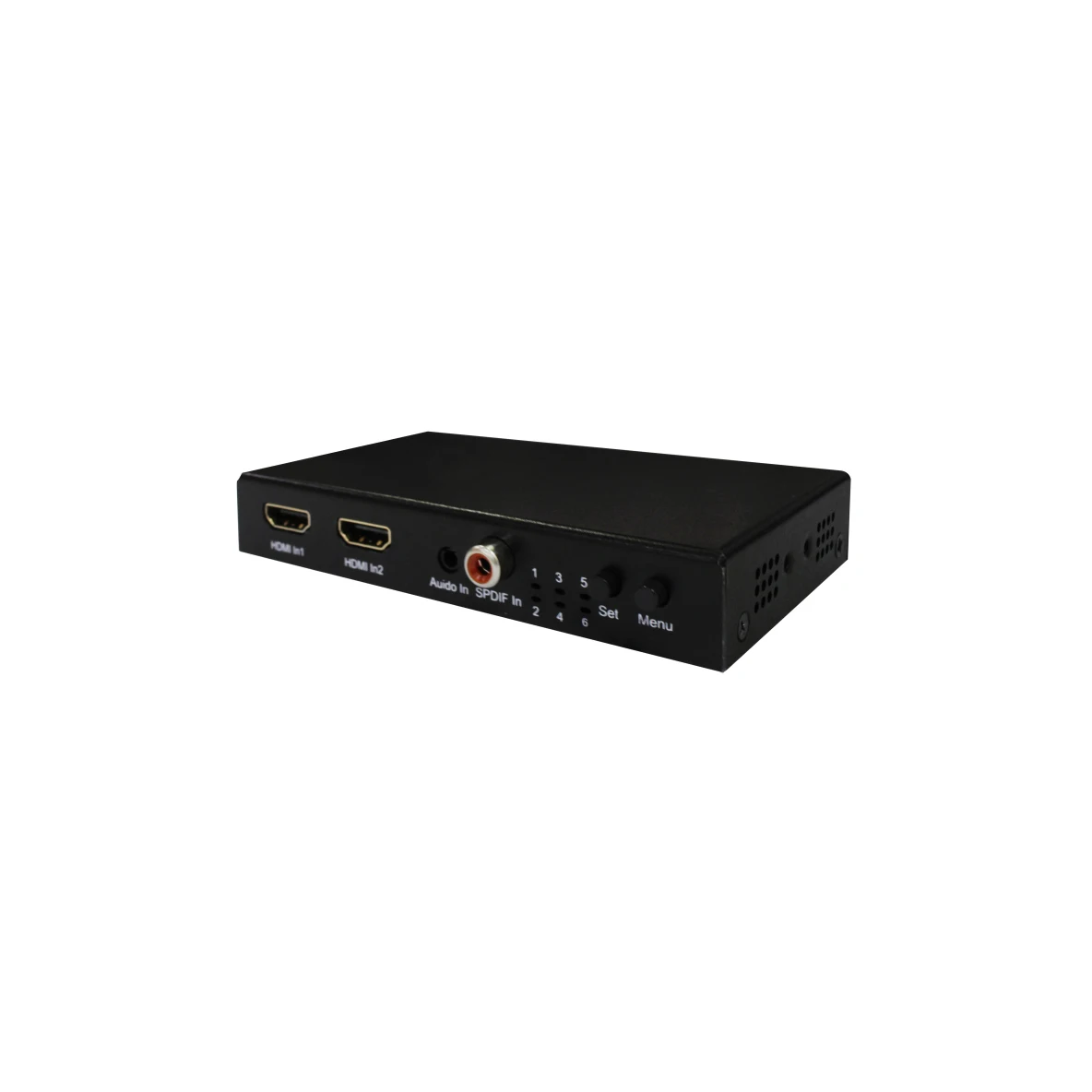

1X2 Splitter/2x1 Switch 4K@60hz YUV4:4:4
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (1600218905998):
Product Overview
Description
1X2 Splitter / 2x1 Switch
4K@60hz YUV4:4:4 18Gbps
Support HDCP2.2, HDR10
4K@60hz YUV4:4:4 18Gbps
Support HDCP2.2, HDR10
Features
* HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
* Bandwidth upto 18Gbps
* HDCP2.2/ HDCP1.4
* Support 3D, HDR10,Dolby vision and DTS
* Support 2xHDMI in, 2xHDMI out
* EDIDmanagement and Down Scaler functions
* Support Analog 3.5mm stereo out /SPDIF out audio extraction
* Support Analog 3.5mm stereo/SPDIF in audio embedded
* Support power off memory function
* Bandwidth upto 18Gbps
* HDCP2.2/ HDCP1.4
* Support 3D, HDR10,Dolby vision and DTS
* Support 2xHDMI in, 2xHDMI out
* EDIDmanagement and Down Scaler functions
* Support Analog 3.5mm stereo out /SPDIF out audio extraction
* Support Analog 3.5mm stereo/SPDIF in audio embedded
* Support power off memory function
Specification
Operating Temperature Range | 0℃ to +40℃(+32℉ to +104℉) |
Operating Humidity Range | 5 to 90%RH (No Condensation) |
Power supply | 5V |
Maximum power (work under 4K2K/60hz) | 2W |
Max resolution | 4k@60hz YUV4:4:4 |
Function | HDR10 and Dolby vision |
HDMI version | HDMI 2.0 |
HDCP version | HDCP2.2 / HDCP1.4 |
Control ways | Switch button and EDID |
Distance | 1080P: input 8m max; output 15m max 4k@30hz: input 8m max;output 15m max 4k@60hz-8bit: input 5m max;output 5m max |
Dimensions(LxWxH) | 121x68x20mm |

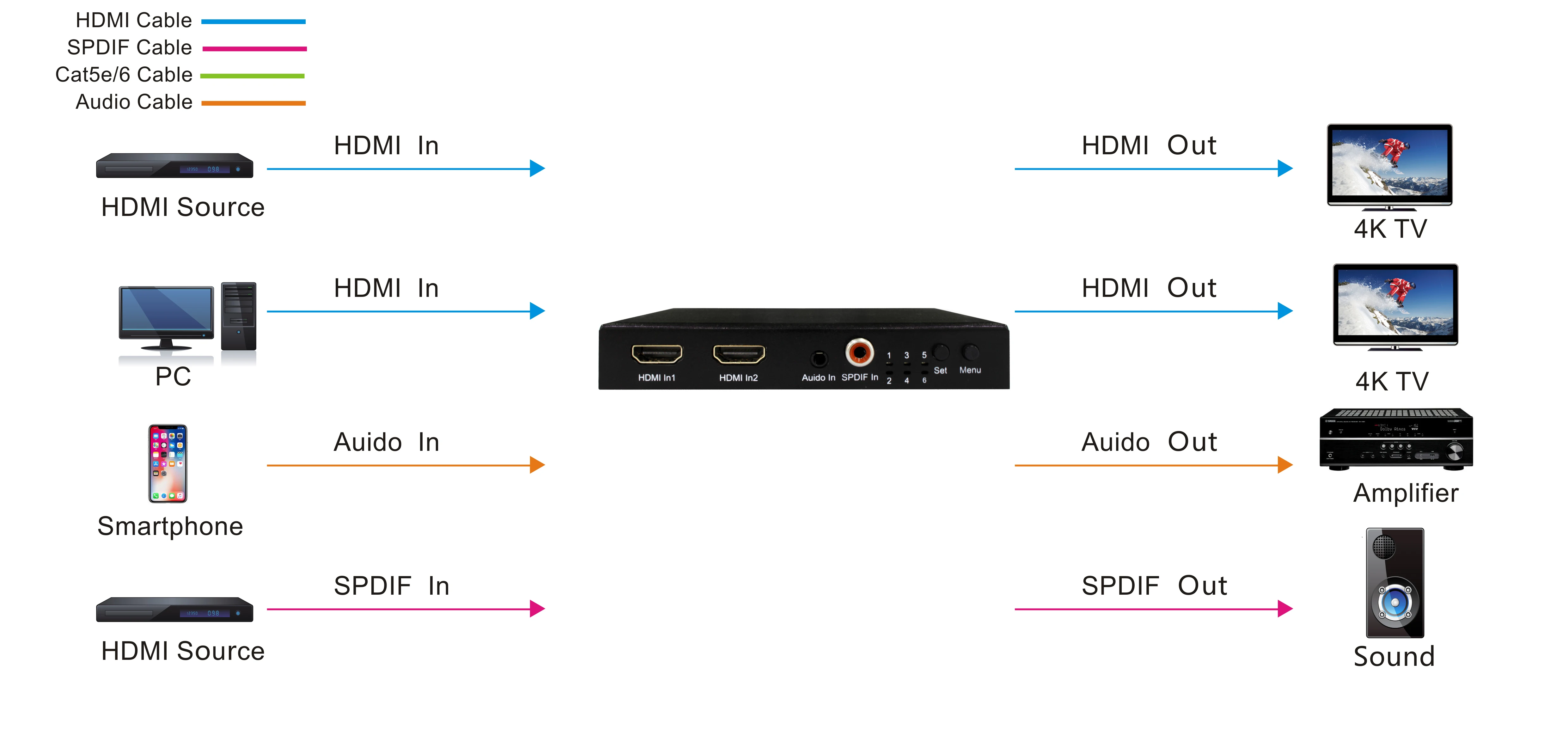

Wiring Diagram
Certifications
Packing & Delivery
Package Contents
1) 1x HDMI Switch
2) 1x 5V/1A DC power adapter
3) 1x User manual
2) 1x 5V/1A DC power adapter
3) 1x User manual
