zirconia sintered oven lab denture making equipments burnout ceramic machine dental oven
- Category: >>>
- Supplier: Luoyang Juxing Kiln Co. Ltd.
Share on (1600218993167):
Product Overview
Description
Product Description
Product Name | Small bottom loading zirconia sintering furnace |
Material | Aluminum Fiberboard(Refractory materials) + Mosi2(Heating elements) |
Function | (1) thermal processing, industrial workpiece processing, cement, building materials industry, small workpiece thermal processing or processing. (2) pharmaceutical industry: used for the inspection of drugs and the pretreatment of medical samples. (3) analytical chemistry industry: as samples for water quality analysis, environmental analysis, and other fields. It can also be used for oil and its analysis. (4) coal quality analysis: used for the determination of water content, ash content, volatile content, ash melting point analysis, ash component analysis, elemental analysis. |
Size of feeder | Depends on the customer's capacity requirements |
Vacuum degree | -0.1Mpa(If Necessary) |
Package | Composite wood packaging (fumigation free), or other wooden export packaging. Ensure the safety of the goods. |
Abstract

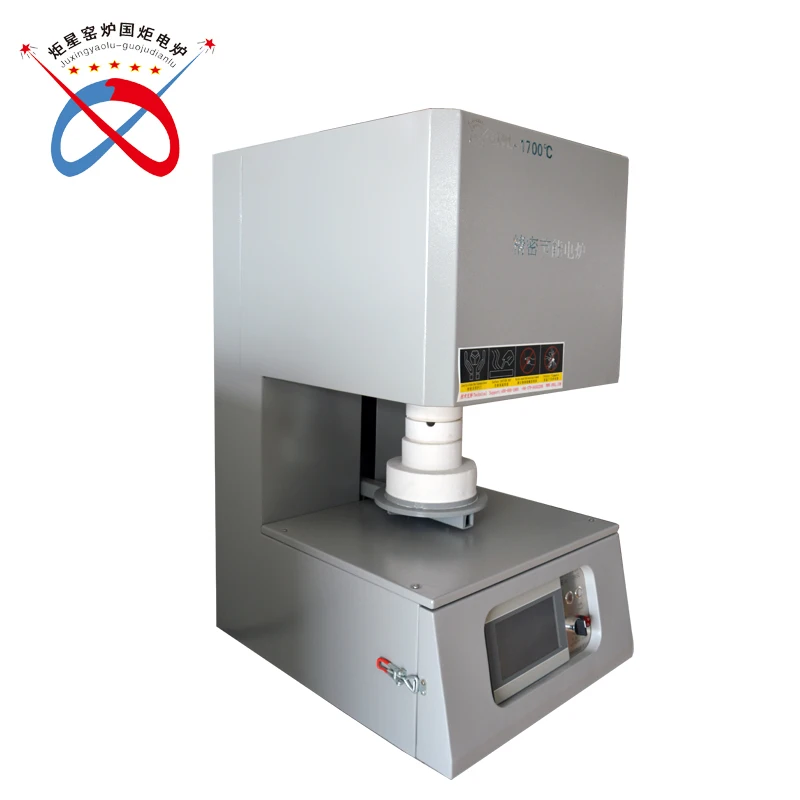

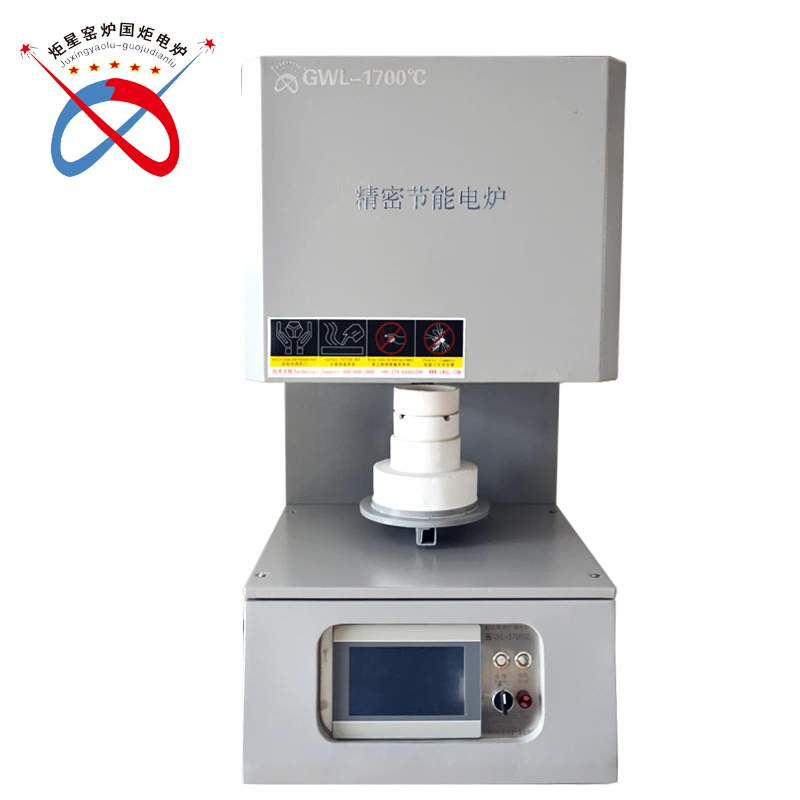

GWL-TSC Zirconia sintering furnace, It is mainly used for the crystallization and sintering of zirconia crowns in the denture processing plant. Is the ideal choice of denture processing plant.The furnace chamber is heated on all sides, which is more
uniform than the traditional muffle furnace.
Principle
The furnace with loading automatic lifting structure, which is conducive to the safety of sintering style, especially for the high-temperature sinter sintering of zirconia denture crown, good consistency,and high permeability.Internal screw lifting, easy to put and remove the safety of sintering samples style.

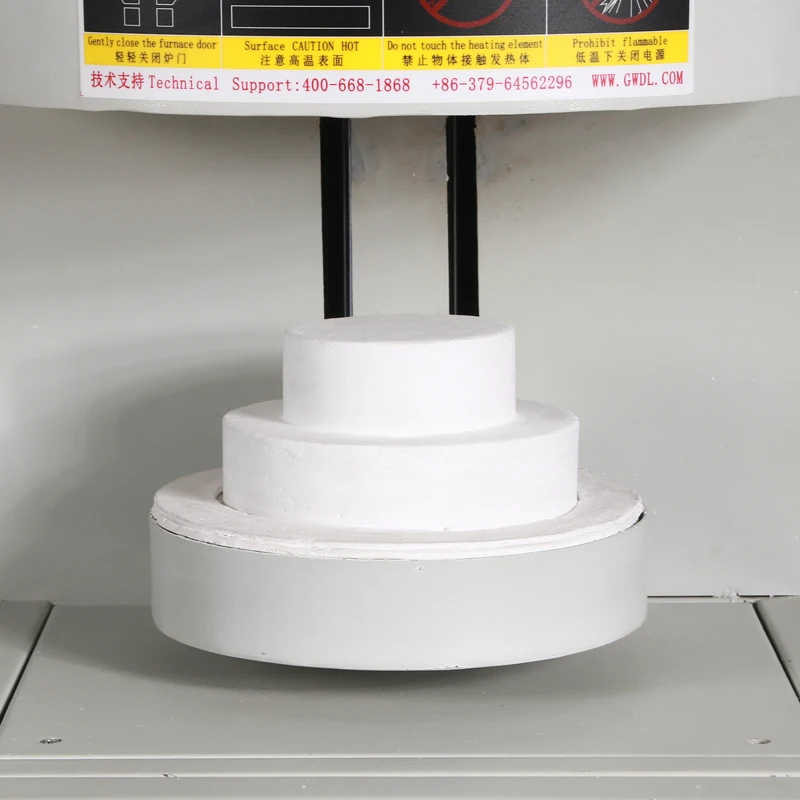

Bottom Loading Platform
Large furnace structure, 3 crucible can be placed, each crucible can put about 20 sintering materials.Unique circular furnace
design, heating elements constitute a uniform heat distribution around so that the heating is more uniform, the baked crown permeability, better consistency.
Chamber and heating elements
The zirconia sintering furnace adopts with the 1800 type pure heating elements, which will not cause secondary pollution to the crown. The furnace chamber adopts four-side heating, the furnace chamber adopts high purity fireproof fiber, will not let the tooth crown discoloration.
Furnace Control
Our furnace is controlled by touch screen, GWL provides a simple user interface, can choose the program timing automatic operationfunction, more energy saving, 30 sections of curing program, can be arbitrary choice.Touch control is easier and faster.
Super Alloy Resistance Wire
Ni-resistance wire (contains molybdenum)has the characteristics of high resistivity, Good corrosion resistance at high temperature, especially suitable for use in an atmosphere containing sulfur and sulfide, low resistance temperature coefficient, and high operating temperature. normally maximum using temperature is under 1200c
Silicon carbide rod(Sic)
Silicon carbon rod is made of high purity green hexagonal silicon carbide as the main raw material, according to a certain ratio of processing and blank, after 2200℃ high temperature silicon recrystallization sintering and made of rod, tubular non-metal high temperature heating element.It is usually used below 1600 degrees Celsius.
Silicon molybdenum rod(Mosi2)
Mosi2 resistive heating element, based on molybdenum disilicide, resistant to high temperature and oxidation. When used in a high-temperature oxidizing atmosphere, a layer of bright and SiO2 glass film is formed on the surface, which can protect the inner layer of the si-mo rod from oxidation.Normoly using under 1800 degrees Celsius.
Product Usage
Zirconia sintering furnace (small bottom lifting furnace) is widely used in denture processing plants to complete the crystal sintering of zirconia crown, universities, research institutes, industrial and mining enterprises to do high temperature sintering and metal annealing.
Packing&Shipping
The normal package is the wooden box(Size: L*W*H). If export to European countries, the wooden box will be fumigated.If the container is too tight, we will use pe film for packing or pack it according to customers special request.
Shipment by sea, by air or by express as per customer's requirement.Our company has established a cooperative relationship with many logistics enterprises to guarantee the safe transportation of goods and the time limit.
Company Introduction
Luoyang Juxing Kiln Co., Ltd which is a manufacturing company that manufactures good & high-quality electric resistance laboratory furnaces and industrial kilns. The company provides the customized products and OEM service. The factory owns proficient skills and an updated machine. the company has passed the IOS quality management system. and some products have passed the EU CE certificate.
Our Services & Strength
Our product has widely used in ceramics, metallurgy, electronics, glass, luminescent materials, non-ferrous metals, chemical industry, machinery, refractories, new materials development, special materials, building materials, and other fields.And can be customized according to the customer's process requirements.
All kinds of electric furnaces have a high degree of automation and are at the leading level in China. They are sold to more than 20 provinces, municipalities, autonomous regions and special zones in China, national key colleges and universities, national key laboratories, Chinese Academy of Sciences, and High School Research Institute. Countries such as North America, Russia, the Philippines, and Japan. has a high reputation in the industry.
Certifications
Exhibition
Related Products
FAQ
Q: IF I NEED SPECIAL DESIGN ABOUT FURNACE CHAMBER DOES YOUR COMPANY CAN OFFER IT?
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
A: Don't worry about it, we have the excellent technical team, based on your requirement we can customize whatever you need.
Q: IF WE PURCHASE YOUR PRODUCT WOULD YOUR COMPANY GIVEN ANY TRAINING OR TECHNICAL SUPPORT?
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
A: LOL, that is a good question for us, just take relax, for sale is only the first step for us, we will give the basic training about how to use our product through Technical manual and operation videos, and also Engineer is 24hours standby your call, as we promised we provide the best service for our client.
Q: HOW IS YOUR PRODUCT AFTER-SALE GUARANTEE?
A: We provide one-year service for our product (except the heating element), the heating element we provide three-month service. And also, the engineer available doing service overseas.
Q: YOUR PRODUCT WITH ANY ACCESSORIES?
A: Yes, the standard accessories include (Heating Elements, Specification Certificate, Heat Insulation Brick, Crucible Pliers,
High-Temperature Gloves).
Q: HOW TO CONTACT YOUR COMPANY?
A: Our Company address is: Yujia industrial zone, Wuhan south road, Jianxi District, Luoyang Henan, China.
