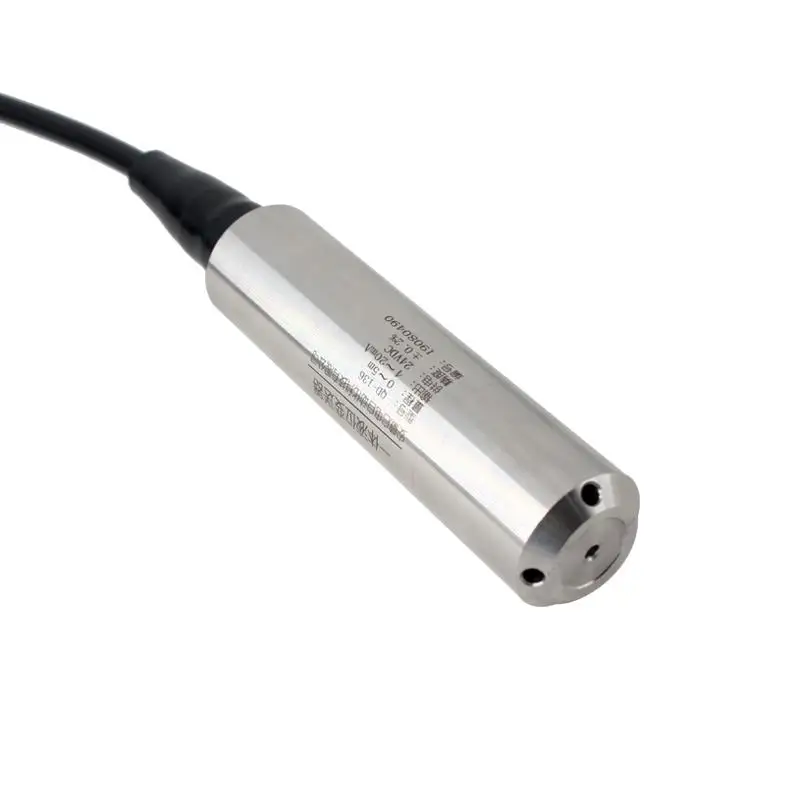

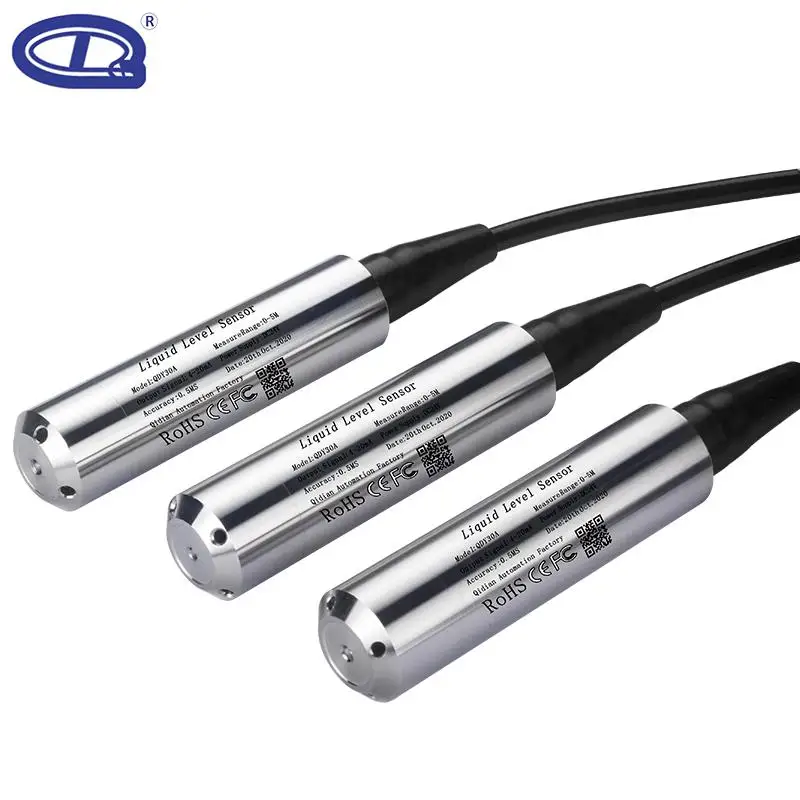

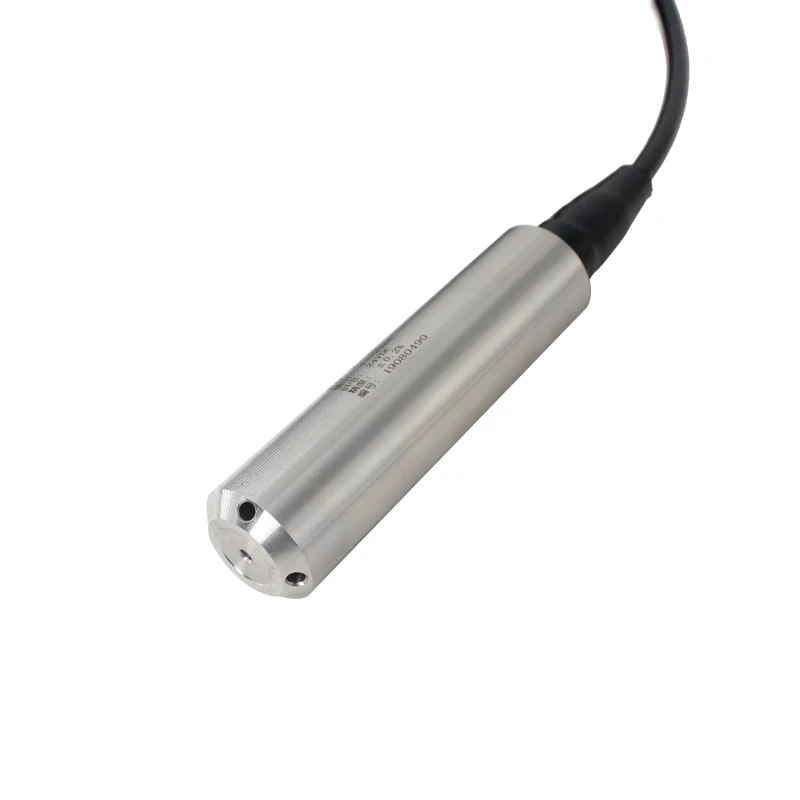

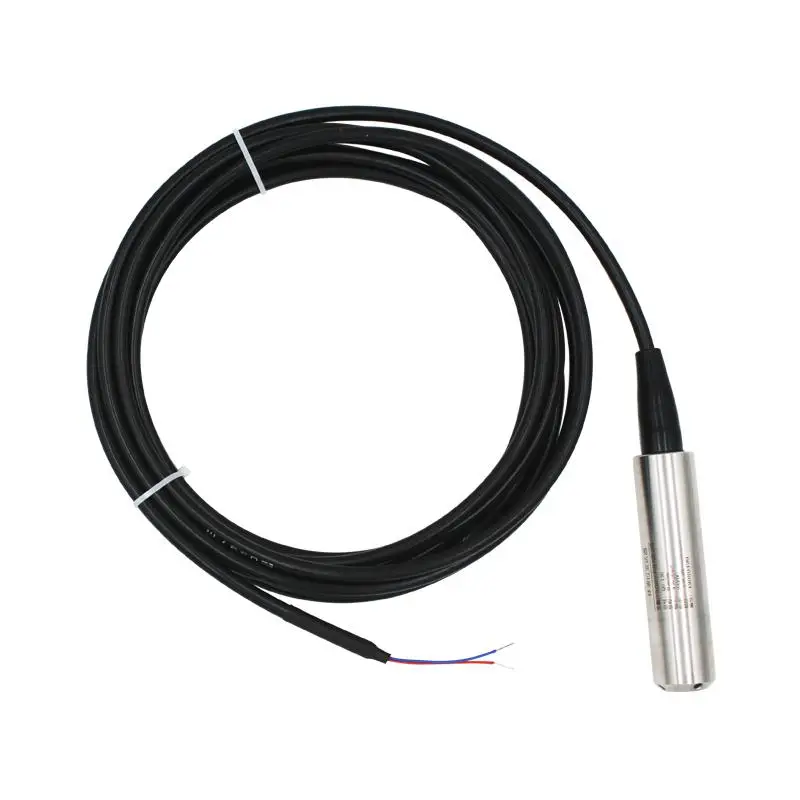

5m 10m with 4 20ma output Submersible liquid Level Sensor level meter
- Category: >>>
- Supplier: Anhui Qidian Automation Technology Co. Ltd.
Share on (1600219007043):
Product Overview
Description
A Variety of Specification
To meet your requirements of liquid level measuremen
To meet your requirements of liquid level measuremen
Product Description
Model QDY30A
Hydrostatic Liquid Level Transmitter
QDY30A submersible Water Level Sensor, its 304 &316 stainless steel and hermetically sealed housing make it suitable for most industrial liquids and oils. The welded housing is tested in-house via a helium leak tester to automatically compensates for changes in atmospheric ensure proper protection. Ventilation tube in the cable also isolated from the outside environment to keep the pressure above the tank. The conductors of the cable are level sensor operational for long-term use.
Specification
item | value |
Grade | Industrial |
Warranty | 3 years |
Customized support | OEM, ODM, OBM |
Place of Origin | China，Anhui |
Brand Name | QiDian |
Model Number | QDY30A |
Measuring Range | 0~0.5~500m H20 |
Output Signal | 4~20mA; 0~5V; 1~5V; 0-10V; RS485 |
Accuracy: | 0.2%F.S; 0.5%FS |
Response Time | ≤1ms (up to 90%FS) |
Long-term Stability | ±2F. S/Year |
Medium Temperature | -20~85°C |
Working Temperature | -40~80°C |
Overload Capacity | 200%F.S |
Insulation Resistance | 100MQ/250VDC |
Sensitivity Drift | ±2%F.S |
Protection | IP68 |
Impact | 100g (11MS) |
Measuring Medium | Various medium which is compatible with SS304 |

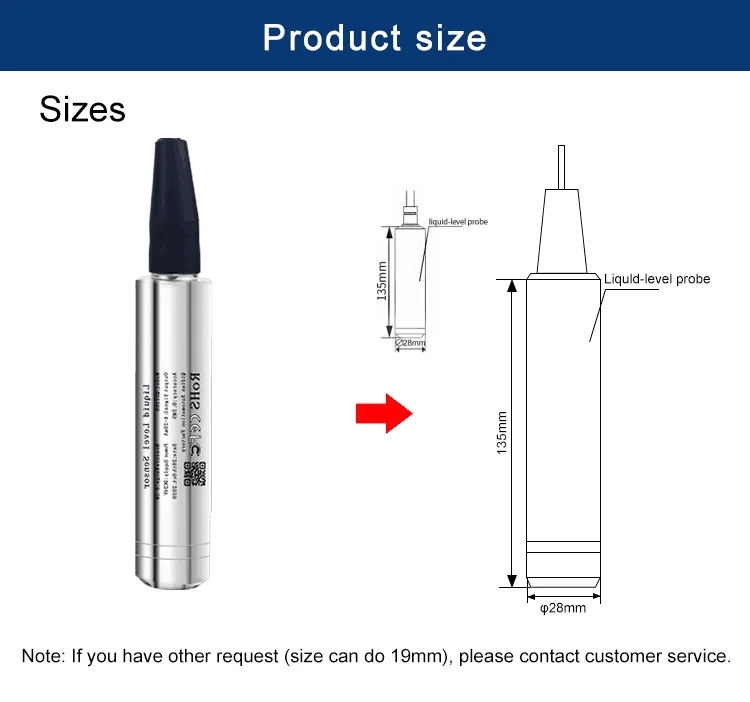

Product Dimensions

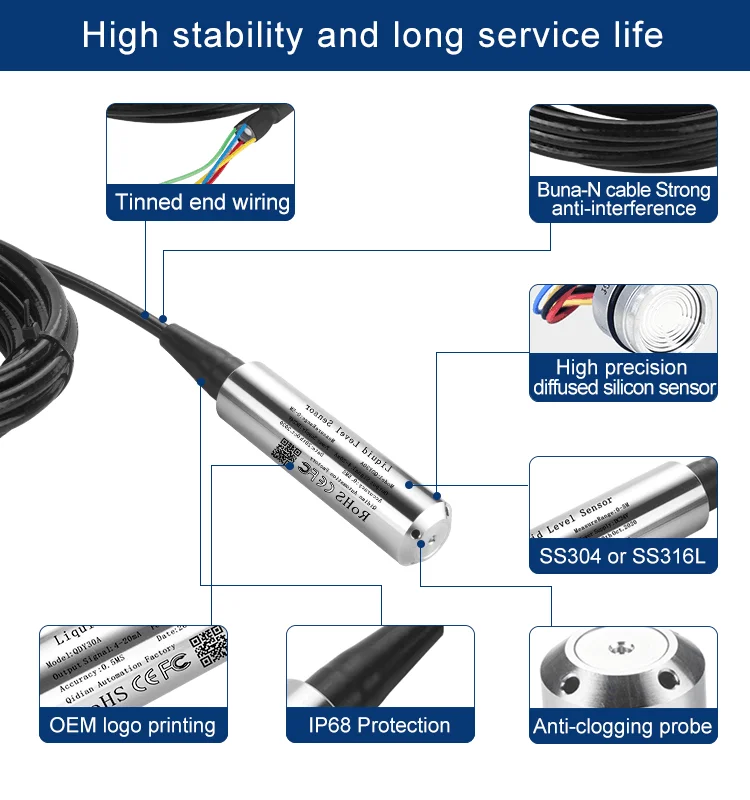

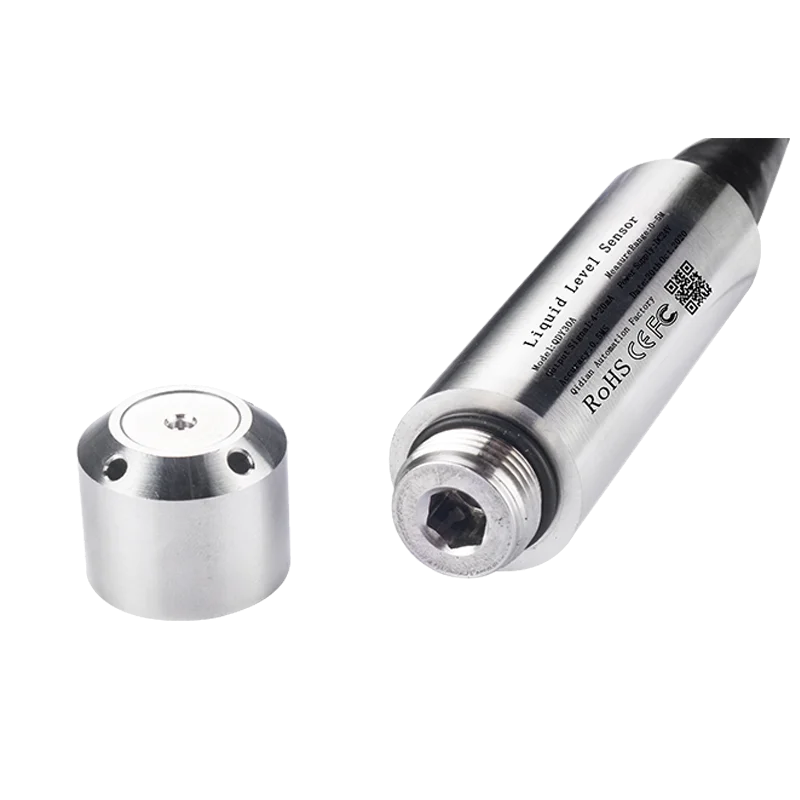

Product details
QDY30A
* Diffused silicon piezoresistive sensor
* Probe input measurement, easy to install
* Excellent long term stability

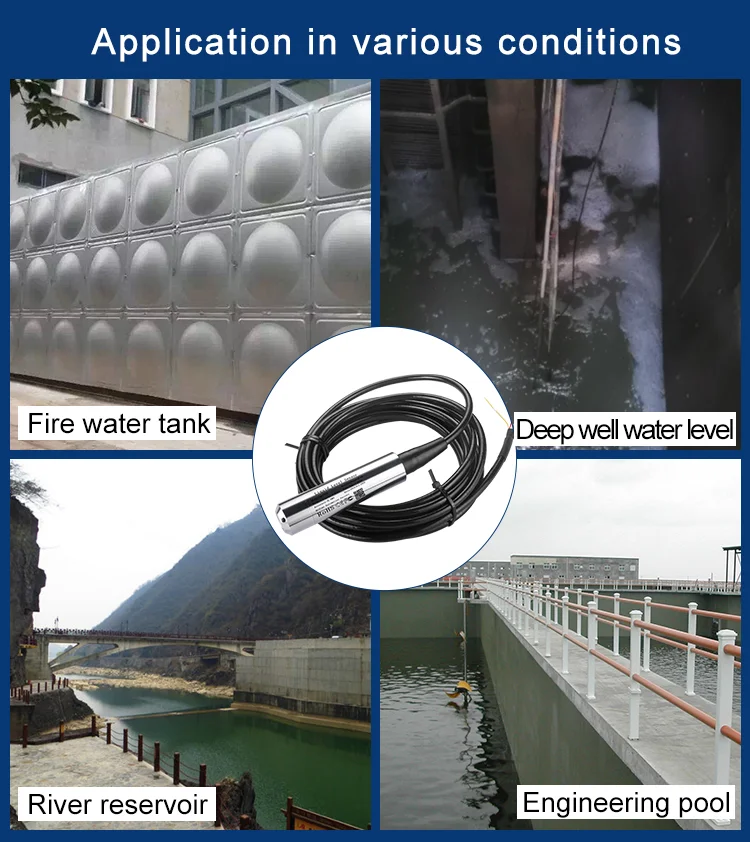

* Measuring water oil well river etc,various media
* Choose stainless steel material, suitable for a variety of occasions
* CE RoHs certificate
* Probe input measurement, easy to install
* Excellent long term stability
* Measuring water oil well river etc,various media
* Choose stainless steel material, suitable for a variety of occasions
* CE RoHs certificate

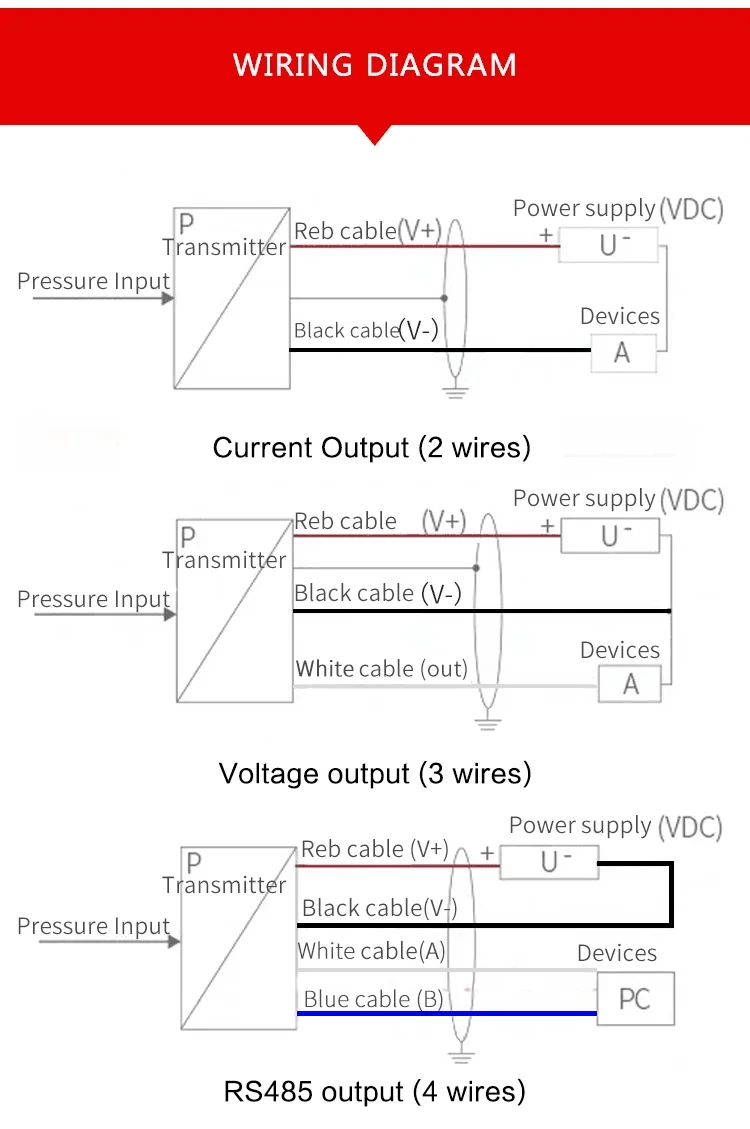

Wiring Digram

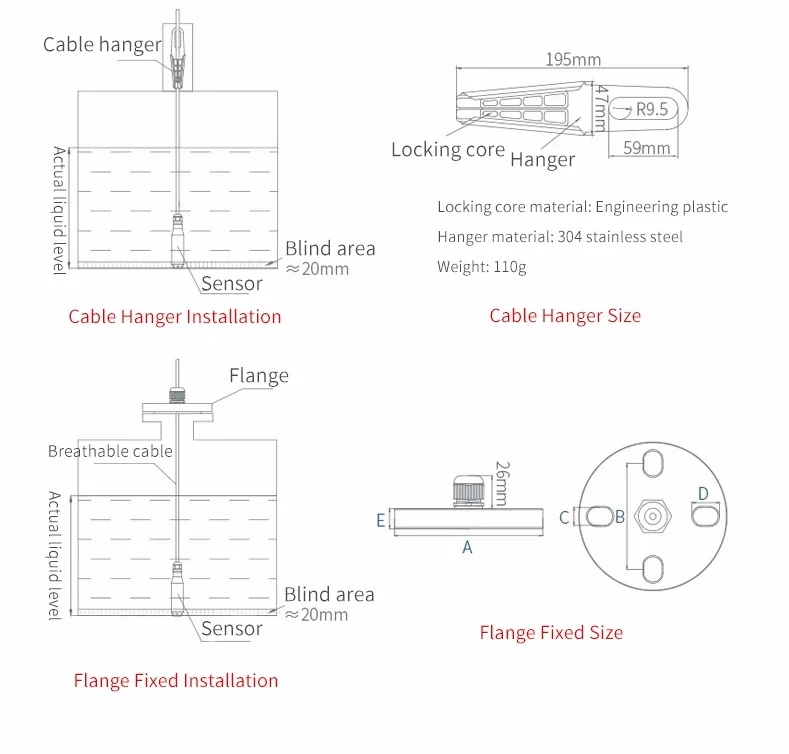

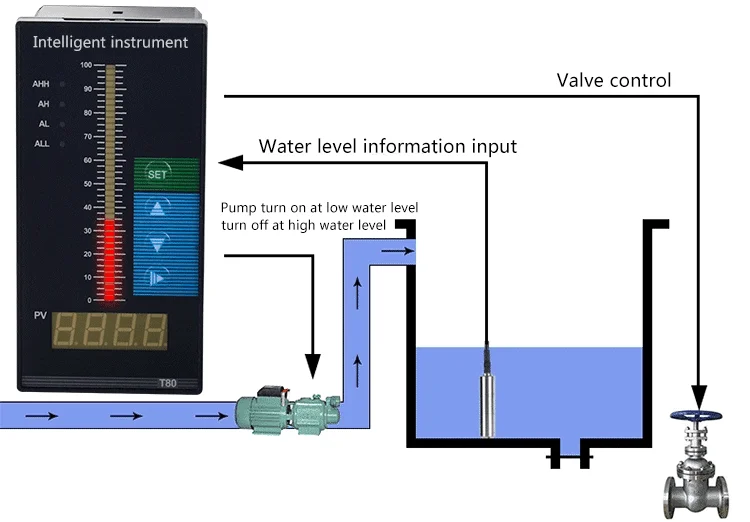

Installation Instructions

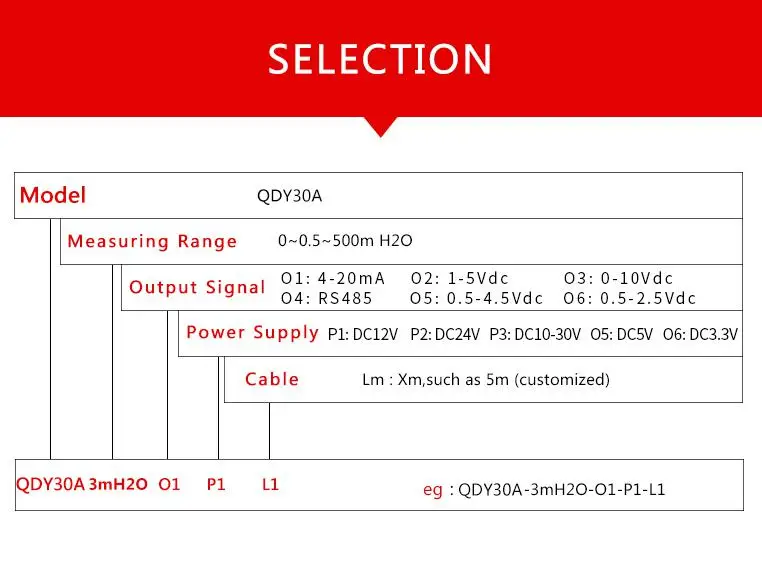

Selection

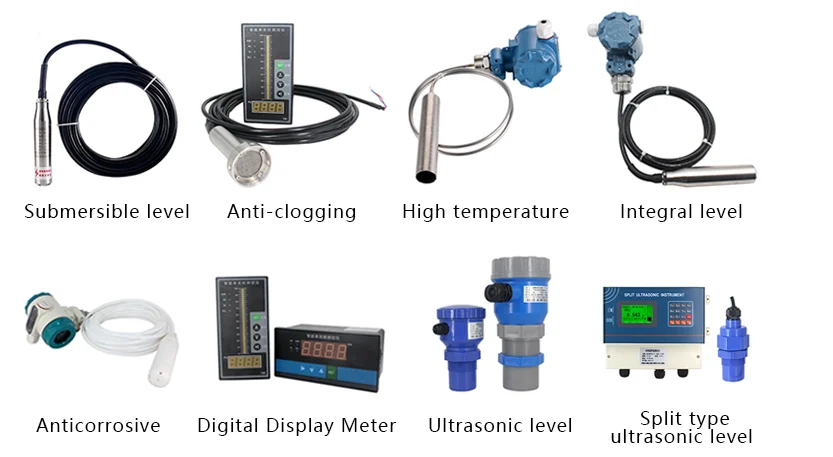

Related Product
FAQ
1.How long will you give me the reply?
We will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6.Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7.If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
We will contact you in 2 hours as soon as we can.
2. Could I get samples?
Yes,we have materials in stock to help you to get the samples as soon as we can.
3.How about the quality of the magnets?
We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4.How is the price?
As we believe the quality is the most important,we will provide the best quality signal isolator we can with reasonable price.
5. Could you provide me the shortest lead time?
We have materials in our stock,if you really need,you can tell us and we will try our best to satisfy you.
6.Could I visit your factory?
Of course,if you need we will help you to visit our factory.
7.If I have paid,when will you help me to produce?
When we have received the money in our account,we will give you the receipt and arrange to produce immediately.
