Professional Electrosurgical Instrument Veterinary Medical Electrosurgical Unit Forceps Class III Electric Metal Ce Titanium
- Category: >>>
- Supplier: Beijing Taktvoll Technology Co. Ltd.
Share on (1600219087053):
Product Overview
Description
Product Description

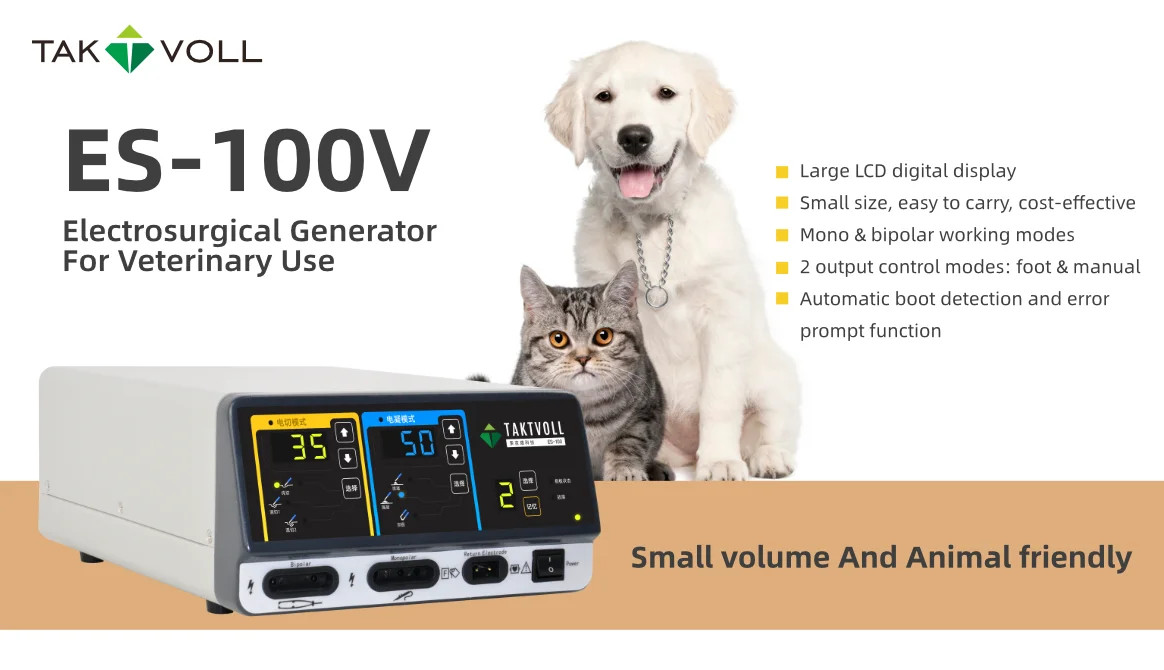

ES-100V Advanced electrosurgical generator in gynecology
Capable of most monopolar and bipolar surgical procedures and packed with dependable safety features, the ES-100-V satisfies the veterinarian’s demands with precision, safety, and reliability.
Large LCD digital display
Small size, easy to carry, cost-effective
Mono & bipolar working modes
2 output control modes: foot & manual
Automatic boot detection and error prompt function
Features：
3 monopolar cutting modes: pure cut, blend 1, blend 2
Pure cut: cut the tissue cleanly and accurately without coagulation
blend 1: Use when the cutting speed is slightly slow and a small amount of hemostasis is required.
blend 2: Compared with blend 1, it is used when the cutting speed is slightly slower and the better hemostatic effect is needed.
2 monopolar coagulation modes: forced coagulation and spray coagulation
forced coagulation: It’s non-contact coagulation. The output threshold voltage is lower than spray coagulation. It’s suitable for coagulation in a small area.
spray coagulation: high-efficiency coagulation without contact surface. The coagulation depth is shallow. The tissue is removed by evaporation. It usually use a Blade or ball electrode for coagulation.
1 Bipolar mode
Standard mode: It’s suitable for most bipolar applications. Keep the low voltage to prevent sparks.
A new generation of intelligent tissue density immediate feedback technology
The device uses a new generation of intelligent tissue density immediate feedback technology. According to the different impedance of the tissue, the output is intelligently controlled to achieve the effect of minimally invasive tissue cutting, ensuring the output of ideal power, and reducing the thermal damage of the cut tissue.
Functional self-test
After each turn-on, the high-frequency electrosurgical unit will immediately execute a self-test procedure. Once the internal abnormality of the system is found and the self-test fails, the current output will be automatically cut off immediately. This ensures that the ES-100-V generator is always in good working condition and performance. During the self-test, it is also tested whether the connected accessories are functioning normally.
Large LCD digital display
Small size, easy to carry, cost-effective
Mono & bipolar working modes
2 output control modes: foot & manual
Automatic boot detection and error prompt function
Features：
3 monopolar cutting modes: pure cut, blend 1, blend 2
Pure cut: cut the tissue cleanly and accurately without coagulation
blend 1: Use when the cutting speed is slightly slow and a small amount of hemostasis is required.
blend 2: Compared with blend 1, it is used when the cutting speed is slightly slower and the better hemostatic effect is needed.
2 monopolar coagulation modes: forced coagulation and spray coagulation
forced coagulation: It’s non-contact coagulation. The output threshold voltage is lower than spray coagulation. It’s suitable for coagulation in a small area.
spray coagulation: high-efficiency coagulation without contact surface. The coagulation depth is shallow. The tissue is removed by evaporation. It usually use a Blade or ball electrode for coagulation.
1 Bipolar mode
Standard mode: It’s suitable for most bipolar applications. Keep the low voltage to prevent sparks.
A new generation of intelligent tissue density immediate feedback technology
The device uses a new generation of intelligent tissue density immediate feedback technology. According to the different impedance of the tissue, the output is intelligently controlled to achieve the effect of minimally invasive tissue cutting, ensuring the output of ideal power, and reducing the thermal damage of the cut tissue.
Functional self-test
After each turn-on, the high-frequency electrosurgical unit will immediately execute a self-test procedure. Once the internal abnormality of the system is found and the self-test fails, the current output will be automatically cut off immediately. This ensures that the ES-100-V generator is always in good working condition and performance. During the self-test, it is also tested whether the connected accessories are functioning normally.

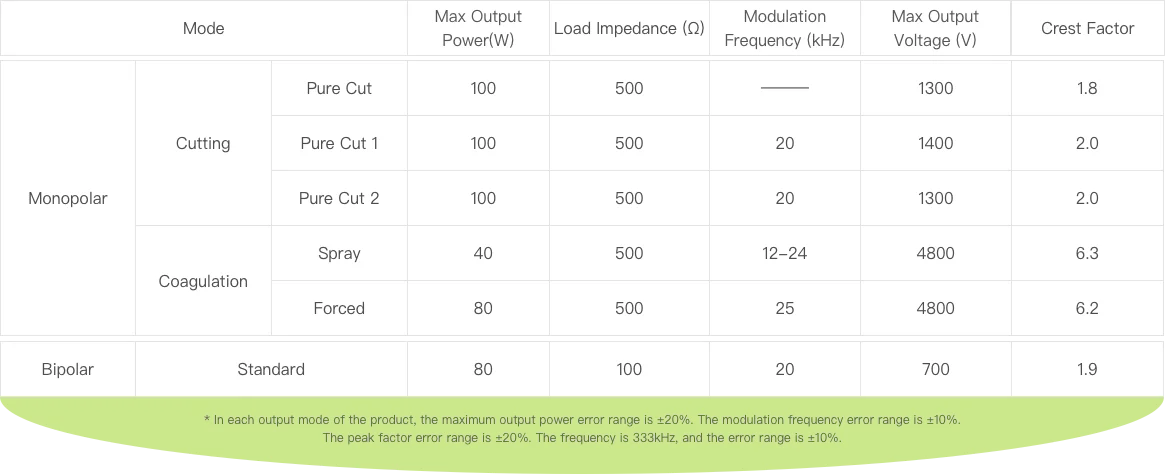

Specification
product name | ES-100-V electrosurgical generator for Veterinary Use |
model | ES-100V |
After-sale Service | Online technical support |
Lead time | 7-10 working days |
Properties | Veterinary |
Power Source | Electric |
MOQ | 1 piece |
Product Testing
Recommend Products
Certifications
Company Profile
Beijing Taktvoll Technology Co., Ltd was established in 2013. It is located in 302 Room, 10A, Lian dong U village , Jing Sheng Nan fourth Street, Jin Qiao Chan Ye Ji Di, Tong Zhou disrict, Beijing, China.
The company insists on technological innovation based on laws and regulations, invests a lot of manpower, material resources and financial resources to research and develop medical equipment products with excellent performance, high quality, safety and reliability. Through continuous technical upgrades, it has adopted stable quality and excellent after-sales service in Consistent recognition in the medical market. The company pays attention to the cultivation of scientific research personnel, so that the research and development strength reaches the advanced level in the same industry.
The company insists on technological innovation based on laws and regulations, invests a lot of manpower, material resources and financial resources to research and develop medical equipment products with excellent performance, high quality, safety and reliability. Through continuous technical upgrades, it has adopted stable quality and excellent after-sales service in Consistent recognition in the medical market. The company pays attention to the cultivation of scientific research personnel, so that the research and development strength reaches the advanced level in the same industry.
Cooperation
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q: What is your warranty for the products?
A: One year for free.
Q: What is your after-sales service?
A: We provide technical support through operation guide and video. You can contact our engineers by email, phone call. If the hardware has problem within the warranty period, we will send you spare parts for free, or you send it back then we repair it for your freely.
Q: Are you a factory or a trading company ?
A: We are a Chinese medical equipment manufacturer.
Q: Can you accept OEM ?
A: YES! We can offer OEM service.
Q: Where are you ?
A: Our address is 302 Room, 10A, Lian dong U village , Jing Sheng Nan fourth Street, Jin Qiao Chan Ye Ji Di, Tong Zhou district, Beijing, China.
A: One year for free.
Q: What is your after-sales service?
A: We provide technical support through operation guide and video. You can contact our engineers by email, phone call. If the hardware has problem within the warranty period, we will send you spare parts for free, or you send it back then we repair it for your freely.
Q: Are you a factory or a trading company ?
A: We are a Chinese medical equipment manufacturer.
Q: Can you accept OEM ?
A: YES! We can offer OEM service.
Q: Where are you ?
A: Our address is 302 Room, 10A, Lian dong U village , Jing Sheng Nan fourth Street, Jin Qiao Chan Ye Ji Di, Tong Zhou district, Beijing, China.
