Portable Cylinder Line Boring Machine Manufacturer Machining
Modular structure, Easy to set up, Easy to operate, Multi-functional
Product Description
| Driven | Model | Boring Diameter | Rotation Speed |
Electric (LBE)
Hydraulic (LBH)
CNC (LBS) | 50 | 55-400mm | 0-118r/min |
60 | 65-600mm | 0-118r/min | |
90 | 100-800mm | 0-78r/min | |
110 | 180-900mm | 0-62r/min | |
150 | 220-1000mm | 0-55r/min | |
200 | 380-1200mm | 0-38r/min | |
300 | 460-1600mm | 0-28r/min |

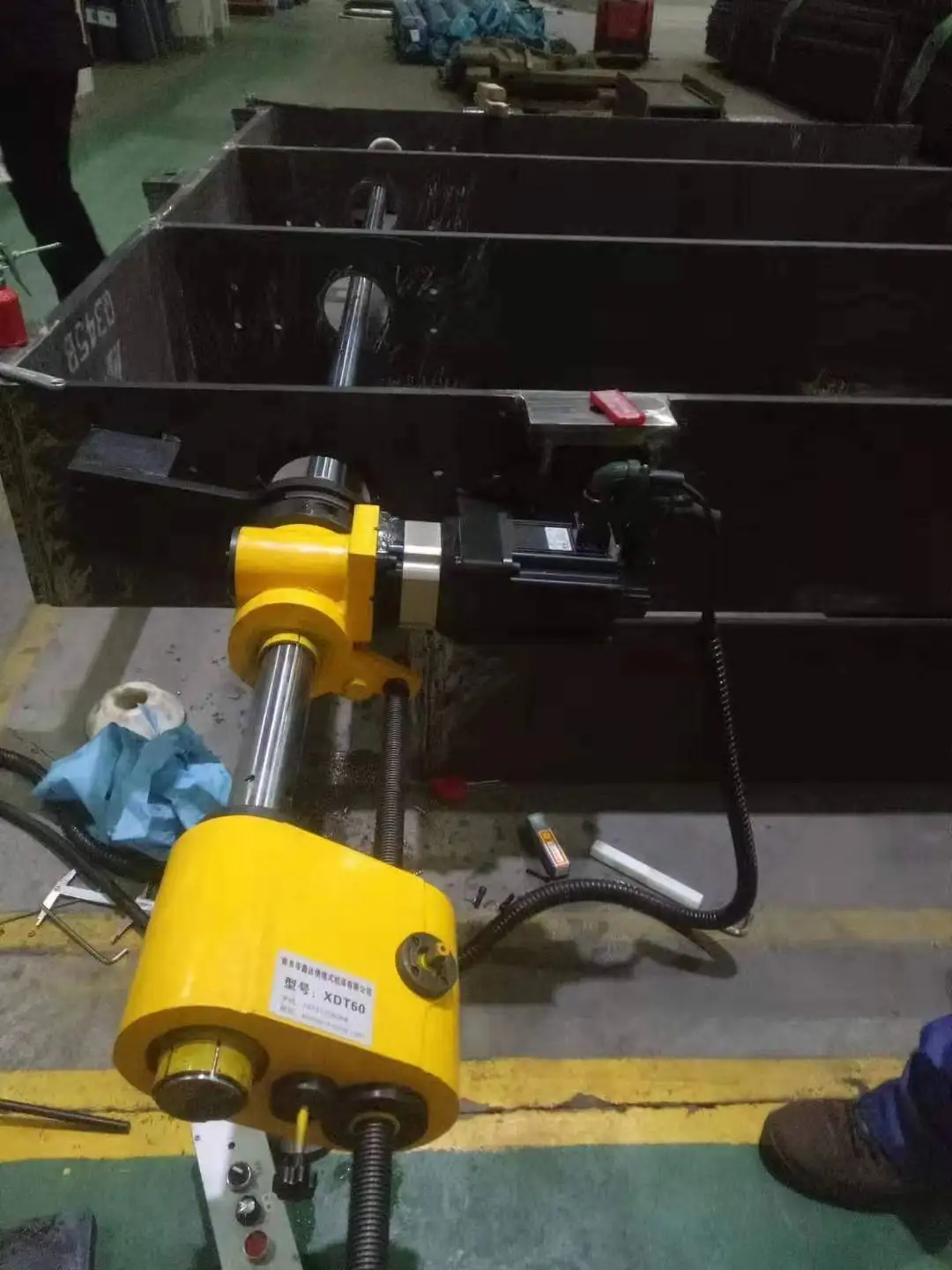

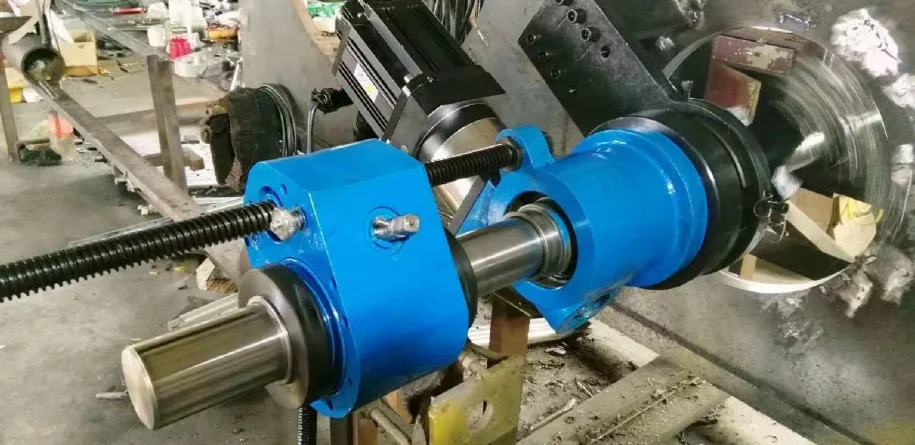

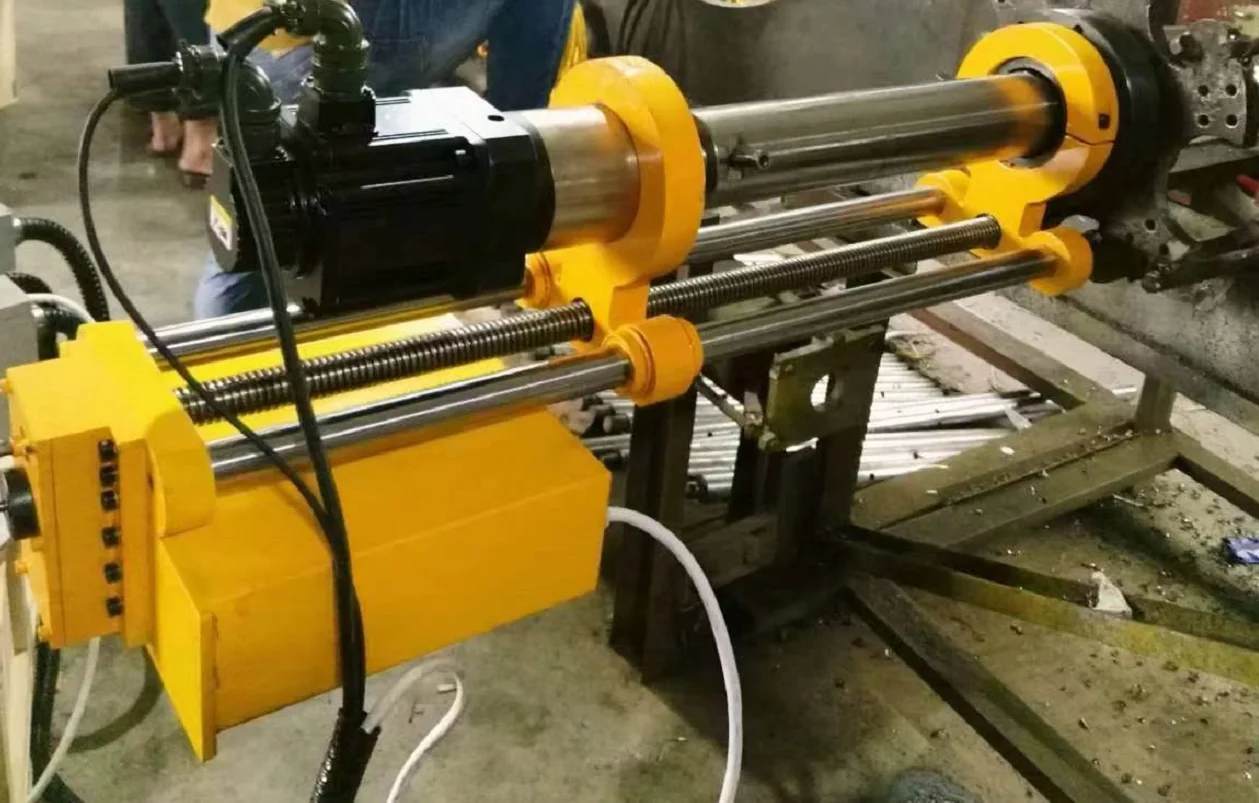

Portable Line Boring Machine is a kind of portable machining equipment mainly developed for field maintenance of engineering,energy and chemical equipment.
It is mainly used for the machining of small pipe inner hole and concentric interval hole, and widely used in excavators, cranes, loaders, cranes and other engineering machinery.

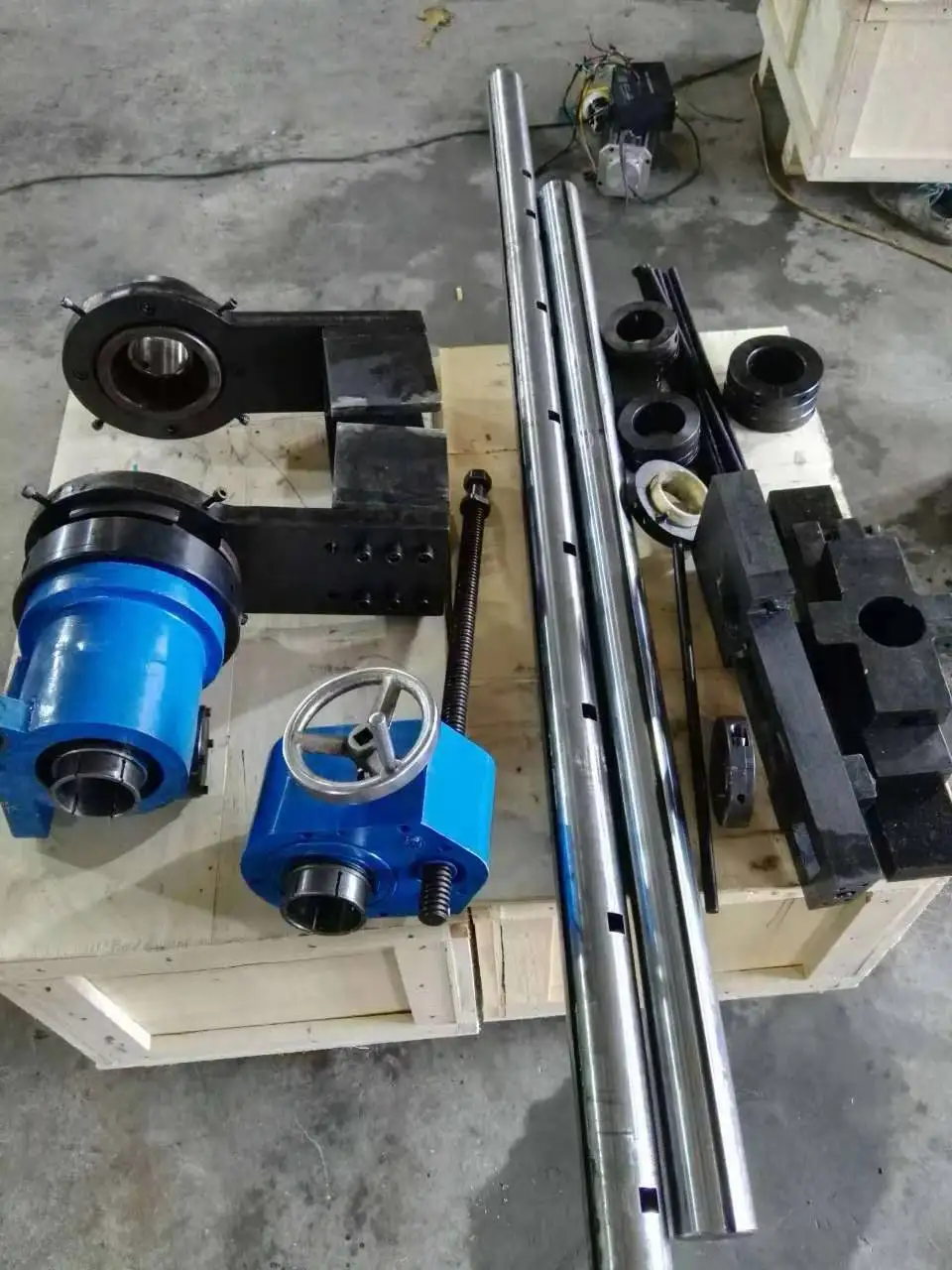

Product Show

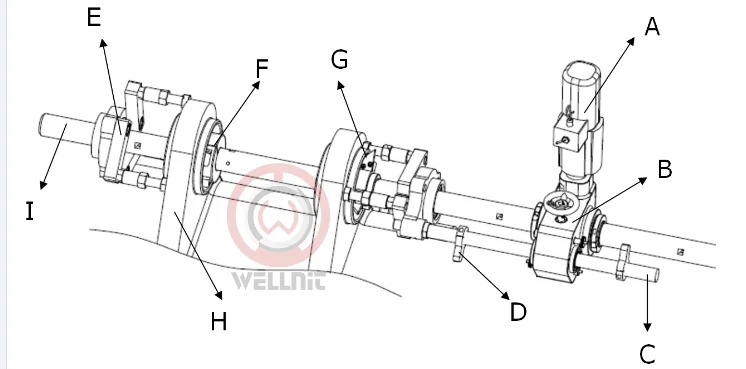

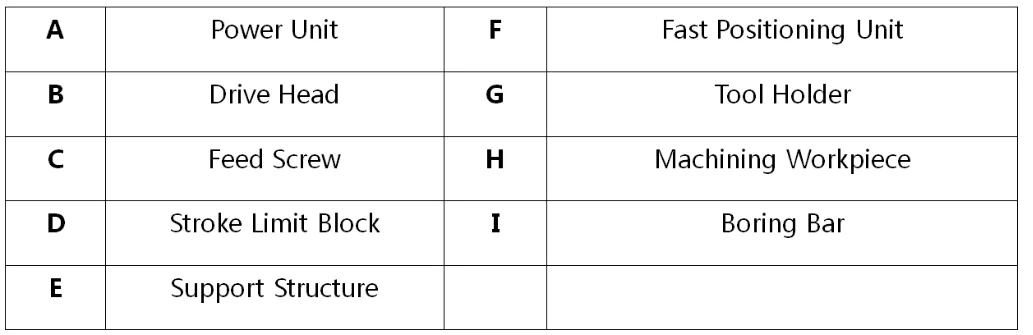

- Select different models according to the size of the workpiece
- Fix the boring bar by the support mechanism
- Install the driver head
- The machine is equipped with stroke limit block, which can determine the processing
- stroke according to the processing needs
- Machine can automatically feed, the processing efficiency is high, and the processing surface is smooth
FAQ
1.Are you manufacturer?
Yes, we are the leading manufacture of pipe cutting and beveling machine/flange facing machine,line boring machine,plate milling machine etc.
2.How to choose our product?
You need tell us what's the diameter you want to machining, then we will suggest about our machine for you.If you can give us some pictures about your working site, that can help us to give you better suggestion.
3.How to pay it?
We accept many type of payment. T/T, L/C, West Unit, Trade Assurance, and other type of payment.If you haven't used these payment before, we can teach you to use them with you.
5.What is the delivery time and MOQ?
Our product's MOQ is 1 SET, and all our machines are in stock. Except for the customized machines, other machines can be ready for delivery at any time.
