Последовательный светодиодный модуль 0,96 ЖК дисплея I2c IIC желто голубого цвета 12864 дюйма
- Category: Development Systems, and IoT Products >>>
- Supplier: Shenzhen Miduomei Technology Co. Ltd.
Share on (1600219148487):
Product Overview
Description

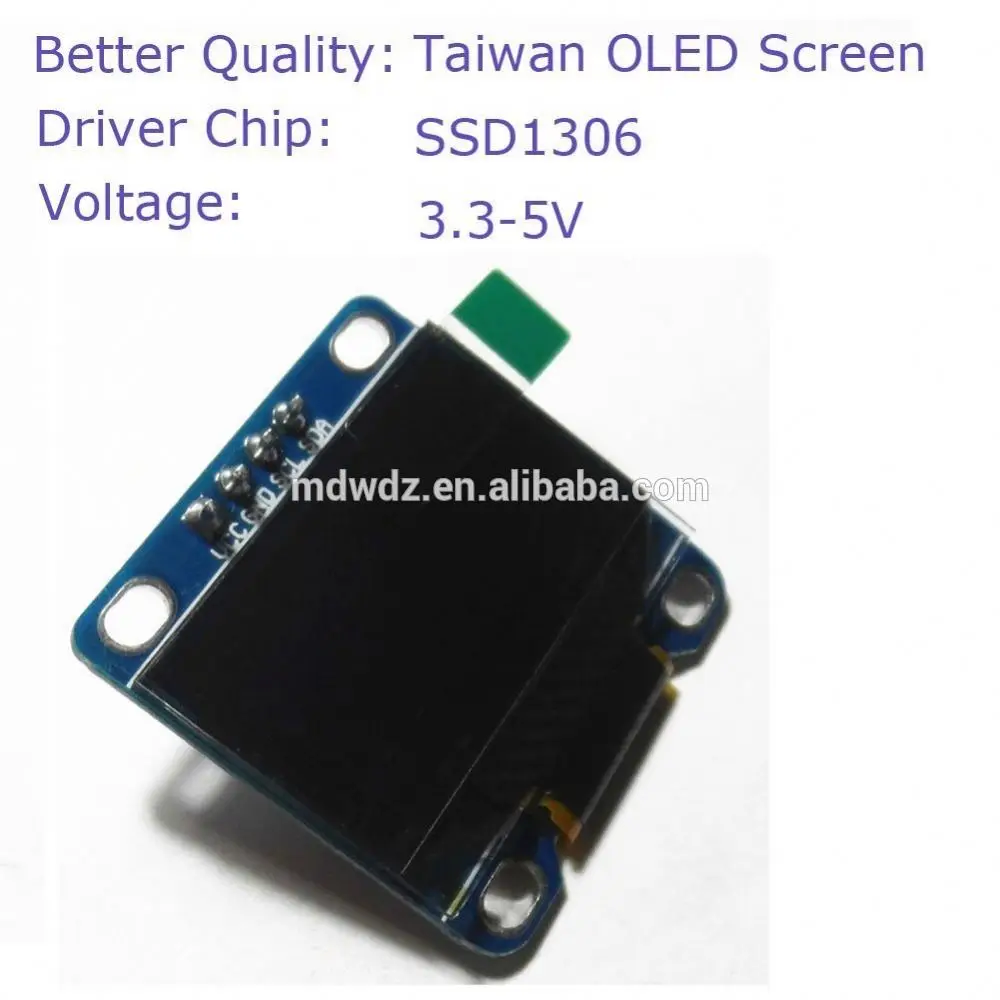

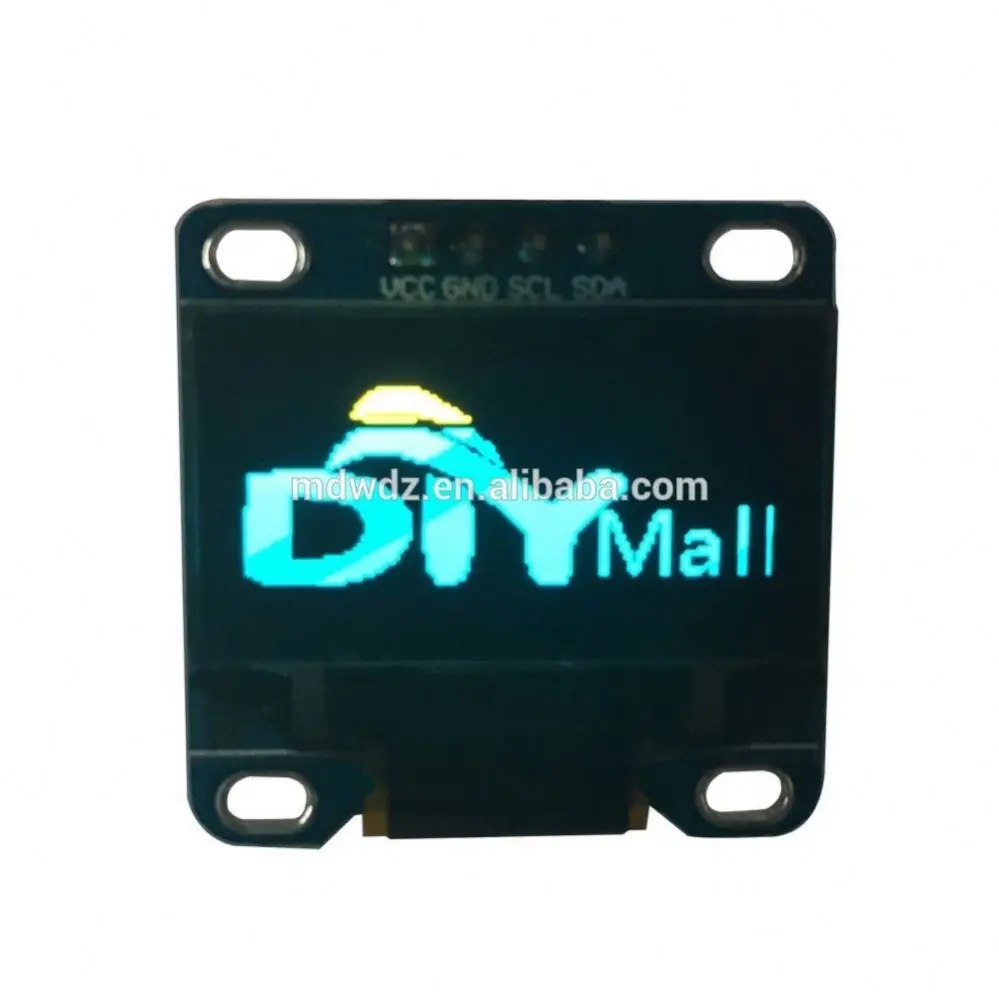

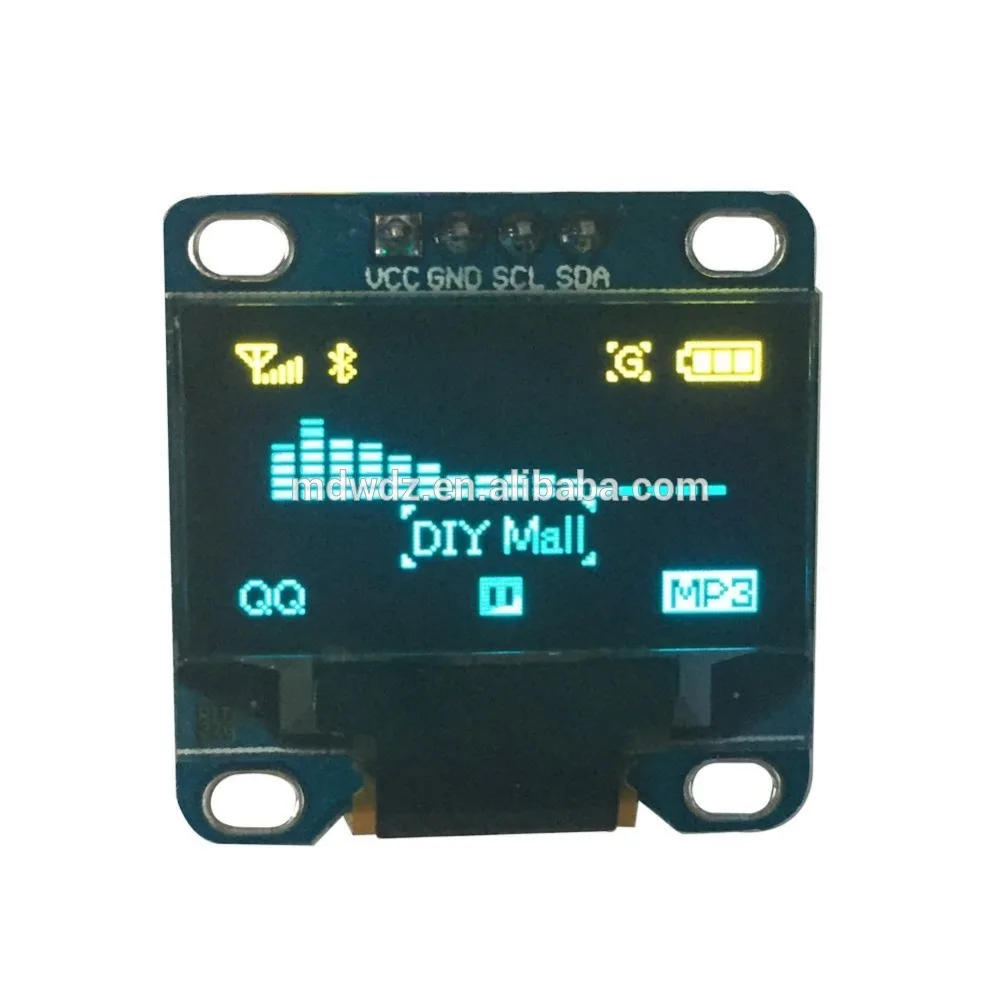

0.96" Inch Yellow Blue I2c IIC Serial Oled LCD LED Module 12864 128X64 for Display 51 Msp420 Stim32 SCR
- The display is made in Taiwan, quality is much better
- The IIC address can be changed,it is convenient to use with different machines
- Four square holes are easy to install
- Warranty: one year warranty, any question please feel free to contact
- Document link: https://drive.google.com/open?id=0B8DSGdAr8_31UEItMmx6ZDJIOWs
Product description
Diymall 0.96" Inch Yellow and Blue I2c IIC Serial 128x64 128X32 Oled LCD Oled LED Module for Raspberry PI Display 51 Msp420 Stim32 SCR
Description:
Size: 0.96
Resolution: 128X64
Color: Blue
Viewing angle: greater than 160 degrees
Supported platforms: for , 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption: 0.04W during normal operation
Support wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees

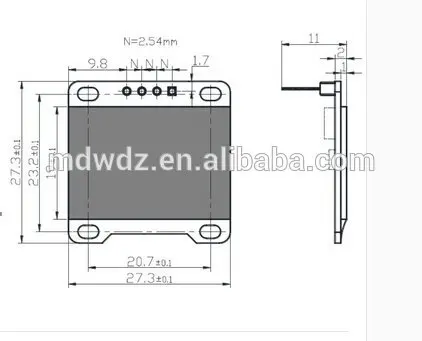

Volume: 27MM * 27MM * 4.1MM
Driver IC: SSD1306
Communication: IIC, only two I / O ports
No font: The software takes word modulo
Backlight: OLED self light, no backlight

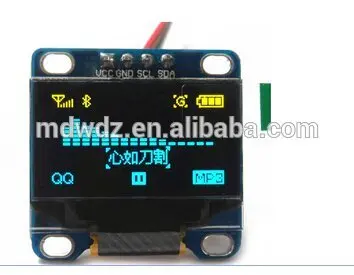

Interface:
VCC: 3.3-5V
GND: Ground
SCL: Serial Clock
SDA: Serial Data
