Product Overview
Description

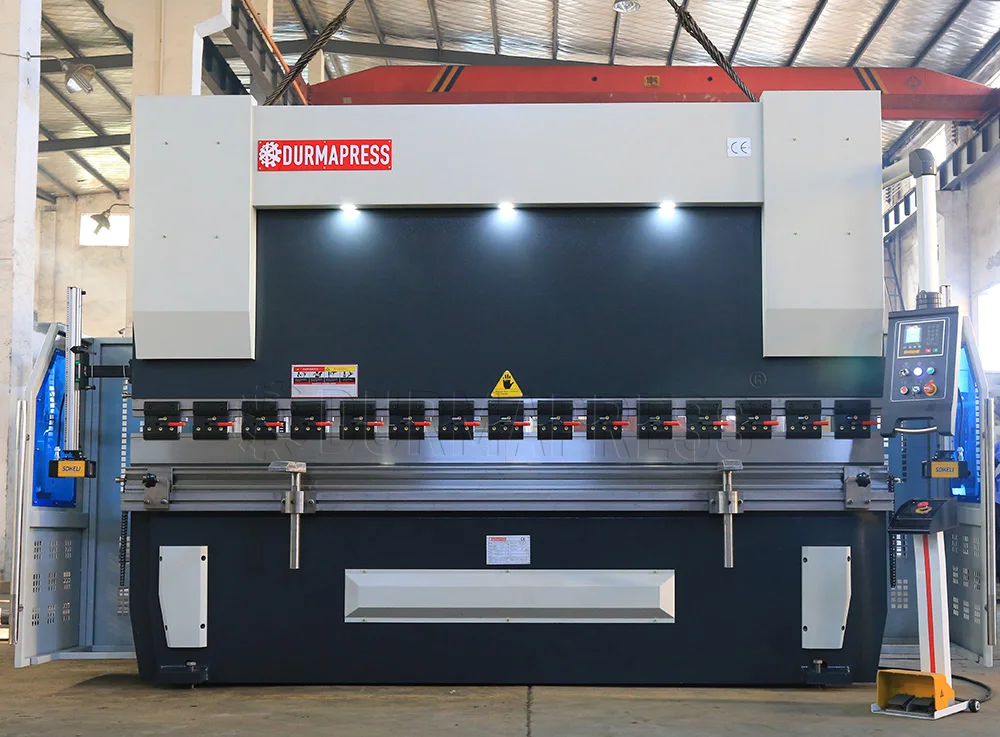

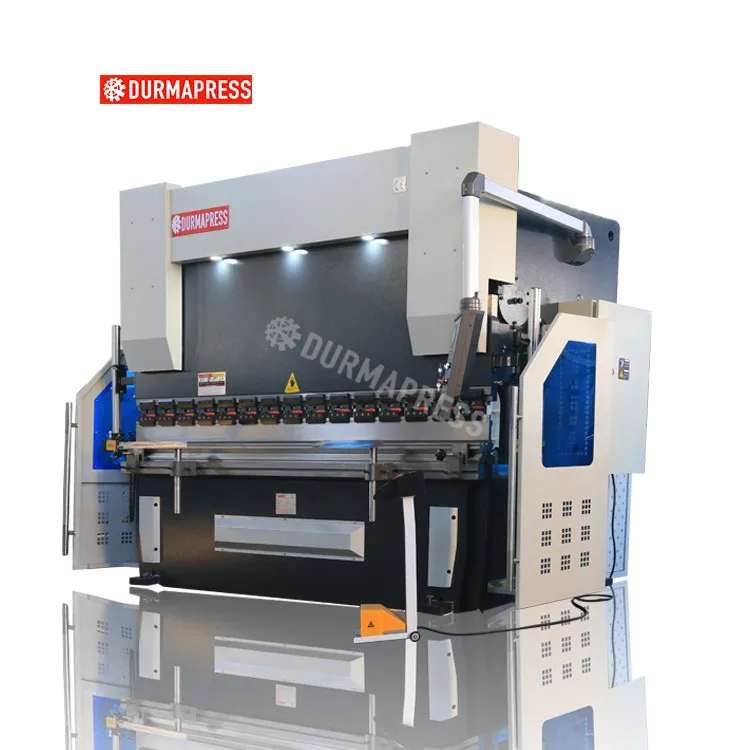

CNC Press Brake
The CNC press brake uses the mold (general or special mold) to bend a cold metal sheet into a workpiece of various geometric cross-section shapes. It is a sheet metal forming machine designed for cold rolling sheet metal processing. It is widely used in sheet metal bending, such as automobile, aircraft manufacturing, light industry, shipbuilding, container, elevator, railway vehicles and other industries.
1. High bending precision,fast working speed, and efficient,operational safety,performance stably.
2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10.Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
11.Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12.Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13.The similarity of images and shipping machine can reach 99.5%.
14.In time fast delivery.
2. Good antiknock frame(welded-steel plate construction),whole frame is been tempering,reduce modification,using large-scale CNC milling machine,process in one time,insure high-precision.
3. Using international brand parts and cnc.
4. Visual operating system,easy operation,convenient,multi-functions and practical.
5. All parts are produced by cnc produce center,according to standard drawing.
6. High executive force,high standard and high professional machine assembled team.
7. Power safeguard design,with light curtain protection,open door power-off function,more safety when operating.
8. Fashion outlook,delicate,and beautiful,machines are compact design,small floor space,easy operation.
9. Providing comprehensive bending program for all press brake,shearing machine user.
10.Replaceable worktable and the upper and lower mound,no welding,forging and precision grinding.
11.Thickening the slider and the vertical plate, to ensure the stability of the machine tool and reduce the elasticity.
12.Rational layout of the oil pipeline design, to prevent the oil temperature rise quickly.
13.The similarity of images and shipping machine can reach 99.5%.
14.In time fast delivery.
Model | WC67K 100T 3200 | ||||
Pressing force | 1000 | KN | |||
Working length | 3200 | MM | |||
Distance between uprights | 2600 | MM | |||
Stroke | 350 | MM | |||
Max opening height | 400 | MM | |||
Table width | 200 | MM | |||
Motor | 7.5 | KW | |||
Overall Dimension | 3800*1650*2355 | MM | |||
Main Configuration

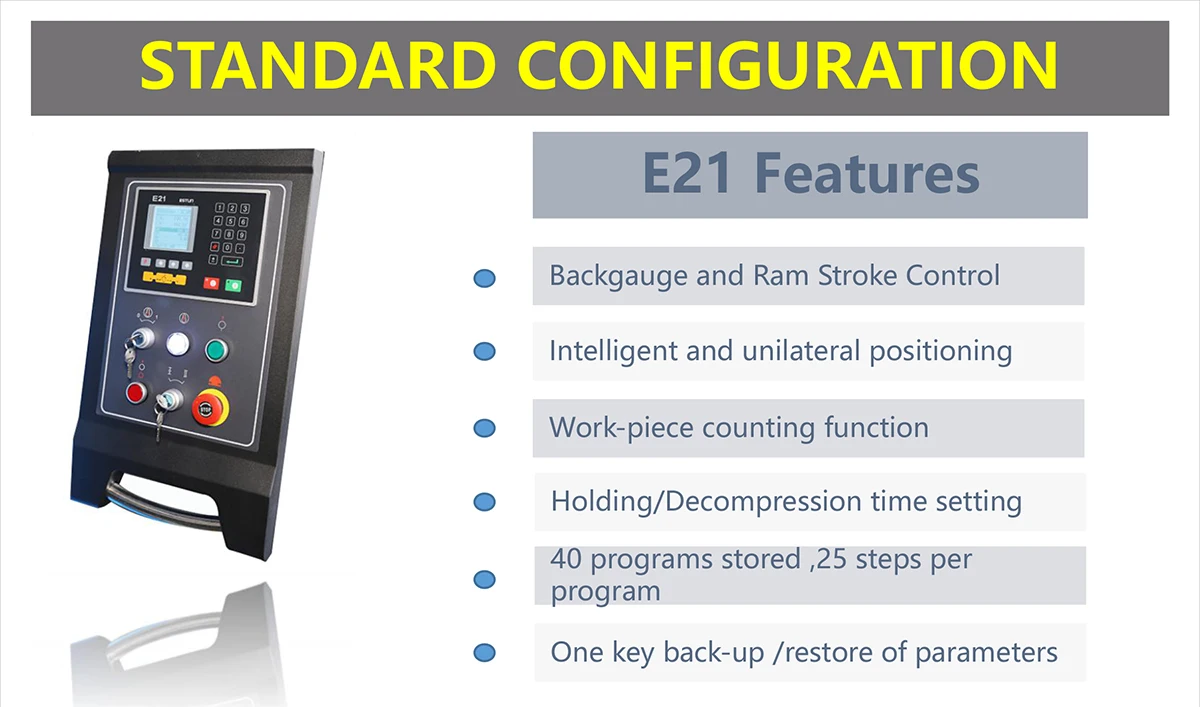

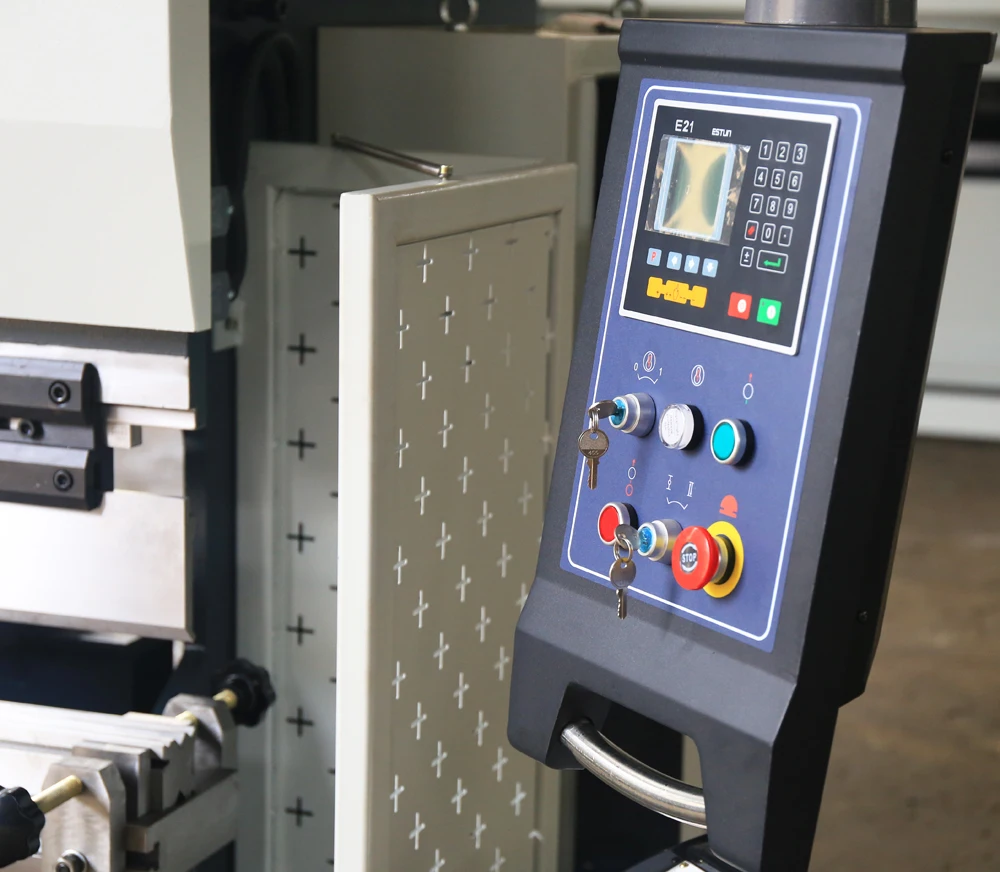

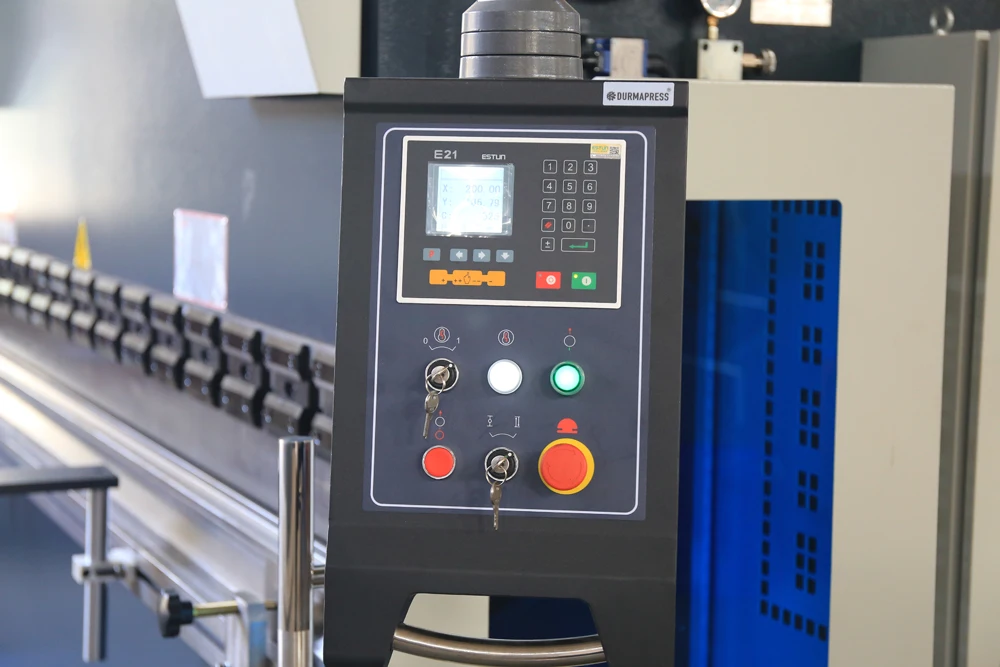

E21 Controller
Adopting HIWIN ball screw and linear guide rail, accuracy 0.01mm
Front supporter bracket
Germany Bosch Rexroth hydraulic valve block
Germany EMB oil tube connector
Germany Siemens main motor

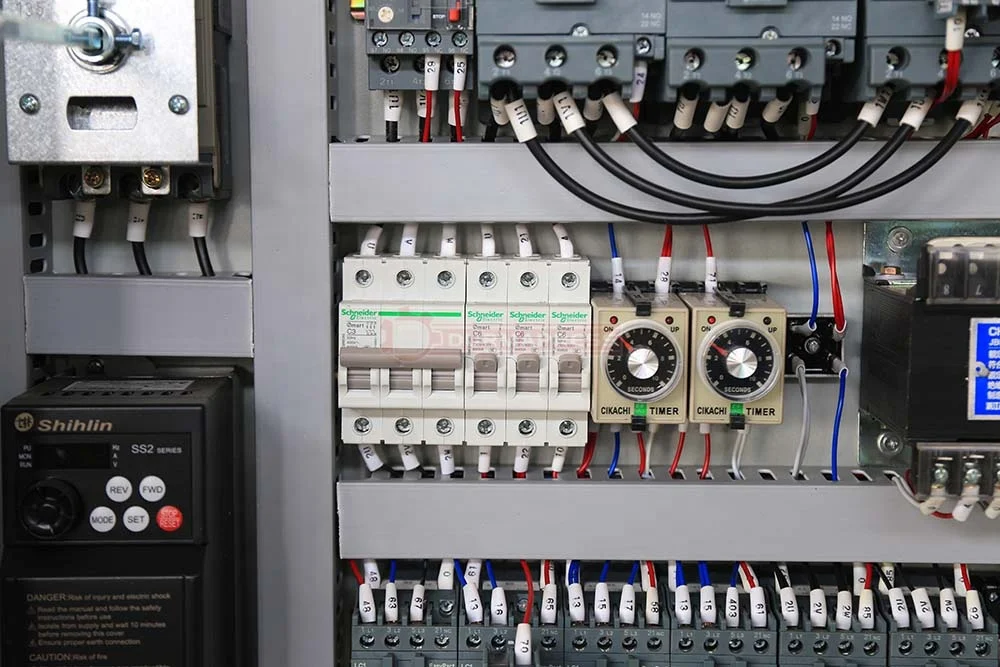

France Schneider electrics
Hydraulic & electrical overload protection
Automatic Mechanical compensation
Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Safety Equipment:
Safety Standards(2006/42/EC)
1.EN 12622:2009+a1:2003
2.EN ISO 12100:20110
3.EN 60204-1:2006+A1:2009
Detailed Images

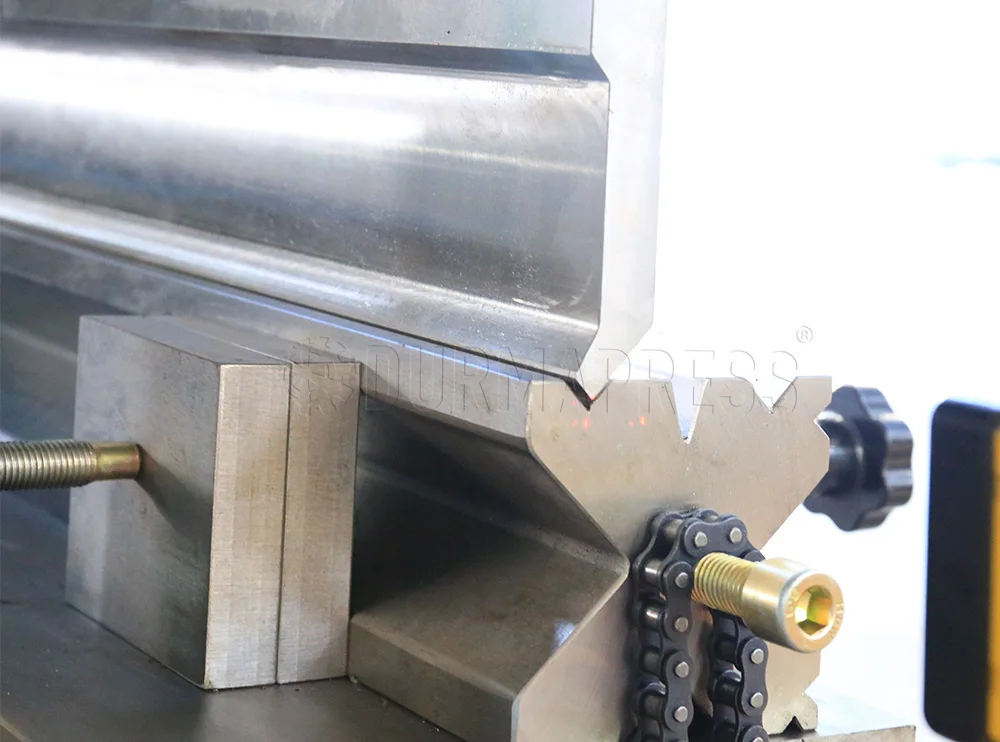

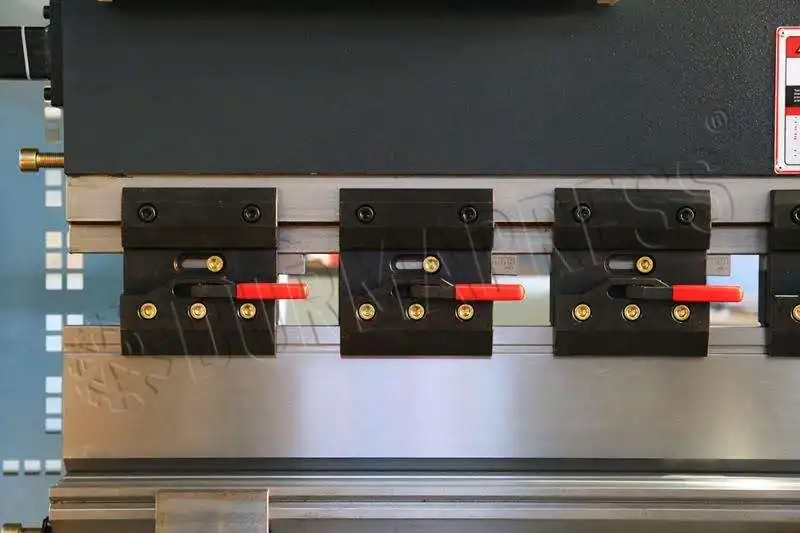

Fast Clampings
Standard double V lower die with different size and various shaped slots for choice ,convenient for exchanging dies,capable for bending regular plates, with high cost performance CNC double-V die workbench,convenient for installation of segmented dies

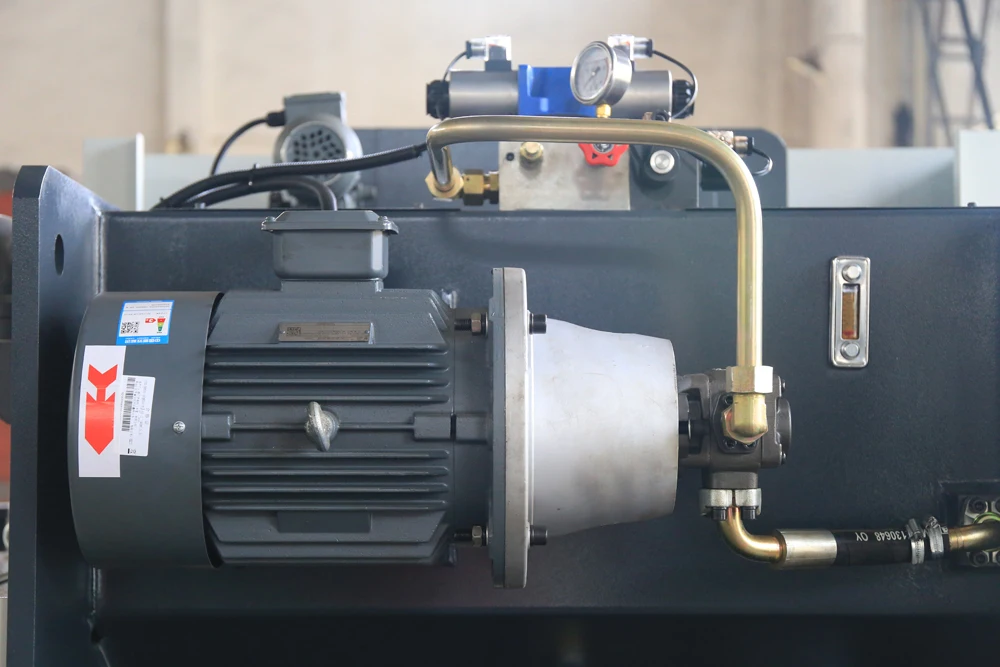

Siemens Motor
German famous brand motor improves the lifespan of the machine and keeps the machine working in low noise environment
Mechanical Crowning Worktable
Through compensation, the angle of the workpiece is prevented from increasing in the full length range, the angle and linear accuracy of the bent workpiece are effectively improved.

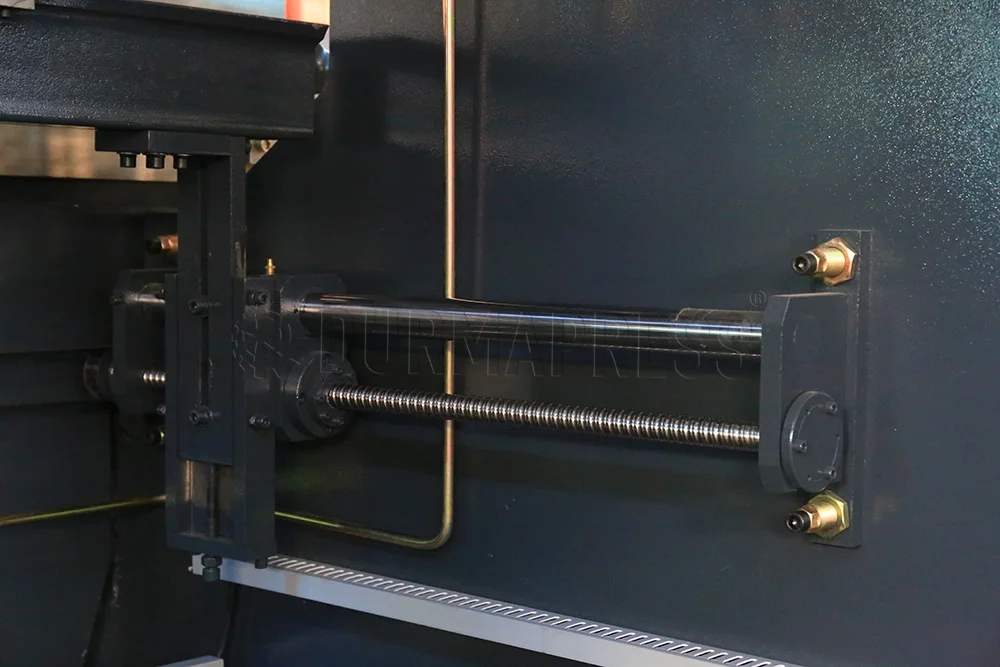

Ball Screw & Guide Linear
Adopt the HIWIN brand from Taiwan Ball Screw and guide linear , promise the high precision and speed when working
Press Brake Tooling
Press Brake toolings are made from 40CrMo Materials with hardness up to 52 degrees to ensuring die service life
Front Supportor
Front supporter with features of simple structurer, powerful functions ,can be adjusted up and down , or moved along the workbench in rightwards and leftwards
