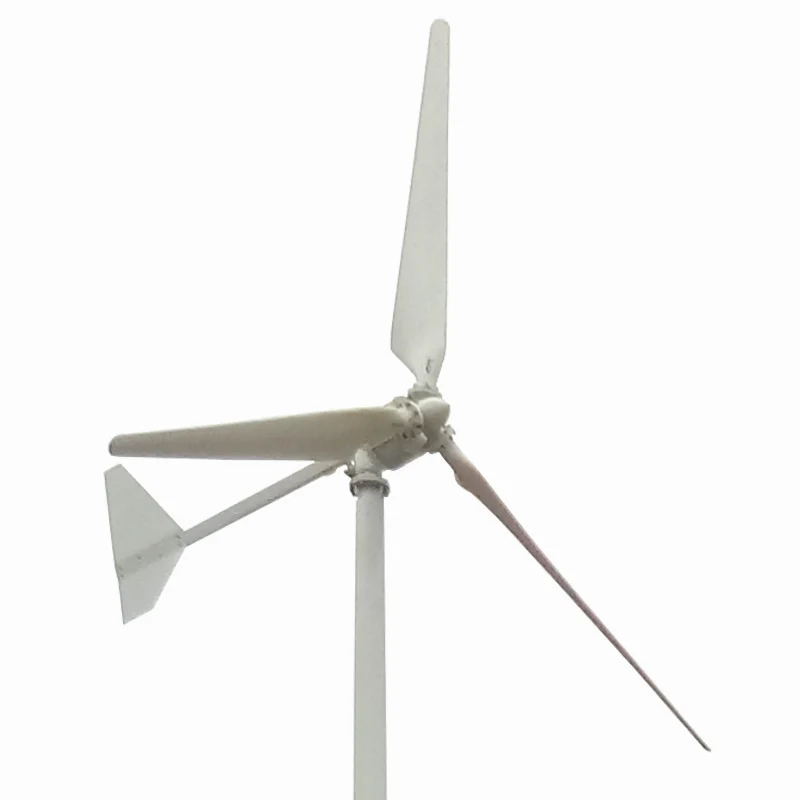

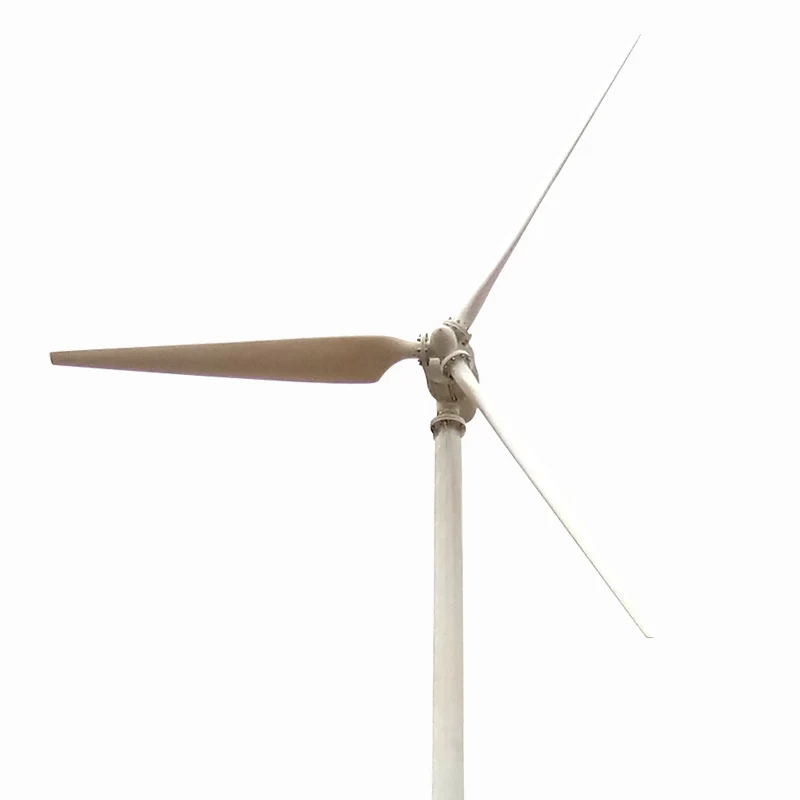

10kw Windmill Price Low Rpm Wind Turbine Electric Generating Windmill

Model

RC-10K-A

Rated Output

10KW

Peak Output

13KW

Rated Voltage

120/220V/380V AC

Start-up Wind Speed

2.5 m/s

Cut-in Wind Speed

3.5m/s

Rated Wind speed

12m/s

Survival Max. wind

45m/s

Number of Blades

3

Rotor Diameter

5.6m

Swept Area

24.6

Blade Material

fiberglass reinforced composite

Generator Type

  3-phase PMA with high performance Neodymium Magnets

Generator case

Casting Carbon steel

Controller Type

PWM

Over speed control

Automatically adjust windward direction&tail fold up

Tower Connector

Flange

Flange Size *

DN200

Tower Type *

Guy Cable Tower

Tower Size *

3mX4, 219-6mm

Working Temp. range

from -40°C to 60°C

Product Life

15 years

Warranty

1 years

Applications

on/off-grid solar & wind hybrid system etc.
