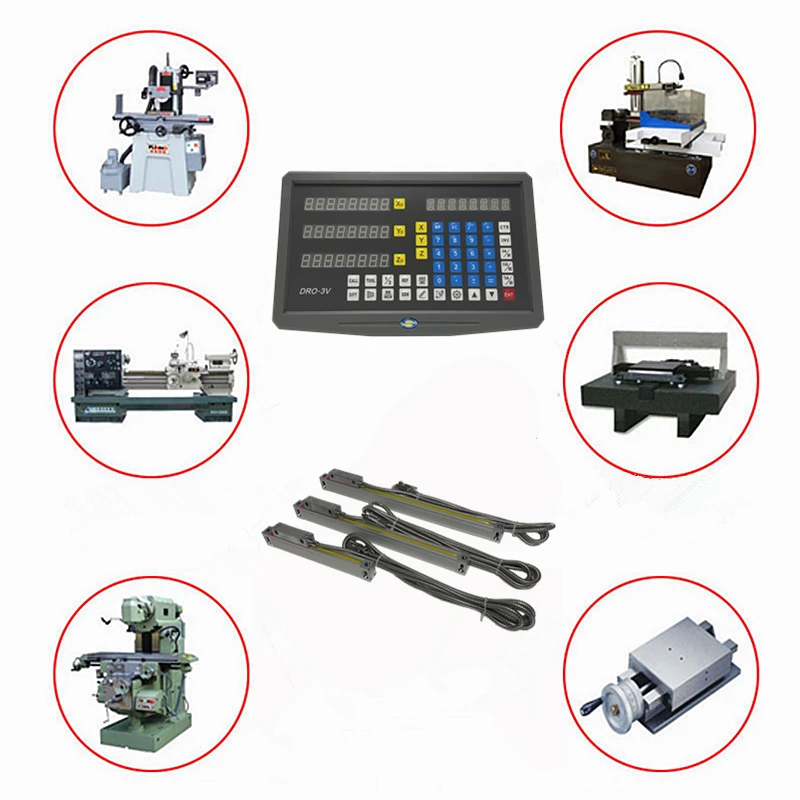

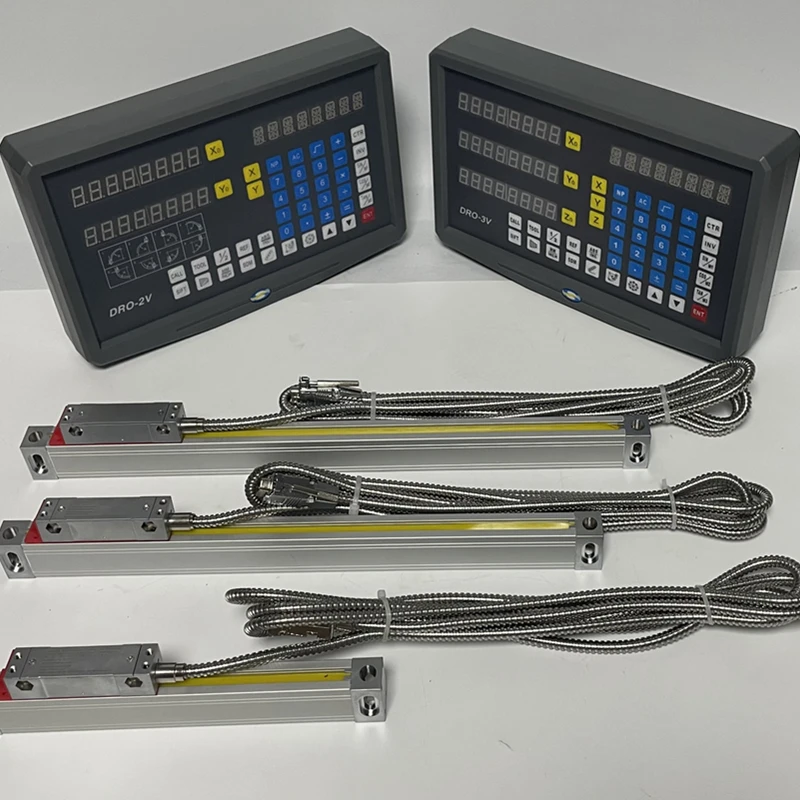

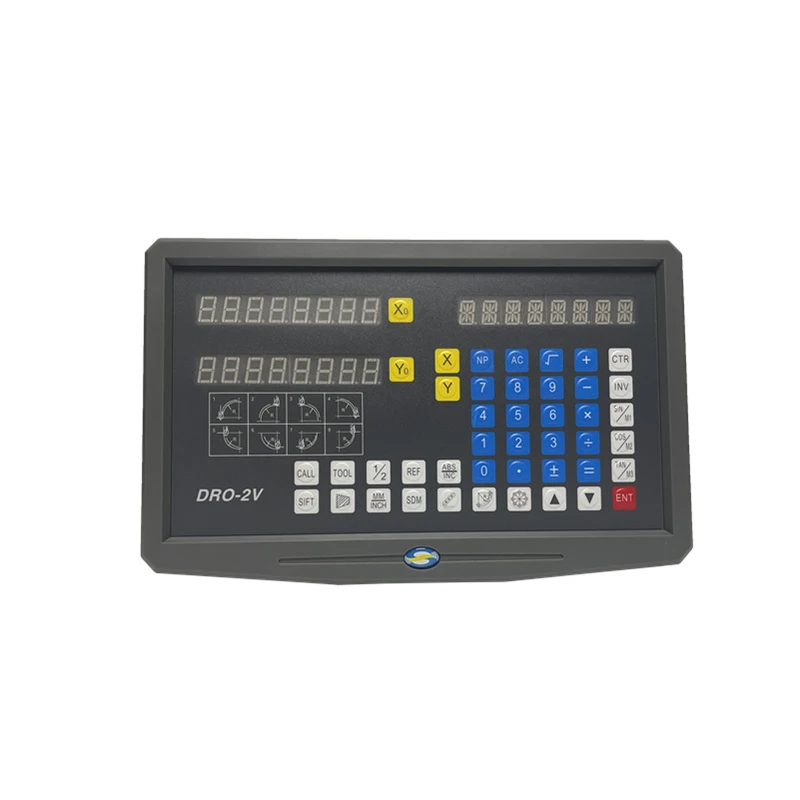

New SNS 3V Complete Milling Lathe Machine DRO Digital Readout Kit AC110V/220V Display and 3 Pieces 0 1000mm Linear Scale Encoder

Product Overview

Description

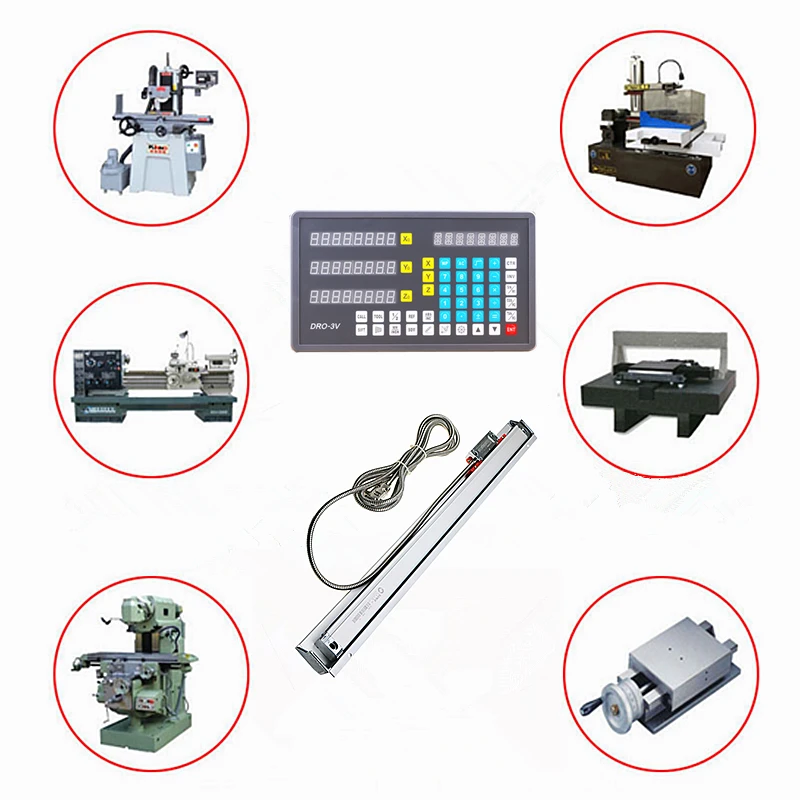

2 3 Axis DRO Digital Readout AC110V/220V Display and 0-1000mm Linear Scale Encoder For CNC Milling Lathe Machine



High Precision Linear Scale 5micron Linear Encoder 0~1000mm Optical Linear Ruler for CNC DIY lathe machine



2axis 3Axis LCD Digital Readout DRO 150-1000mm Glass Linear Scale Encoder Sensor For CNC Milling Lathe machine

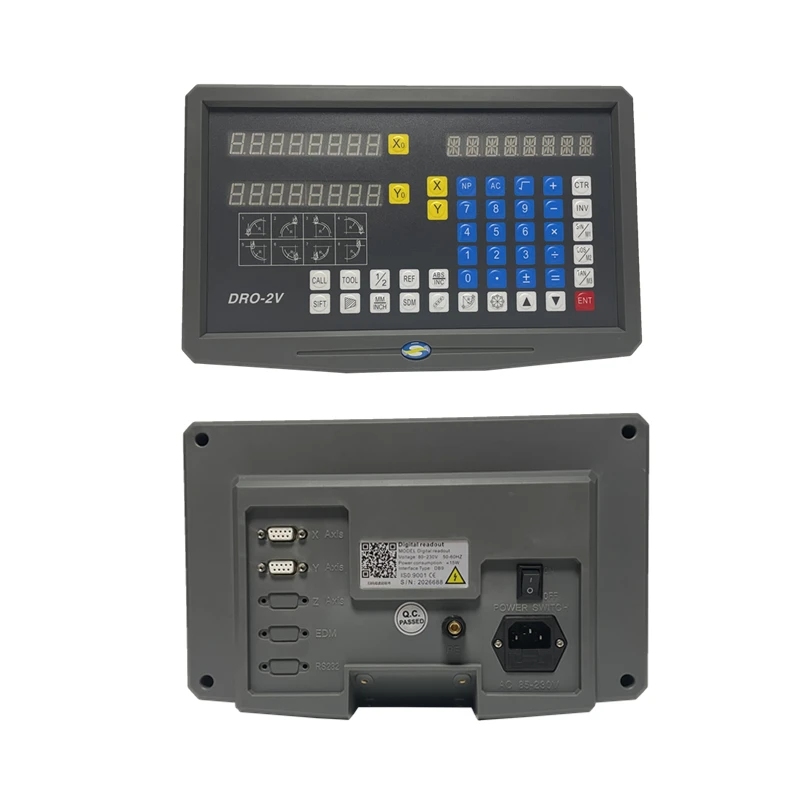

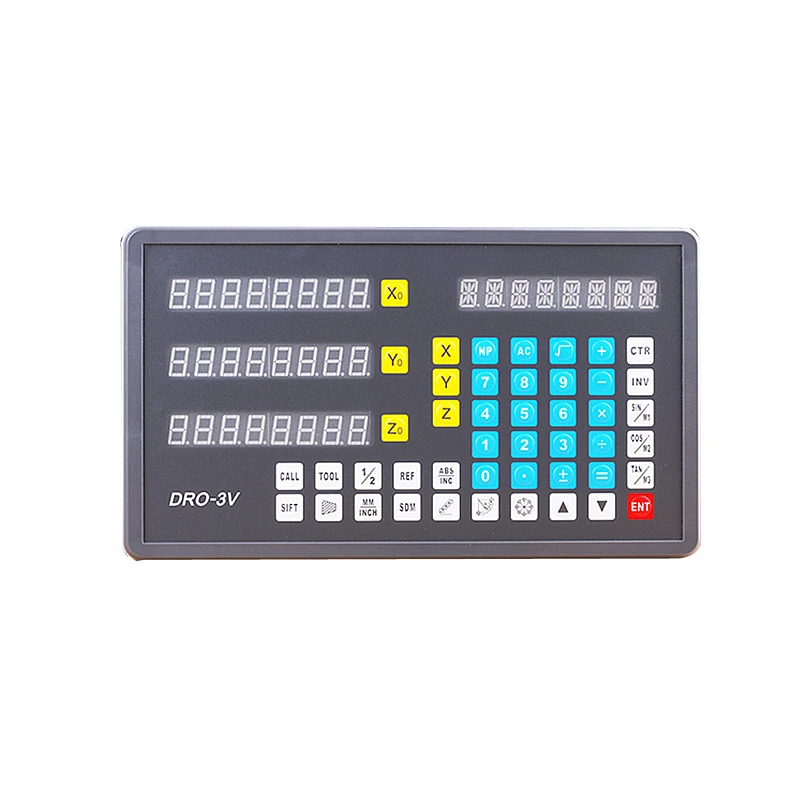

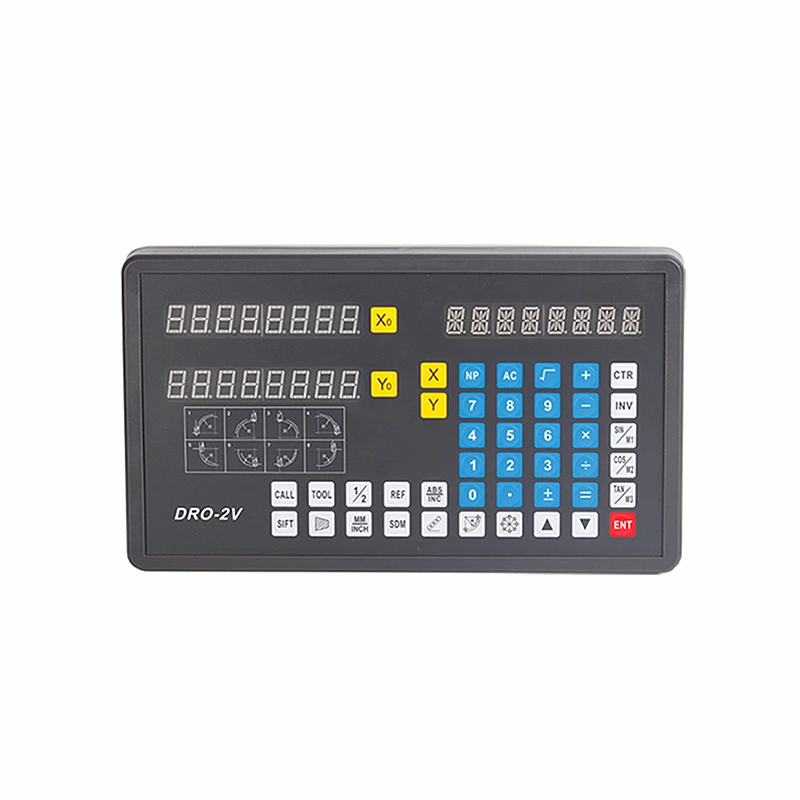

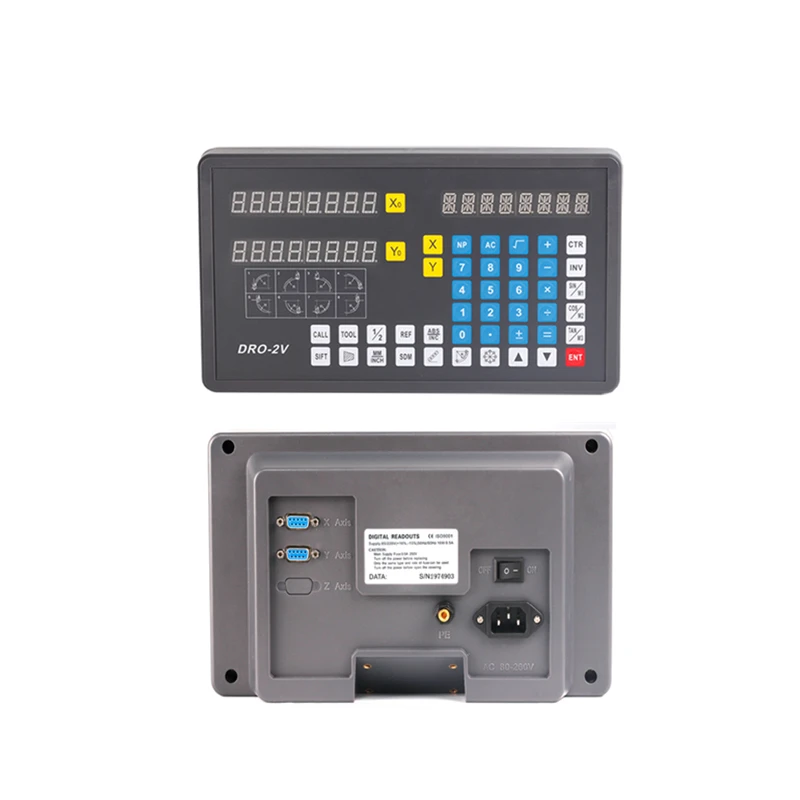

DRO Specification

Product Features

English language display

Self-motion middle parted function

Metric/imperial conversion function

Absolute/relative counting transformation function

1000 groups of zero memory function

Function calculator operation function

Arc surface processing function

PCD function

Cant processing function

PLD function

Machine tool error compensation function

EDM function(option with extra)





Techincal Parameters

1.Voltage range:AC 85V-250V/50Hz-60hZ

2.Power consumption:25VA

3.Coordinates:1/2/3/4

4.Display:8-bits digits display

5.Input signal: TTL square

6.Input signal frequency: 100KHZ

7.Reading resolution: 10um,5um,2um,1um,0.5um

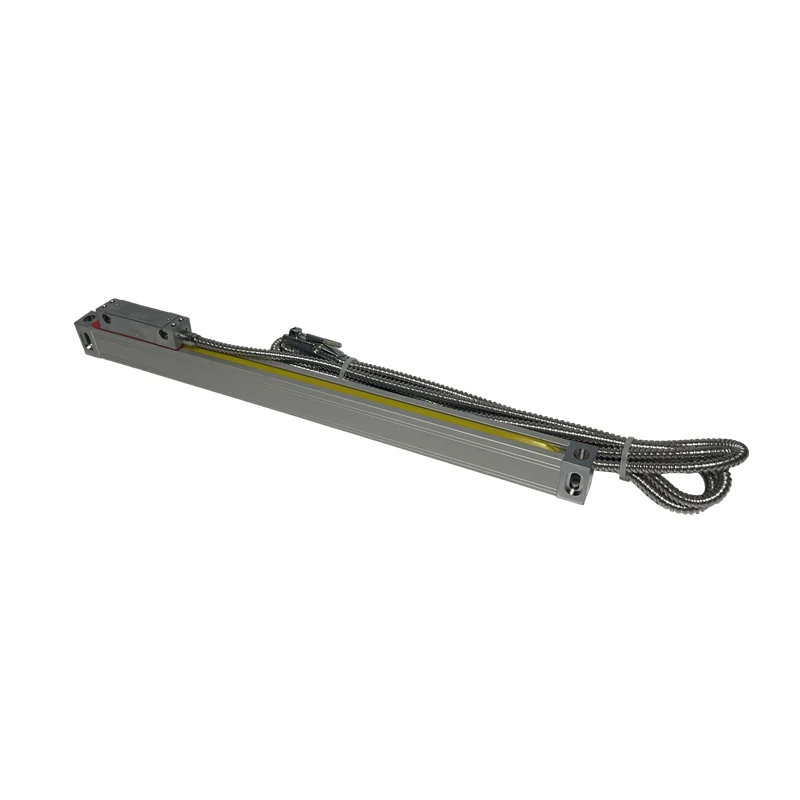

Linear Scale Specification

Parameter

Product name:precision glass grating lenear transducer

Resolution: 0.005mm

Cross section:21mm*33mm

Output signal:TTL(RS422 option)

Input voltage:DC 5V +/-5%

Available measuring distance:0-1000mm

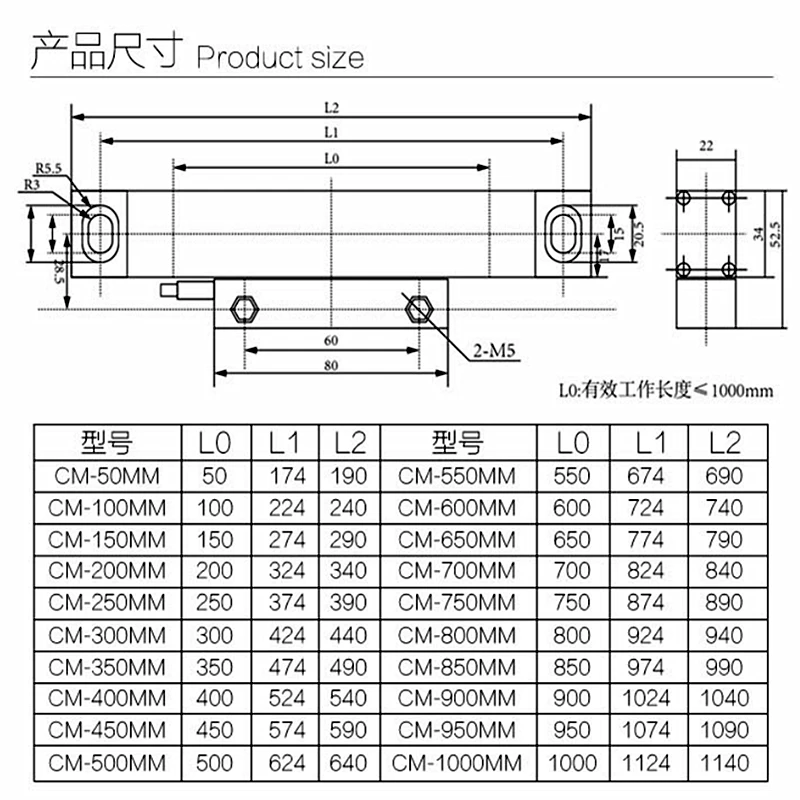

Overall length: available measuring distance + 142mm

Working speed:60m/min

Working temprature:0-50

Cable length:2.5m-3m(longer option)
