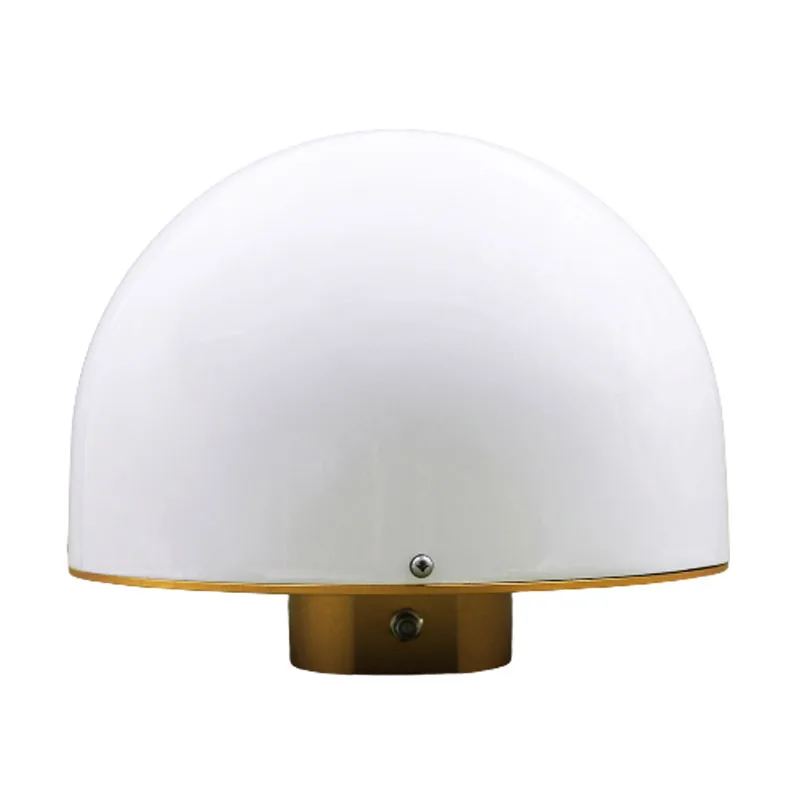

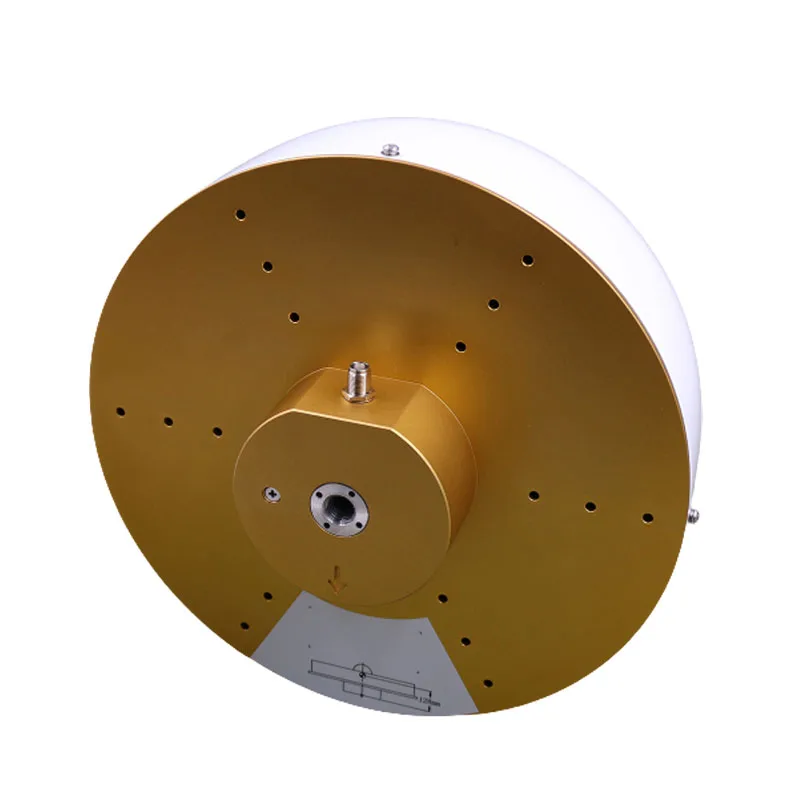

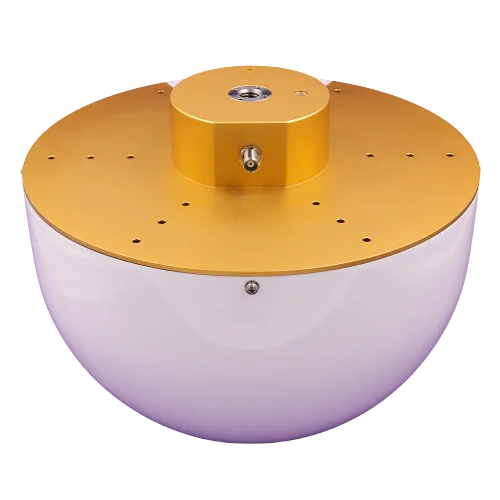

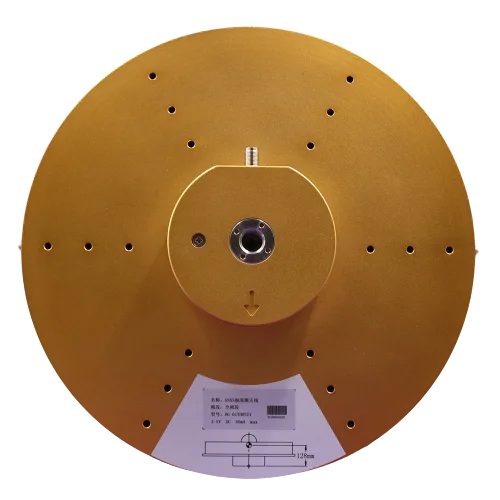

Four-system Full-band External Measurement Antenna（3D）
This antenna is a full-band measurement choke antenna that covers GPS L1/L2, GLONASS L1/L2, BDS B1/B2/B3, GalileoE5a/E5b/E2/E1, which meets the current multi-system compatibility and high Demand for precision micro-deformation measurement;
Mainly used in some occasions that have extremely high requirements for measurement accuracy, such as earthquake prediction,high-precision differential reference stations and other demanding applications
♦Product features:
(1) The antenna part adopts a multi-feed point design and a completely symmetrical antenna structure, with a relatively stable phase center, reducing the influence of the antenna on measurement errors.
(2) Adopting choke coil design to achieve excellent multipath suppression effect and high phase center stability and good repeatability.
(3) The unique waterproof and dustproof design ensures that the core unit and components are completely sealed to meet the complex outdoor environment and can work normally outdoors for many years.
(1) The antenna part adopts a multi-feed point design and a completely symmetrical antenna structure, with a relatively stable phase center, reducing the influence of the antenna on measurement errors.
(2) Adopting choke coil design to achieve excellent multipath suppression effect and high phase center stability and good repeatability.
(3) The unique waterproof and dustproof design ensures that the core unit and components are completely sealed to meet the complex outdoor environment and can work normally outdoors for many years.
Electrical parameters | ||
Freq. Range | GPS L1/L2/L5 BDS B1/B2/B3 GLONASS L1/L2 Galileo E1/E2/E5a/E5b/E6 | |
Polarization | Right-handed circular polarization | |
Gain | Elevation 90°≥5.5dBi | |
Axle Ratio | Elevation 90°≤3dB | |
Cross polarization ratio | ± 60° ≥ 25 | |
Phase center error | ±1mm | |
LNA Gain | 45±2dB | |
VSWR | ＜2.0 | |
Noise Coefficient | ＜2.0 | |
Operating Voltage | 3.3～18VDC | |
Operating Current | ＜65mA | |
Input Resistance | 50Ω | |
Mechanical features | ||

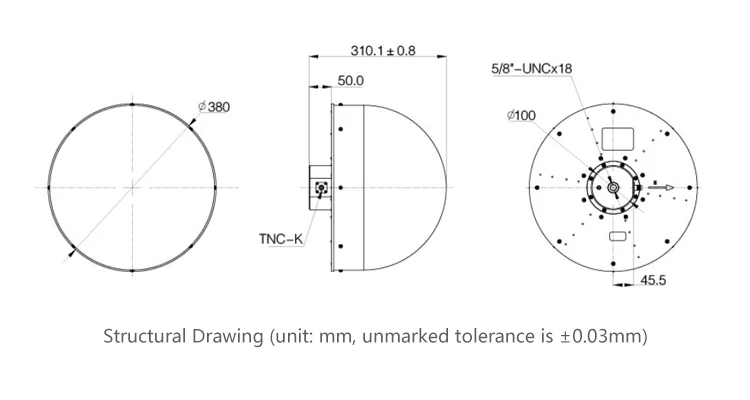

Antenna Size | Φ380﹡310mm | |

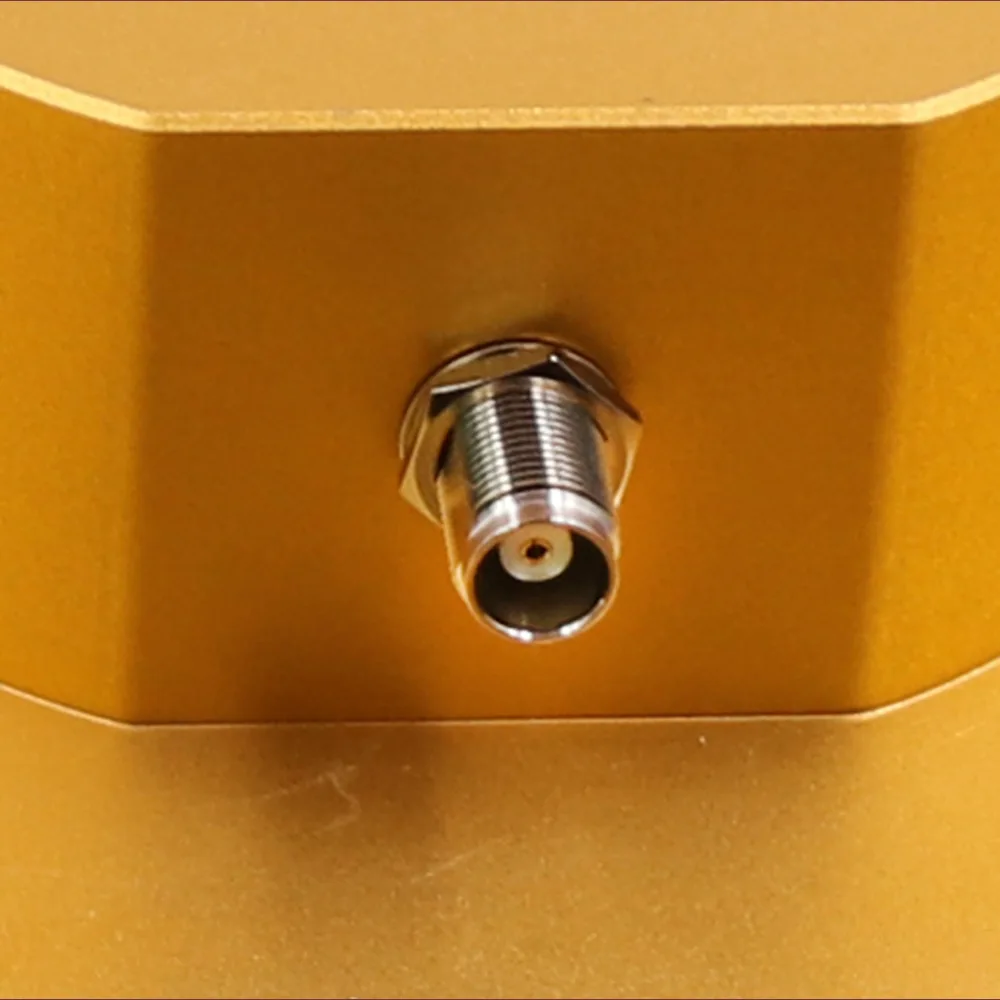

Output Connector | TNC-K | |
Weight | ≤15KG | |
Waterproof | IP67 | |
Environmental Characteristics | ||
Working Relative Humidity | 95% | |
Working Temp. | -40°C～+75°C | |
Storage Temp. | -55°C～+85°C | |
