Vertical Automatic CNC Glass Drilling and Milling Machine for Bathroom Door
- Category: >>>
- Supplier: Jinan Weili Machine Co. Ltd.
Share on (1600219337989):
Product Overview
Description
Technical Parameter
Main body | Structural welding steel, welding with Co2 gas shield; heat processing |
Control System | Japan Mistubishi control system, the major electronic parts are taking world well-know brand, such as Schneider |
Electric-Spindle | Professional and specialized for glass grinding Made in China,0-12000r.p.m 7.5KW*2 |
Tool Holder | BT30 |
Broaching Nut | ISO30 |
Servo Motor | Japan Mistubishi (Japan) |
Water Tank | Stainless steel |
Water Pump | Made in Taiwan |
Spindle Tool | Tool used to repaire spindle |

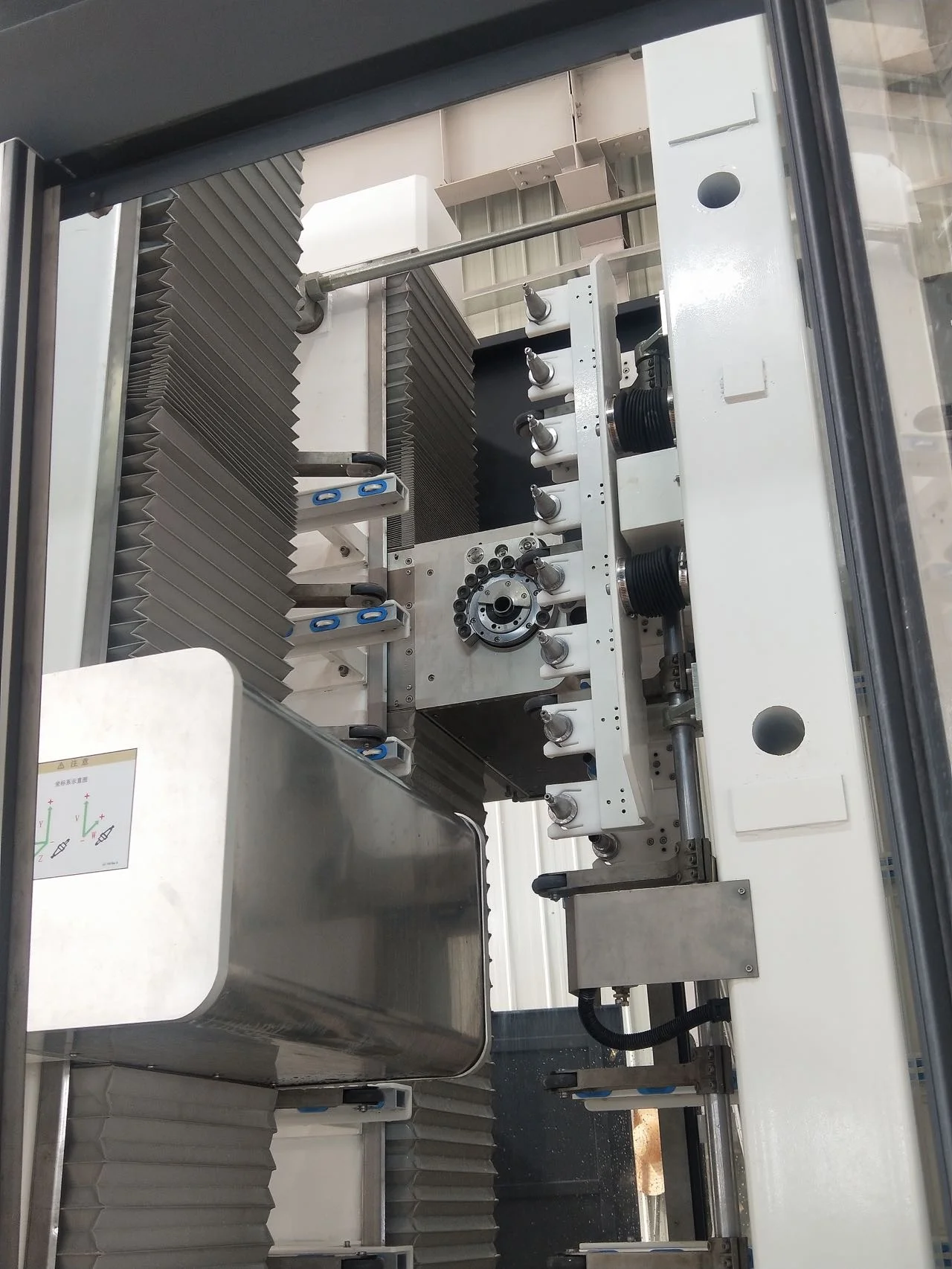

Tool Store | 6*2 Automatic tool changing with total 12 positions |
MODEL NO | MAX SIZE | MIN SIZE | Speed of Spindle | Glass thickness |
2030 | 2000*3000MM | 500*500MM | 0-12000rpm | 5-30mm |
2542 | 2500*4200MM | 500*500MM | 0-12000rpm | 5-30mm |
3060 | 3000*6000MM | 500*500MM | 0-12000rpm | 5-30mm |
Product Description
GC-LDM-III2030 is a vertical working center with high technology. It can perfectly perform complicated working in short time, and the processed sheet is of high level which realized to obtain a CNC machine with smallest investment.
The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control. So the shape is of precision and the processed sheet is of high quality. It is a CNC vertical drilling and milling machine to process simple and complex drawing and featured by the most advanced technology. It is a solution to the requirement on processing precision, high speed and ease operation.

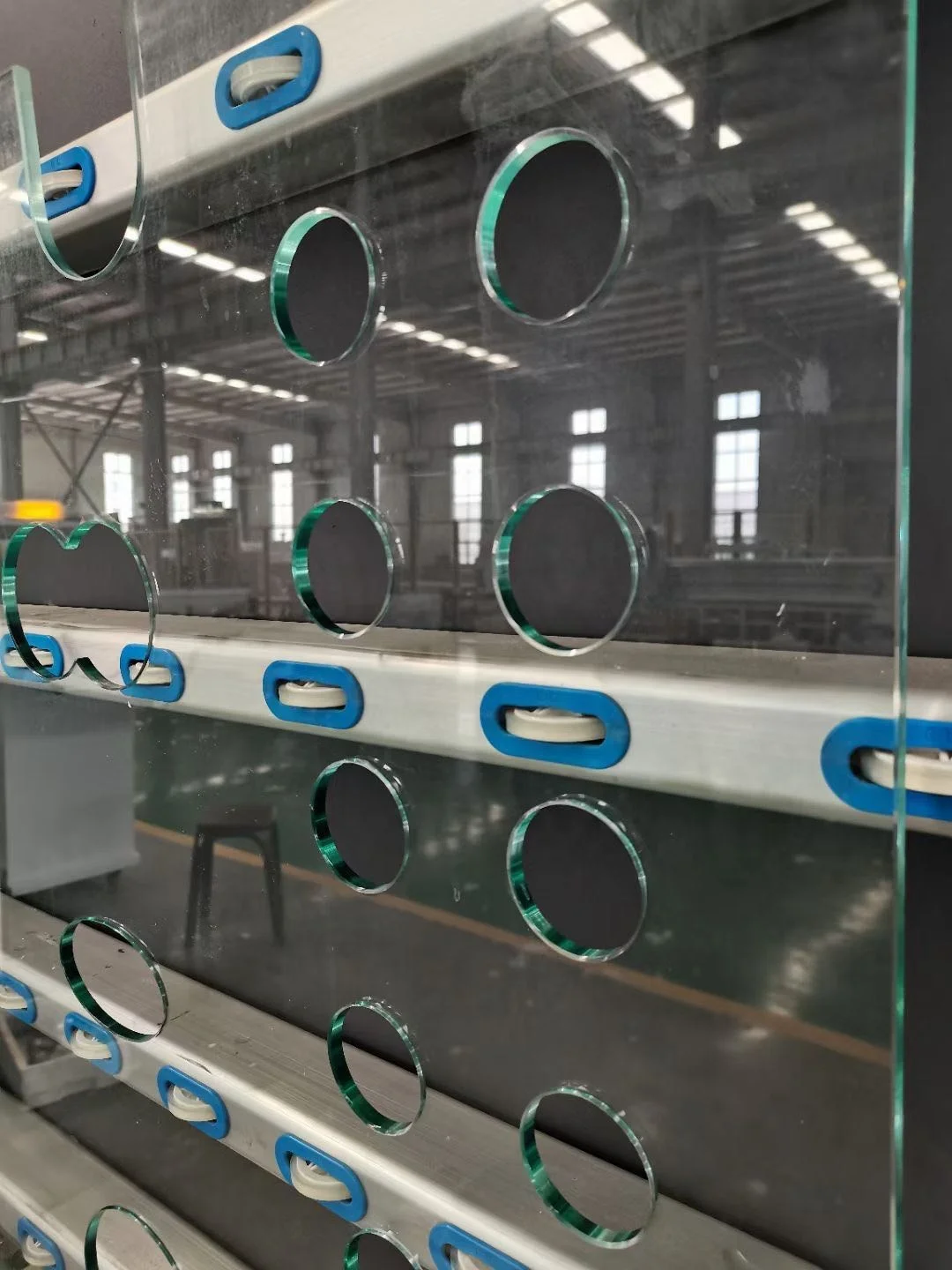

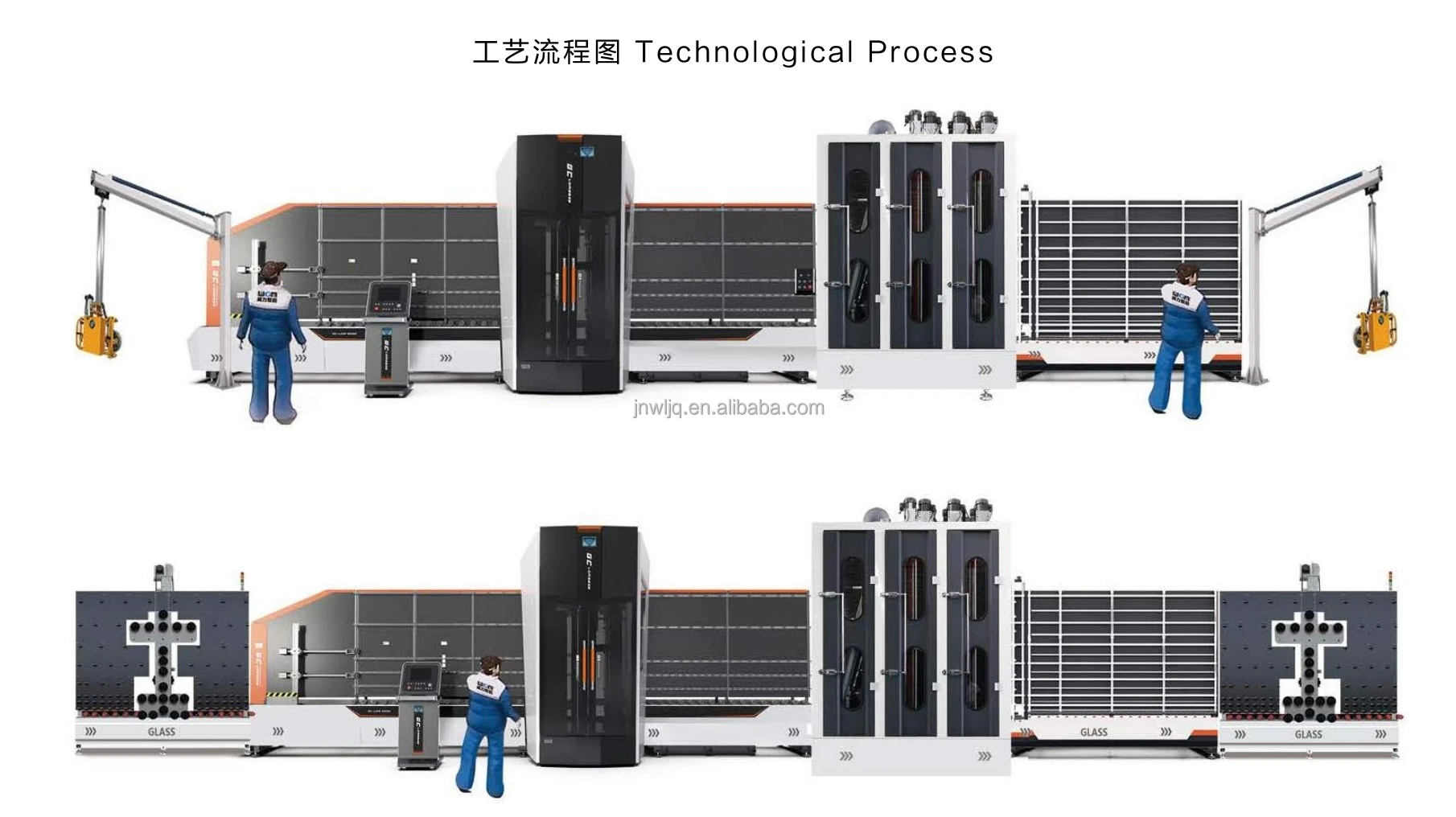

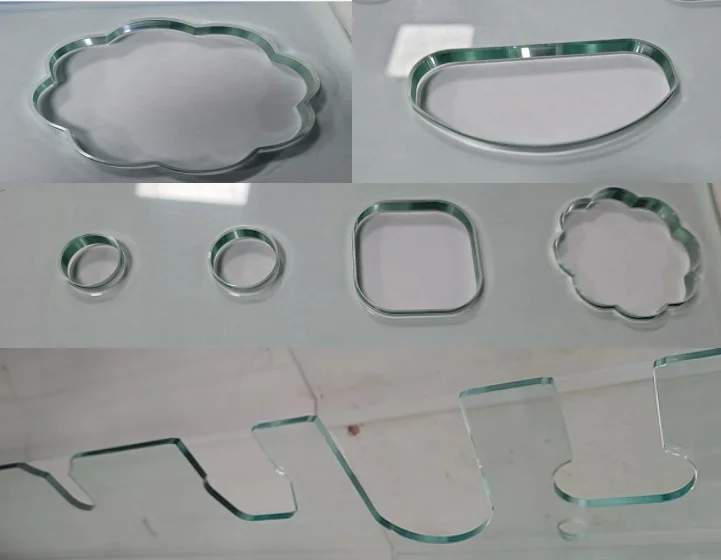

GC-LDM-III2030 can automatically process complex drilling, milling and arrising function on large flat glass. When the glass was loaded on the feeding rack, the machine begins to execute the prepared program on drilling, milling, arrising etc.
The flexibility of the control system can meet the requirement of different products, the whole work is finished automatically. This machine is suitable to process structural glass (Frameless door, glass curtain wall etc.) The function including:
Drilling by two opposite spindles;
Milling by single router;
Arrising
The CNC working center applies numerical operation and control system to achieve dynamic management of each axis and speed precision control. So the shape is of precision and the processed sheet is of high quality. It is a CNC vertical drilling and milling machine to process simple and complex drawing and featured by the most advanced technology. It is a solution to the requirement on processing precision, high speed and ease operation.
GC-LDM-III2030 can automatically process complex drilling, milling and arrising function on large flat glass. When the glass was loaded on the feeding rack, the machine begins to execute the prepared program on drilling, milling, arrising etc.
The flexibility of the control system can meet the requirement of different products, the whole work is finished automatically. This machine is suitable to process structural glass (Frameless door, glass curtain wall etc.) The function including:
Drilling by two opposite spindles;
Milling by single router;
Arrising

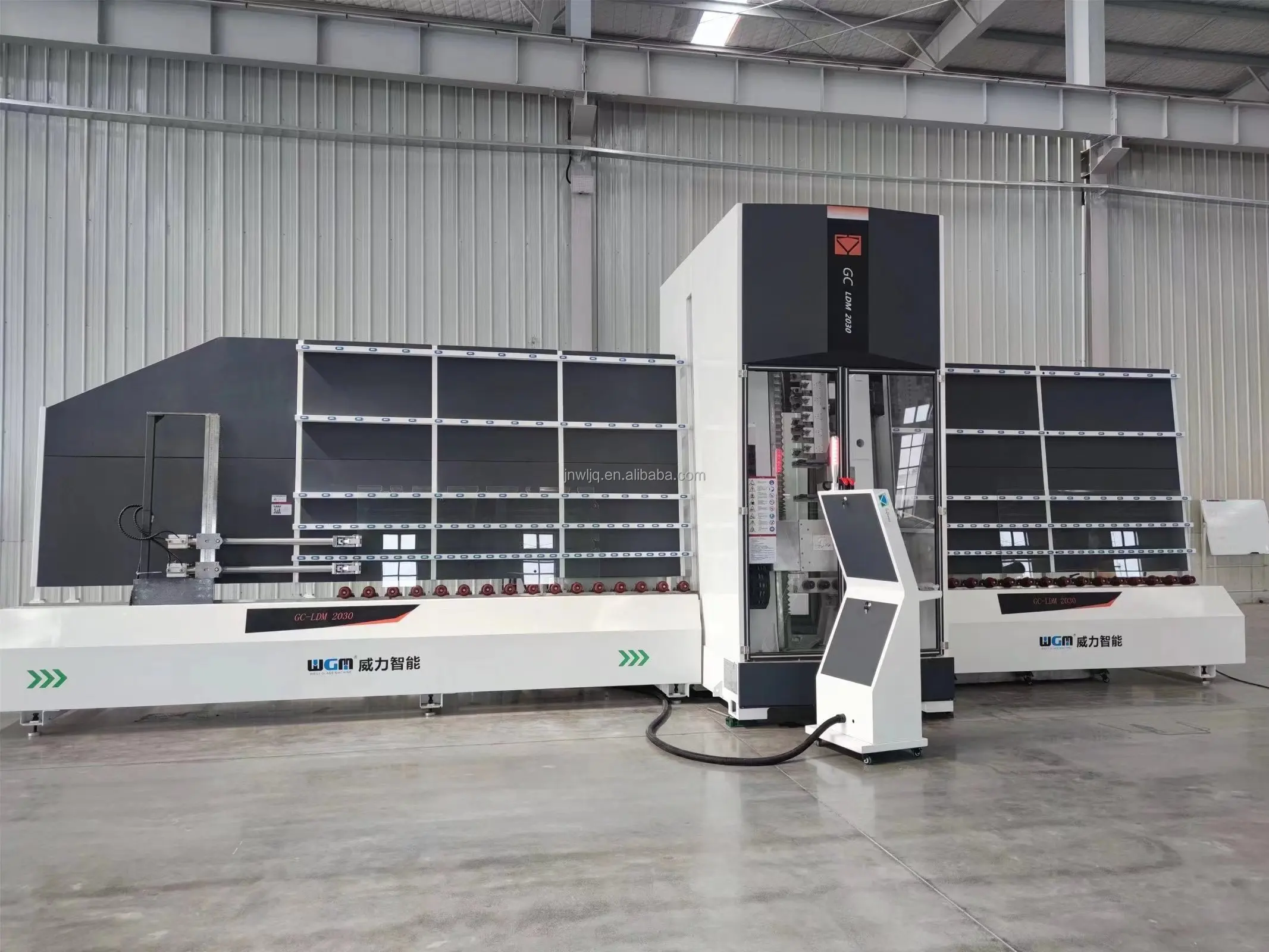

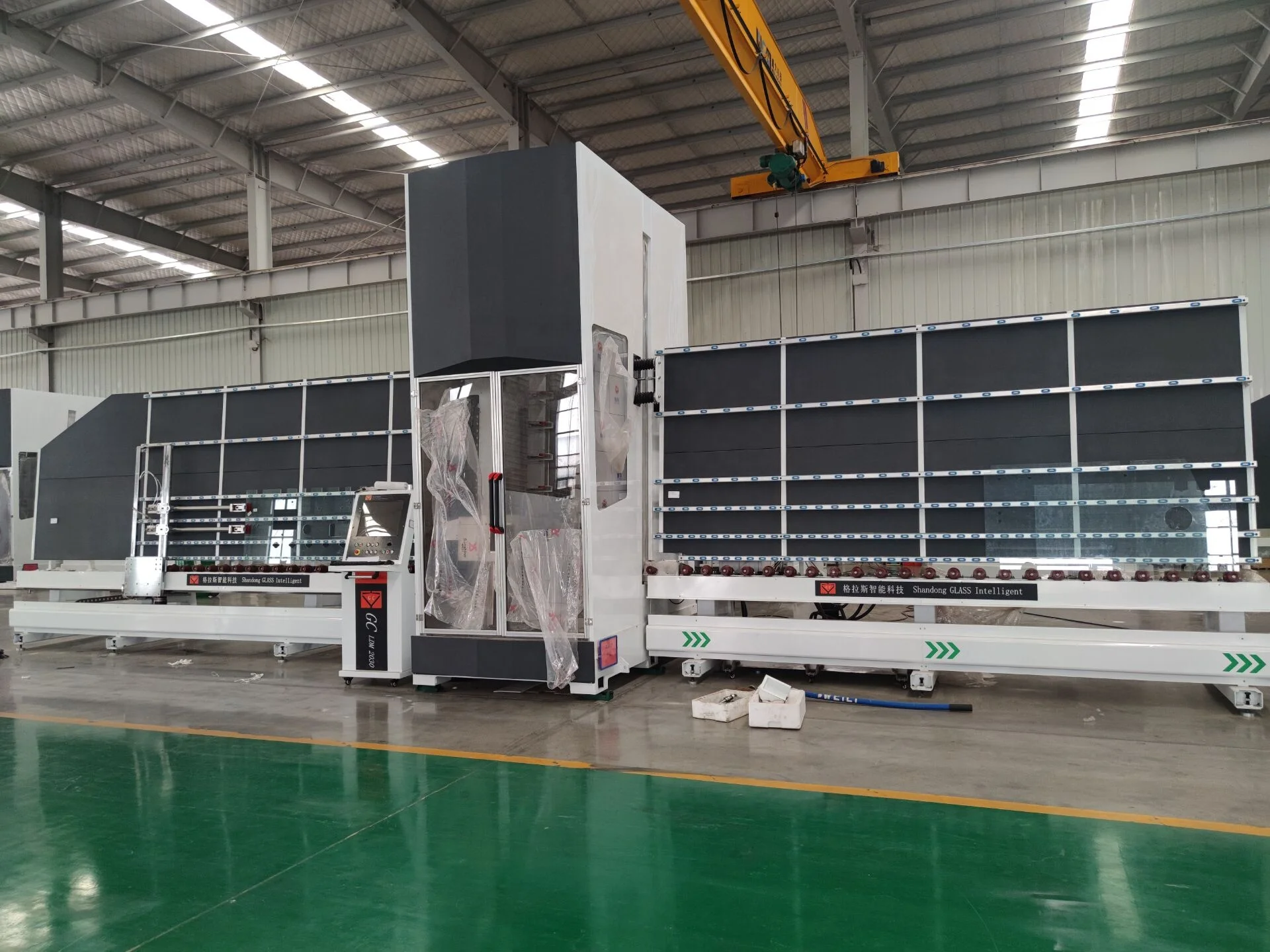

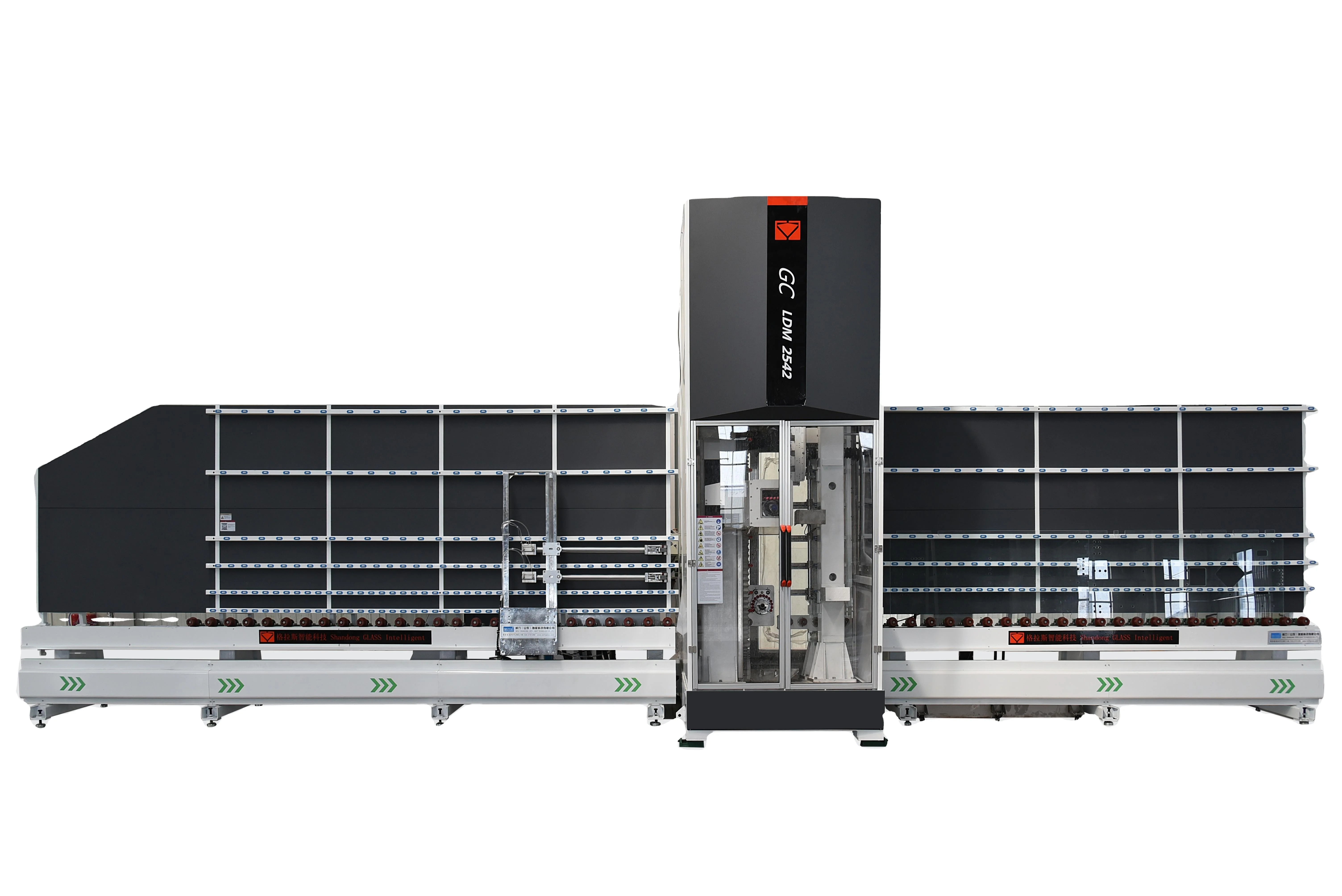

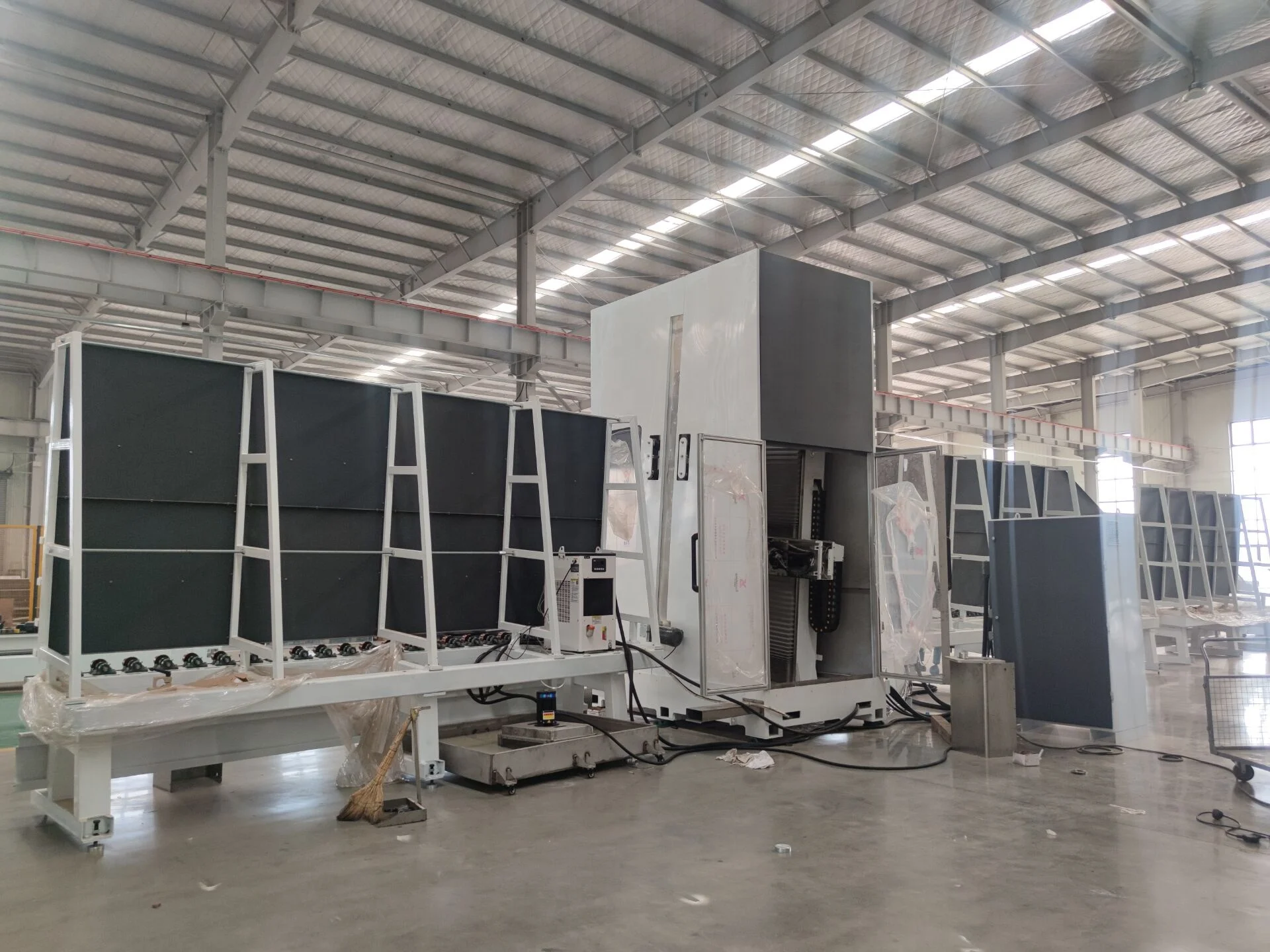

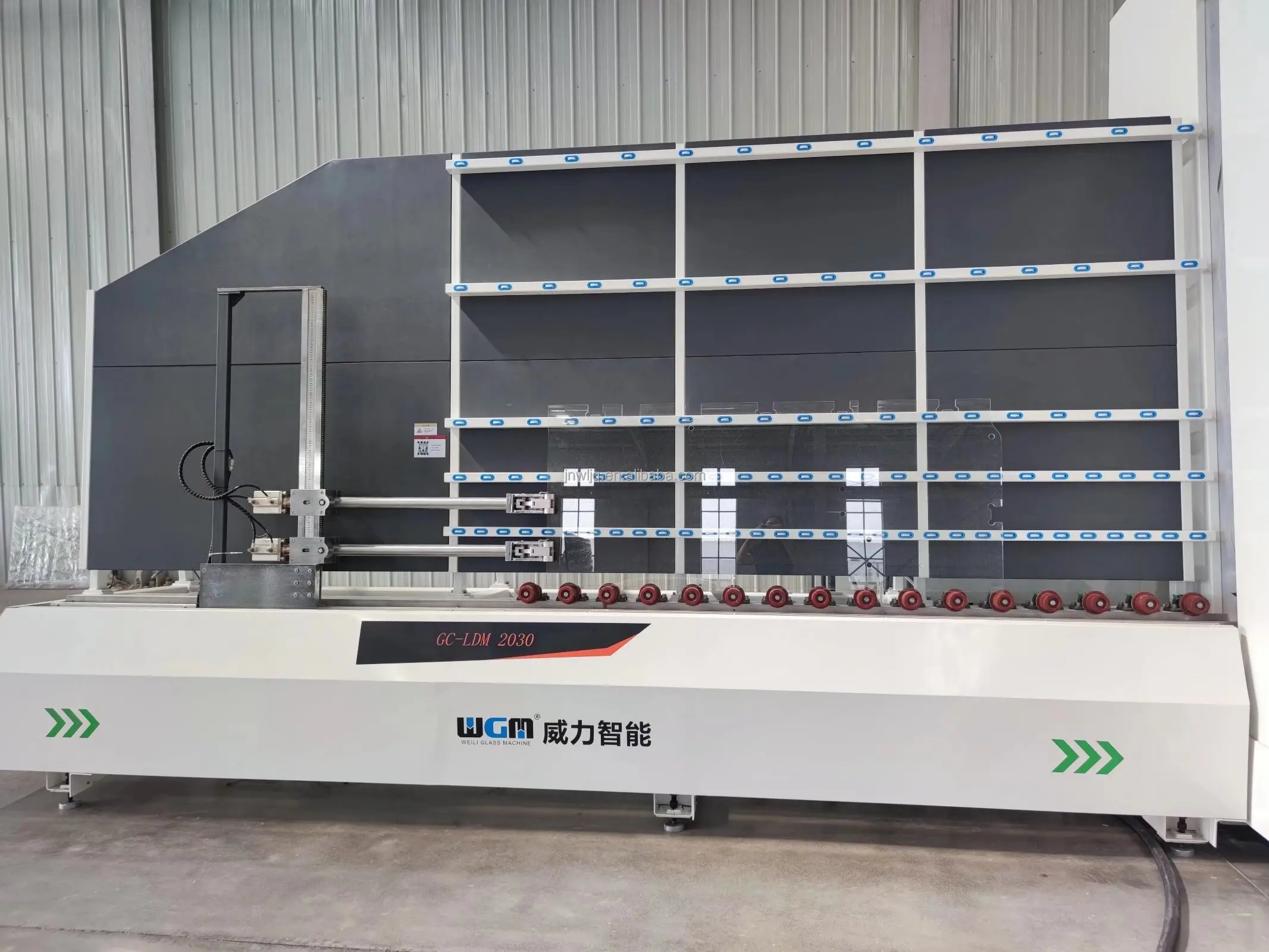

Product Photo
Advantage of this structure:
b. High-quality production relay on the high-precision Taiwan Hiwin ball screw.
a. High acceleration thanks to the rigid structure.
b. High-quality production relay on the high-precision Taiwan Hiwin ball screw.
d. The motive parts are lubricated by the central lubricating part.
e. Guide shed are applied around the main part of the machine. Standard is made from cold plate plastic spraying frame.To observe the working conveniently, two doors are provided in front and at the back of the guide
shed.
shed.

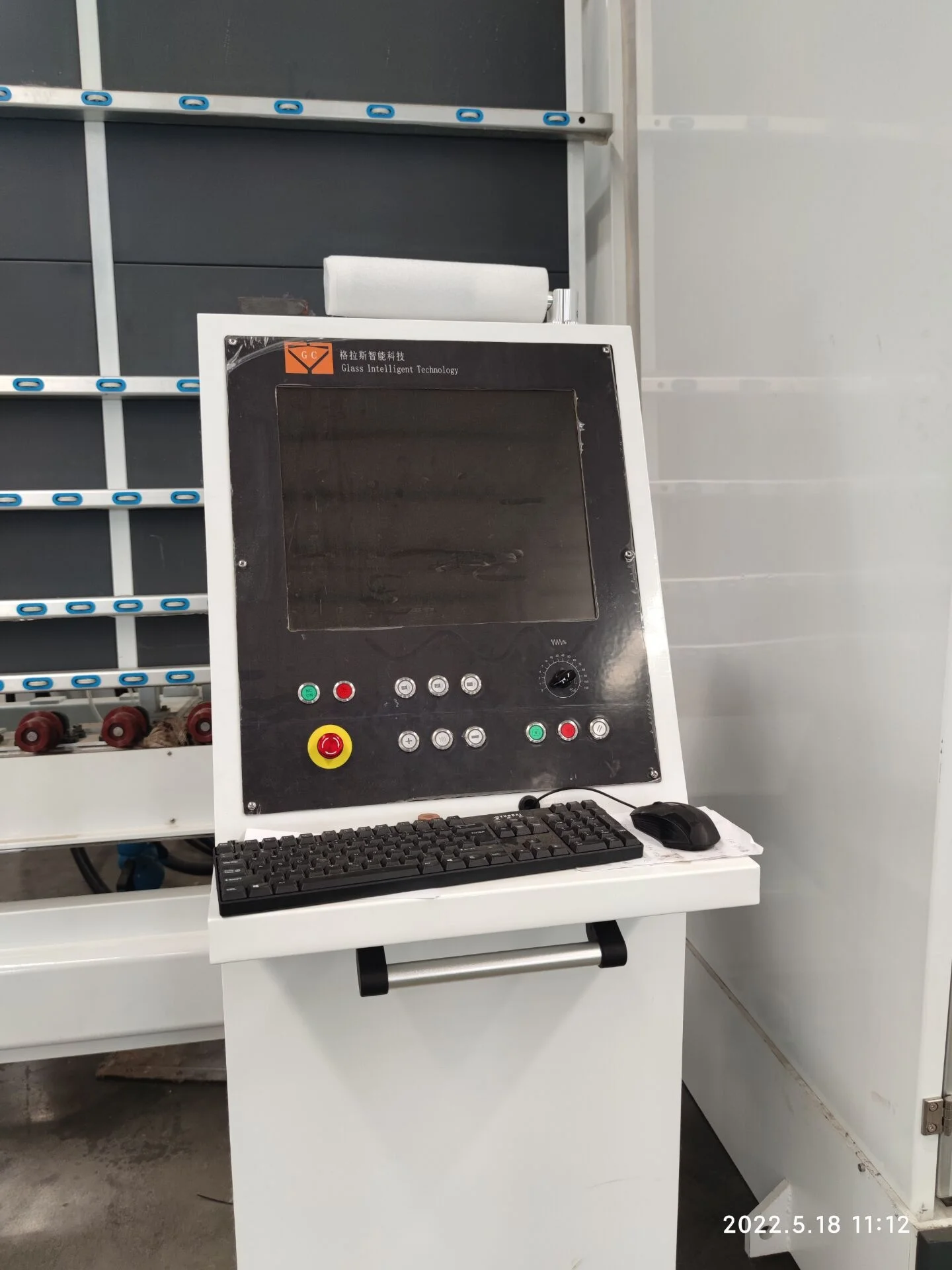

Numerical control
With professional numerical control system and PC Windows integrated in the numerical center, it is extremely simple to operate the machine. The main features of the system:
- When the machine is working, the operator can edit program on the PC.
- PC can connect to Internet;
- When the machine is working, the operator can edit program on the PC.
- Support the functions of drilling, milling, arrising;
- PC can connect to Internet;
- Processing situation can be shown during processing;
Relevant Machines
Packing & Delivery
Delivery
1.Machine packing with plastic film and plywood pallet for necessary parts.
2.Packing with wooden box ccording to customers' requirements.
2.Packing with wooden box ccording to customers' requirements.
Company Profile
Jinan Weili Machine Co.,Ltd is in the service of construction glass and glass industries. It is mainly specialized in producing door-window of energy conservation insulated glass production line of curtain wall, and glass deep-processing equipment.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Since the company established from 2001, it holds the concept of innovation with technology, sincere service, being honest and reliable, it produced large quantities of first-class insulated glass processing equipments. The products sell well at home and abroad, and some were exported to Europe, Africa, Middle east, Southeast Asia and more than 50 countries and areas.
Our Service
* Provide factory layout according to your factory size in advance.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field installation commissioning and training.
* Provide English Version of Installation / Operation/Service/Maintenance Manual.
* Engineers available to service machinery overseas.
* Online support, video technical support
* Field maintenance and repair service.
* Field installation commissioning and training.
FAQ
1.Question:Are you a manufacturer?
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
Answer:
Yes,we are the professional insulating glass processing machines manufacturer, which has 21-years history since 2001.
2.Question: How about the service ?
Answer:
1).Timely reply it at once on WhatsAPP and Email.
2).18 hours online for after-sale service
4).more than 21 years experience in this kind machine field
5).fluent English ,communication barrier free. Point-to-point service help you solve the problems timely.
3.Question:What's the guarantee ?
Answer:
1). Our guarantee for 12 months.
2). 18 hours' technical support by email, video or calling
3). English manual and video tutorial
4). 24 hours on line service each day, free professional technical support.
4. Q: Do you provide equipment operation training?
Answer:
A: Yes. Based on the situation stable and policy allowed, we can will send one or two professional technicians (one is electrical engineer, one is mechanical engineer) to install and adjust the machines and help train the workers.
5.Question:Why your price isn't the lowest price compared with others company or factories ?
Answer:
1) We are a innovative enterprises, not only a produce factory. We have a a professional and experienced technical elite team. Every year we will apply for innovation patents for our insulating glass machine, likes auto gas filling machine, auto loading machine and etc.
2)Compared with the same level brand, we have the same functions and components, but our price is the most competitive. At the same time, our after sales service is satisfactory. We have a good reputation in our customers.
