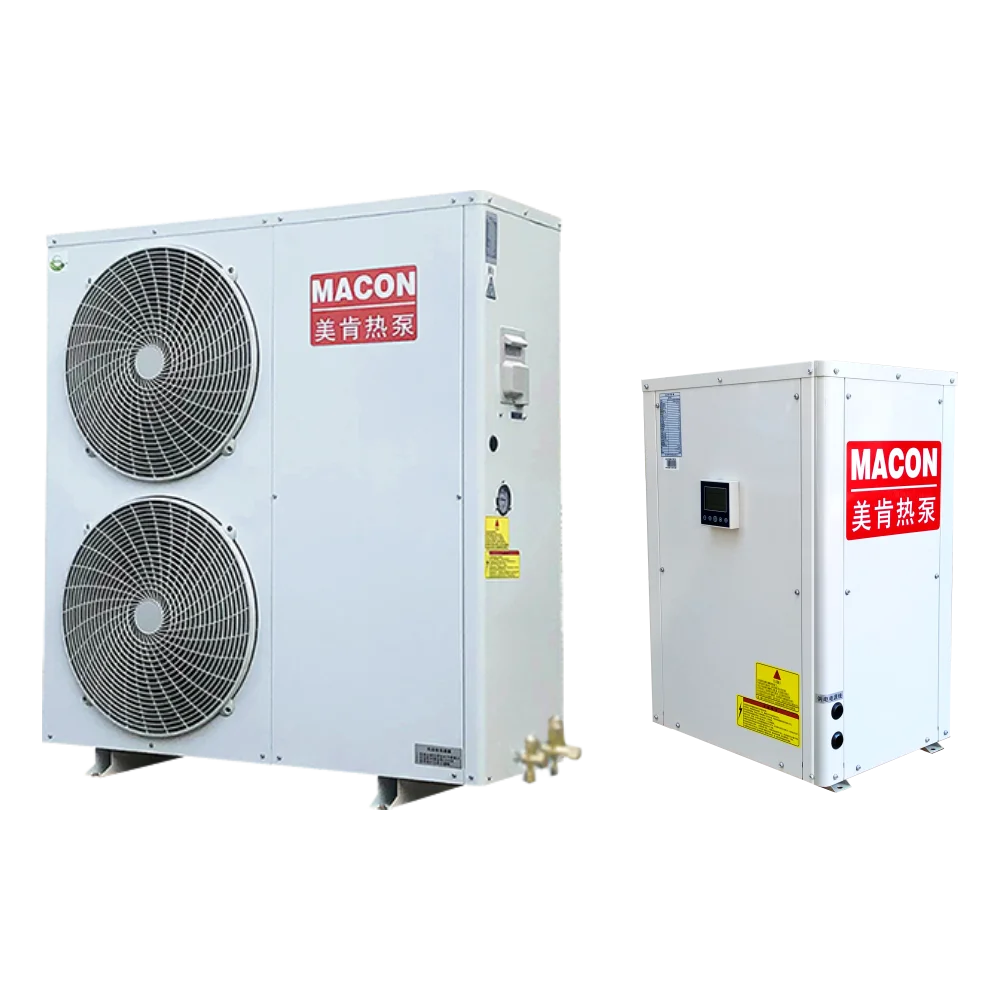

18KW 60HZ inverter heatpump split evi air source dc inverter heat pump for USA&Canada
- Category: >>>
- Supplier: Foshan Macon Cooling & Heating Energy-Saving Equipment Co. Ltd.
Share on (1600219340407):
Product Overview
Description
Product Description
Split EVI inverter air source heat pump
1）EVI full DC inverter design w/ COP up to 18
2) Fast heating & capacity increasing to 130% at low temp.
3）Full ambient design to be used down to -35°C
4）APP control & outlet water temp. up to 60°C
2) Fast heating & capacity increasing to 130% at low temp.
3）Full ambient design to be used down to -35°C
4）APP control & outlet water temp. up to 60°C
Specification
Air / Water Outlet / Model | Model | Outdoor Unit | KRCRW09Y/(BE) | KRCRW15Y/(BE) | KRCRW18Y/(BE) | |
Indoor Unit | KRCRW09N/(BE) | KRCRW15N/(BE) | KRCRW18N/(BE) | |||
Power Supply | V/P/Hz | 220/1/50(60) | 220/1/50(60) | 220/1/50(60) | ||
+35℃ / +7℃ Cooling | Cooling Capacity | kW | 7.5 | 12.5 | 14.0 | |
Cooling Power Input | kW | 2.90 | 4.80 | 5.40 | ||
Cooling Current Input | A | 13.2 | 21.8 | 24.5 | ||
EER | 2.59 | 2.60 | 2.59 | |||
+7℃ / +35℃ Heating | Heating Capacity | kW | 9.0 | 15.0 | 18.0 | |
Heating Power Input | kW | 2.14 | 3.63 | 4.38 | ||
Heating Current Input | A | 9.7 | 16.5 | 19.9 | ||
COP | 4.21 | 4.13 | 4.11 | |||
+7℃ / +45℃ Heating | Heating Capacity | kW | 9.0 | 15.0 | 18.0 | |
Heating Power Input | kW | 2.77 | 4.50 | 5.50 | ||
Heating Current Input | A | 12.6 | 20.5 | 25.0 | ||
COP | 3.25 | 3.33 | 3.27 | |||
+2℃ / +35℃ Heating | Heating Capacity | kW | 8.0 | 13.5 | 15.5 | |
Heating Power Input | kW | 2.22 | 3.80 | 4.40 | ||
Heating Current Input | A | 10.1 | 17.3 | 20.0 | ||
COP | 3.60 | 3.55 | 3.52 | |||
-7℃ / +35℃ Heating | Heating Capacity | kW | 7.0 | 11.5 | 13.5 | |
Heating Power Input | kW | 2.21 | 3.68 | 4.34 | ||
Heating Current Input | A | 10.0 | 16.7 | 19.7 | ||
COP | 3.17 | 3.13 | 3.11 | |||
-7℃ / +45℃ Heating | Heating Capacity | kW | 7.0 | 11.5 | 13.5 | |
Heating Power Input | kW | 2.55 | 4.17 | 4.98 | ||
Heating Current Input | A | 11.6 | 19.0 | 22.6 | ||
COP | 2.75 | 2.76 | 2.71 | |||
-15℃ / +45℃ Heating | Heating Capacity | kW | 5.8 | 9.5 | 11.5 | |
Heating Power Input | kW | 2.25 | 3.62 | 4.43 | ||
Heating Current Input | A | 10.2 | 16.5 | 20.1 | ||
COP | 2.58 | 2.62 | 2.60 | |||
Maximum Power Input | kW | 2.93 | 4.71 | 5.76 | ||
Maximum Current Input | A | 13.3 | 21.4 | 26.2 | ||
Nominal Water Flow Volume | m³/h | 1.29 | 2.15 | 2.41 | ||
AC Side Water Pressure Drop | kPa | 30 | 34 | 35 | ||
Water Inlet/Outlet (External Threaded) | inch | 1" | 1" | 1" | ||
Refrigerant | R410A/R32 | R410A/R32 | R410A/R32 | |||
Sound Level | dB(A） | 48 | 50 | 51 | ||
IP Rating | IPX4 | IPX4 | IPX4 | |||
Protection against Electric Shock | I | I | I | |||
Outdoor Unit Net Weight | kg | 82 | 110 | 112 | ||
Indoor Unit Net Weight | kg | 26 | 30 | 35 | ||
Outdoor Unit Dimensions(L/W/H) | mm | 1145/470/883 | 1075/450/1285 | 1075/450/1285 | ||
Indoor Unit Dimensions(L/W/H) | mm | 540/365/710 | 540/365/710 | 540/365/710 | ||
Company Profile
Certifications
FAQ
Q: Do you provide OEM or ODM service?
A: Yes. We can produce Macon standard products under customer's brand, or modify the products to satisfy customer's personalized
requirements, or work together with customer to design and produce a totally new products.
Q: What support do you offer to Customers?
A: We can provide product certification requirements for local markets, product catalogs, Installation and user manuals and
co-exhibit with the customers in leading industry exhibitions.
Q: How long can I get the feedback after sending the inquiry?
A: Usually you will get feedback within 30 minutes during the office hours and 12 hours after office hours.
Q: What’s the payment terms?
A: Normally 30% TT in advance and 70% TT before delivery. Other payment terms are negotiable.
Q: How long is the production lead time?
A: Usually the production lead time will be 30 days once order confirmed. Sometimes we have a few stock for quick delivery.
A: Yes. We can produce Macon standard products under customer's brand, or modify the products to satisfy customer's personalized
requirements, or work together with customer to design and produce a totally new products.
Q: What support do you offer to Customers?
A: We can provide product certification requirements for local markets, product catalogs, Installation and user manuals and
co-exhibit with the customers in leading industry exhibitions.
Q: How long can I get the feedback after sending the inquiry?
A: Usually you will get feedback within 30 minutes during the office hours and 12 hours after office hours.
Q: What’s the payment terms?
A: Normally 30% TT in advance and 70% TT before delivery. Other payment terms are negotiable.
Q: How long is the production lead time?
A: Usually the production lead time will be 30 days once order confirmed. Sometimes we have a few stock for quick delivery.
