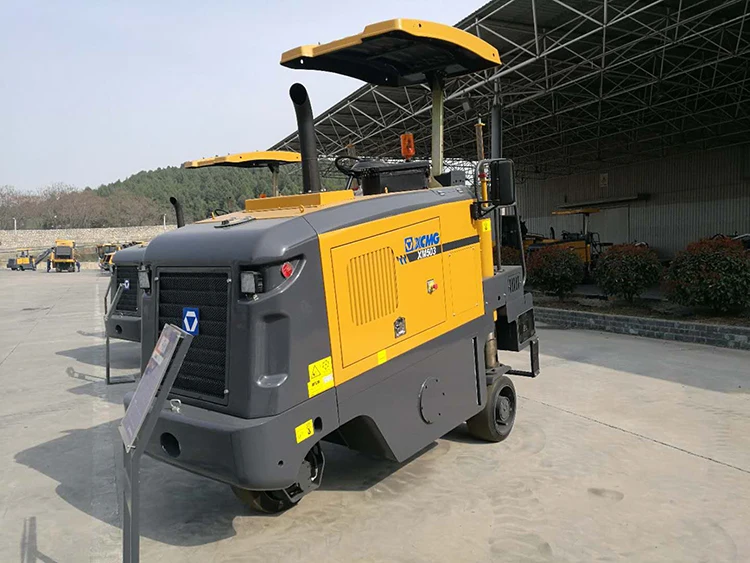

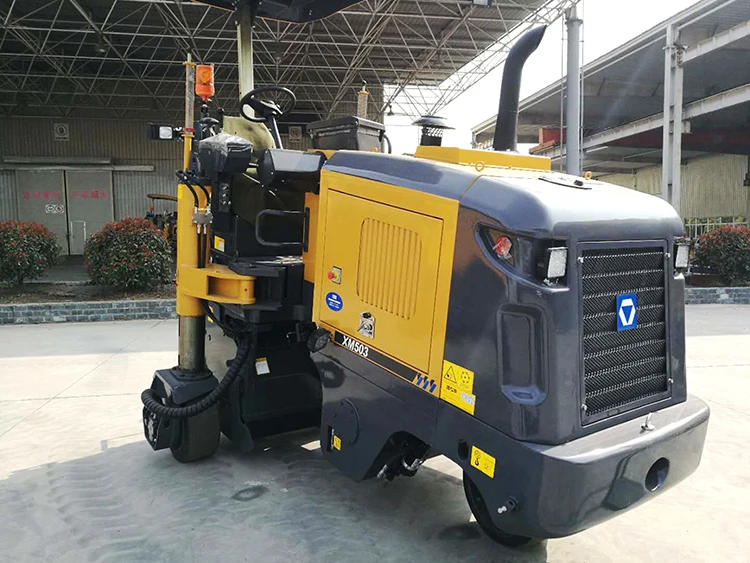

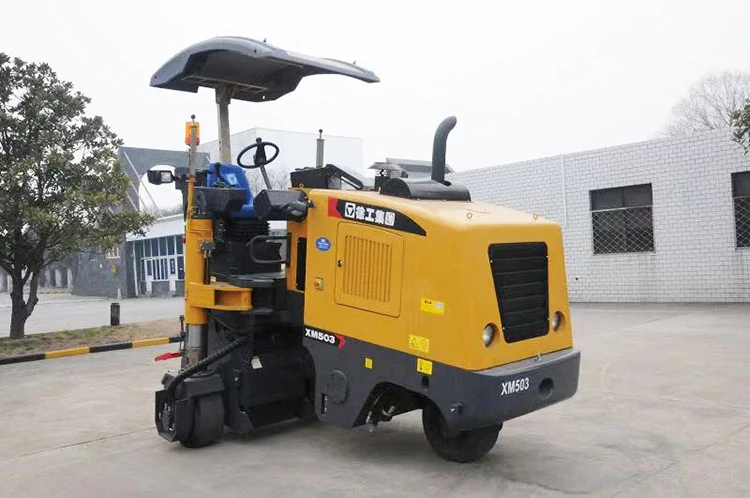

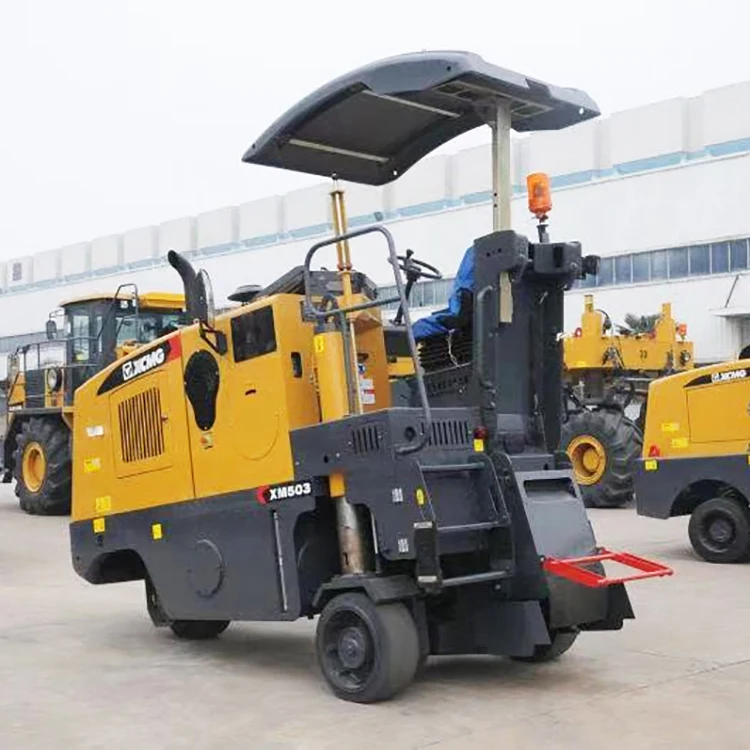

XCMG Construction Machinery XM503 Asphalt Road Milling Machine.
XCMG XM503 small milling machine is an asphalt road maintenance and construction machine mainly used for the maintenance operations of municipal roads and as the auxiliary construction implement for large milling machines. Featuring high working efficiency, simple construction processes, easy control of milling depth, easy and flexible operations, and good mobility, this machine is an ideal machine for repair, renovation, and maintenance of asphalt roads.
Performance Characteristics:
1.Traveling system: Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed change, and high and low gears.
2.Milling system: The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling.
3.Control of milling depth: The rear outriggers are installed with depth indicator to indicate the milling depth.
4.Steering system: The full-hydraulic single-front-wheel steering features small steering radius and flexible steering.
5.Sprinkling system: The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.
Performance Characteristics:
1.Traveling system: Wheeled type, all-wheel (three-wheel) drive, hydraulic + mechanical drive mode, constantly variable speed change, and high and low gears.
2.Milling system: The hydraulic + mechanical drive mode is applied to achieve efficient and powerful milling.
3.Control of milling depth: The rear outriggers are installed with depth indicator to indicate the milling depth.
4.Steering system: The full-hydraulic single-front-wheel steering features small steering radius and flexible steering.
5.Sprinkling system: The electric-driven water pump eases the disassembling and cleaning of water spray nozzles.
Specification
Item | Unit | XM503 |
Milling width | mm | 500 |
Maximum milling depth | mm | 180 |
Tool nose distance | mm | 15 |
Number of tools | 54 | |
Rotor diameter with tool | 660 | |
engine model | SC4H-C125 | |
Rated speed | rpm | 2200 |
Rated power | Kw | 92 |
Fuel tank | L | 140 |
Water tank | L | 300 |
Working speed | m/min | 0-40 |
Walking speed | Km/h | 0-6 |
Theoretical climbing ability | % | 50 |
Discharge maximum height | mm | 1200 |
Theoretical discharge capacity | m3/h | 42 |
Total weight | Kg | ≤7800/7300 |
Minimum milling radius | mm | 350 |
Ground clearance | mm | 180 |

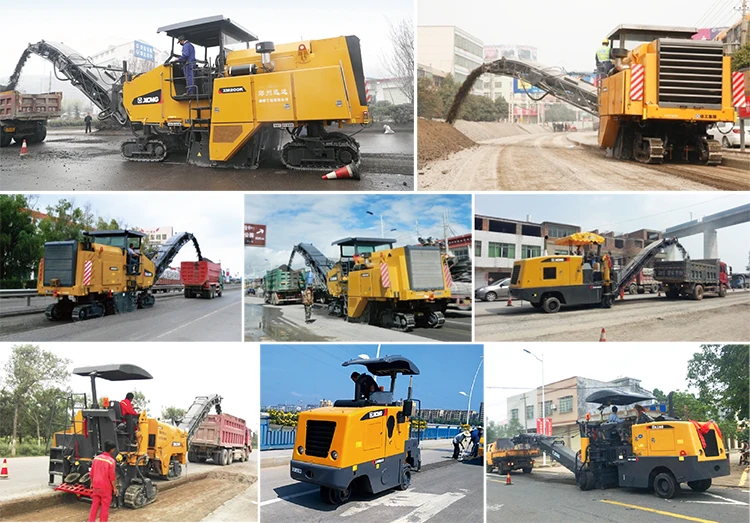

Product Show
