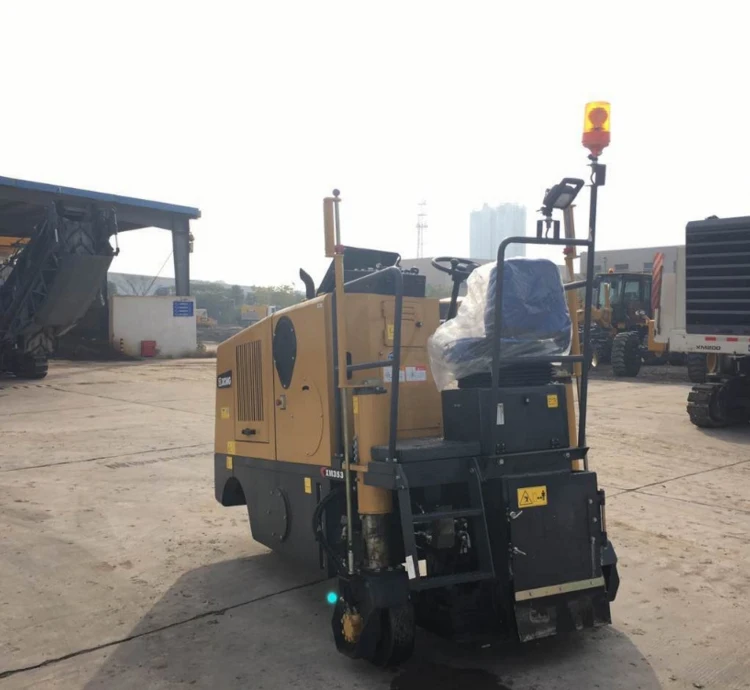

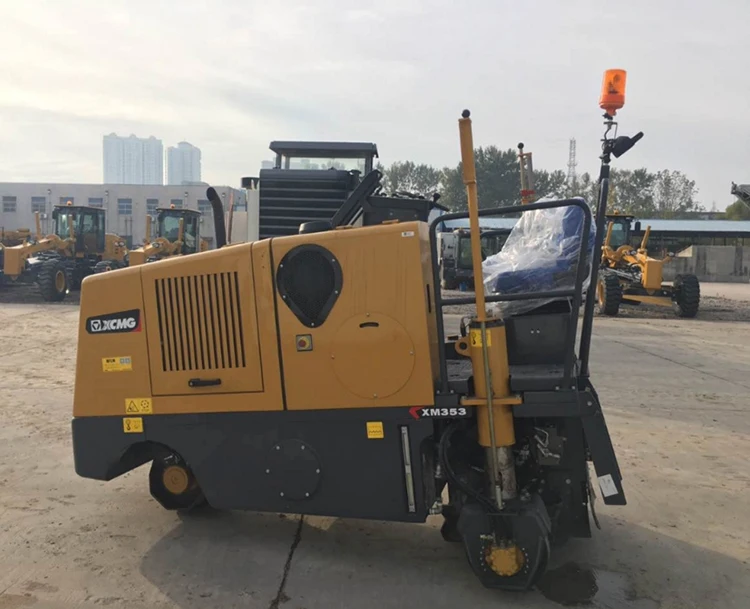

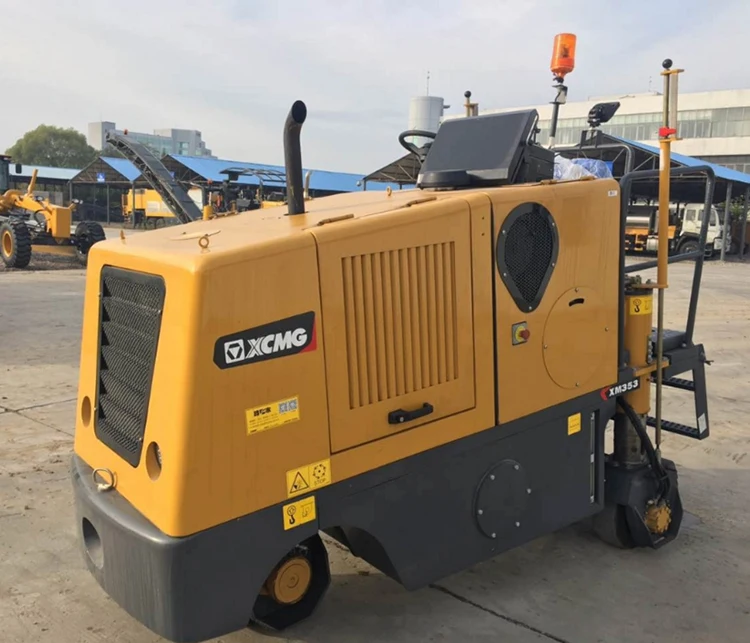

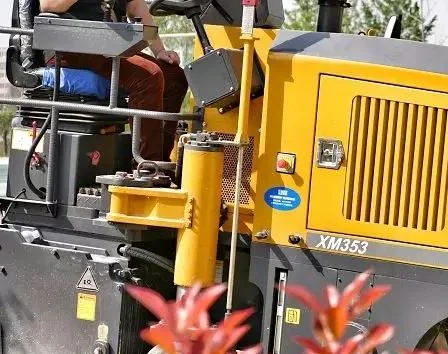

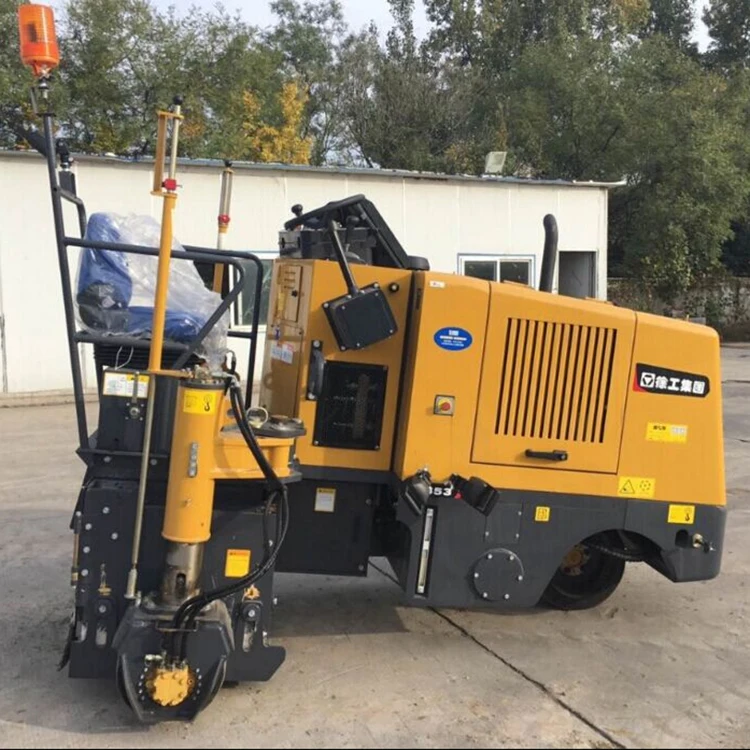

XCMG mini asphalt cold planer 0.35m XM353.
XCMG XM353 mini cold planer is a municipal maintenance type milling machine, which is mainly used in milling operation for city streets and country roads, can also be used on small scale of pavement maintenance pavement marking, milling around the manhole cover, pit slot digging, etc.; Besides, it can be used as auxiliary equipment of large milling machine, to meet the requirement of edge milling planing.
Technical Features:
1.Walking system: low speed three-wheel walking, driven by full hydraulic system, which resolves the low gradeability and slipping phenomenon and cost reduction.
2.Milling system: adopt hydraulic mechanical transmission mode，stable and powerful; imports tool bit, ensure the service life of the cutting tools.
3.Milling depth control: Depth indicator is installed on the rear leg, to show the milling depth. This device has optional automatic leveling system.
4.Steering system: full hydraulic steering, convenient and flexible manipulation.
5.Brake: two systems of service braking and parking braking.
Technical Features:
1.Walking system: low speed three-wheel walking, driven by full hydraulic system, which resolves the low gradeability and slipping phenomenon and cost reduction.
2.Milling system: adopt hydraulic mechanical transmission mode，stable and powerful; imports tool bit, ensure the service life of the cutting tools.
3.Milling depth control: Depth indicator is installed on the rear leg, to show the milling depth. This device has optional automatic leveling system.
4.Steering system: full hydraulic steering, convenient and flexible manipulation.
5.Brake: two systems of service braking and parking braking.
Specification
Item | Unit | XM353 |
Milling width | mm | 350/500 |
Maximum milling depth | mm | 120 |
Tool nose distance | mm | 12 |
Number of tools | 36/48 | |
Rotor diameter with tool | 580 | |
engine model | BF4M2012-10T3R | |
Rated speed | rpm | 2200 |
Rated power | kw | 72 |
Emission Standards | China III | |
Fuel tank | L | 110 |
Hydraulic oil tank | L | 70 |
Water tank | L | 260 |
Working speed | m/min | 0-40 |
Walking speed | km/h | 0-5.6 |
Theoretical climbing ability | % | 50 |
Total weight | kg | 4800 |
Minimum milling radius | mm | 130 |
Ground clearance | mm | 120 |
