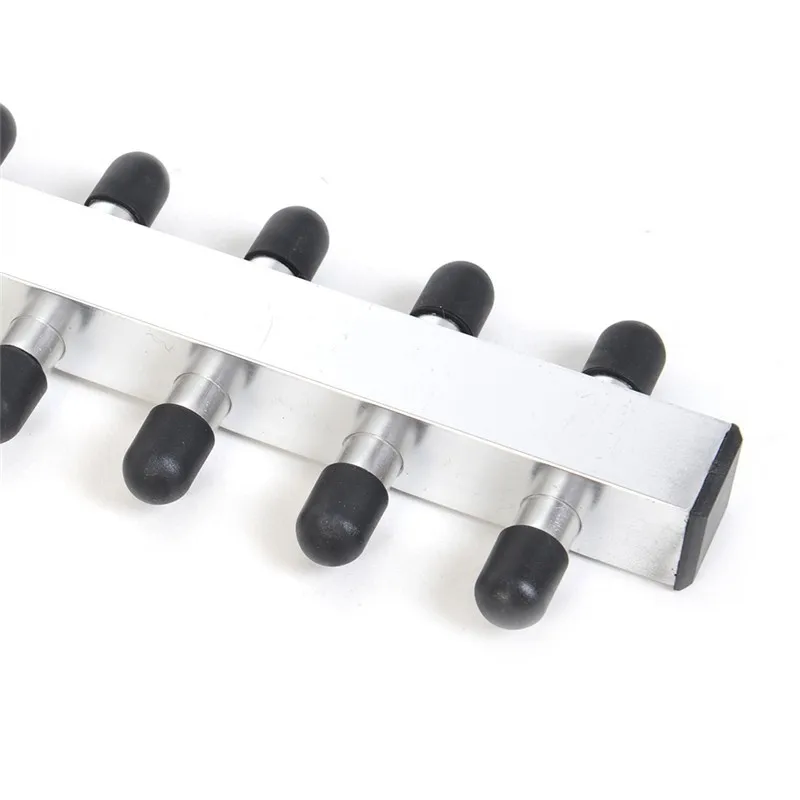

Направленная антенна с высоким коэффициентом усиления, водонепроницаемый уличный Wi Fi vhf uhf LTE 4G Yagi
- Category: >>>
- Supplier: Shenzhen ZD Tech Co. Ltd.
Share on (1600219532012):
Product Overview
Description

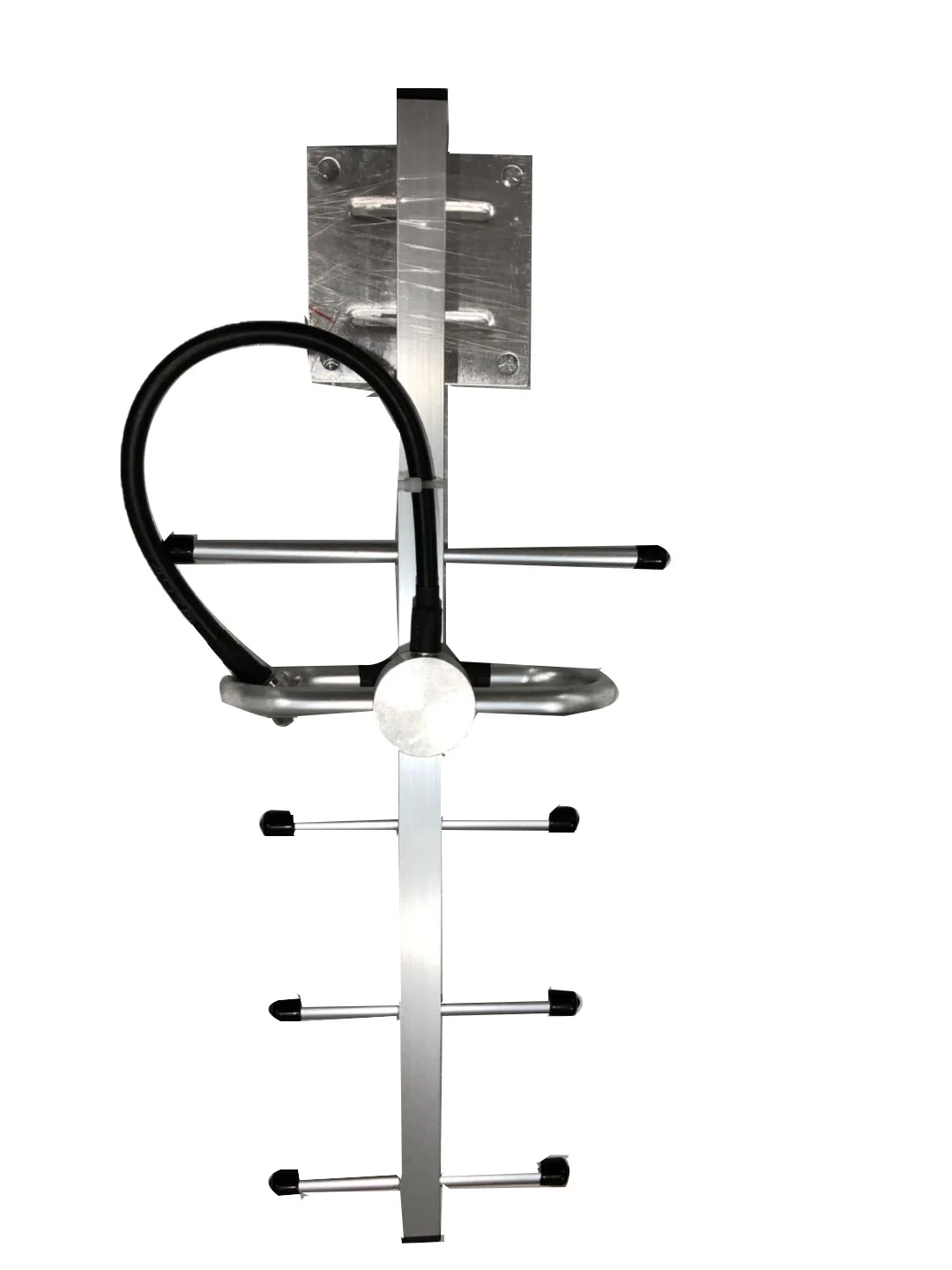

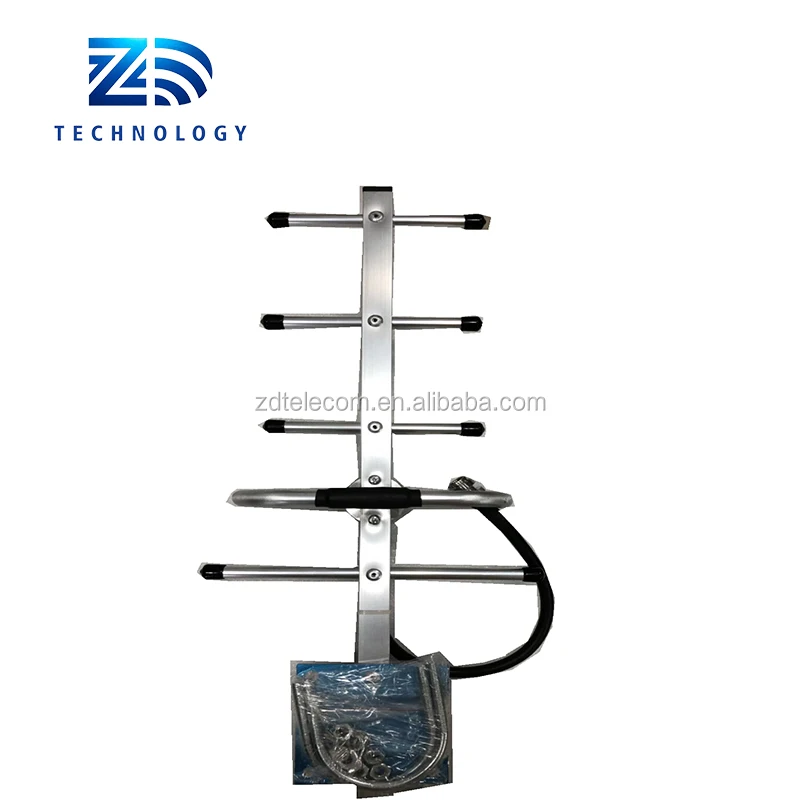

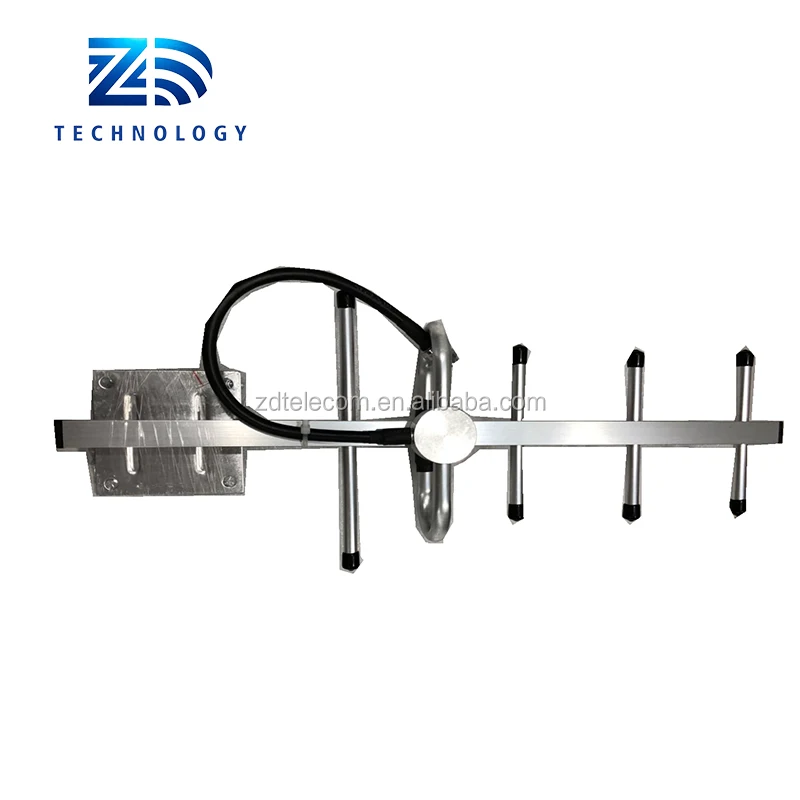

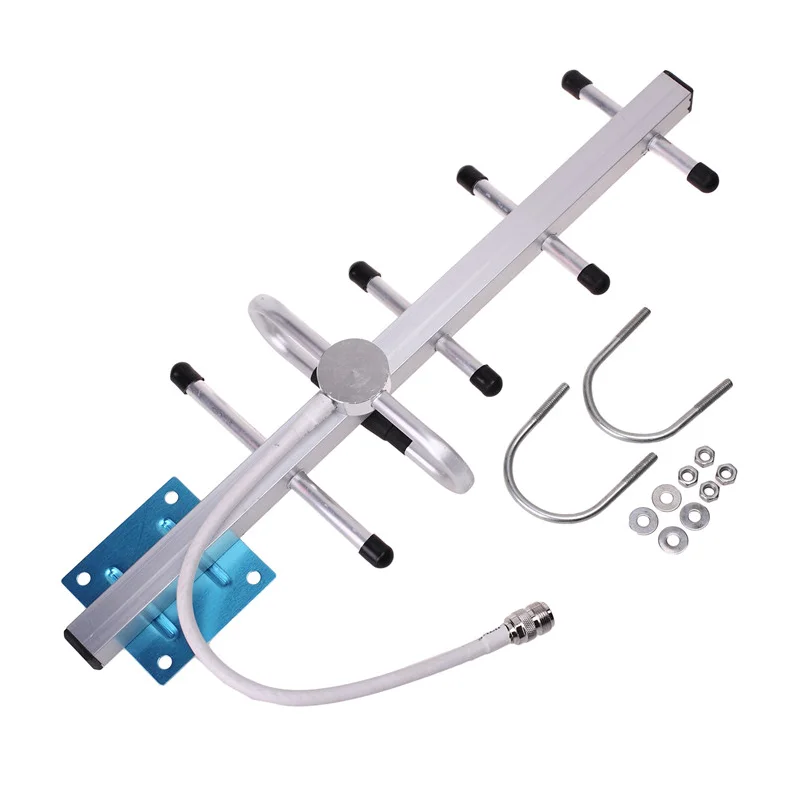

900-1800MHz Outdoor directional yagi antenna 5 elements 9dbi GSM antenna for signal booster repeater
ELECTRICAL SPECIFICATIONS
Frequency Range 900-1800Mhz
Gain 9dbi
V.S.W.R ≤1.5
Input Impedance 50ohm
Horizontal 3dB Beam Width 30°
Vertical 3dB Beam Width 30°
Maximum Power Input-watts 50W
Polarization vertical or horizontal
Lighting Protection DC Ground
Maximum wind speed 200m/s
MECHANICAL SPECIFICATIONS
Connector Type N-female
Net Weight 544g
Radiating Element Material Aluminum Alloy
Element 5 Units
Feature:
High gain
Aluminum alloy framework
Full day working
Optimized dimension
Mounting way can be Vertical or Horizontal
Application:
CDMA,GSM system
Point-to-point,point-to-multipoint system
Wireless bridging,client termination antenna
Electrical Specifications | |
| Frequency range(MHz) | 900-1800 |
| Bandwidth(MHz) | 154 |
| Gain(dBi) | 9 |
| Element | 5 |
| Half-power beam width(°) | H:68 V:60 |
| Front-to-back ratio(dB) | ≥16 |
| VSWR | ≤1.5 |
| Input Impedance(Ω) | 50 |
| Polarization | Horizontal or Vertical |
| Maximum input power(W) | 100 |
| Lightning protection | DC Ground |
| Input connector type | N female or others |
| Mechanical Specifications | |
| Dimensions(mm) | 350*190*54 |
| Cable length(m) | 0.25 |
| Antenna weight(kg) | 0.4 |
| Operating temperature(°c) | -40~60 |
| Rated Wind Velocity(m/s) | 60 |
| Clamp | U-shape |
| Mounting hardware(mm) | Φ35~Φ50 |
