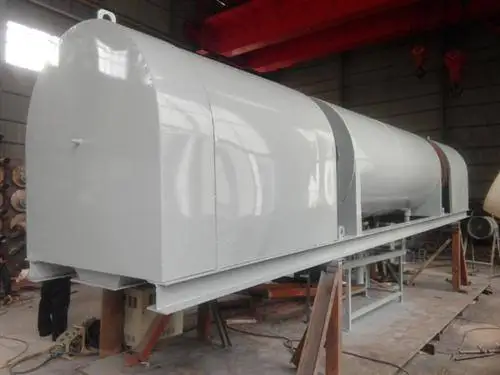

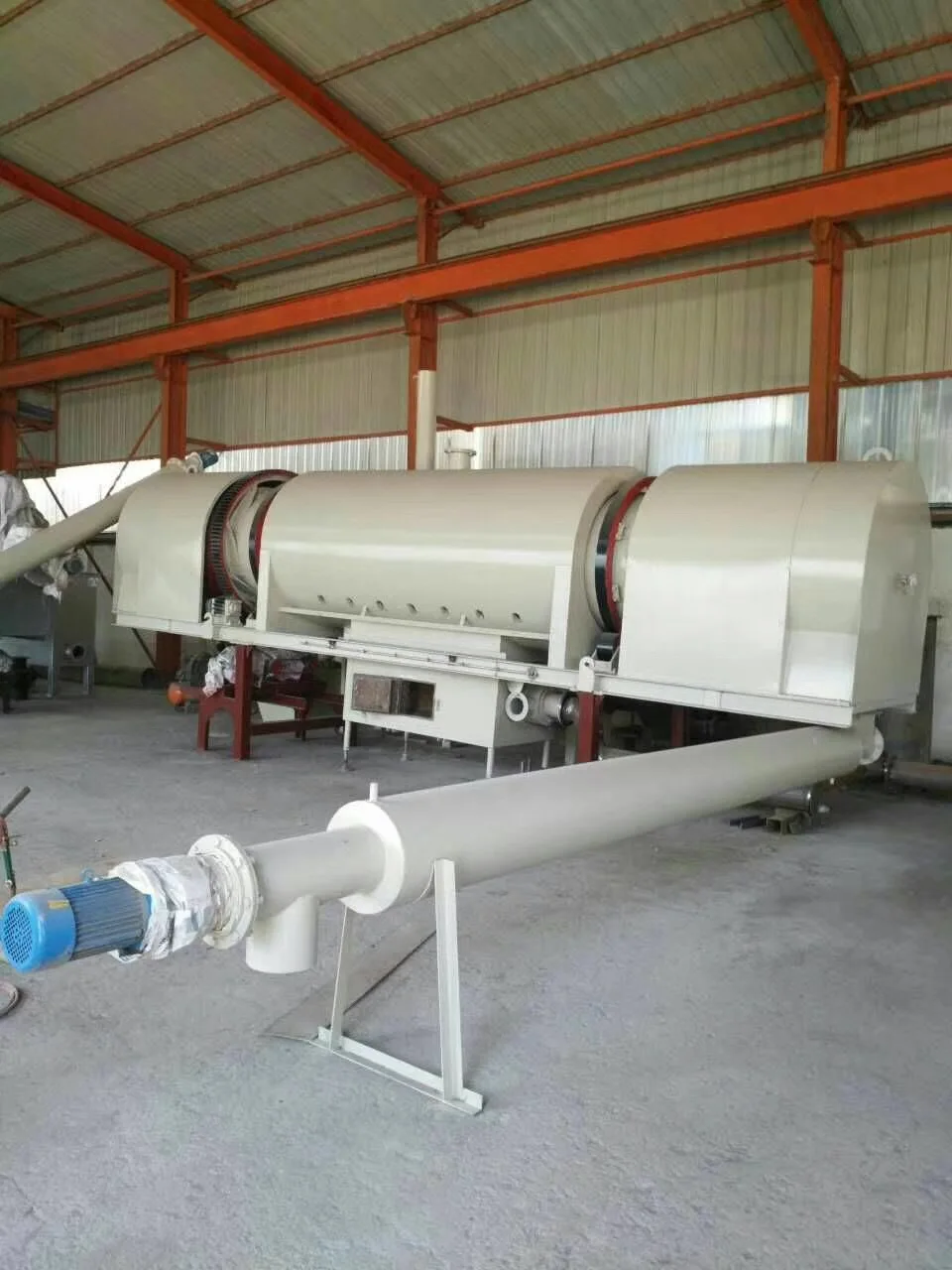

Horizontal Biomass Rotary Activated Carbon Airflow Continuous Carbonization Furnace
- Category: Carbonization Stove >>>
- Supplier: Zhengzhou Huayu Briquette Equipment Co. Ltd.
Share on (1600219642941):
Product Overview
Description
Product Description
The continuous carbonization furnace is mainly used for the carbonization of biomass materials. The equipment is still using the principle of gasification carbonization and adopts advanced smoke-free environmental carbonization process:The whole set of equipment consists of gasification system (liquefied gas gasification machine), purification system (spray tower, cyclone dust removal, water cooling, oil water separator, fine filter) and control system (control cabinet). The whole carbonization process is automated production, automated operation.
Different from the energy-saving and environmentally-friendly continuous carbonization machine, it has two significant advantages:
First, the main machine has a large volume, high carbonization rate, and strong production capacity, and can be produce 0.3-3 tons of carbonized products per hour;
Second, the cost is low and the practicability is strong, which satisfies the objective requirements of the initial small entrepreneurs' investment and small benefits. The carbonization machine is a carbonized wood material such as wood chips, rice husks, peanut shells, plant straws, bamboo chips, coconut shells, palm shells, bark, etc. (volumes of less than 10 cm in size) are subjected to dry distillation under high temperature conditions in the furnace, Ideal equipment for oxygenation and high carbonization rates.
Rice husk carbonization furnace is to carbonize bamboo, crops straw and other carbonic wooden materials under the condition of high temperature. The machine is widely used in power plants, chemical, energy, heating industry.

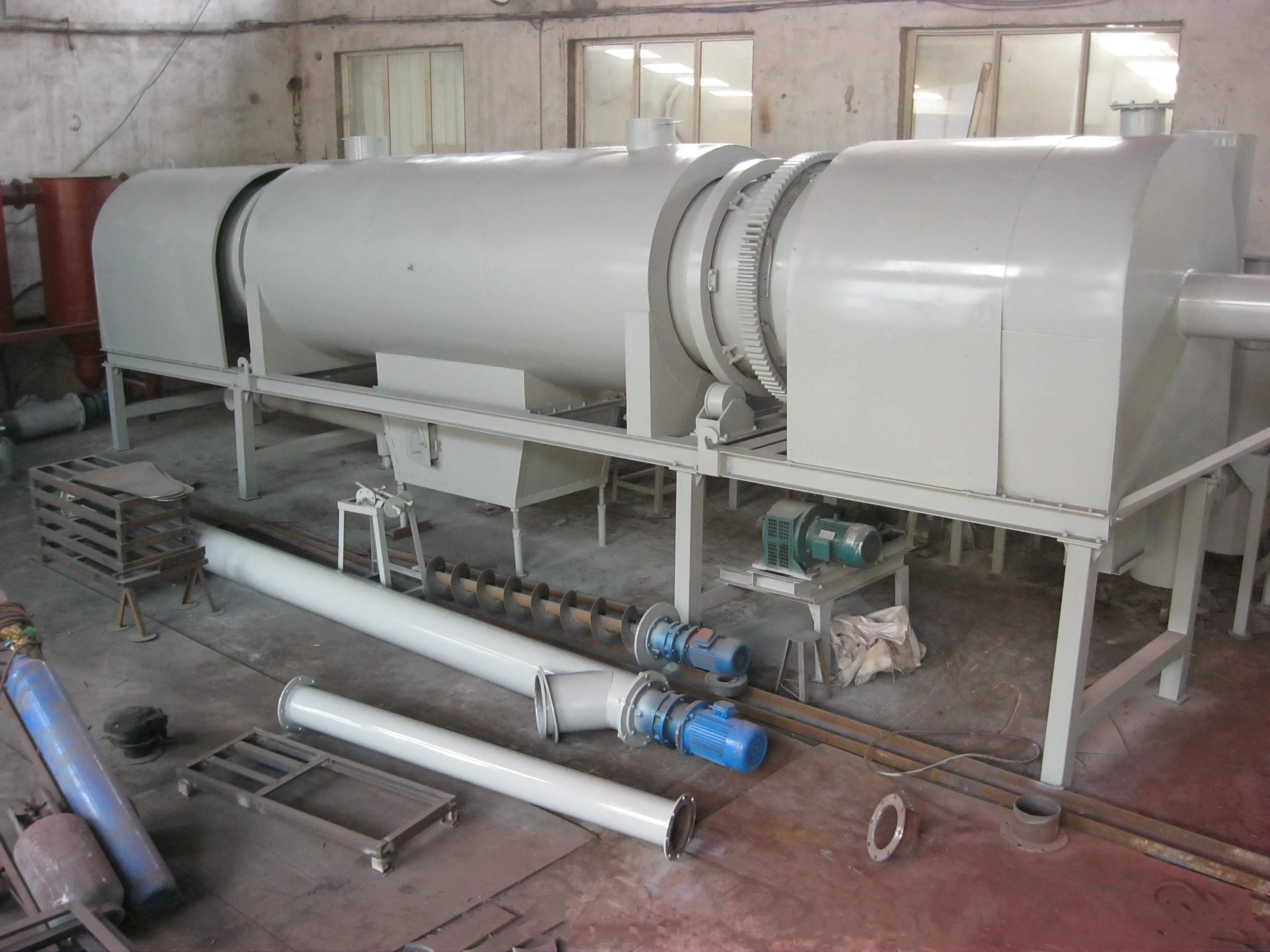

1. The overview picture of the machine

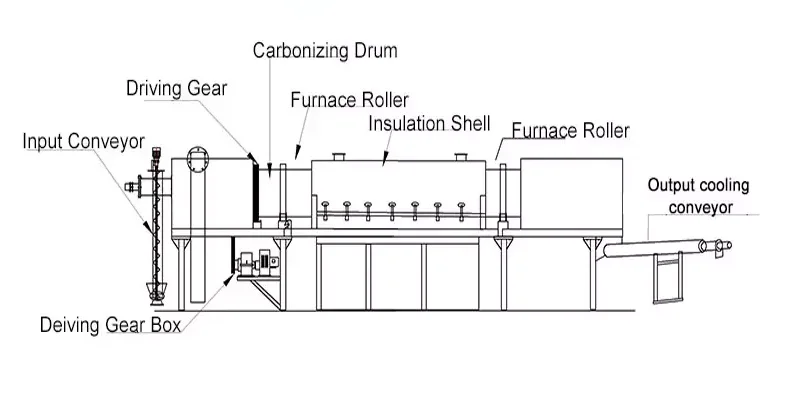

2. The structure picture of the machine
3. The working principle of the machine
1.Feeding conveyor: This parts is feeding the raw material. It can mix the raw material in the process the feeding material.
Continuous feeding to achieve continuous carbonization.
2.Fire platoon: Recycling flammable gas and reusing it to achieve exhaust gas reuse, energy saving and environmental protection.
3.Output cooling conveyor: The carbonized high-temperature carbon is output after passing through the cooling system. Can cool high-temperature carbon with a temperature of 1000 degrees to about 50 degrees.
Inside the furnace, the wooden materials are dried and carbonized into carbon by the heat source of fuel and burning exhaust gas.

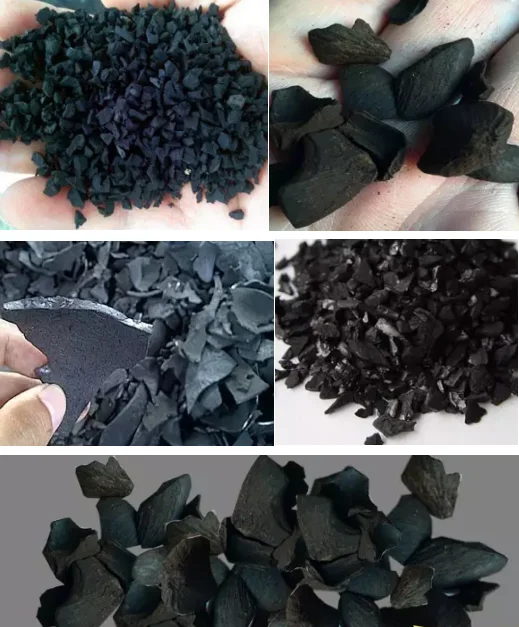

Forms of Products

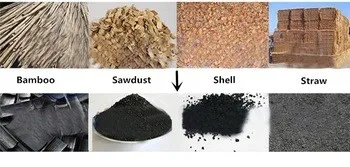

Suitable for raw material and final product
1) Agricultural waste: straw, stalk, corn cob, peanut shell, grass, etc.
2) Forest waste: wood log, branches, leaves, sawdust, etc.
3) Coconut shell, kernel, sunflower shell, nuts, etc.
4) Bamboo.
Advantages
Features
1. Wide range of materials, materials within 15mm can be carbonized by continuous carbonization furnace, such as rice shell carbonization, sawdust carbonization and so on.
2. During the carbonization process, the combustible gases such as carbon monoxide, methane and oxygen are recovered, purified and recycled, which will not pollute the environment.
3. The heat source for ignition heating is extensive (liquefied gas, natural gas, petroleum, diesel, wood, etc.), and there are 6burners on the left and right sides of the machine to ensure uniform heating of the continuous carbonization furnace, and thecarbonization effect is good.
4. The carbonization effect is good. After carbonization of the material, the carbon content is above 80%, the calorific value is7500-8000kcal/kg, and the residual ash after combustion is about 3%.
Technology Parameter
Model | HY-1000 | HY-1200 | |
Total Power: | 16.5kw | 24kw | |
Capacity: | 700-1000kg/h | 1000-1500kg/h | |
diameter*length(MM): | 1000*1000 | 1000*1000 | |
Primary heating unit: | 12 | 14 | |
The host base: | 10*1.45*1m | 10*1.45*1m | |
Cooling discharging(MM): | 1200*2900 | 1200*2900 | |
The feed temperature: | 350-450 degree | ||
The feed size: | less than 3cm | ||
The feed moisture: | less than 15% | ||
advantage : | Large volume, high carbonization rate, strong production capacity | ||
Company Information
Our company has more than 100 experienced workers and a complete set of production line which includes assembling, pressing, roller processing, case processing, and other workshops.
The follow pictures are our factory and workshops.

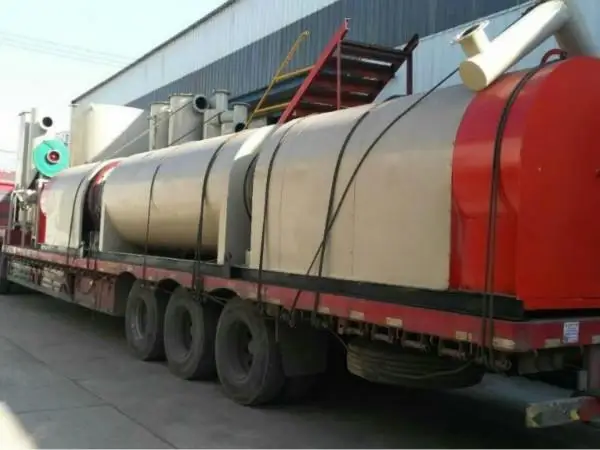

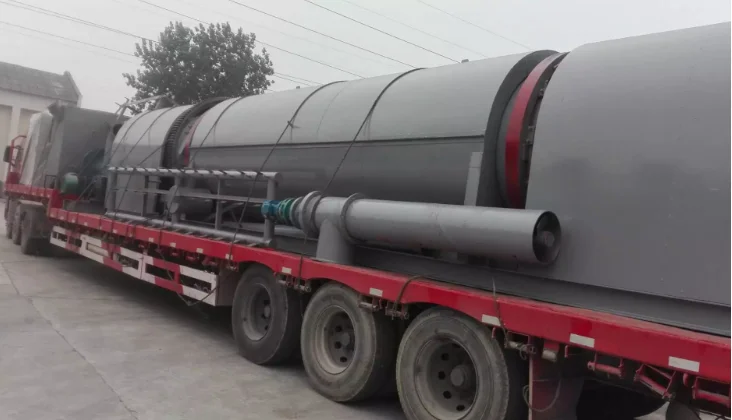

Packing & Delivery
Packing: We can install machines in the factory first or send the installation instructions to assist you.
Delivery: We usually deliver machines by One Touch of Alibaba Company in order to guarantee the delivery time and the quality of machines. We can also use other ways as your requirements.
Our Service
Q:Why Choose Us?
A:1). Several Year's Experience.We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
3). Fast Delivery:We promise the goods can be shipped out on delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
Q:What should we do if we have problems during use?
A:We provide machine use video and operating manuals. At the same time, we also have after-sales service 24 hours online service.
Q:Can we customized motor voltage?
A:Yes.We will transform the voltage according to the customer's needs.
