Высокая точность заводская цена оригинальный самоустанавливающийся шарикоподшипник 126 TN9
- Category: >>>
- Supplier: Shandong Huafei Bearing Co. Ltd.
Share on (1600219646266):
Product Overview
Description

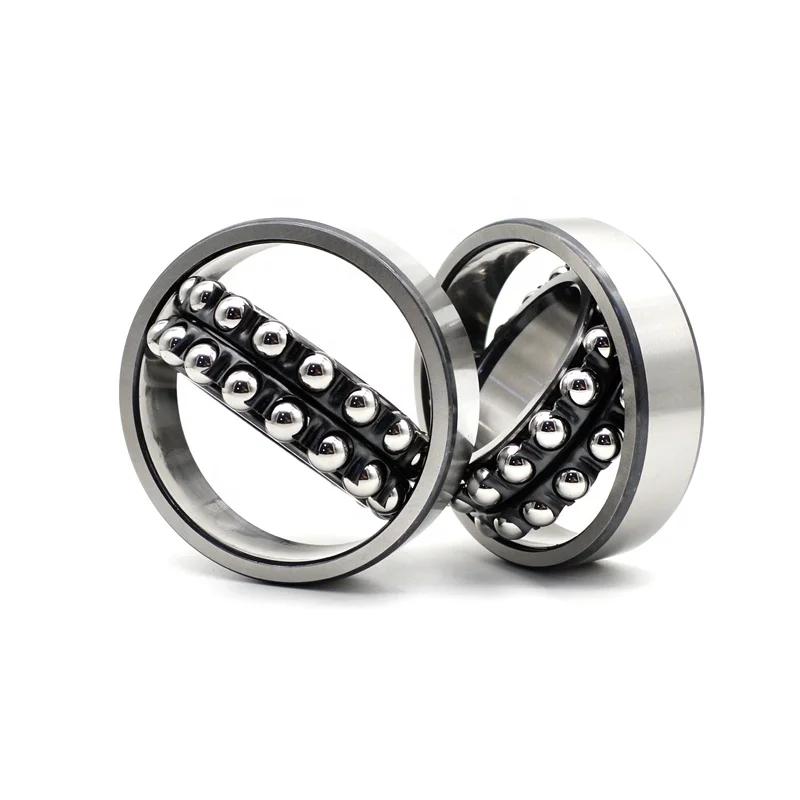

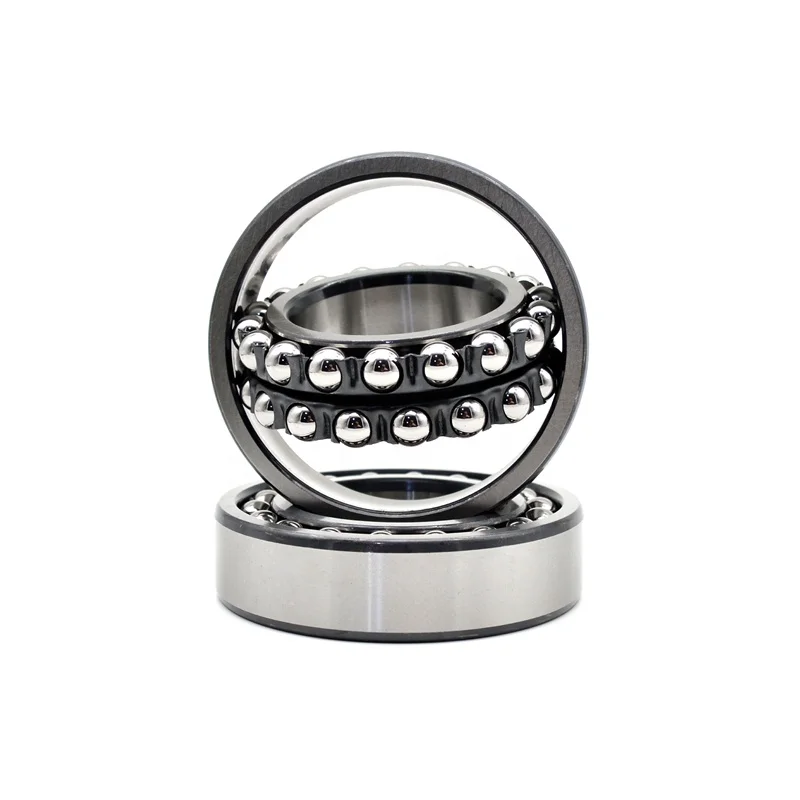

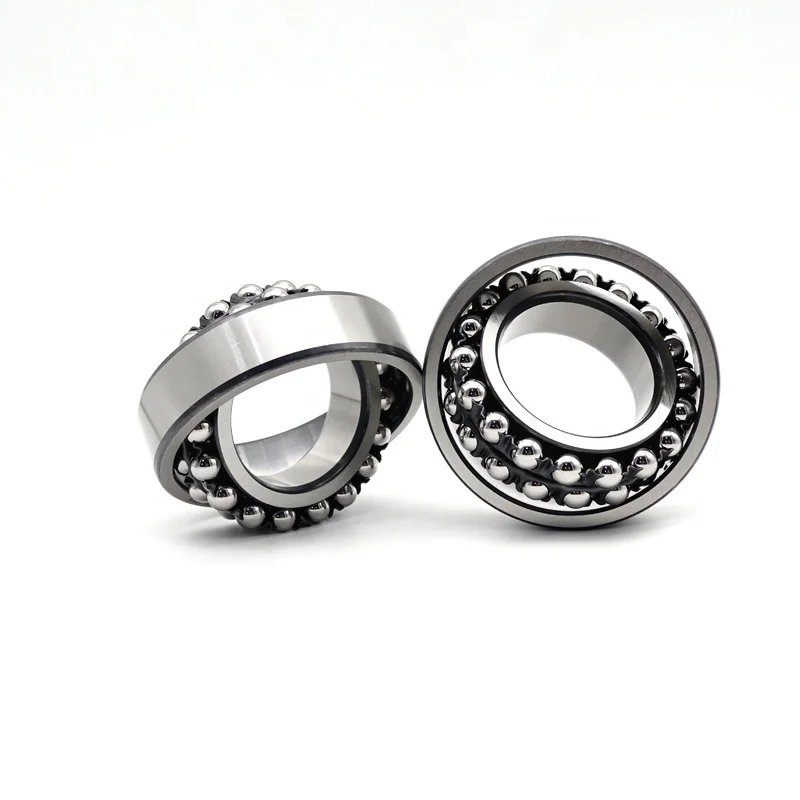

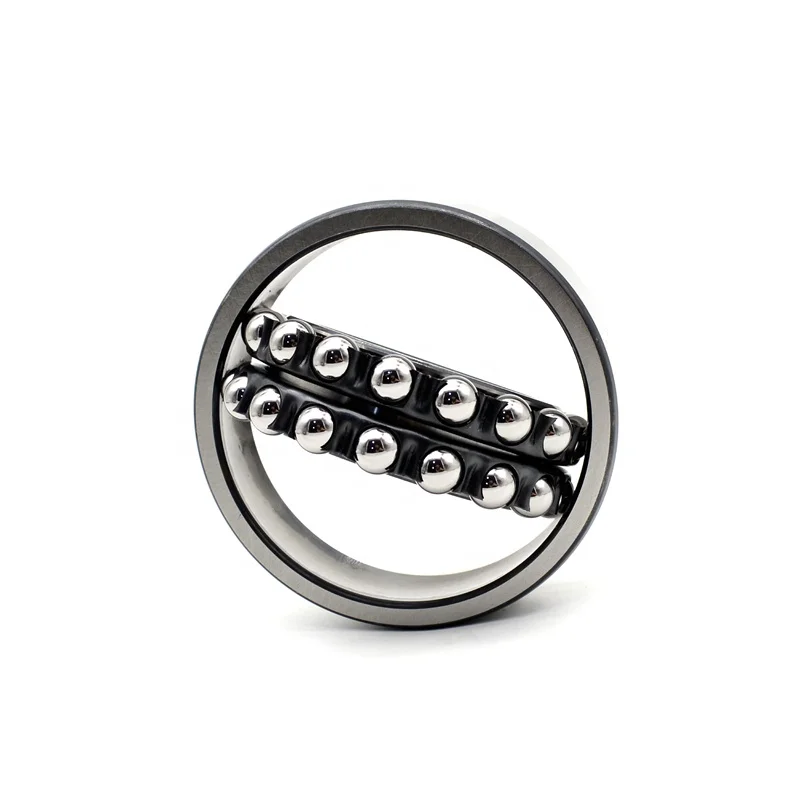

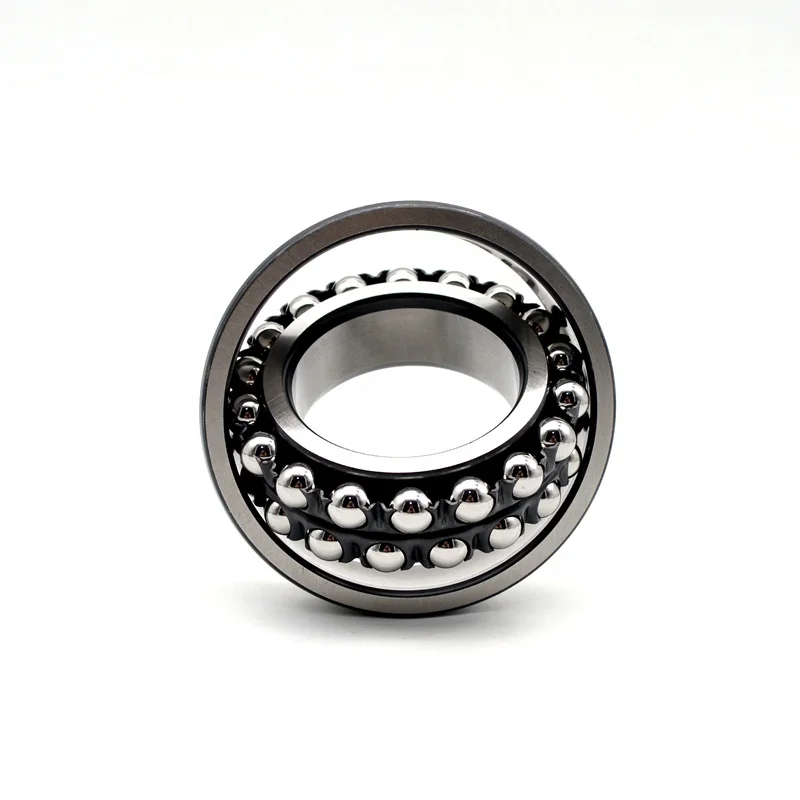

Self-aligning ball bearing
High precision Factory Price Original Self-aligning ball bearing 126 TN9
Self-aligning ball bearing is a kind of bearing with spherical ball between the inner ring of two raceways and the outer ring with spherical raceway.
The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft and shell are flexed, it can be adjusted automatically without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder. The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages
The curvature center of the outer ring raceway surface is consistent with the bearing center, so it has the same self-aligning function as the automatic self-aligning ball bearing. When the shaft and shell are flexed, it can be adjusted automatically without increasing the bearing load. Self aligning roller bearing can bear radial load and axial load in two directions. Radial load capacity, suitable for heavy load, shock load. The inner diameter of the inner ring is a taper hole bearing, which can be directly installed. Or it can be installed on the cylindrical shaft by using the fastening sleeve and the dismounting cylinder. The cages are made of steel stamping cages, polyamide forming cages and copper alloy car cages

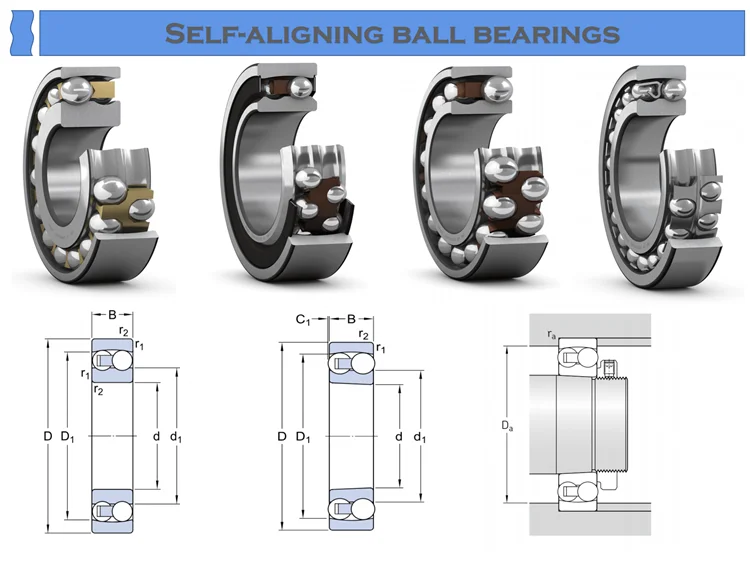

Self-aligning ball bearing
Principal dimensions | Basic load ratings | Speed ratings | Designation | ||||||||
dynamic | static | Reference speed | Limiting speed | ||||||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | |||||
5 | 19 | 6 | 2.51 | 0.48 | 70 000 | 45 000 | 135 TN9 | ||||
6 | 19 | 6 | 2.47 | 0.48 | 70 000 | 45 000 | 126 TN9 | ||||
7 | 22 | 7 | 2.65 | 0.56 | 63 000 | 40 000 | 127 TN9 | ||||
8 | 22 | 7 | 2.65 | 0.56 | 63 000 | 40 000 | 108 TN9 | ||||
9 | 26 | 8 | 3.9 | 0.815 | 60 000 | 38 000 | 129 TN9 | ||||
10 | 30 | 9 | 5.53 | 1.18 | 56 000 | 36 000 | 1200 ETN9 | ||||
10 | 30 | 14 | 5.53 | 1.18 | 17 000 | 2200 E-2RS1TN9 | |||||
10 | 30 | 14 | 8.06 | 1.73 | 50 000 | 34 000 | 2200 ETN9 | ||||
12 | 32 | 10 | 6.24 | 1.43 | 50 000 | 32 000 | 1201 ETN9 | ||||
12 | 32 | 14 | 6.24 | 1.43 | 16 000 | 2201 E-2RS1TN9 | |||||
12 | 32 | 14 | 8.52 | 1.9 | 45 000 | 30 000 | 2201 ETN9 | ||||
12 | 37 | 12 | 9.36 | 2.16 | 40 000 | 28 000 | 1301 EM | ||||
12 | 37 | 12 | 9.36 | 2.16 | 40 000 | 28 000 | 1301 ETN9 | ||||
12 | 37 | 17 | 11.7 | 2.7 | 38 000 | 28 000 | 2301 | ||||
15 | 35 | 11 | 7.41 | 1.76 | 45 000 | 28 000 | 1202 ETN9 | ||||
15 | 35 | 14 | 7.41 | 1.76 | 14 000 | 2202 E-2RS1TN9 | |||||
15 | 35 | 14 | 8.71 | 2.04 | 38 000 | 26 000 | 2202 ETN9 | ||||
15 | 42 | 13 | 10.8 | 2.6 | 34 000 | 24 000 | 1302 ETN9 | ||||
15 | 42 | 17 | 10.8 | 2.6 | 12 000 | 2302 E-2RS1TN9 | |||||
15 | 42 | 17 | 11.9 | 2.9 | 32 000 | 24 000 | 2302 | ||||
17 | 40 | 12 | 8.84 | 2.2 | 38 000 | 24 000 | 1203 ETN9 | ||||
17 | 40 | 16 | 8.84 | 2.2 | 12 000 | 2203 E-2RS1TN9 | |||||
17 | 40 | 16 | 10.6 | 2.55 | 34 000 | 24 000 | 2203 ETN9 | ||||
17 | 47 | 14 | 12.7 | 3.4 | 28 000 | 20 000 | 1303 EM | ||||
17 | 47 | 14 | 12.7 | 3.4 | 28 000 | 20 000 | 1303 ETN9 | ||||
17 | 47 | 19 | 12.7 | 3.4 | 10 000 | 2303 E-2RS1TN9 | |||||
17 | 47 | 19 | 14.3 | 3.55 | 30 000 | 22 000 | 2303 | ||||
20 | 47 | 14 | 12.7 | 3.4 | 32 000 | 20 000 | 1204 EKTN9 | ||||
20 | 47 | 14 | 12.7 | 3.4 | 32 000 | 20 000 | 1204 ETN9 | ||||
20 | 47 | 18 | 12.7 | 3.4 | 10 000 | 2204 E-2RS1TN9 | |||||
Self-aligning ball bearings are suitable for bearing heavy loads and shock loads, precision instruments, low-noise motors, automobiles, motorcycles, metallurgy, rolling mills, mining, petroleum, papermaking, cement, sugar crushing and other industries and general machinery, etc

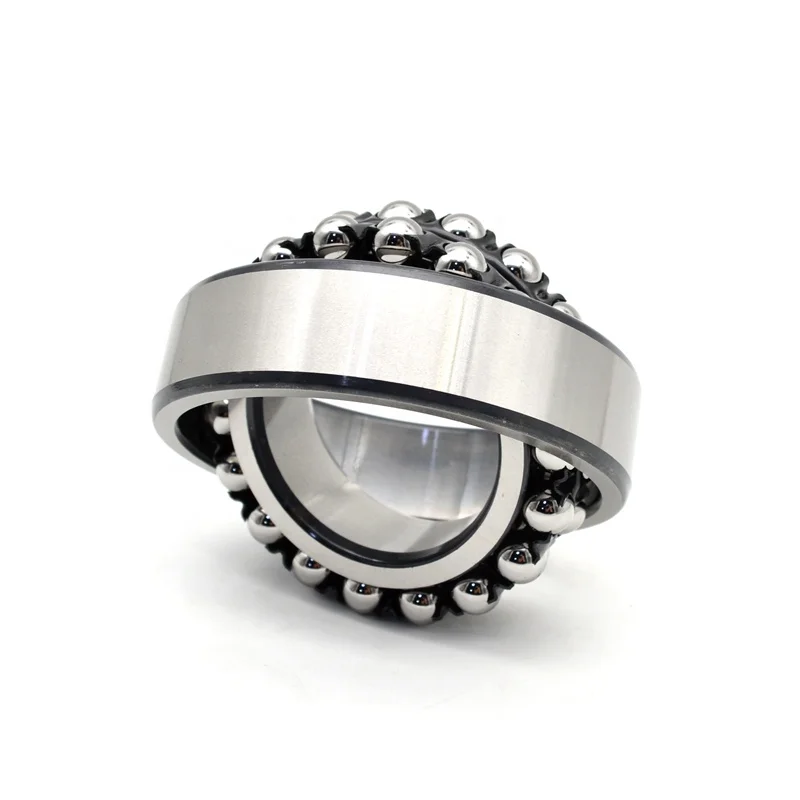

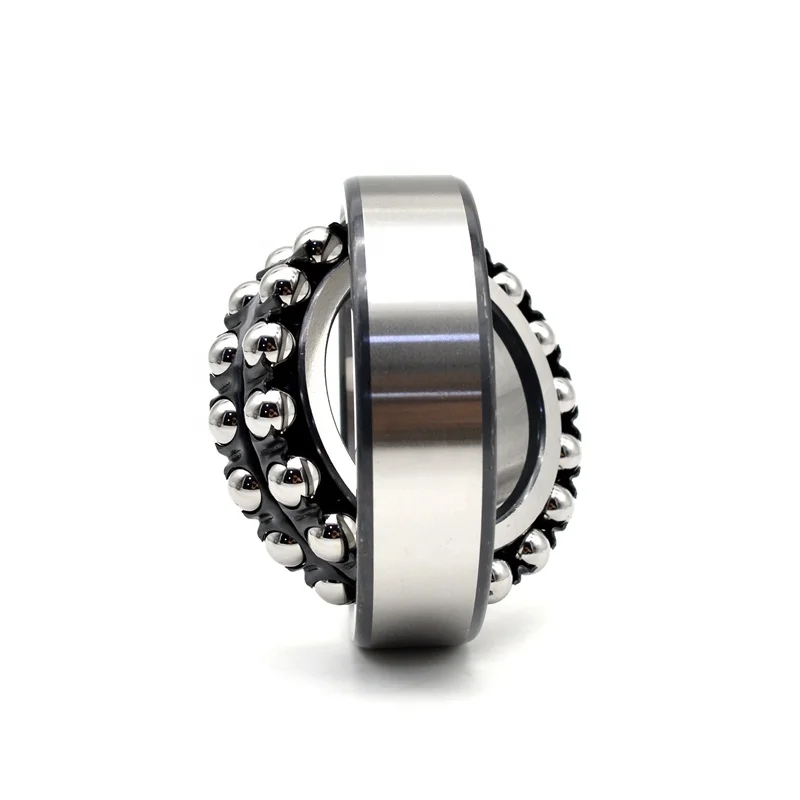

Product Faces
Products Description
Sales points:
1. cheap price with good quality, good sales in the market.
2. we use the good quality grease make sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in bearing or send your design sample to us, we can do the customizaton for you.
2. we use the good quality grease make sure the bearing can turn smooth and the life can be longer.
3. OEM service, you can make your logo in bearing or send your design sample to us, we can do the customizaton for you.
Specifications:
Type | ball bearings |
Product name | Self-aligning ball bearings |
Model Number | 126 TN9 |
ID*OD*W(mm) | 6*19*6mm |
Applicable Industries | Automotive.tractor.construction Machinery.rolling Mill |
Material | Chrome Steel GCR15 |
Place of Origin | Shandong,China |
Precision Rating | P0,P4,P6 |
Sample | Available |
Brand Name | OEM |
Feature | Low noise, less vibration, high precision and long life |
Antirust period | Bearings should normally be put under the protected condition then it is to be stored and preserved. The rustresisting period is two years. |
Application | Mining operations, paper mills, oil fields, marine industry, steel,electrical, construction machinery, various kinds of professional machinery and heavy industry of all types. |
Product overall
Introduction of self-aligning ball bearing
self-aligning ball bearing has cylindrical hole and conical hole. Cage material includes steel plate, synthetic resin, etc. Its feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning ball bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has the self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has the self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work
Features | Benefits |
Low friction | Consistency of roller profiles and sizes |
Long service life | This facilitates mounting, dismounting and also maintenance inspection routines |
reduce stress peaks at the roller ends | supports the formation of a hydrodynamic lubricant film |
Long service life | By applying a preload, a rigid bearing application can be achieved. |
Company Profile
More about the company：
Shandong huafei bearing co.,LTD,German technical process Bainite quenching. With industry and trade as one, specialized in bearing design,research and development, production, sales. Own import and export right, and passed GB/ T19001-2016/ISO9001:2015 qualit management system certification.Specializing in the production
of automotive hub bearings tapered roller bearings, deep groove ball bearings,spherical bearings and various non-standard bearings,can be customized according to customer drawings, samples,OEM processing production services.OEM processing production services. The company has advanced production equipment, with strong technical force,high-quality staff team, optimize product
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as designated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest management continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as designated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest management continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
Packing & Delivery
Payment terms
A.100%T/T
A.100%T/T
B.50% T/T in advance .50% against photo of goods
C.Western union
D.Paypal
E.Offical Bank Account
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
C.Western union
D.Paypal
E.Offical Bank Account
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
Our Advantages
The Bearings we supply for customer
including:
radial bearing
thrust-bearing
needle bearing
fluid lubricated bearing
Non - lubricated bearing
Deep Groove Ball Bearings
self-aligning ball bearing
cylindrical roller bearing
self-aligning roller bearing
Thrust and thrust angular contact ball bearings
Thrust and thrust spherical roller bearing
Needle roller bearings or cylindrical roller bearings
We Will offer you
Our advantages
1.High quality
2.Reasonable price
3. Good service
4.On time delivery
5.For the l Bearings Strict quality control
We will offer you
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and Bearings designs
3.In-time communication on the technical points
4.In-time Bearings test and sample delivery
5.In-time Bearings delivery.
including:
radial bearing
thrust-bearing
needle bearing
fluid lubricated bearing
Non - lubricated bearing
Deep Groove Ball Bearings
self-aligning ball bearing
cylindrical roller bearing
self-aligning roller bearing
Thrust and thrust angular contact ball bearings
Thrust and thrust spherical roller bearing
Needle roller bearings or cylindrical roller bearings
We Will offer you
Our advantages
1.High quality
2.Reasonable price
3. Good service
4.On time delivery
5.For the l Bearings Strict quality control
We will offer you
1.In-time response on letters, telephone calls or fax
2.In-time supply the quotation and Bearings designs
3.In-time communication on the technical points
4.In-time Bearings test and sample delivery
5.In-time Bearings delivery.
FAQ
1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
4. Is optional lubrication provided?
We can offer a wide range of oils and greases for a variety of applications. Please contact our engineer for technical assistance with any special requirements.
5. What is the difference between using a shield or a seal as a ball bearing closure?
Shields or seals are often installed to retain lubricant and to prevent contamination from entering the bearing. While a shield contacts the outer ring and does not come in contact with the inner ring, the seal generally comes in contact with both the inner and outer rings. Torque or drag is lower with a shield than with a seal. Alternately, the seal provides a higher degree of protection from contamination. Shields and seals are available in a variety of materials and configurations.
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.
4. Is optional lubrication provided?
We can offer a wide range of oils and greases for a variety of applications. Please contact our engineer for technical assistance with any special requirements.
5. What is the difference between using a shield or a seal as a ball bearing closure?
Shields or seals are often installed to retain lubricant and to prevent contamination from entering the bearing. While a shield contacts the outer ring and does not come in contact with the inner ring, the seal generally comes in contact with both the inner and outer rings. Torque or drag is lower with a shield than with a seal. Alternately, the seal provides a higher degree of protection from contamination. Shields and seals are available in a variety of materials and configurations.
