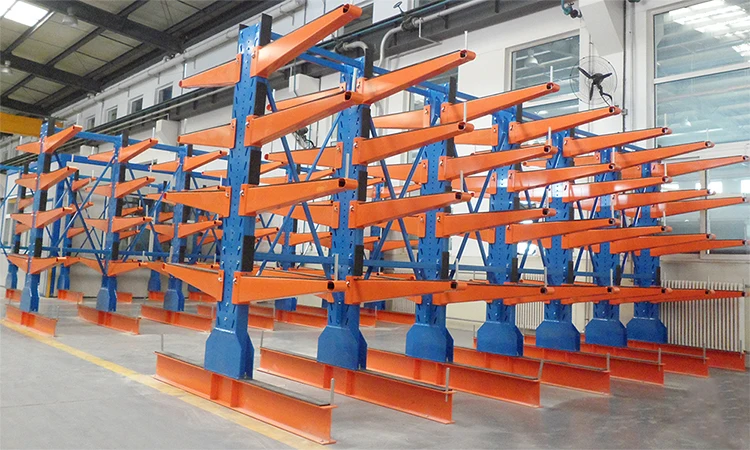

Cantilever racking has two types, single sided cantilever and double sided cantilever. The load per arm ranges from 100kgs to 1000kgs or even more.
Characteristics
1. Compared with pallet rack, cantilever rack is open faced, applicable to store items with long length or irregular shape, such as pipe, bar, profile, sofa, etc.
2. Strong loading capacity. The load per arm could be as high as 1000kgs or even more.
3. Improve warehouse utilization ratio and increase working efficiency.

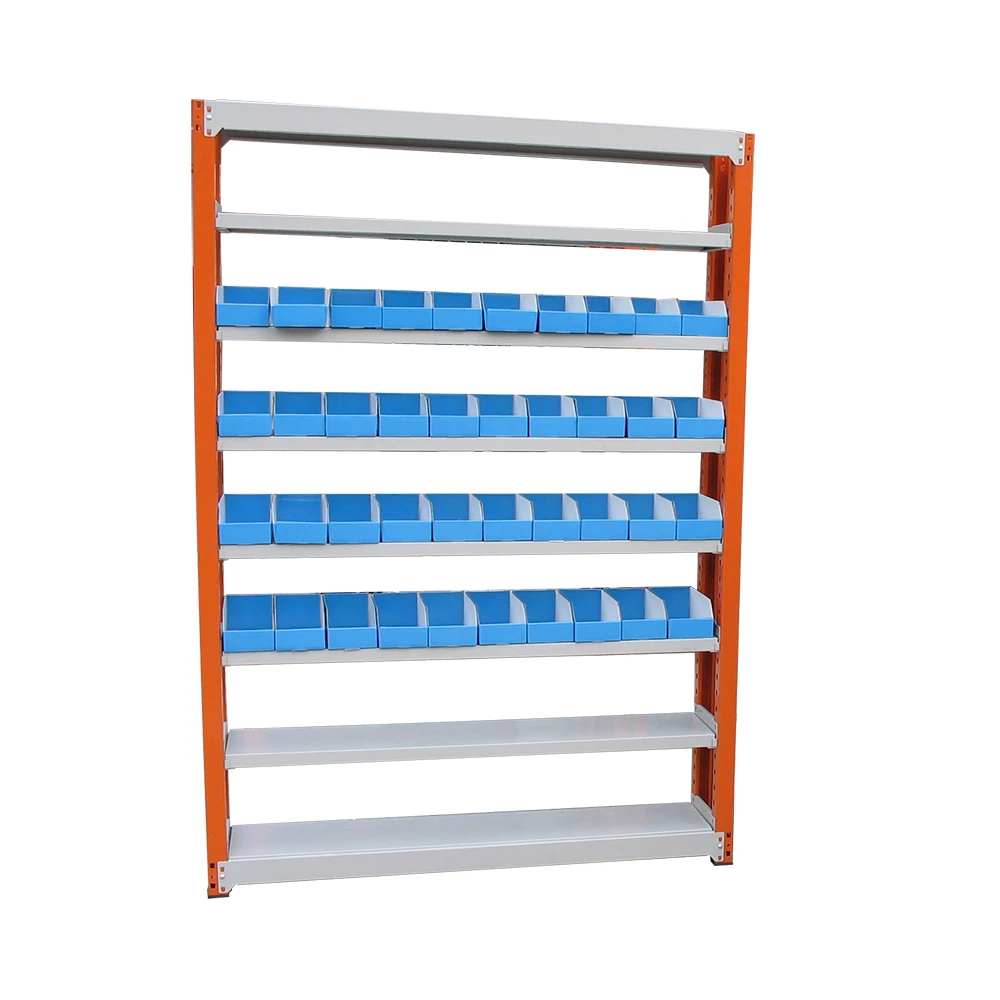

4. It could work with wooden or steel shelf to store small items.
5. Dismantled structure. Easy to install and dismantle.
6. Arm upturn 2 to 4 degree, make sure when the rack are fully loaded, the far end position is higher than base.
7. Adjusting arm. Upright has holes, arms can be adjusted to suit different goods height.
Application
Cantilever rack is suitable for storing items with long length or irregular shape, such as pipe, bar, profile, sofa, etc. The rack is used in wood and furniture industry, machinery manufacturing industry, logistics center, electrical energy industry, etc.
You may have something important from following table.
Rack Type
cantilever rack
Model
HXB
L
≤100kgs/arm
M
100~500kgs/arm
H
500~1000kgs/arm
XH
≥1000kgs/arm
Access Style
flexiable
Structure
knock down or assembled,welded structure available
Forklift Asile
around 3200mm,depends on customer's forklift parameter
Load Capacity & Dimension
Load capacity
100~1500kgs/arm
length
500mm~2000mm
depth/width
700mm~2500mm
height
≤9000mm
level
≥2
Components
core components
upright, arm, base, bracing
optional components
spacer,wire mesh decking,board,top tie,goods support, protector, etc.
no less than 60um for average thickness for powder coating
Color
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers

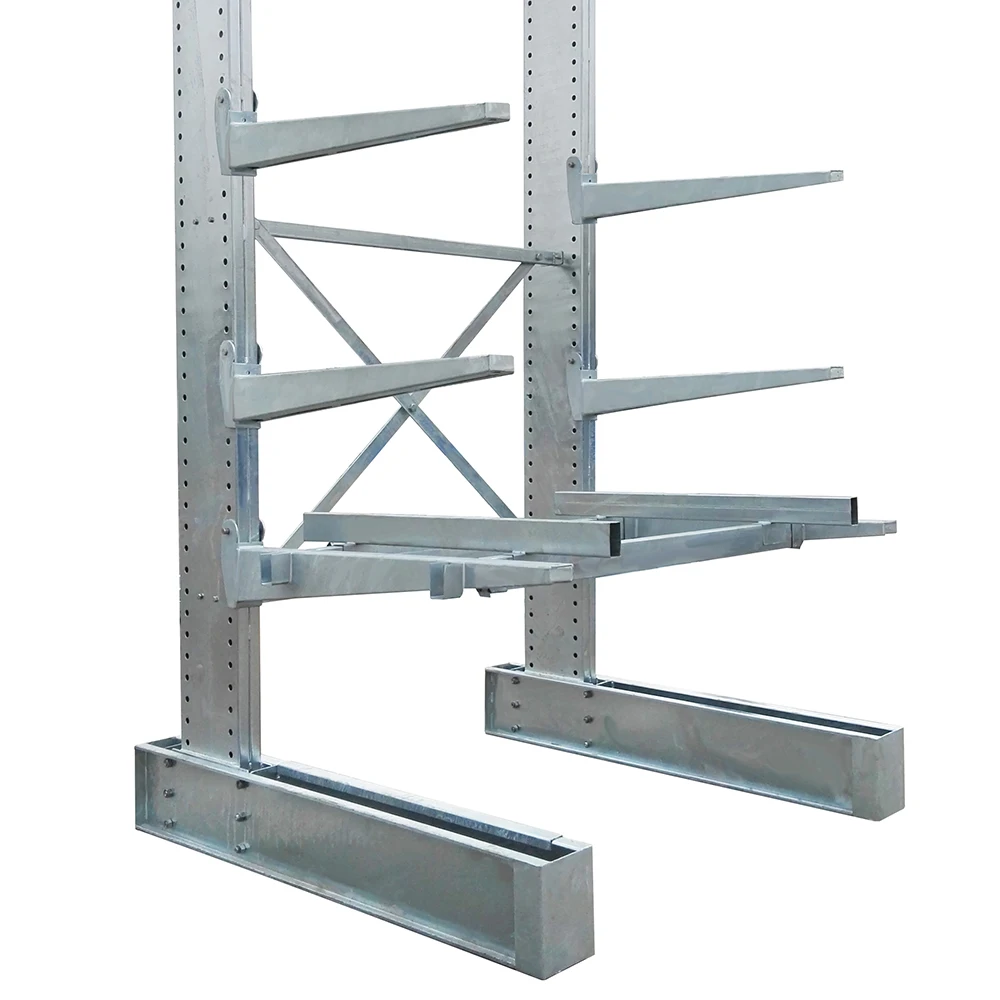

4 layer storage single sided cantilever rack with hot-dip galvanized finish for outdoor storage

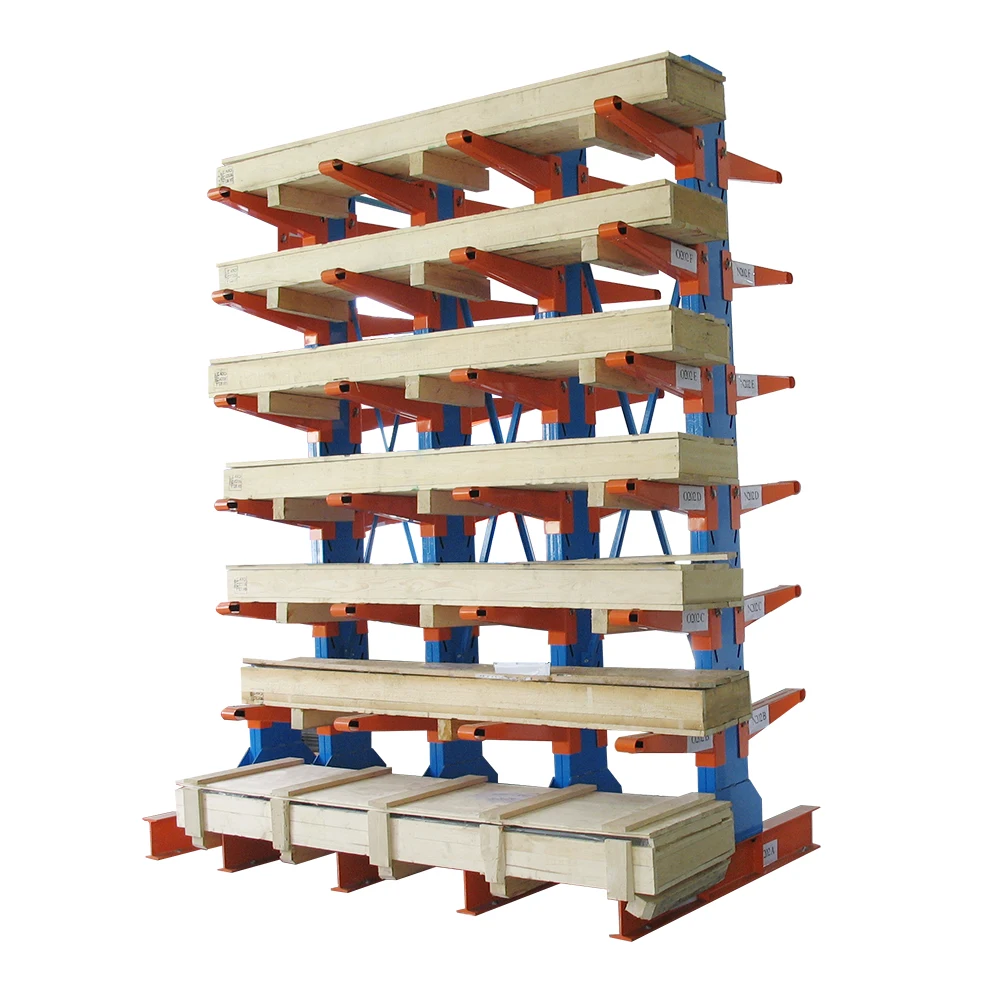

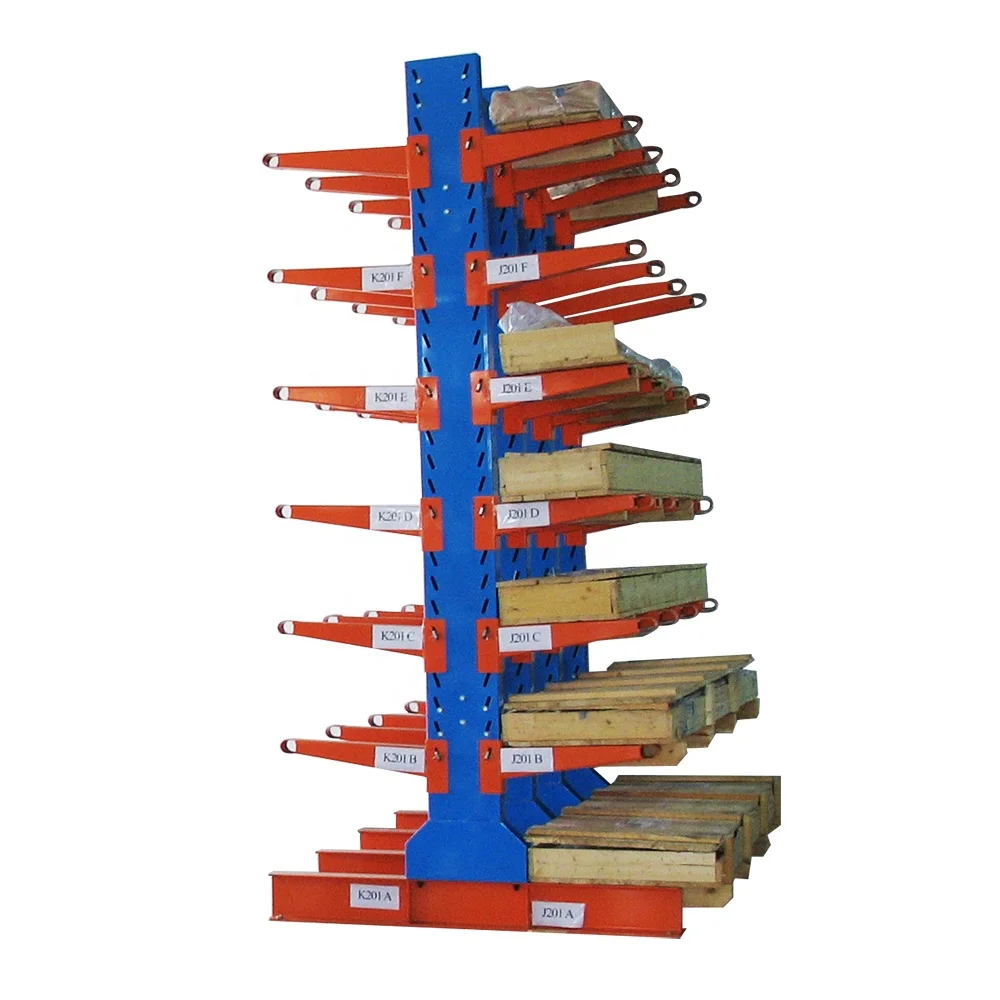

7 layer storage double sided cantilever racking for long wooden box product storage with powder coated finish.

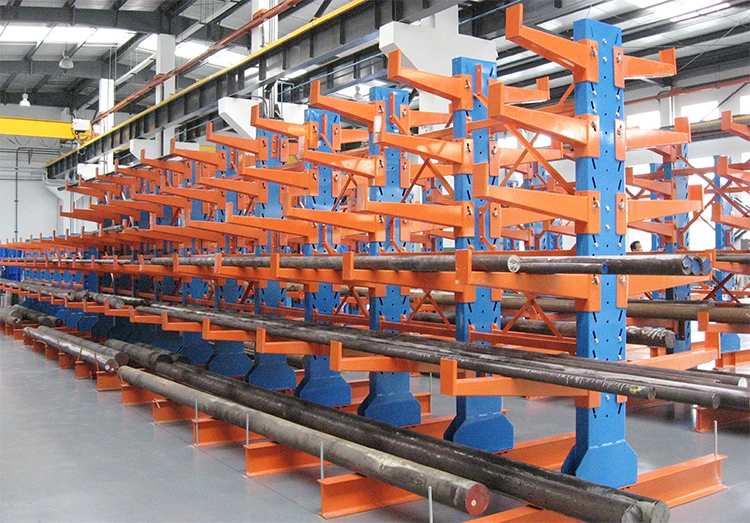

6 layer storage double sided cantilever racking for steel bar storage
5 layer storage double sided cantilever racking with rubber pad on the arm for product that need protection.
6 layer storage cantilever racking with 5 arm layers with high height

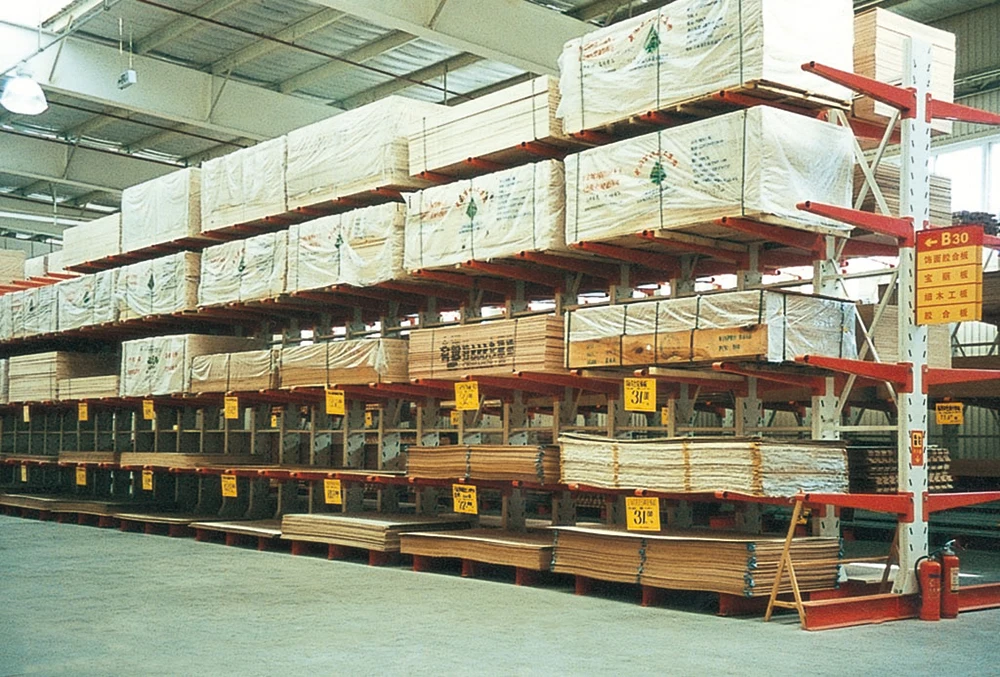

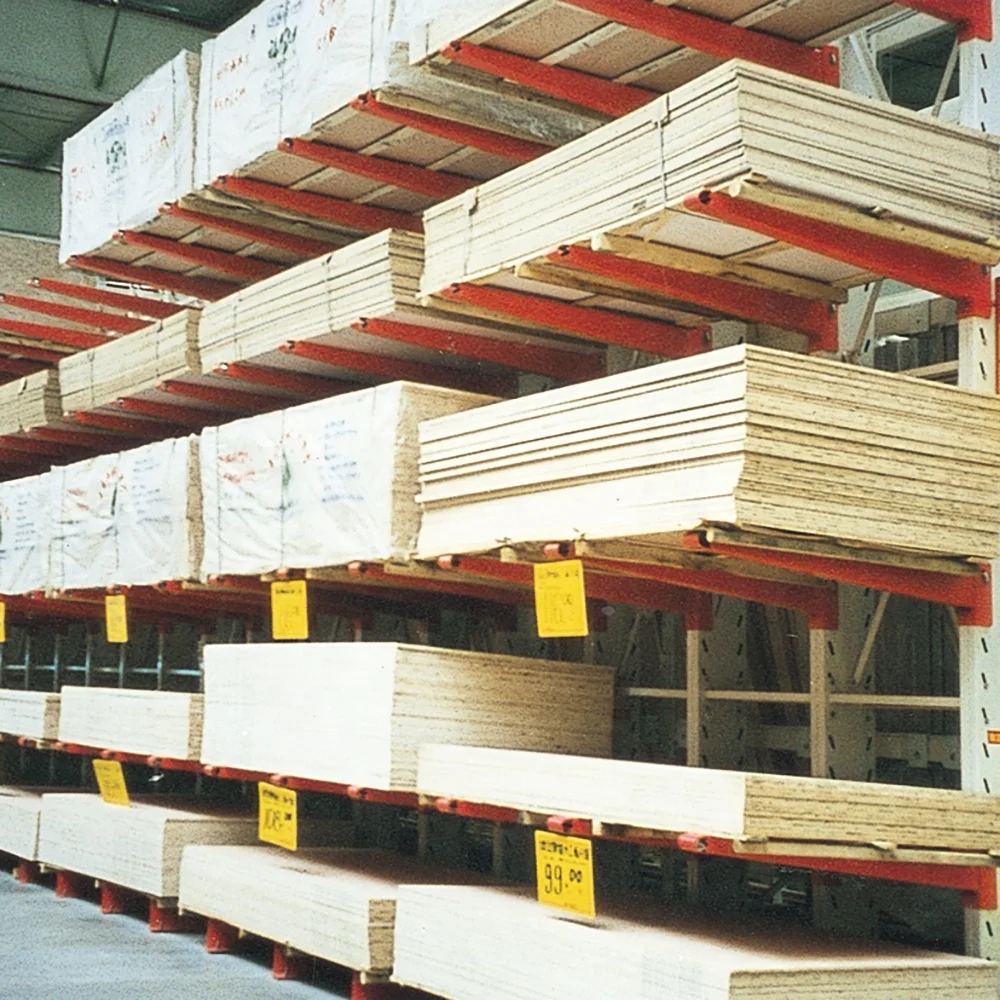

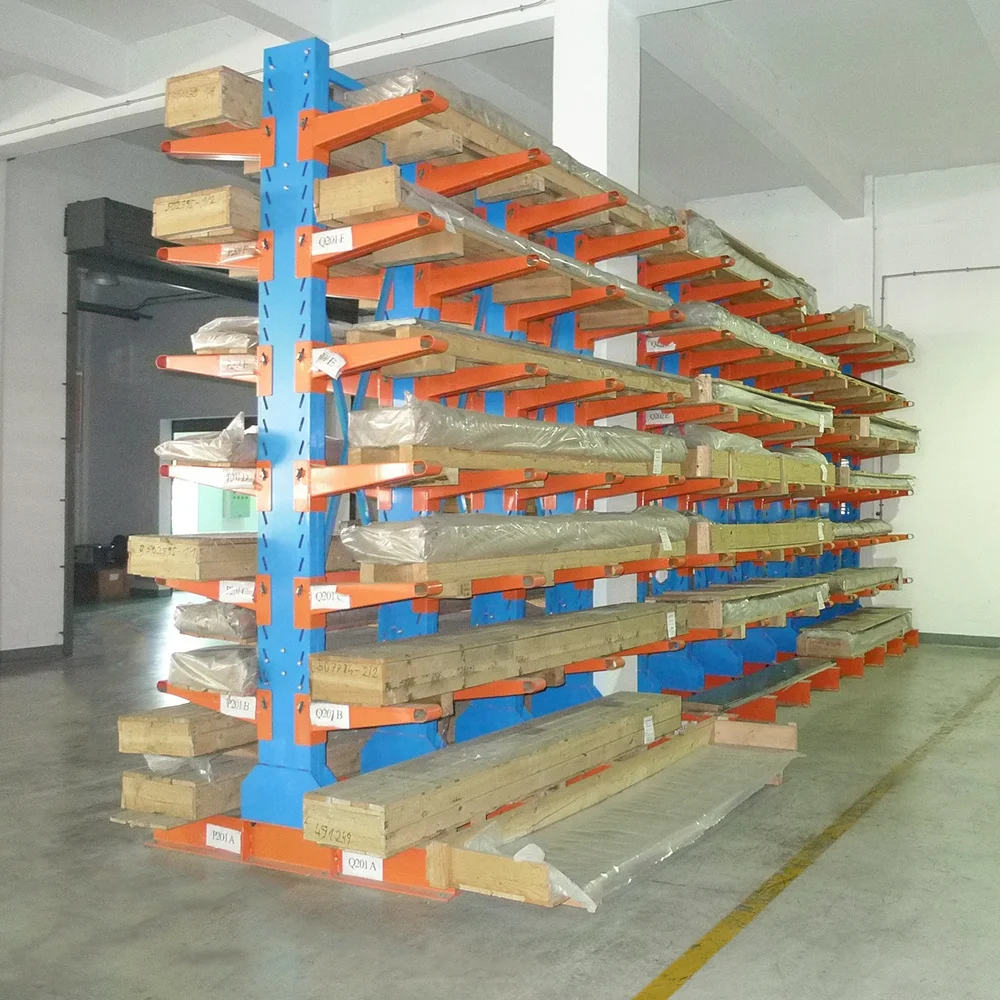

5 layer storage with 4 arm levels double sided cantilever racking for plywood product supermarket storage

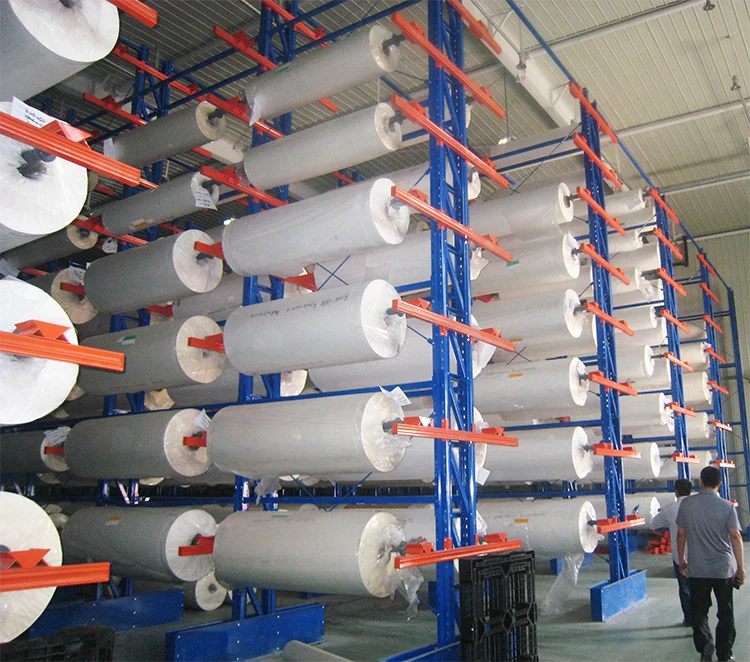

7 layer storage double sided cantilever rack for rolling product storage. The rack is topped with connecting tie, which make the system more stable on structure.
Cantilever racking for pipe material storage.
Related Products
You may be interested in following products.Click to its page on ALIBABA for more information.
Trade via Alibaba is acceptable.Client's money is more safety.
5.Pre-installation and test before shipping. Make our clients more assured of the product loading capacity.
6.Offer installation drawing & guidence. When needed,we will send installation crew to do all the installation job or send one to help guide installation.
Packaging & Shipping
To protect the racks from damage during transportation,we offer different packing for diffferent rack types and order quantity.
1. For container load quantity:
Packing method:export plywood+cardboard+stretch film+steel or reinforced plastic belt
2. For less than container load quantity:
Packing method 1:eport plywood+cardboard+stretch film+bubble film+steel or reinforced plastic belt(more than container quantity)
Packing method 2:export carton box
Following shows some packing and shipping pictures for reference.
Company Information
Company : Fuyi Intelligent Logistics Equipment (Nanjing) Co., Ltd.
selective pallet rack, long span shelving, cantilever racking, drive in racking, mezzanine floor, gravity flow racking, push back racking, drawer racking, AS/RS system, stacking rack, wire container, steel pallet, steel cage and other customized steel product.
2). Service:
Storage rack consulting, design, producing, installation and sourcing service for other products.
Workshop show
Didn't find what you are looking for? Click to homepage for more products.
FAQ
Question 1:
What should I provide to get a detailed quote?
Answer 1:
Situation 1: When you have detailed cantilever racking drawing, provide us the drawing.
Situation 2: When you don’t have drawing, provide us following information:
2.1 Rack length, width, and height;
2.2 Max. load per arm or max. goods weight stored on arms;
2.3 Arm levels;
2.4 Quantity osr warehouse size for storage rack (length, width and height);
2.5 Storage temperature.
Situation 3: When above 2 situation don’t suit you, it is also to get a detailed price. What you do is contact us.
Question 2:
Do you provide sample? Is it free or extra?
Answer 2:
We provide sample parts free charged and you just need to pay the freight.
Question 3:
I’d like to visit you. Which city should I go?
Answer 3:
We have office and factory in Nanjing. Before you come, we will help you book hotel when needed. When you arrive at the Nanjing International airport, we will pick you up and take to hotel or directly to factory. We have sales person and driver who will be with you during the visit. You don’t have to worry about the traffic matter.
Question 4:
Why choose you?
Answer 4:
1. Cooperation; we have many years’ experience in storage rack industry and know the importance of cooperation. Happy cooperation is what we have been working on.
2. Provide not only product but also sourcing service.
3. Committed to providing customers what suit them best than the most.
