Высокое качество shjz 1205 EKTN9 самоустанавливающимся шарикоподшипником
- Category: >>>
- Supplier: Shandong Huafei Bearing Co. Ltd.
Share on (1600219690478):
Product Overview
Description
Self-aligning ball bearing

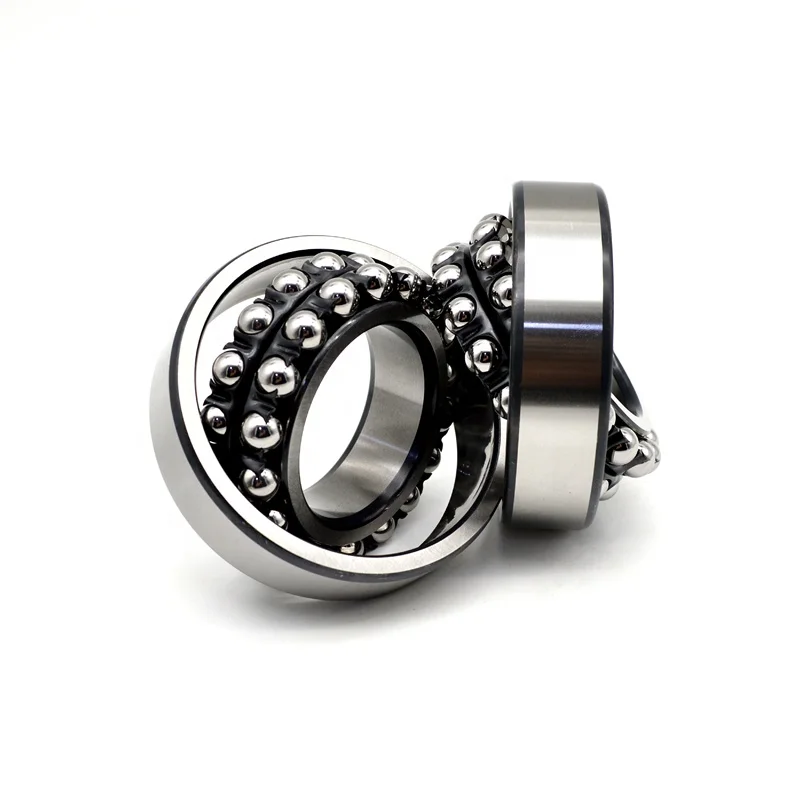

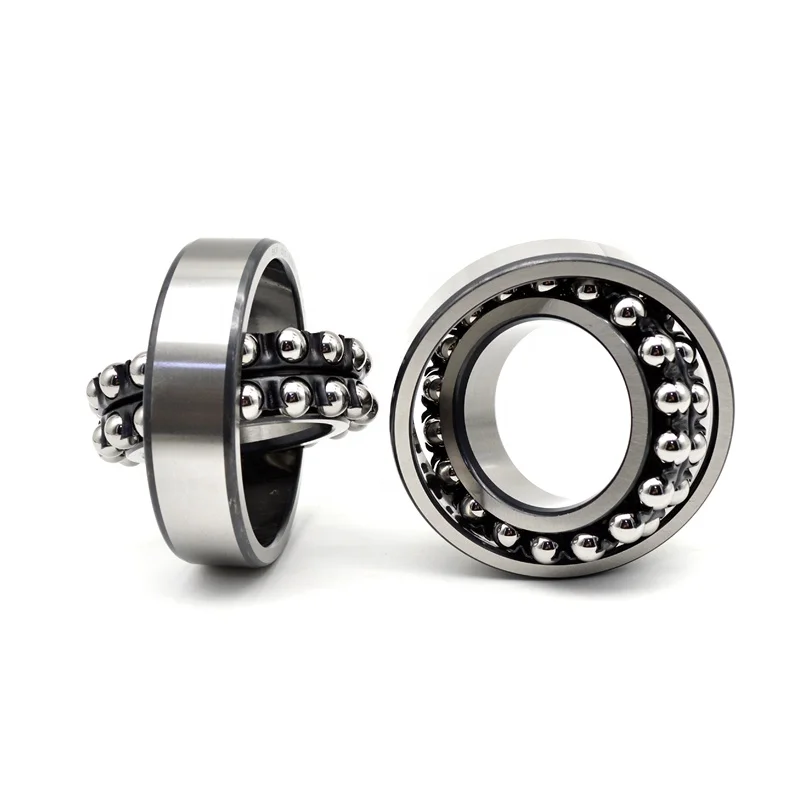

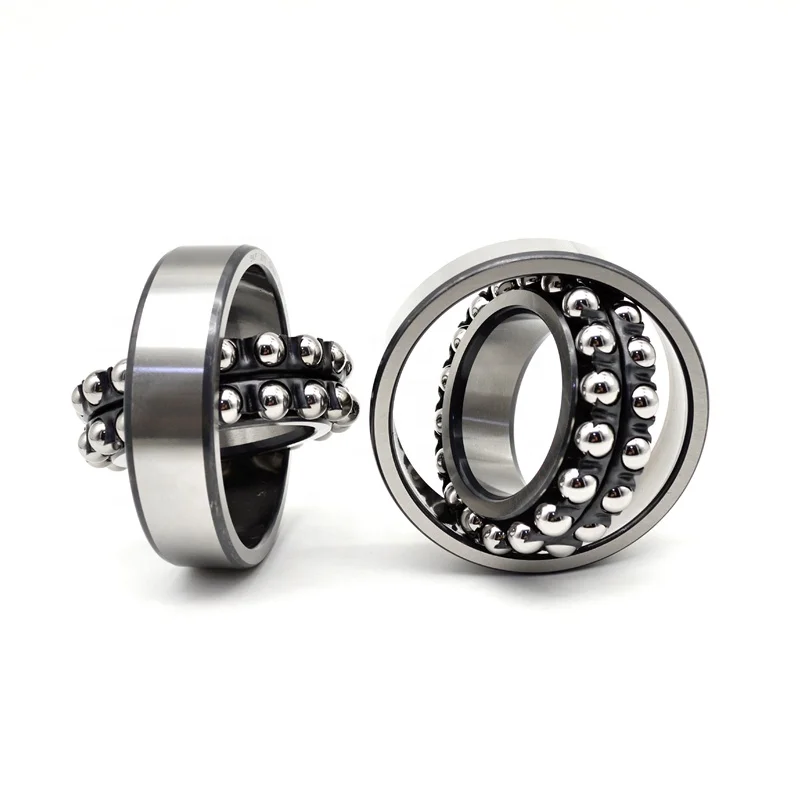

High quality SHJZ 1205 EKTN9 Self-aligning ball bearing
Product Description
Introduction of self-aligning ball bearing
self-aligning ball bearing has cylindrical hole and conical hole. Cage material includes steel plate, synthetic resin, etc. Its feature is that the outer ring raceway is spherical, with automatic self-aligning, which can compensate the error of self-aligning ball bearing caused by different centrality and shaft deflection, but the relative inclination of the inner and outer rings shall not exceed 3 degrees.
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has the self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work
It can bear large radial load and certain axial load. The outer ring raceway of this kind of bearing is spherical, so it has the self-aligning performance. When the shaft is bent or tilted, the relative inclination between the inner ring center line and the outer ring center line is not more than 1 ° to 2.5 °, the bearing can still work
self-aligning ball bearing
Principal dimensions | Basic load ratings | Speed ratings | Designation | ||||
dynamic | static | Reference speed | Limiting speed | ||||
d[mm] | D[mm] | B[mm] | C[kN] | C0[kN] | [r/min] | [r/min] | |
20 | 47 | 18 | 16.8 | 4.15 | 28 000 | 20 000 | 2204 ETN9 |
20 | 52 | 15 | 14.3 | 4 | 26 000 | 18 000 | 1304 ETN9 |
20 | 52 | 21 | 14.3 | 4 | 9 000 | 2304 E-2RS1TN9 | |
20 | 52 | 21 | 18.2 | 4.75 | 26 000 | 19 000 | 2304 M |
20 | 52 | 21 | 18.2 | 4.75 | 26 000 | 19 000 | 2304 TN9 |
25 | 52 | 15 | 14.3 | 4 | 28 000 | 18 000 | 1205 EKTN9 |
25 | 52 | 15 | 14.3 | 4 | 28 000 | 18 000 | 1205 EM |
25 | 52 | 15 | 14.3 | 4 | 28 000 | 18 000 | 1205 ETN9 |
25 | 52 | 18 | 14.3 | 4 | 9 000 | 2205 E-2RS1KTN9 | |
25 | 52 | 18 | 14.3 | 4 | 9 000 | 2205 E-2RS1TN9 | |
25 | 52 | 18 | 16.8 | 4.4 | 26 000 | 18 000 | 2205 EKTN9 |
25 | 52 | 18 | 16.8 | 4.4 | 26 000 | 18 000 | 2205 ETN9 |
25 | 62 | 17 | 19 | 5.4 | 22 000 | 15 000 | 1305 EKTN9 |
25 | 62 | 17 | 19 | 5.4 | 22 000 | 15 000 | 1305 ETN9 |
25 | 62 | 24 | 19 | 5.4 | 7 500 | 2305 E-2RS1TN9 | |
25 | 62 | 24 | 24.2 | 6.55 | 22 000 | 16 000 | 2305 M |
25 | 62 | 24 | 27 | 7.1 | 22 000 | 15 000 | 2305 ETN9 |
30 | 62 | 16 | 15.6 | 4.65 | 24 000 | 15 000 | 1206 EKTN9 |
30 | 62 | 16 | 15.6 | 4.65 | 24 000 | 15 000 | 1206 EM |
30 | 62 | 16 | 15.6 | 4.65 | 24 000 | 15 000 | 1206 ETN9 |
30 | 62 | 20 | 15.6 | 4.65 | 7 500 | 2206 E-2RS1KTN9 | |
30 | 62 | 20 | 15.6 | 4.65 | 7 500 | 2206 E-2RS1TN9 | |
30 | 62 | 20 | 23.8 | 6.7 | 22 000 | 15 000 | 2206 EKTN9 |
30 | 62 | 20 | 23.8 | 6.7 | 22 000 | 15 000 | 2206 ETN9 |
30 | 62 | 48 | 15.6 | 4.65 | 6 700 | 11206 TN9 | |
30 | 72 | 19 | 22.5 | 6.8 | 19 000 | 13 000 | 1306 EKTN9 |
30 | 72 | 19 | 22.5 | 6.8 | 19 000 | 13 000 | 1306 ETN9 |
Specification
item | value |
Type | BALL |
Structure | self-aligning ball bearing |
Applicable Industries | sugar crushing and other industries, general machinery,, Withstand heavy loads and impact loads |
Brand Name | SHJZ |
Model Number | 1205 EKTN9 |
Precision Rating | P0,P6,P5,P4,P2 |
Seals Type | OPEN |
Number of Row | DOUBLE ROW |
Place of Origin | Shandong,China |
Product name | Self-aligning Ball Bearing 1205 EKTN9 |
Material | Chrome Steel GCR15 |
Model | 1205 EKTN9 |
Size | 25*52*15mm |
Service | OEM Customized Services |
Feature | Stable Performance:low Voice |
Cage | Steel Cage |
Weight | 0.53KG |
Application | Automotive.tractor.construction Machinery.rolling Mill |
Brand | SHJZ |
Bearing series
Mini Series: 10x, 12x, 13X
General series: 12xx, 13xx, 22xx, 23xx
Mini Series: 10x, 12x, 13X
General series: 12xx, 13xx, 22xx, 23xx
Company Profile
More about the company：
Shandonghuafeibearing co.,LTD,German technical process Bainite quenching. With industry and trade as one, specialized in bearing design,research and development, production, sales. Own import and export righet, and passed GB/ T19001-2016/ISO9001:2015 qualit management system certification.Specializing in the production
of automotive hub bearings tapered roller bearings, deep groove ball bearings,spherical bearings and various non-standard bearings,can be customized according to customer drawings, samples,OEM processing production services.OEM processing production services. The company has advanced production equipment, with strong technical force,high-quality staff team, optimize product
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as adesignated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest managnment continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
design, improve processing technology, strictly in accordance with international standards to control the quality of products,so that our products have reached the domestic advanced level, at the same time, our brand "SHJZ" has been designated as adesignated supplier by many foreign customers. The company adheres to the business philosophy of "customer-oriented, honest managnment continuous
improvement", and adopts the enterprise standard higher than the national standard for production.
Packing & Delivery
Payment terms
A.100%T/TB.50% T/T in advance .50% against photo of goods
C.Western union
D.Paypal
E.Offical Bank Account
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
A.100%T/TB.50% T/T in advance .50% against photo of goods
C.Western union
D.Paypal
E.Offical Bank Account
Package
A.tube package + outer carton + pallets
B.single box + outer carton + pallets
C.tube package + middle box + outer carton + pallets
D.According to your request.
FAQ
1. who are we?
We are based in Shandong, China, start from 2020,sell to Domestic Market(20.00%),Western Europe(10.00%),Africa(10.00%),Southeast Asia(10.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(8.00%),Northern Europe(5.00%),Southern Europe(4.00%),Oceania(3.00%),Eastern Asia(3.00%),South America(3.00%),Central America(2.00%),South Asia(2.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bearing,Bearing pedestal,Precision bearing,Auto parts,Bearing accessories
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
We are based in Shandong, China, start from 2020,sell to Domestic Market(20.00%),Western Europe(10.00%),Africa(10.00%),Southeast Asia(10.00%),North America(10.00%),Eastern Europe(10.00%),Mid East(8.00%),Northern Europe(5.00%),Southern Europe(4.00%),Oceania(3.00%),Eastern Asia(3.00%),South America(3.00%),Central America(2.00%),South Asia(2.00%). There are total about null people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bearing,Bearing pedestal,Precision bearing,Auto parts,Bearing accessories
4. why should you buy from us not from other suppliers?
null
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:null;
Accepted Payment Type: null;
Language Spoken:null
