Контейнер резервуар Shengrun ISO
- Category: Containers >>>
- Supplier: Shandong,Shengrun,Automobile,Co.,Ltd.
Share on:
Product Overview
Description

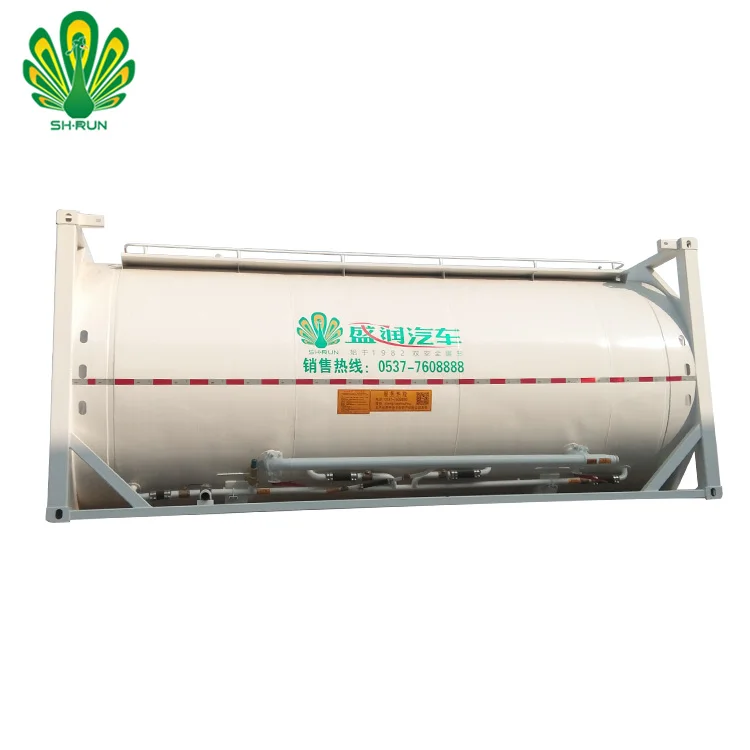

Shengrun ISO Container Tank
Products Description
Shengrun ISO tank (tank container) is a kind of container installed in a fastening external frame. It is used to transport liquid goods such as alcohol, oil, liquid food, chemicals and so on.
We can also produce the tank trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, JET A-1, Water, Liquid chemical, Food oil etc.
According to the Material, we have Carbon Steel / Stainless Steel / Aluminum Alloy tank semi trailer.
According to clients' requirements, we can customize different volumes and compartments.
Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of oil tanker in China has already occupied a very high market share in Africa and Russia. Our cooperation can be CKD or SKD mode! Our phone service 24 hours service for you.
We can also produce the tank trailers for different liquid like Fuel, Petrol, Diesel, Crude oil, Bitumen, Palm oil, JET A-1, Water, Liquid chemical, Food oil etc.
According to the Material, we have Carbon Steel / Stainless Steel / Aluminum Alloy tank semi trailer.
According to clients' requirements, we can customize different volumes and compartments.
Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of oil tanker in China has already occupied a very high market share in Africa and Russia. Our cooperation can be CKD or SKD mode! Our phone service 24 hours service for you.

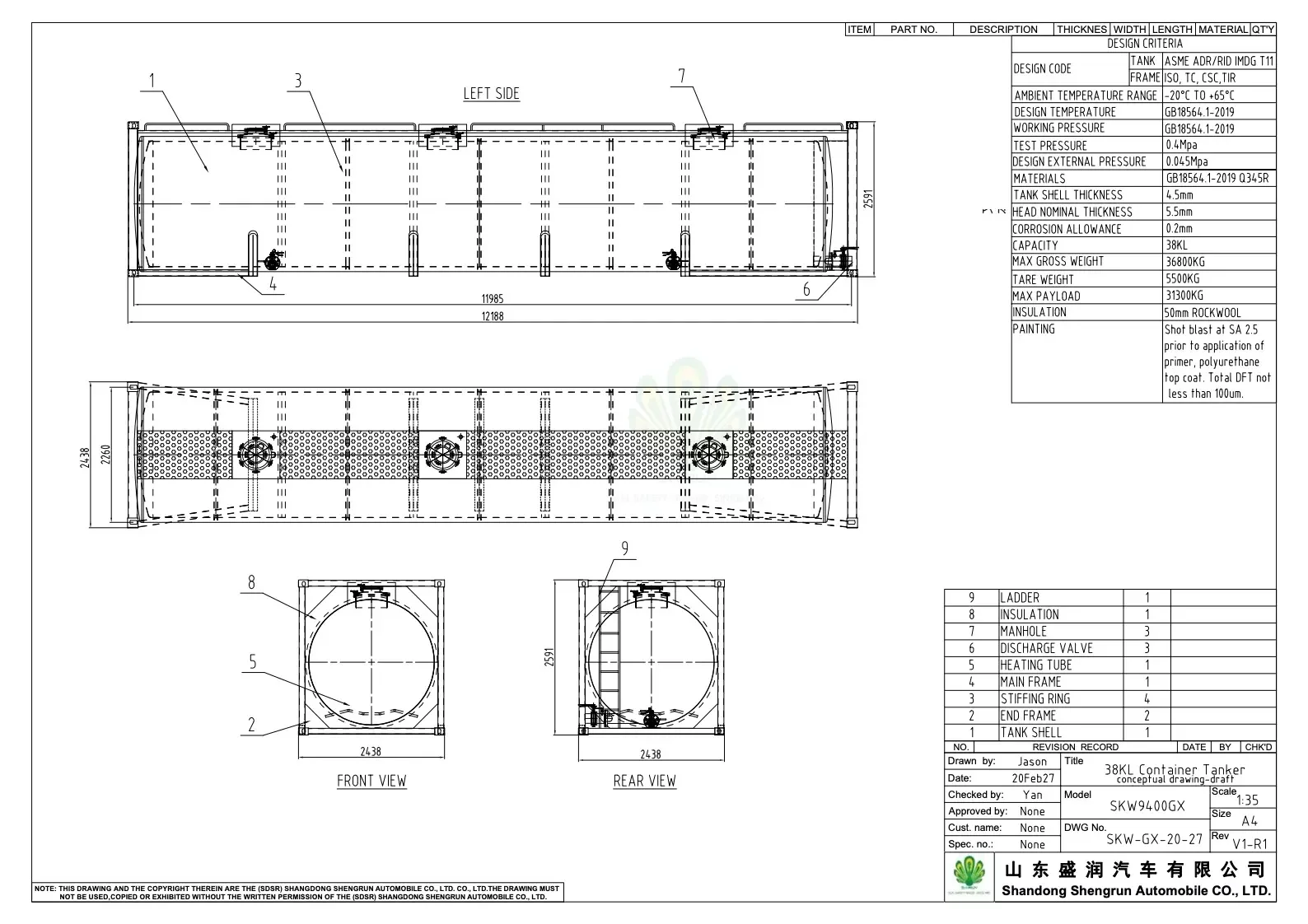

Specification For Tank Container | ||
Manufacturer | Shandong Shengrun Automobile CO., LTD. | |
Type | Tank container | |
Effective volume | 20000 Liters/40000 Liters | |
Dimension | 6058*2438*2591(mm)/12192*2438*2591(mm) | |
Tare (approximately) | 3700~7100kg | |
Tank Shell Thickness | 4.5mm Q235B/S30408/S31603/5454L | |
Head Nominal Thickness | 5.5mm Q235B | |
Corrosion Allowance | 0.2mm | |
Compartment | One | |
Insulation | Optional: 50 mm thick rock wool insulation | |
design pressure | 0.045MPa | |
Test pressure | 0.4Mpa | |
Design Operating Temp. | -20°C to 65°C | |
Lifting Ladder | Including Top walkway and 2 ladders | |
Manhole cover | 2 sets 500mm Diameter | |
Bottom Valve | 1 set of Bottom Valve,Diameter is 3 or 4 inch | |
Discharging valve | 1 set | |
Frame Material | Q345D Steel | |
Baffle | 2 pieces | |
Heating Equipment | Optional | |
Color | As customer's requirement | |
Painting | Complete sand blasting to clean rust,1 coat of anticorrosive prime 2 coats of final paint | |
Any parts fitted could according to clients request, contact us to get more. | ||
Specification | Main Material | Dimensions | Filling Medium |
20 Feet (ICC) | Carbon steel tank (5mm thickness) Q345D frame | Shape:6058*2438*2591mm Tank: DN2380*5 Weight: 3700kg | Acetone Butanol Ethanol Gasoline Toluene Sodium hydroxide solution Monomer styrene Ammonia Benzene Butyl acetate Carbon disulfide Dimethylamine water Ethyl acetate Isobutanol Isopropanol Kerosene Methanol Crude oil Xylene Acetone cyanide Glacial acetic acid Acetic acid solutioon Anhydrous chloraldehye Formaldehyde solution Phosphorus trichloride Hydrated sulfide sodium Aqueous hydrogen peroxide Nitric acid Amine water |
Stainless steel tank (6mm thickness) Q345D frame | Shape:6058*2438*2591mm Tank: DN2380*5 Weight: 4500kg | ||
Stainless steel tank (5mm thickness) Q345D frame | Shape:6058*2438*2591mm Tank: DN2380*5 Weight: 3700kg | ||
30 Feet (IBB) | Stainless steel tank (5mm thickness) Q345D frame | Shape:1925*2438*2591mm Tank: DN2200*5 Weight: 5068kg | |
Carbon steel tank (5mm thickness) Q345D frame | Shape:1925*2438*2591mm Tank: DN2200*5 Weight: 5060kg | ||
40 Feet (IAA) | Stainless steel tank (4mm thickness) Q345D frame | Shape:12192*2438*2591mm Tank: DN2200*4 Weight: 6100kg | |
Carbon steel tank (5mm thickness) Q345D frame | Shape:12192*2438*2591mm Tank: DN2300*5 Weight: 6700kg |
More Types
Our Advantages
We are a manufacturer, not a trading company!
1. Shengrun factory started in 1983 and has nearly 40 years of industry manufacturing experience. And obtained more than 60 national patents.
2. Finite Element analysis used in vehicle to promote product performance.
2. Finite Element analysis used in vehicle to promote product performance.
3. The product complies with international standards such as IMDG / ADR / RID / TC / CSC / ASME / EN, and is applicable to the global shipping, road and rail transportation regulations and standards.
4. Steel frames are built with top-class hot rolled or rolled steel plate, which ensure Beam and frame’s Toughness and strength.
5. Submerged arc Automatic welding construction, Key point reinforces and purposeful welding avoid some parts easier lose welding.
6. Whole Trailer body Electrophoresis Painting, resistance, painting effect can reach above 10 years.
7. Tough ribs design, Ensure the safety and carrying capacity of trailer.
8. Uniquely designed low-load platform provides lower transport center of gravity and smoother transportation.
9. We adopt world famous brand of parts, like JOST, WABCO braking valve etc.
10. Different types of suspension are designed for various operating condition: Bogie suspension; Air suspension; Mechanical suspension.
11. Specially designed anti-Tire abrasion suspension system,Prevent tire offset after loading.
12. Trailer Main Parts Warranty Period Reach 12 Months.
13. Strict factory inspections ensure that every car leaves the factory perfectly.
Customer Visit

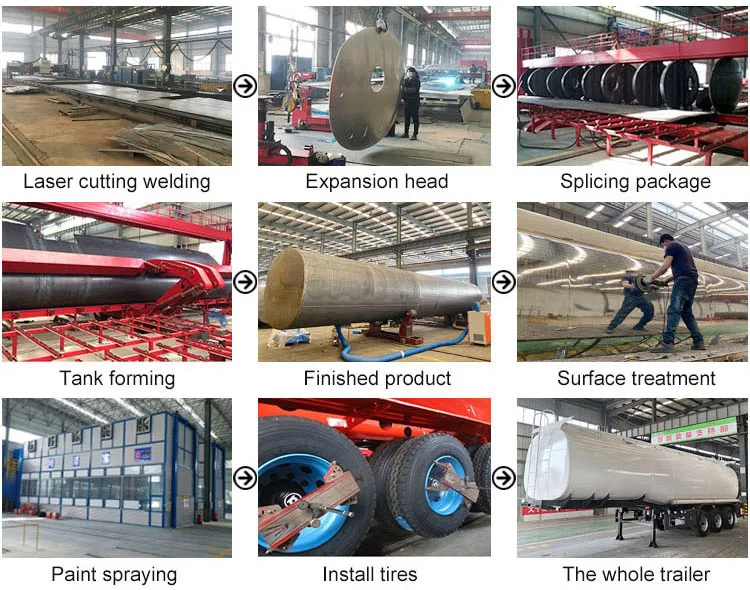

Production Process
Packing & Shipping
We usually adopt shipping by bulk cargo, flat rack, container container and Roro ship. We will arrange the most cost-effective transportation mode according to the quantity of products. All trailers will be polished with wax before shipping. We guarantee that all products have gone through strict inspection and are in good condition before shipment. We strive for 100% customer satisfaction on every sale we close.
Delivery time:10-20 working days after payment receipt confirmed (based on actual quantity). Packing:Standard export packing, orcustomized packing as your request.
Professional goods shipping forwarder.
Our Service
1. 24months for main parts (engine, axle, body and beam, etc).
2. Technical Support by phone Whatsapp or email around the clock.
3. Lifelong Parts Supports.
4. Engineer available service oversea.
Our Factory
Shandong Shengrun Automobile Co., Ltd. is the full-size Modified Truck enterprise which integrates the design of product, scientific research developing, production and sale together, possessing subsidiary companies of automobile production, automobile trade and automobile fittings production, etc. Our leading products include "Shengrun" brand semi-trailers, fuel tanker, bulk cement tanker, particle material tanker, LNG, LPG, container trailer, sidewall trailer, low bed trailer, dump trailer and other special vehicles.
Shengrun has passed ISO9001:2008 quality management system certification, 3C product certification, national safety production standardization secondary enterprise, has obtained A2 fixed pressure vessel (low temperature storage tank), C2 automobile tanker(low temperature), C3 tank container pressure vessel Production license, American Society of Mechanical Engineers ASME qualification certification, European ADR vehicle certification, China Classification Society tank container production approval certificate, national dangerous goods packaging, container production license, measurement management system certification, rated by the state as high-tech enterprise. And obtained more than 60 national patents.
ASME
E MARK
ISO
Classification Society
Design License of Special Equipment
ADR
Q: Does your company has your own factory?
Q: How about your price?
Q: What's your payment term?
A: Yes, we have a factory ourself, which is in this business nearly 40 years in China. Our factory is very famous where is manufacturing various trailers in Shandong, China.
Q: Could you special design and produce for me?
A: Definitely! We have all kinds of professional engineers, could design and produce special product according to customer requested. Such as: special Size, special control, or OEM, etc.
Q: Do you looking for Agent?
A: Yes, we're looking for the agent all over the world, please contact us for further discussion.
Q: How about your price?
A: Although we are brand name products,but our prices are very favorable and competitive. Customer from all over the world to purchase our products, because our best price.
Q: What's your payment term?
A: We accpet both T/T and L/C T/T: 30% deposit by T/T, 70% balance should be paid before shipment. L/C: 100% irrevocable Credit of Letter.
